Description

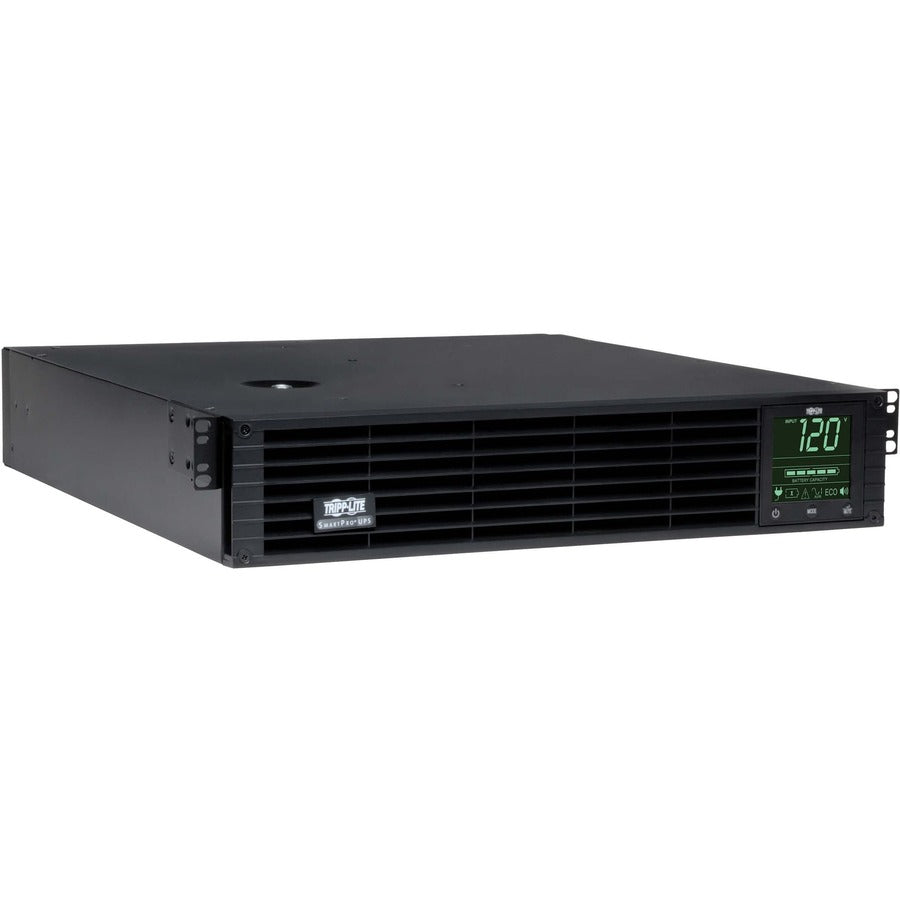

The Eaton Tripp Lite SmartPro SM3000RMXL2UTAA is a 3kVA/2.88kW Line-Interactive UPS offering reliable sine wave power protection for servers, networks, and telecom systems. Housed in a 2U rack/tower convertible form factor, it features a high-efficiency design (96% in line mode), auto-voltage regulation (AVR), and expandable runtime with optional external batteries (BP48V60RT3UTAA).

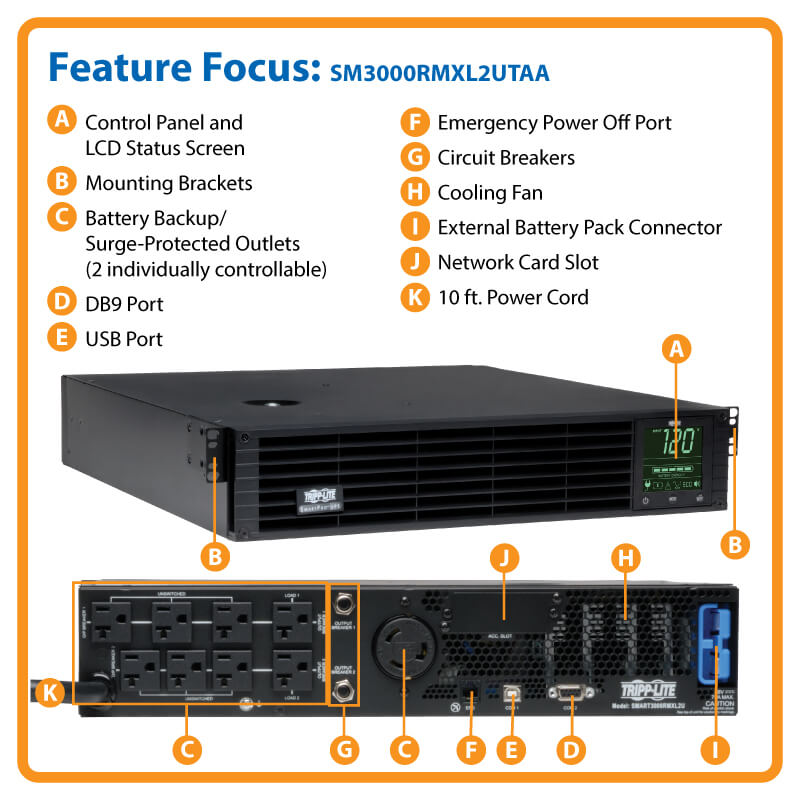

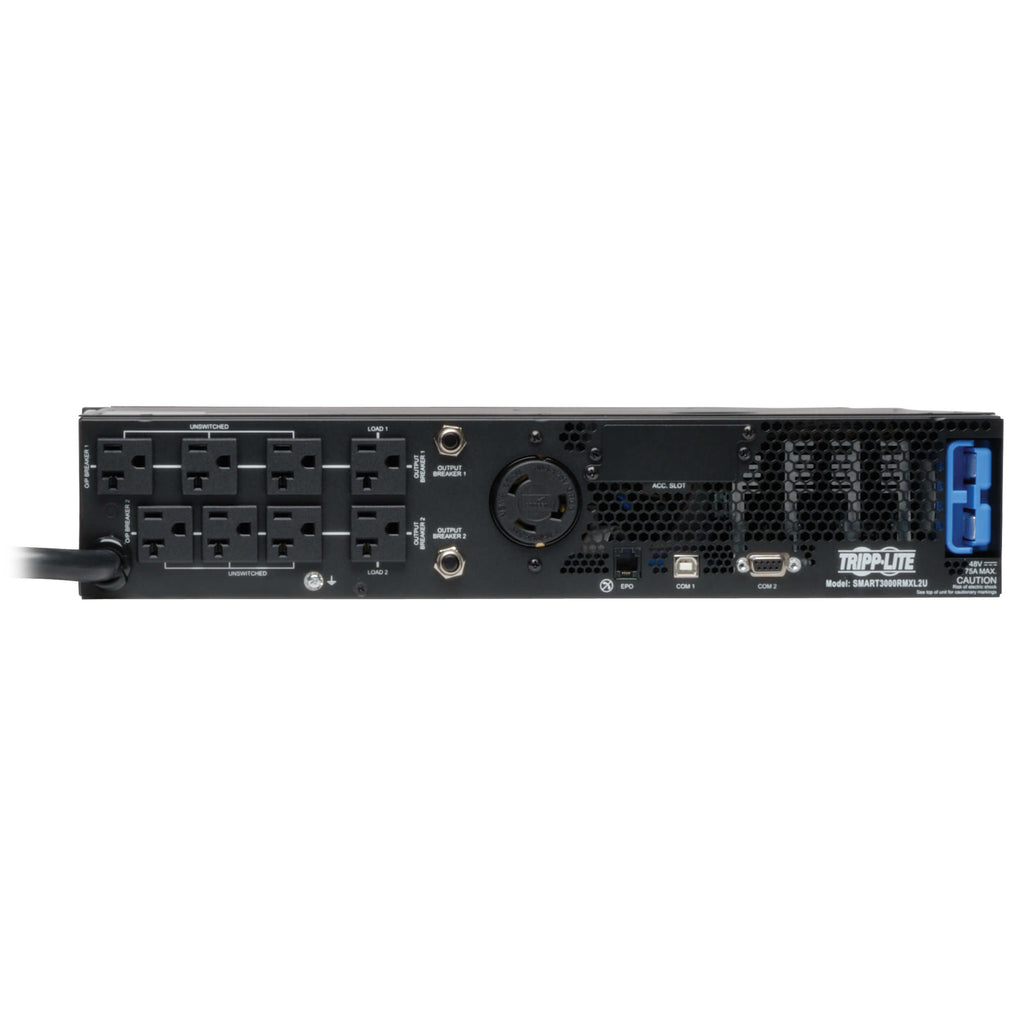

Equipped with NEMA L5-30P input and 9 total outlets (8 × 5-15/20R and 1 × L5-30R), it includes independently controllable load banks, an LCD for detailed monitoring, and multiple communication ports (USB, RS-232, EPO, SNMP slot). It supports network management card options and integrates with PowerAlert software for advanced management. TAA-compliant for GSA Schedule contracts.
| Specification | Details |
|---|---|
| Model Number | SM3000RMXL2UTAA |
| UPS Type | Line-Interactive, Sine Wave |
| Form Factor | 2U Rack/Tower Convertible |
| Power Capacity | 3000VA / 2880W / 0.96 PF |
| Input Voltage | 120V AC (NEMA L5-30P plug, 10 ft cord) |
| Input Range (AVR) | 83V to 145V |
| Output Voltage | 120V AC (Battery Mode), 110/115/120V Supported |
| Outlets | 8 × 5-15/20R, 1 × L5-30R (2 switchable load banks) |
| Waveform (AC/Battery) | Pure Sine Wave |
| Runtime at Full Load | 3 min (2880W) |
| Runtime at Half Load | 10 min (1440W) |
| Expandable Runtime | Yes, with BP48V60RT3UTAA |
| Battery Type | VRLA (Hot-swappable) |
| Battery Recharge Time | <5 hrs (from 10% to 90%) |
| Communications | USB (HID), DB9 Serial, EPO, SNMP Slot (optional WEBCARDLXE) |
| LCD Display | Rotatable LCD with status and setup functions |
| Alarm | Audible with cancel/mute button |
| Surge Protection | 570 Joules EMI/RFI Suppression |
| Cooling | Fan |
| Mounting | 4-post rack (kit included), optional 2-post, tower, wall |
| Dimensions (H × W × D) | 3.5 × 17.5 × 19 in (89 × 445 × 483 mm) |
| Weight | 64 lbs (29.03 kg) |
| Certifications | UL 1778, CSA, FCC Class A, RoHS, TAA Compliant |
| Warranty | 2-Year Limited, $250,000 Equipment Insurance (US/CA/PR) |
