Description

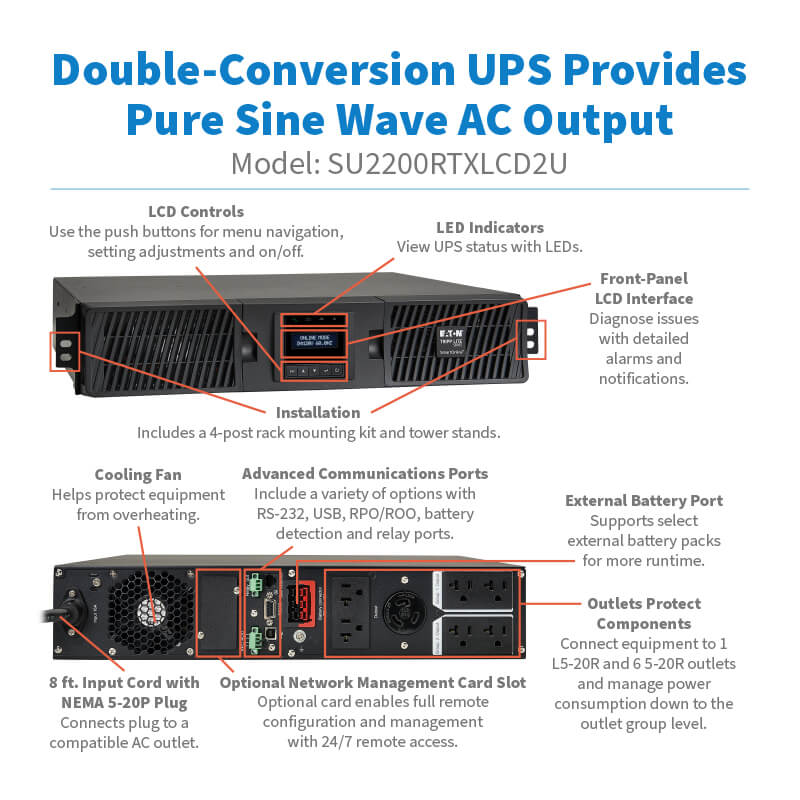

The Eaton Tripp Lite SmartOnline SU2200RTXLCD2U is a high-performance 2000VA/1800W double-conversion UPS designed for mission-critical environments like data centers, healthcare, military, and education. It delivers reliable, pure sine wave AC output while isolating connected equipment from power disturbances. With zero transfer time between online and battery modes, it ensures uninterrupted operation during outages.
Equipped with a 2U rack/tower form factor, LCD status screen, and hot-swappable batteries, this UPS offers flexible runtime with support for up to four external battery packs (BP72RT). Remote management is available via an optional WEBCARDLXE network card, while six 5-20R and one L5-20R outlets with load bank control enhance power distribution and uptime.
| Category | Details |
|---|---|
| Model Number | SU2200RTXLCD2U |
| UPS Type | On-Line, Double-Conversion |
| Power Capacity | 2000VA / 1800W |
| Input Voltage | 120V (100V, 110V, 115V, 120V, 127V supported) |
| Input Plug | NEMA 5-20P |
| Input Cord Length | 8 ft (2.4 m) |
| Output Voltage | Pure Sine Wave 120V |

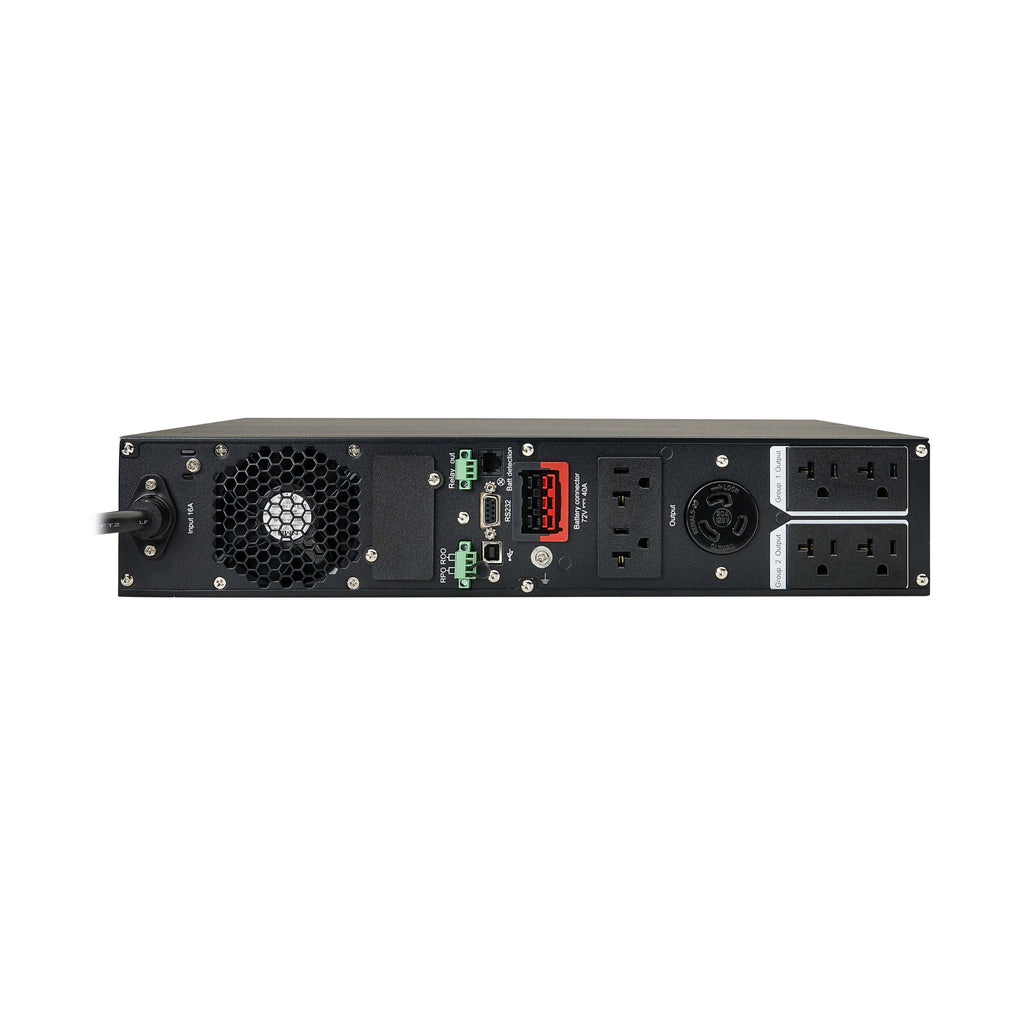

| Outlets | 6 × 5-20R, 1 × L5-20R (2 switchable load banks) |

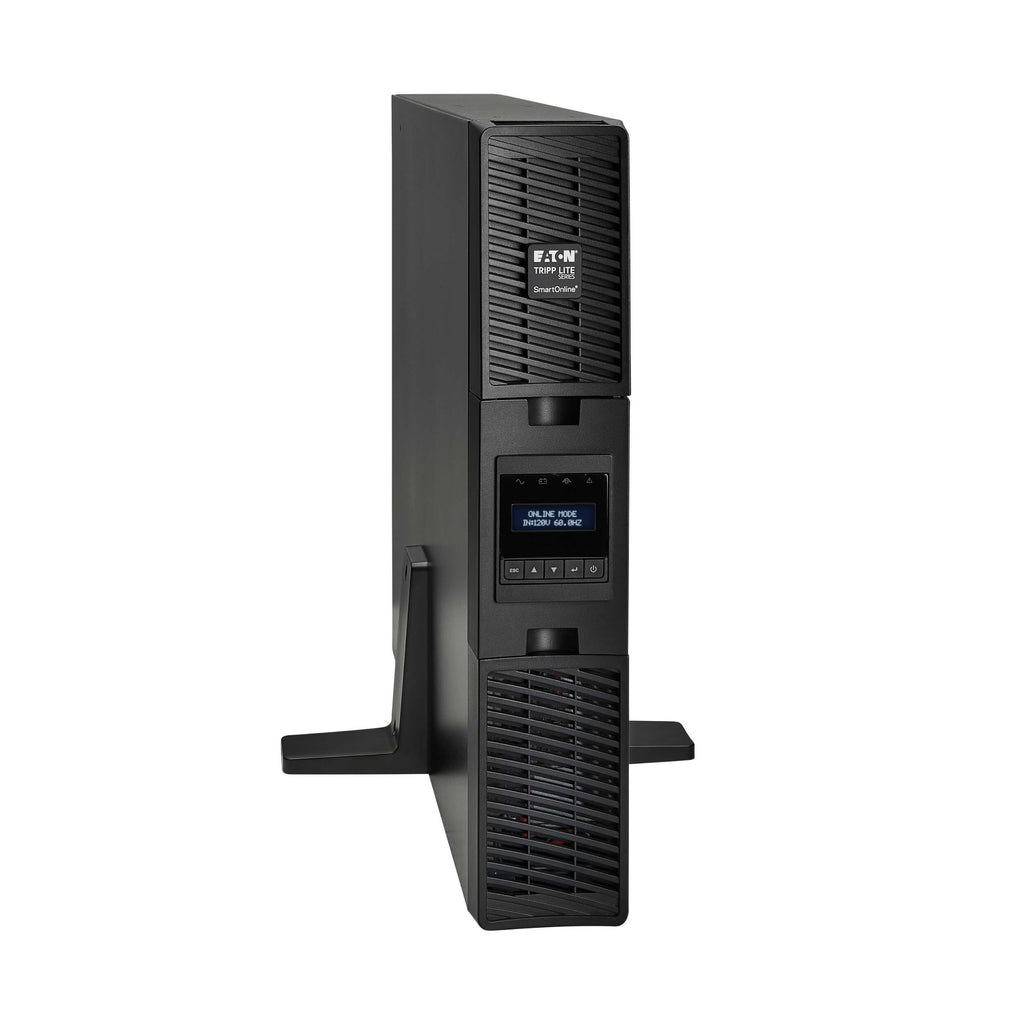

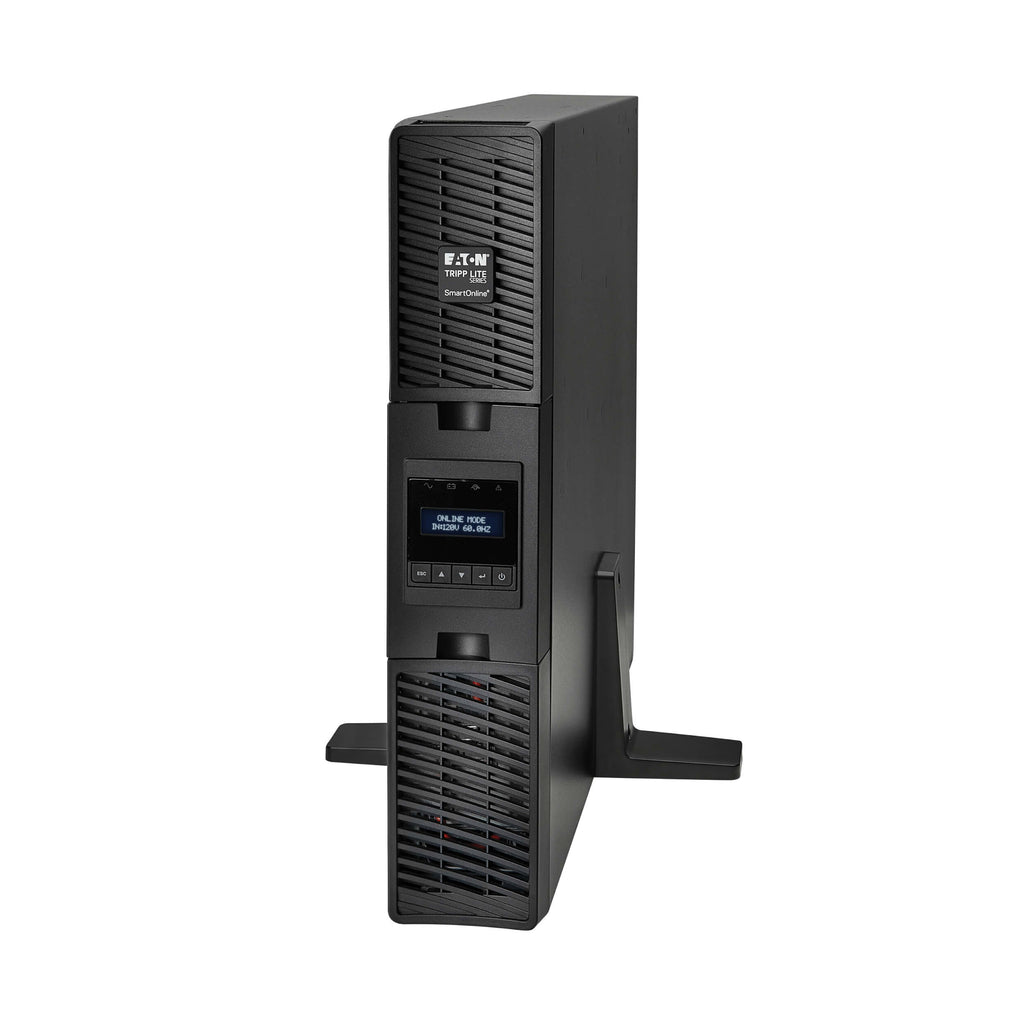

| Form Factor | 2U Rack/Tower Convertible |
| LCD Display | 2-line display with 10 selectable screens |
| Battery Type | VRLA, Hot-swappable, Expandable (BP72RT x4) |
| Full Load Runtime | 7.7 min (1800W) |
| Half Load Runtime | 20.2 min (900W) |
| Recharge Time | 3 hours to 90% |
| Remote Management | Optional WEBCARDLXE (not compatible with LX) |
| Communication Ports | USB, RS-232, Dry Contact, SNMP Slot |
| EMI/RFI Suppression | Yes (190 Joules) |
| Cooling | Internal Fan |
| Mounting Options | 4-post rack (included), 2-post (optional RK2PC) |
| Dimensions (H×W×D) | 3.41 × 17.33 × 23.82 in (8.66 × 44.02 × 60.48 cm) |
| Unit Weight | 61.51 lbs (27.90 kg) |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Noise Level | 47 dB @ 1m |
| Certifications | UL 1778, CAN/CSA 107.3, CE, FCC, RoHS, REACH |
| Warranty | 2-Year Limited Warranty + $250,000 Insurance |

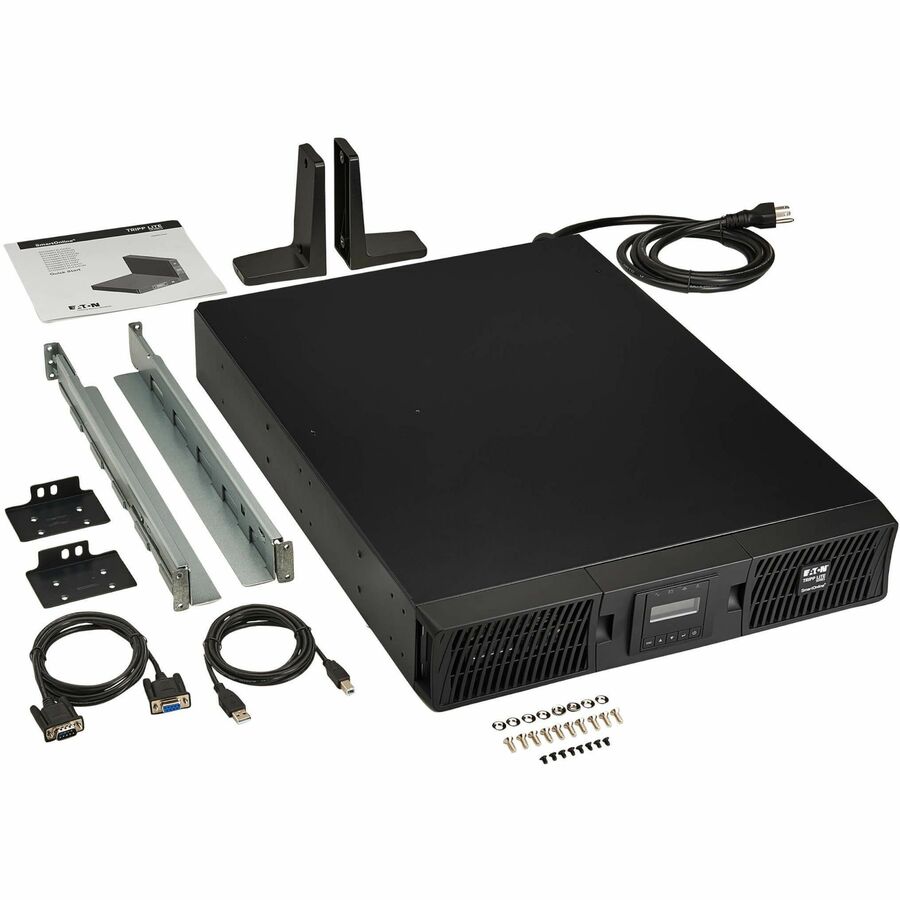

| Included Accessories | USB & DB9 cables, Rack/Tower kit, Manuals |
