Description

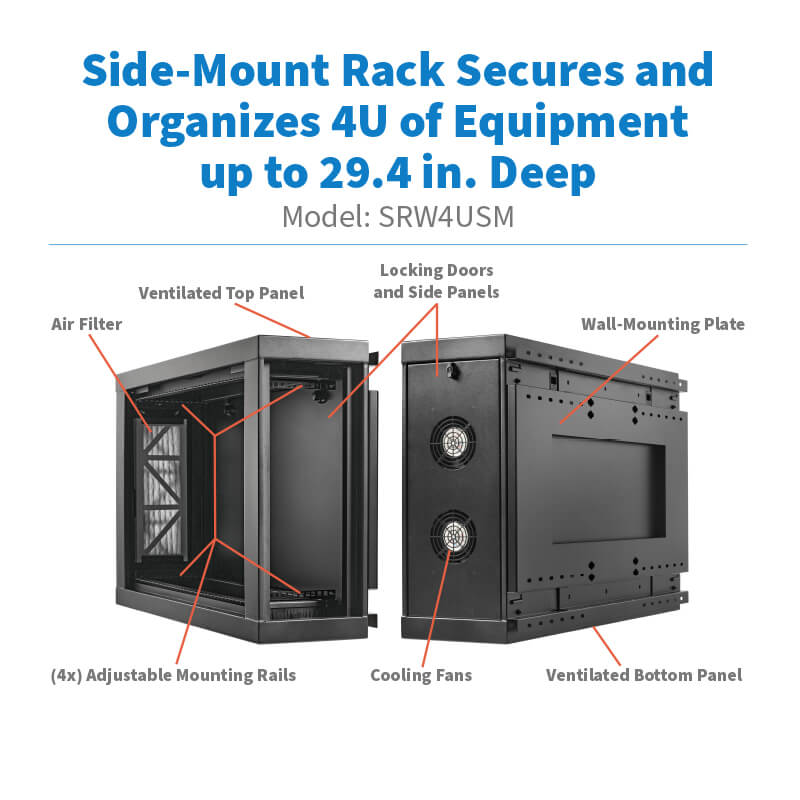

The Eaton Tripp Lite SmartRack SRW4USM is a space-saving 4U wall-mount rack enclosure designed for secure installation of 19-inch rack equipment in environments with limited floor space. Its unique side-mount design allows equipment to be installed sideways, reducing depth requirements while maintaining accessibility and airflow.
Constructed from heavy-duty steel with a durable black powder-coated finish, the SRW4USM supports up to 200 lbs of equipment, including network switches, patch panels, and compact servers. Lockable front doors and removable side panels help protect valuable equipment from tampering or theft, making it suitable for offices, retail locations, classrooms, and network wiring closets.

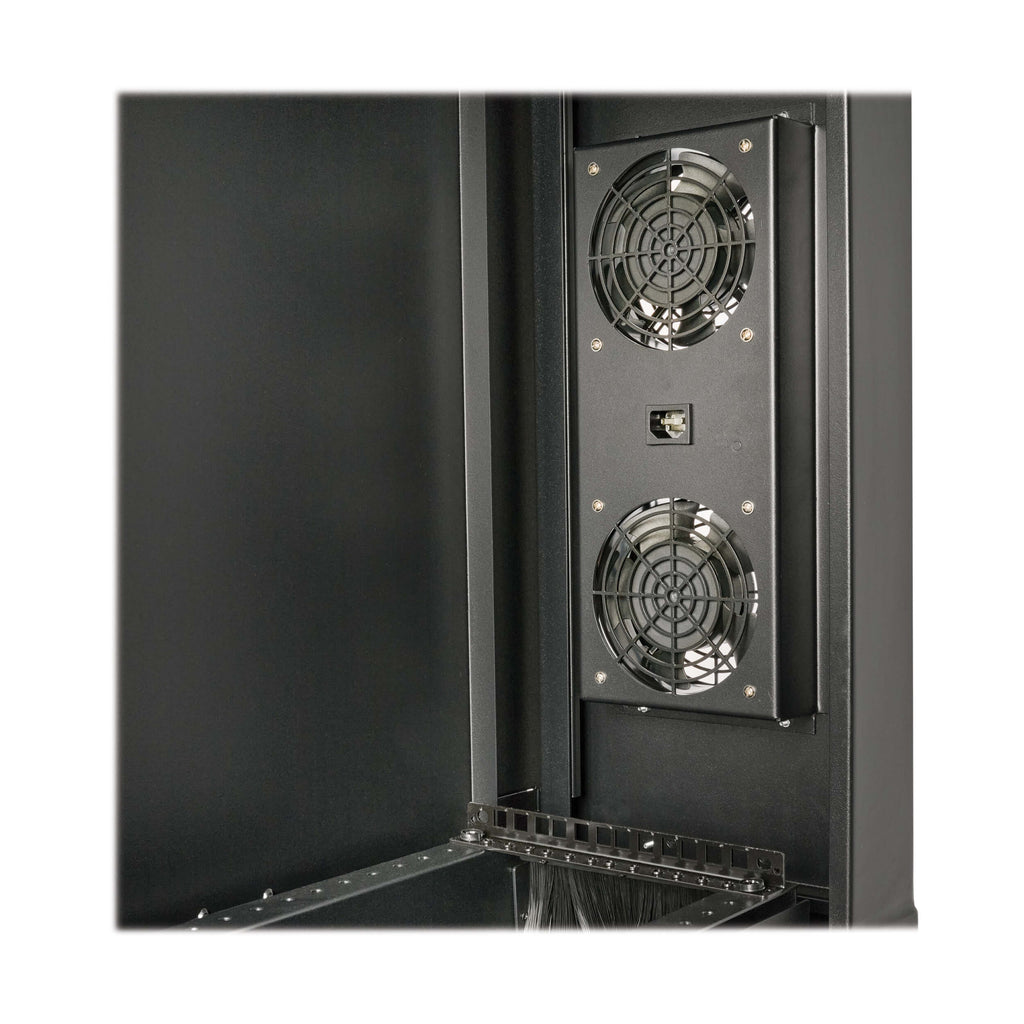

Integrated ventilation and fan support promote continuous airflow to prevent overheating, while adjustable mounting rails accommodate equipment of varying depths. The enclosure ships fully assembled for quick installation and can optionally be converted into a mobile cabinet using a compatible caster kit.
| Specification | Details |
|---|---|
| Brand | Eaton Tripp Lite Series |
| Model | SRW4USM |
| Rack Height | 4U |
| Rack Type | Low-Profile Side-Mount Wall Enclosure |
| Rack Width | 19 in |
| Maximum Equipment Depth | 29.4 in (747 mm) |
| Minimum Equipment Depth | 3 in (76 mm) |
| Load Capacity | 200 lbs (91 kg) |
| Mounting Style | Wall-Mount (Side-Mount Orientation) |
| Mounting Rails | 4 Adjustable Vertical Rails |
| Material | Heavy-Duty Steel |
| Finish | Black Powder Coat |
| Cooling | Vented Panels with Airflow Support |
| Security | Lockable Front Door and Side Panels |
| Cable Access | Top and Bottom Access Ports |
| Assembly | Fully Assembled |
| Compliance | PCI DSS Physical Security Support |
| Color | Black |
| Warranty | 5-Year Limited Warranty |
