Description

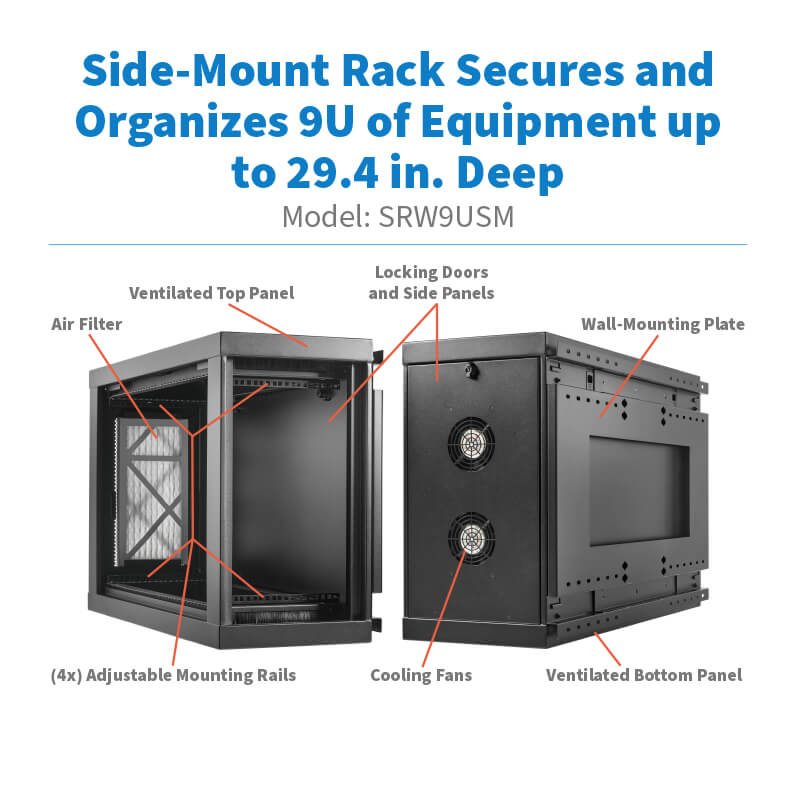

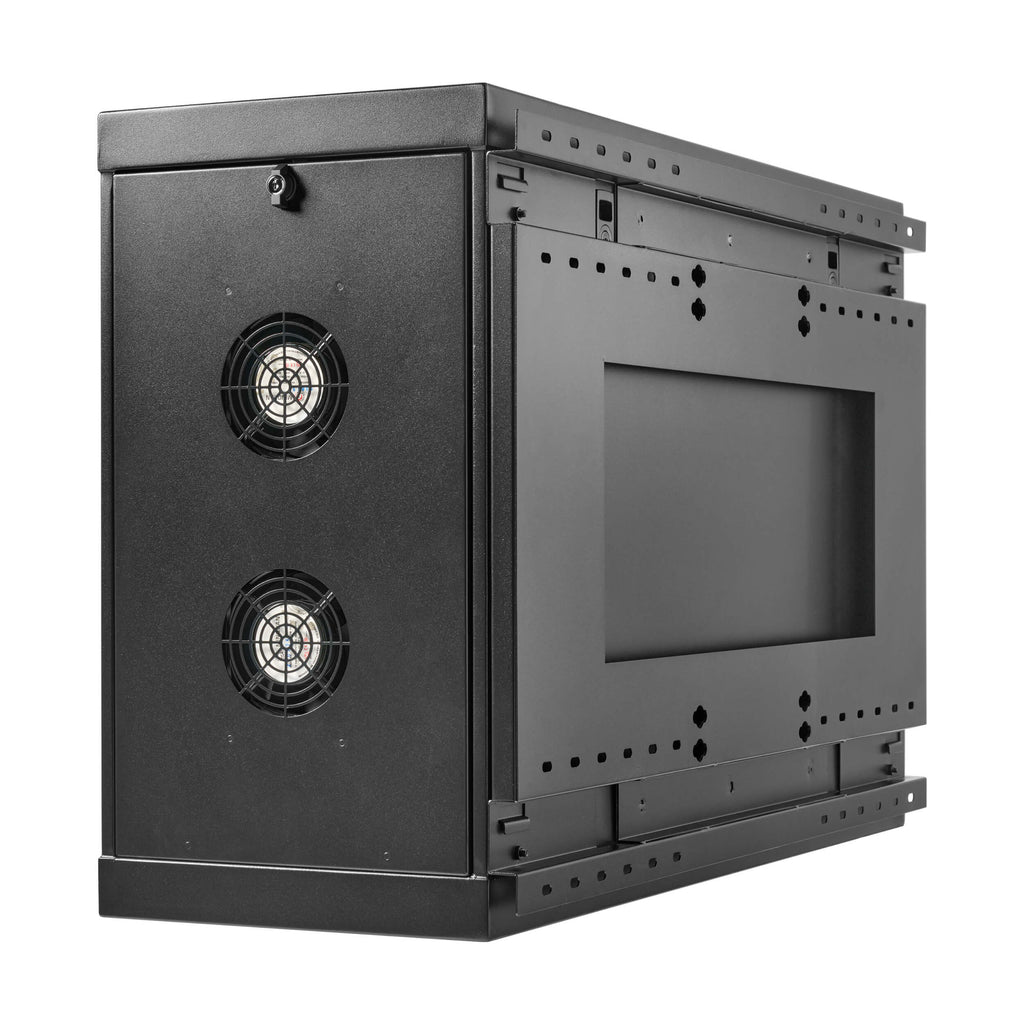

The Eaton Tripp Lite SmartRack SRW9USM is a low-profile 9U side-mount wall-mount rack enclosure designed for secure equipment installation in environments with limited floor space. Its sideways-mount design allows 19-inch rack equipment to be installed parallel to the wall, making it ideal for network closets, classrooms, retail locations, and back offices.

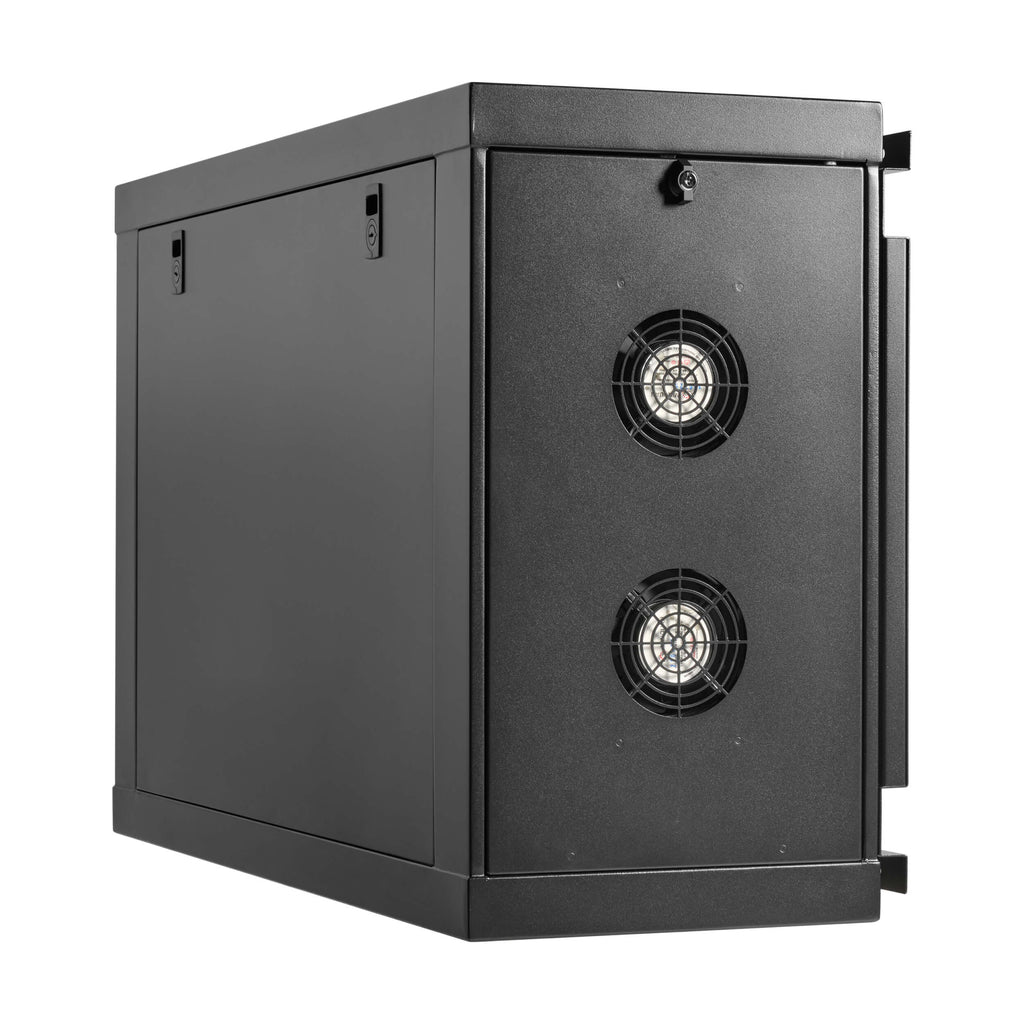

Constructed from heavy-duty steel with a black powder-coat finish, the enclosure supports equipment depths up to 29.4 inches and a maximum stationary load of 250 lbs. Lockable front door and removable side panels protect critical IT equipment from unauthorized access, tampering, or theft.

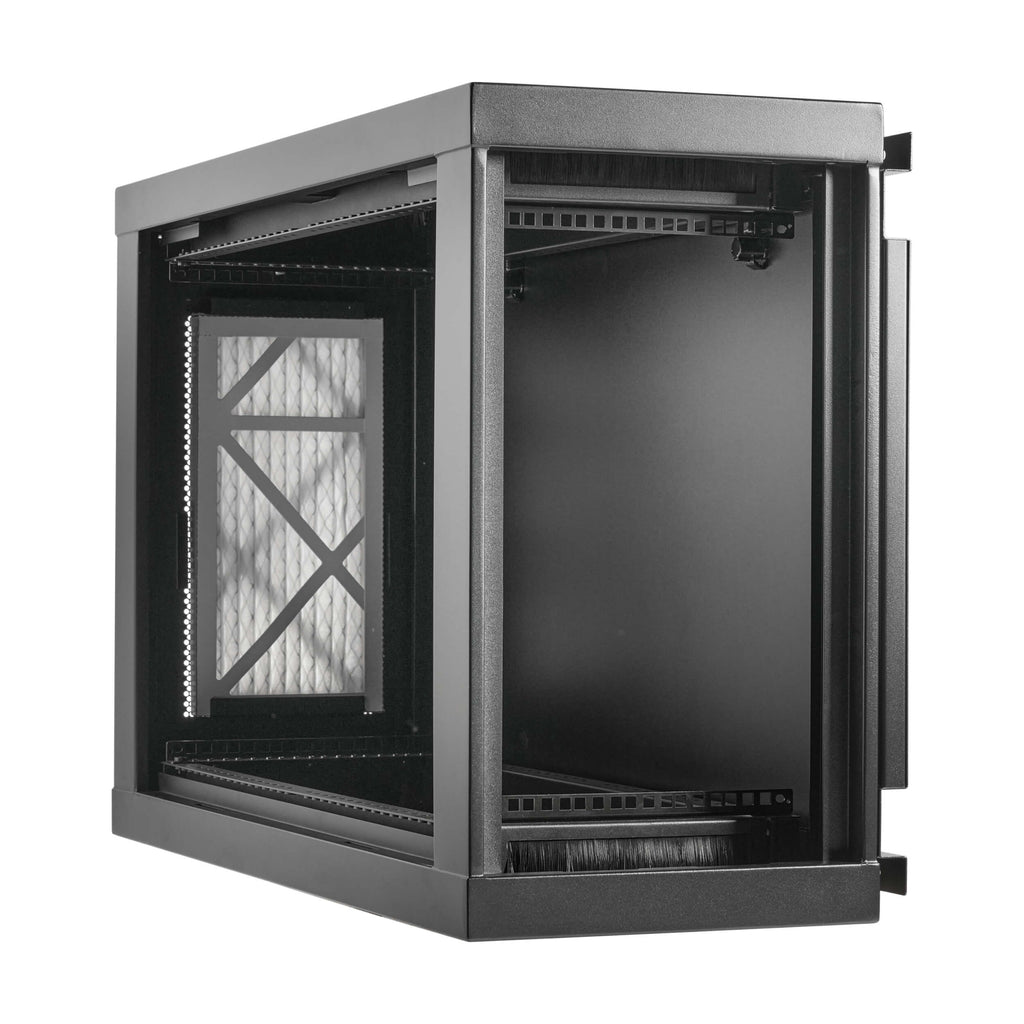

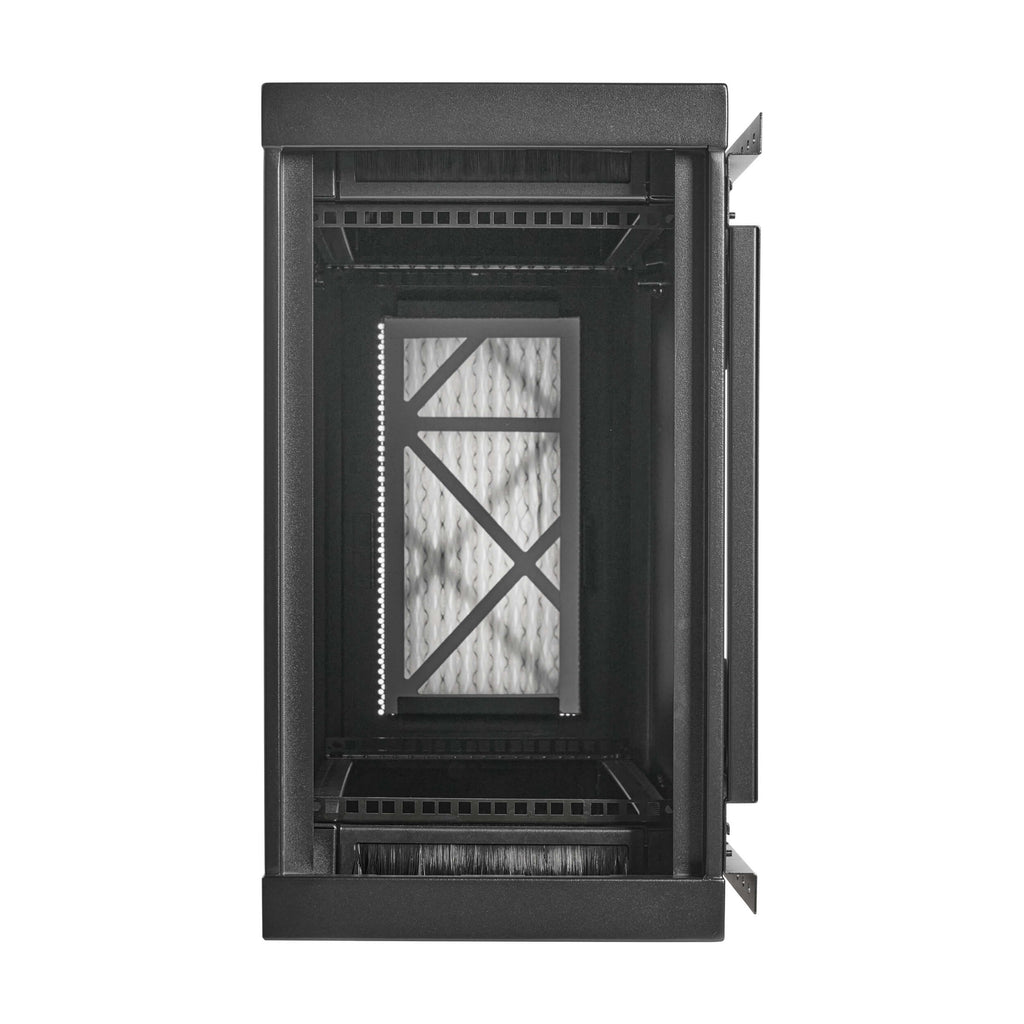

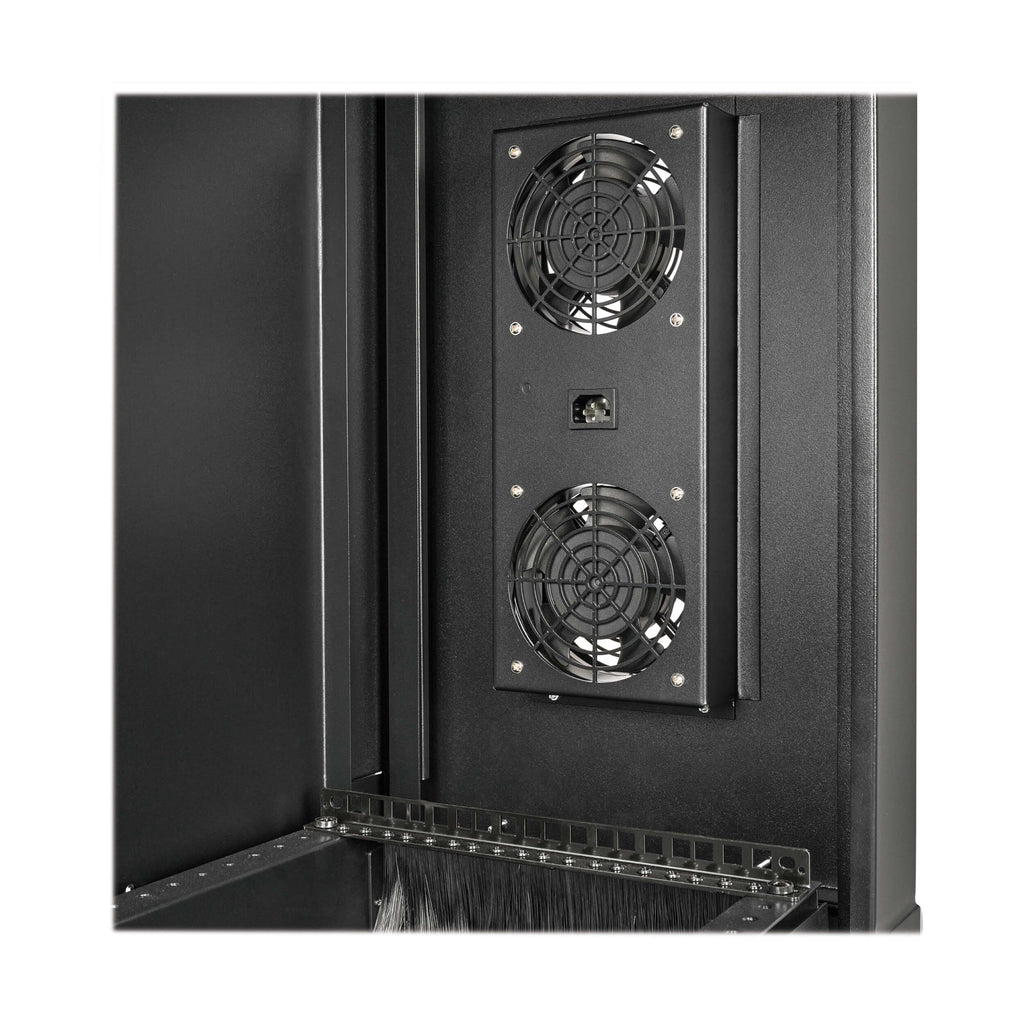

Vented panels and built-in airflow support help maintain proper cooling for installed devices, reducing the risk of overheating and downtime. The SRW9USM ships fully assembled and includes adjustable vertical mounting rails with numbered rack spaces to simplify installation. It also meets physical security requirements for PCI DSS compliance, making it suitable for regulated environments.
| Specification | Details |
|---|---|
| Brand | Eaton Tripp Lite Series |
| Model | SRW9USM |
| Rack Height | 9U |
| Rack Type | Side-Mount Wall-Mount Enclosure |
| Mounting Style | Wall-Mount (Sideways Equipment Orientation) |
| Maximum Device Depth | 29.4 in (747 mm) |
| Minimum Device Depth | 3 in (76 mm) |
| Load Capacity (Stationary) | 250 lb (113 kg) |
| Number of Vertical Rails | 4 |
| Rail Adjustment | 7/8-inch increments |
| Material | Heavy-Duty Steel |
| Color | Black |
| Door Type | Lockable Front Door |
| Side Panels | Removable, Lockable |
| Ventilation | Vented Panels with Airflow Support |
| Assembly Required | No (Ships Fully Assembled) |
| Grounding | Front and Rear Door Frames |
| Compliance | EIA/ECA-310-E, RoHS, PCI DSS Physical Security |
| Indoor / Outdoor Use | Indoor Only |
| Warranty | 5-Year Limited Warranty |
