Description

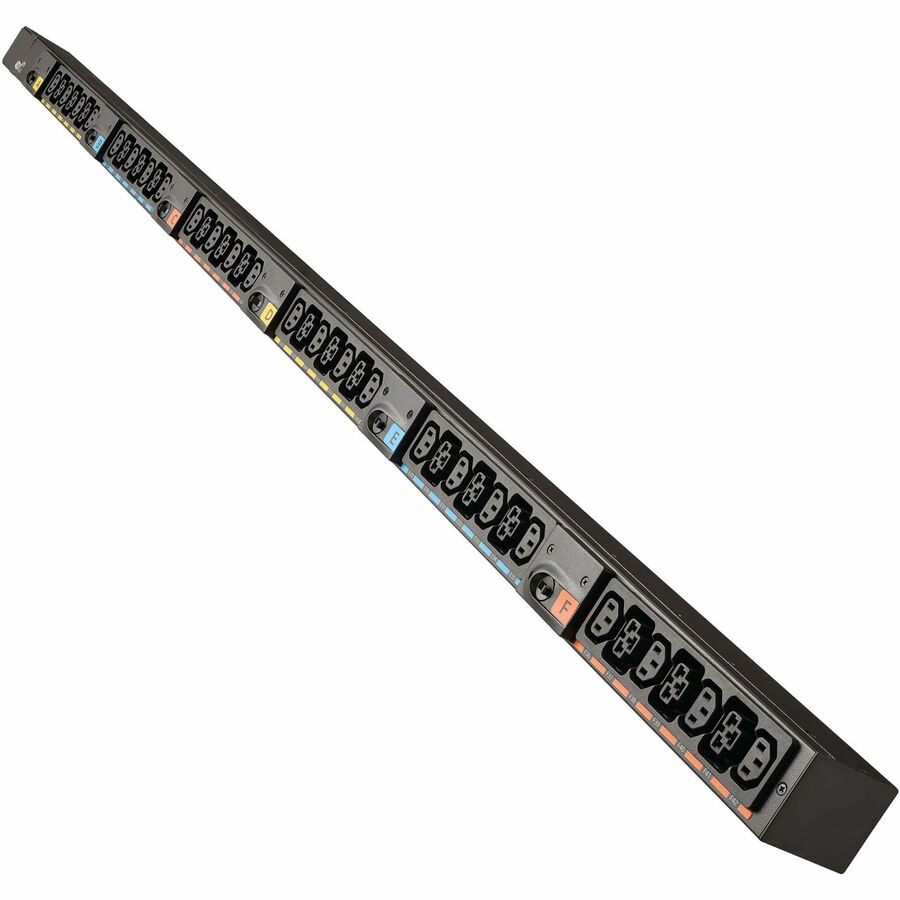

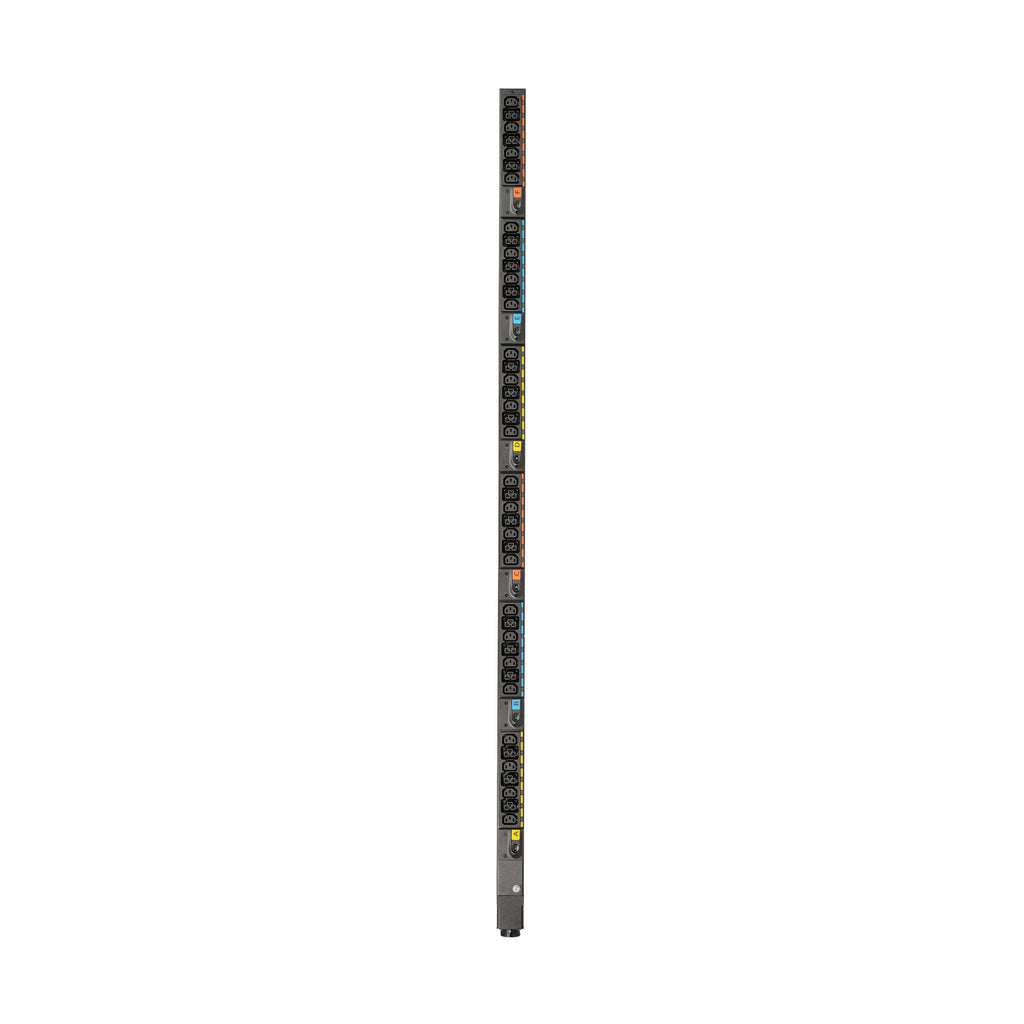

The Eaton EVBAGU23X-E is a next-generation Universal-Input Basic PDU G4 designed for modern data center agility. Supporting both single- and three-phase power, this vertical 0U rackmount PDU accommodates voltage ranges from 208V to 415/240V, making it a versatile choice for global deployment.

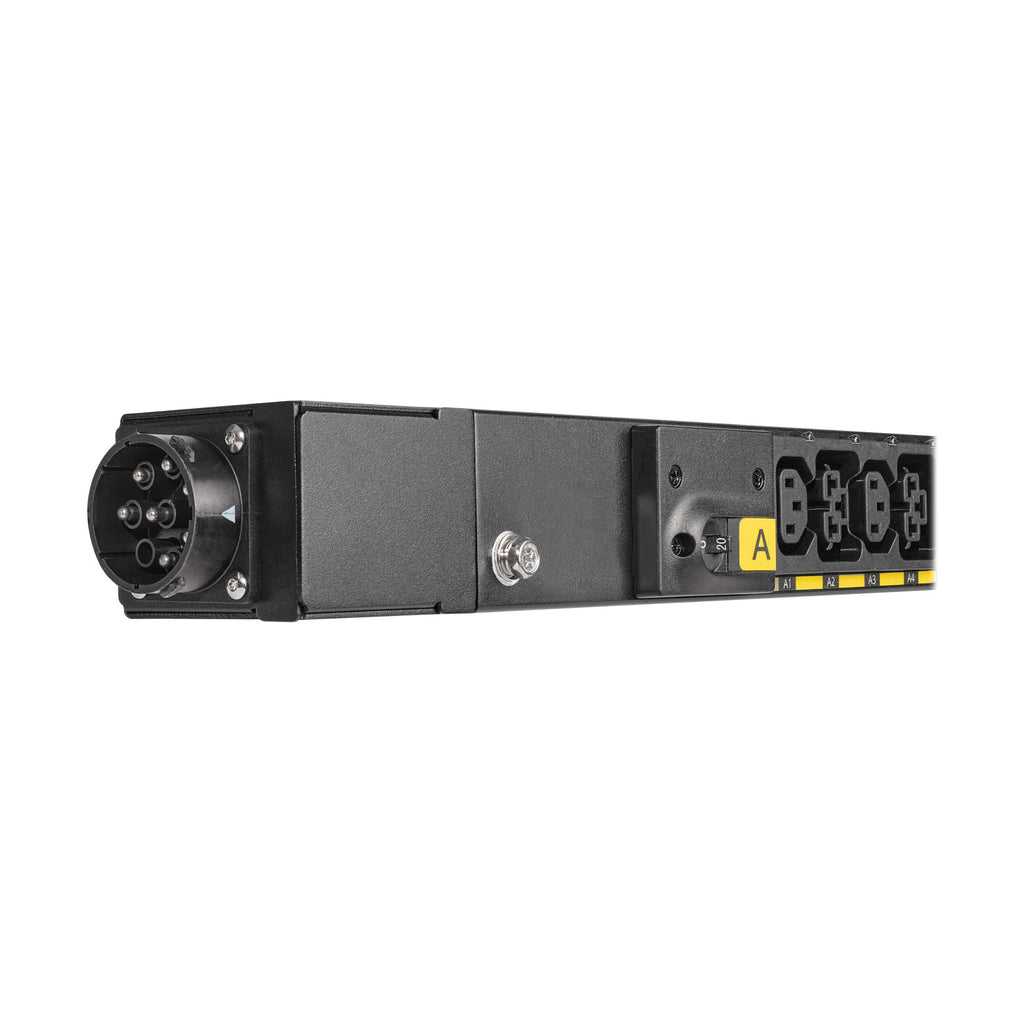

With 42 outlets—including 24 C13 and 18 C39 high-retention combo outlets—it provides flexible, high-density power distribution in a compact footprint. Featuring an end-entry universal input, it supports up to 17 removable input cords (sold separately), enabling capacity from 5kVA to 23kVA. Toolless mounting and flush-mounted circuit breakers make for fast, clean installations.
Key Benefits:
-
Universal input supports multiple power environments and simplifies provisioning
-
C13 and C39 outlets accommodate mixed device plug types
-
Modular input cords reduce complexity and future-proof your power setup
-
0U vertical design saves rack space
-
UL and CE certified for global compliance
| Specification | Details |
|---|---|
| Model Number | EVBAGU23X-E |
| PDU Type | Basic, Universal Input |
| Input Voltage | 208V, 415/240V, 208/120V (Single or 3-Phase) |
| Input Capacity | 5kVA to 23kVA depending on input cordset (sold separately) |
| Input Plug Type | Hardwired Universal Input (cords sold separately) |
| Maximum Input Amps | Up to 63A |
| Output Receptacles | 24 x C13, 18 x C39 (accepts C14/C20) |
| Output Capacity | 23 kW / 23,000W |
| Circuit Breakers | 6 x 2-pole (16A EU / 20A US) |
| Form Factor | 0U Vertical Mount |
| Dimensions (HxWxD) | 64.4 x 2.09 x 2.05 in (163.57 x 5.08 x 6.50 cm) |
| Weight | 13.7 lbs (6.21 kg) |
| Material | Lightweight aluminum |
| Mounting | Toolless, shoulder-style and flush-mount buttons |
| Operating Temp | 32°F to 140°F (0°C to 60°C) |
| Certifications | UL 62368-1, cTUVus, CE, RoHS, FCC Class A |
| Warranty | 3-Year Limited |
