Description

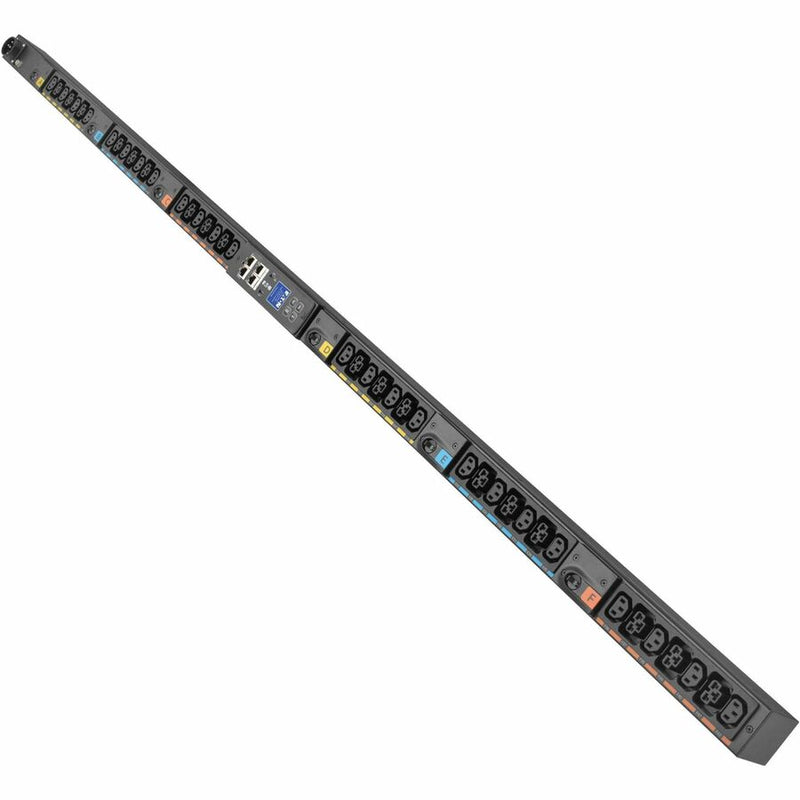

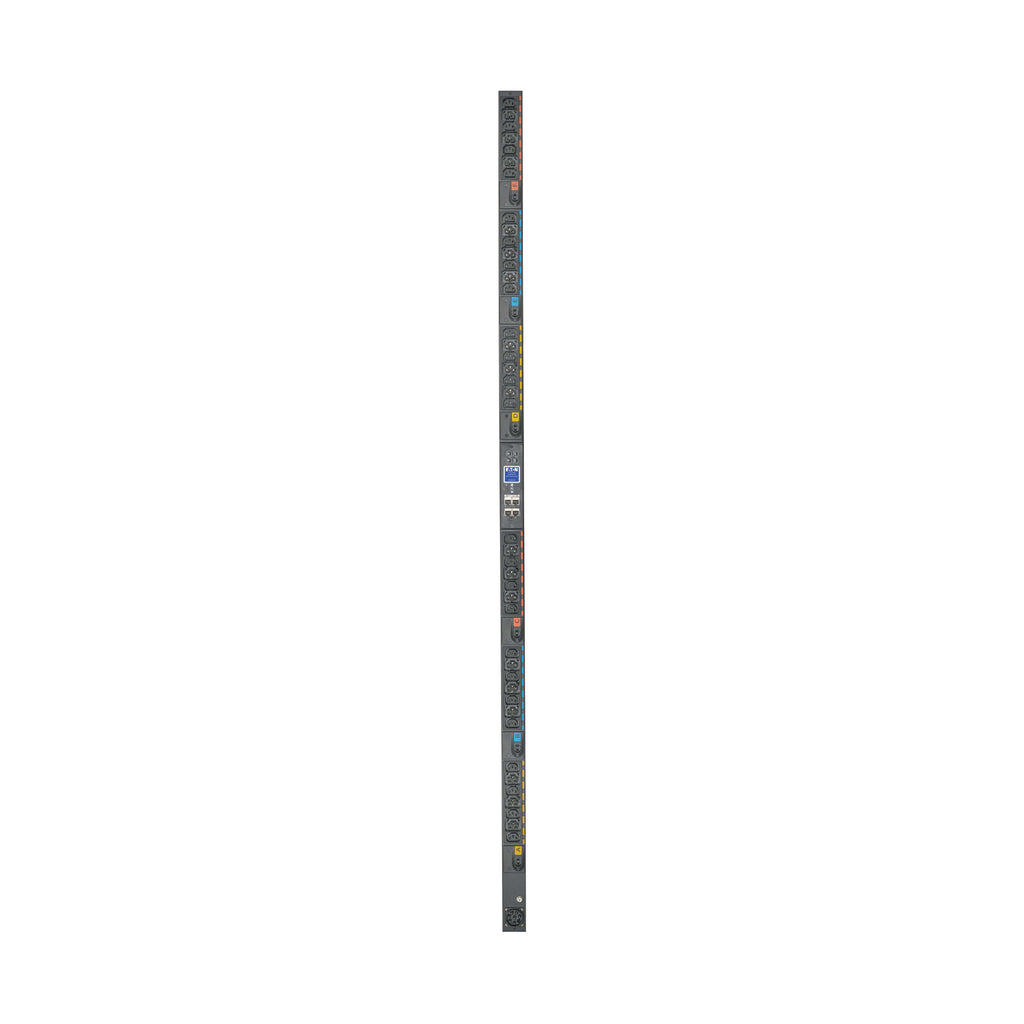

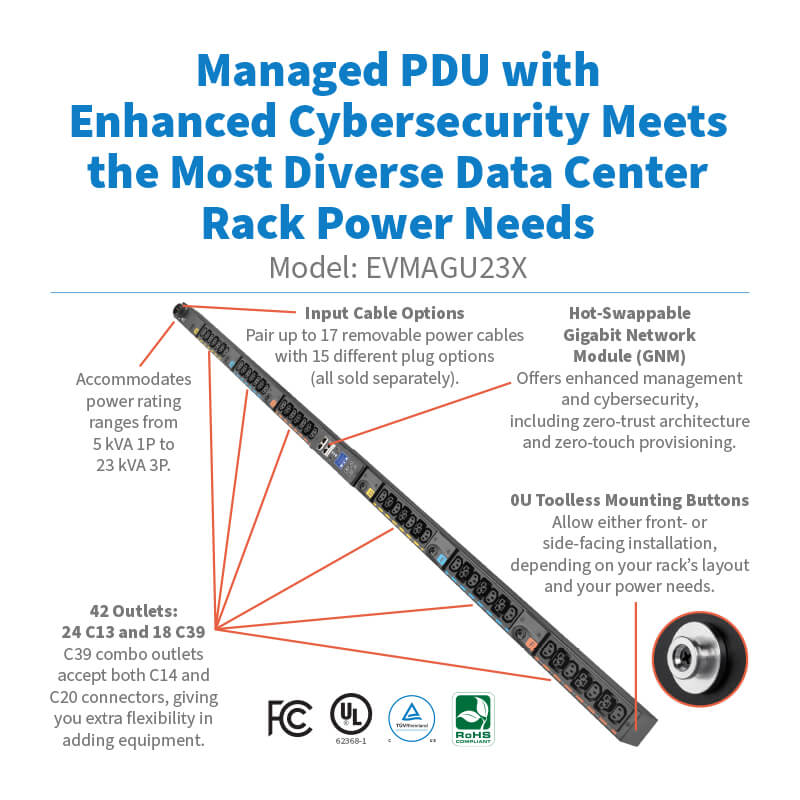

The Eaton EVMAGU23X is a Universal-Input Managed Rack PDU G4 engineered for maximum flexibility and efficiency in dynamic IT environments. Supporting both single-phase and three-phase power from 5kVA to 23kVA, it accepts 17 removable power cables with 15 plug types (sold separately). This rack PDU delivers robust outlet-level monitoring, metering, and switching across 42 outlets—24 C13 and 18 combo C39—to reduce hardware needs and streamline installations.
Equipped with advanced cybersecurity features and a Gigabit Network Module (GNM), the EVMAGU23X supports remote management, automated alerts, environmental sensors, and compatibility with Eaton’s Brightlayer™ software for centralized control. Designed for vertical 0U mounting, its narrow aluminum body saves valuable rack space and allows up to 40 units to cascade via a single network IP chain. Perfect for global deployment, it meets worldwide certifications including CE, RoHS, and UL.
| Category | Details |
|---|---|
| Model Number | EVMAGU23X |
| Form Factor | 0U Vertical |
| Input Voltage | 208–240V, 415/240V, 208/120V (1-Phase or 3-Phase) |
| Input Connection | Universal Input (Cable sold separately) |
| Max Input Amps | 63A |
| Power Capacity | Up to 23kVA / 23kW |
| Outlets | 24 × C13, 18 × C39 (accepts C14/C20 plugs) |
| Circuit Breakers | 6 × 2-pole, 20A (US) / 16A (EU) |
| Network Interface | Hot-swappable Gigabit Network Module (GNM), SNMP, Ethernet, Serial |
| Display | Color LCD with IP setup, alerts, power metrics |
| Mounting | Toolless button-mount, 72” length, 61.25” mounting centers |
| Cascade Capability | Daisy-chain up to 40 PDUs |
| Construction | Aluminum, Black |
| Certifications | UL 62368-1, IEC 62368-1, CE, FCC, RoHS, UKCA |
| Environmental | 0–60°C operating, 5–95% RH, 0–10,000 ft elevation |
| Warranty | 3-Year Limited Warranty (Global) |
