Description

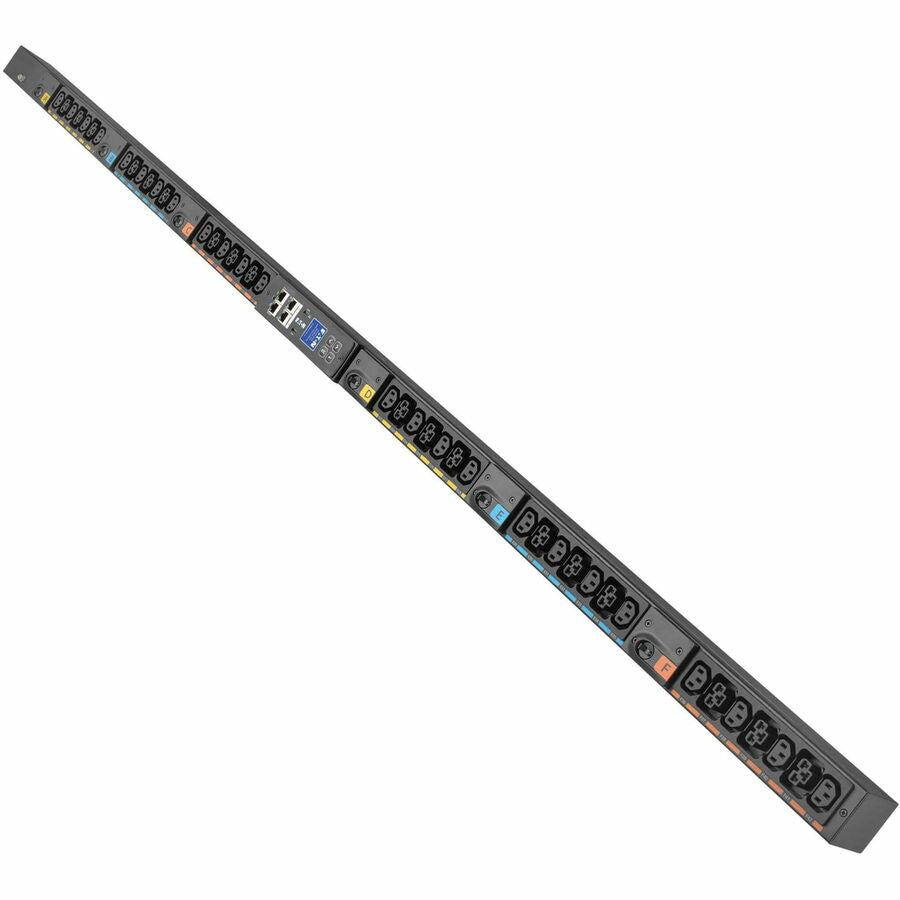

The Eaton EVMAGU23X-E is a Universal-Input Managed PDU G4 designed to deliver high-density, flexible power distribution in modern data center and IT environments. Supporting both single-phase and 3-phase input configurations, this PDU handles up to 23kVA through a variety of 17 detachable input cables (sold separately), eliminating the need for multiple PDU models.

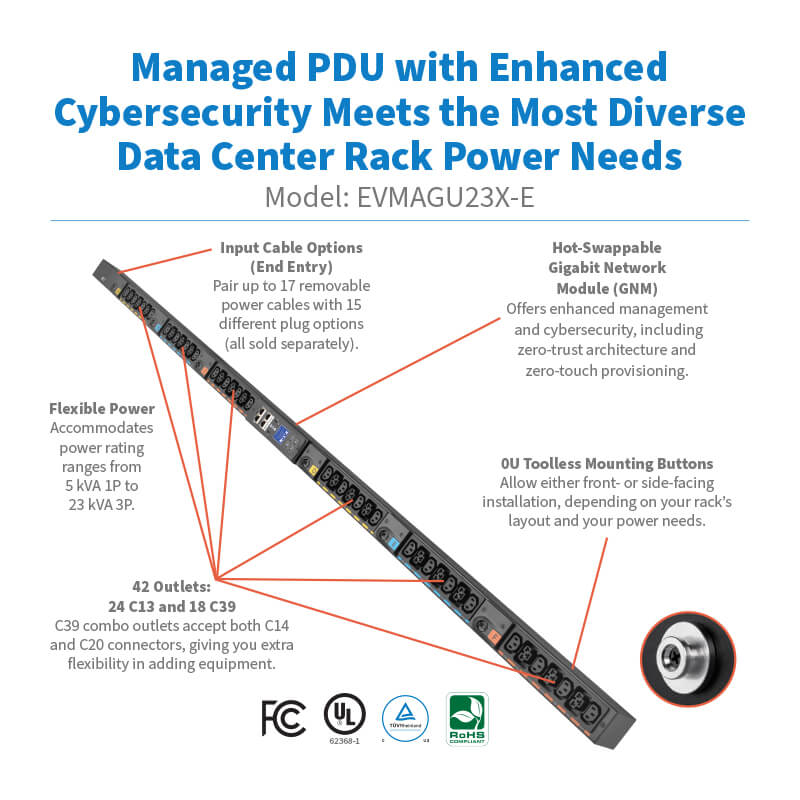

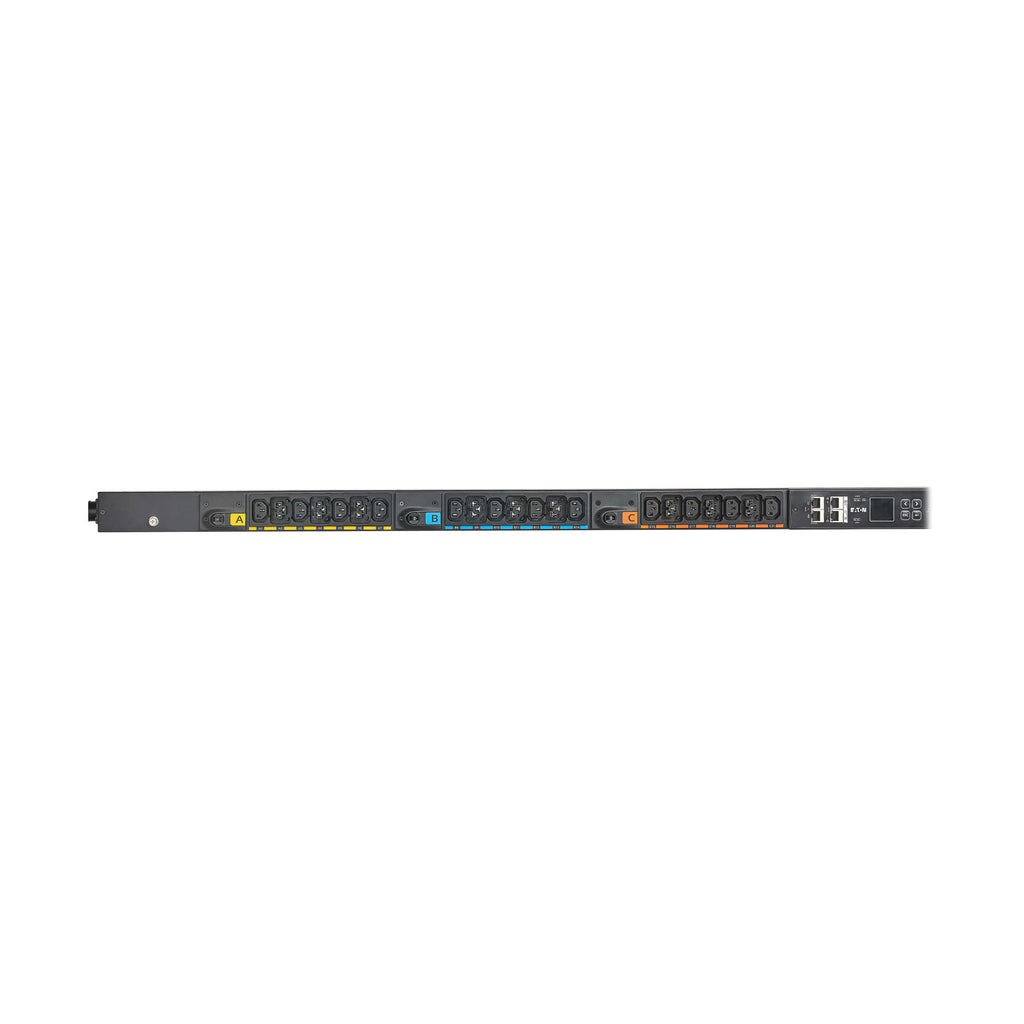

Equipped with 42 outlets—24 C13 and 18 high-retention C39 (C14/C20-compatible)—the unit offers full outlet-level switching and metering, enhanced load balancing via six color-coded load banks, and seamless vertical (0U) mounting for optimized rack space usage. With advanced cybersecurity built-in, including secure firmware and zero-trust architecture, plus integration with Eaton Brightlayer™ software, it supports remote monitoring, zero-touch provisioning, and enterprise-level protection.
| Feature | Details |
|---|---|
| Model Number | EVMAGU23X-E |
| Input Voltage | 208-240V, 415/240V, 208/120V |
| Input Phase | Single-phase or 3-phase (universal input, cable sold separately) |
| Max Input Amps | 63A |
| Output Capacity | Up to 23kVA / 23kW |
| Outlet Quantity/Types | 24 × C13, 18 × C39 (C14 & C20 compatible) |
| Circuit Breakers | 6 × 2-pole (20A US / 16A EU) |

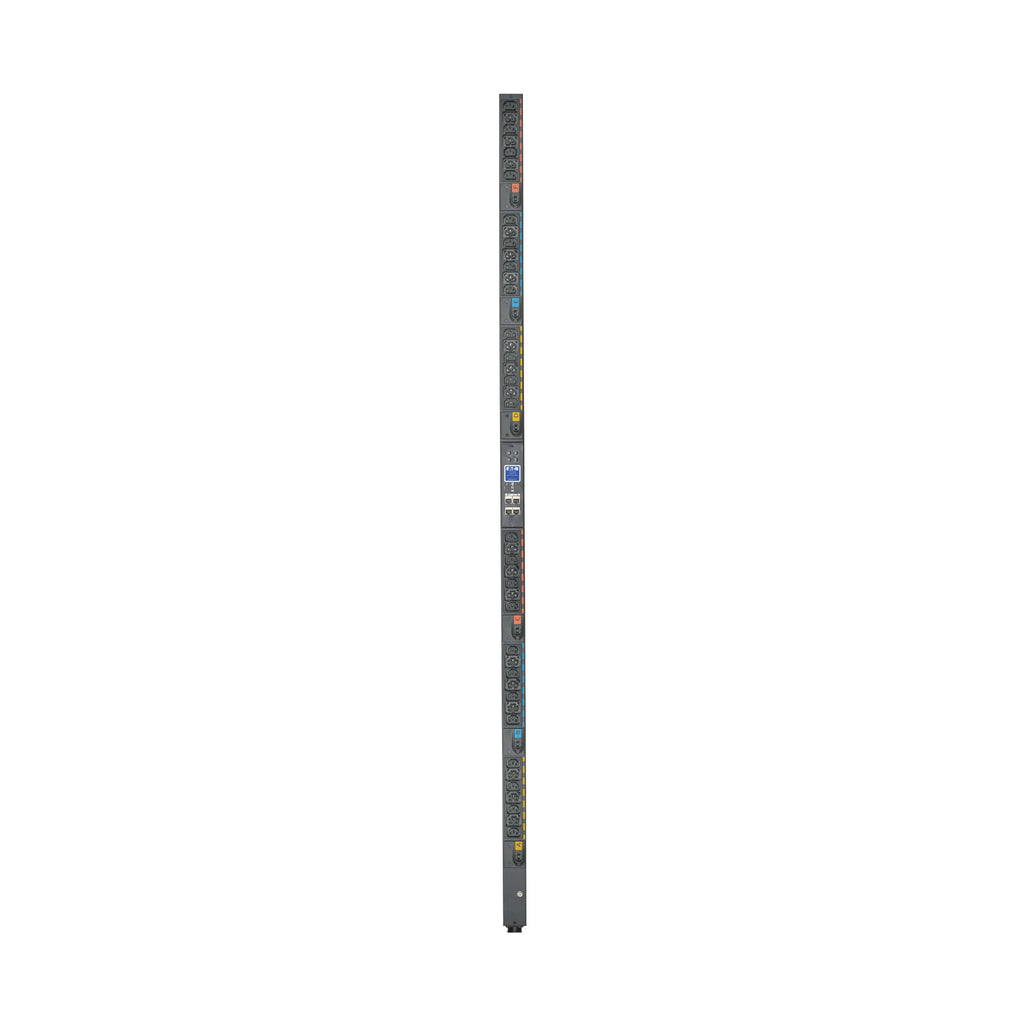

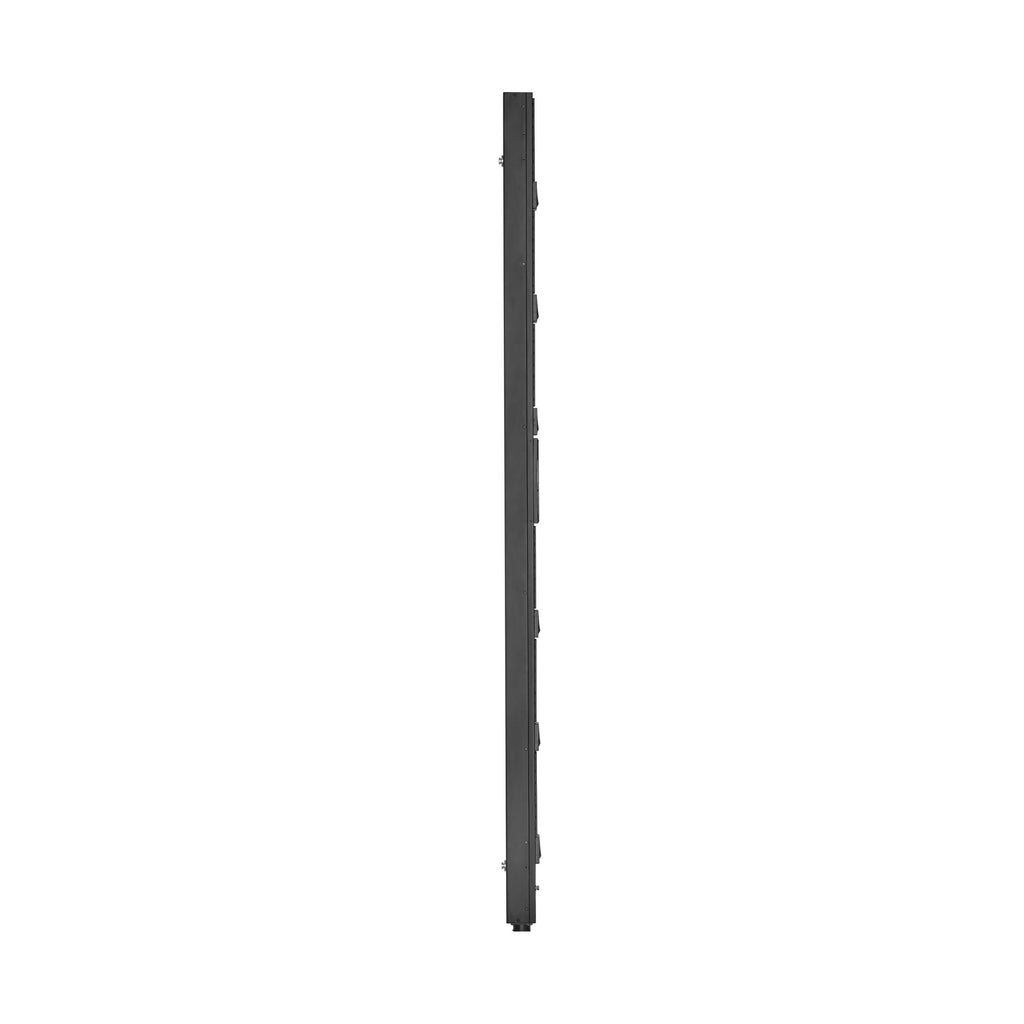

| Mounting | 0U vertical with toolless mounting buttons |
| Input Cord Length | Input cable not included; options sold separately |
| Material | Lightweight aluminum |
| Unit Dimensions (HxWxD) | 72 in. × 2 in. × 2.56 in. (182.88 × 5.08 × 6.5 cm) |
| Weight | 13.7 lbs (6.21 kg) |
| User Interface | LCD panel with outlet-level metrics; SNMP, CLI, Web, RestAPI |
| Network Interface | Gigabit Ethernet, Serial; Daisy-chaining up to 40 units |
| Cybersecurity | Chain-of-trust encryption, zero-trust architecture, secure boot |
| Environmental Range | Operating: 0–60°C; Humidity: 5–95% RH (non-condensing) |
| Certifications | UL 62368-1, CE, FCC Class A, cTUVus, ICES |
| Warranty | 3-year limited warranty (global) |
