Description

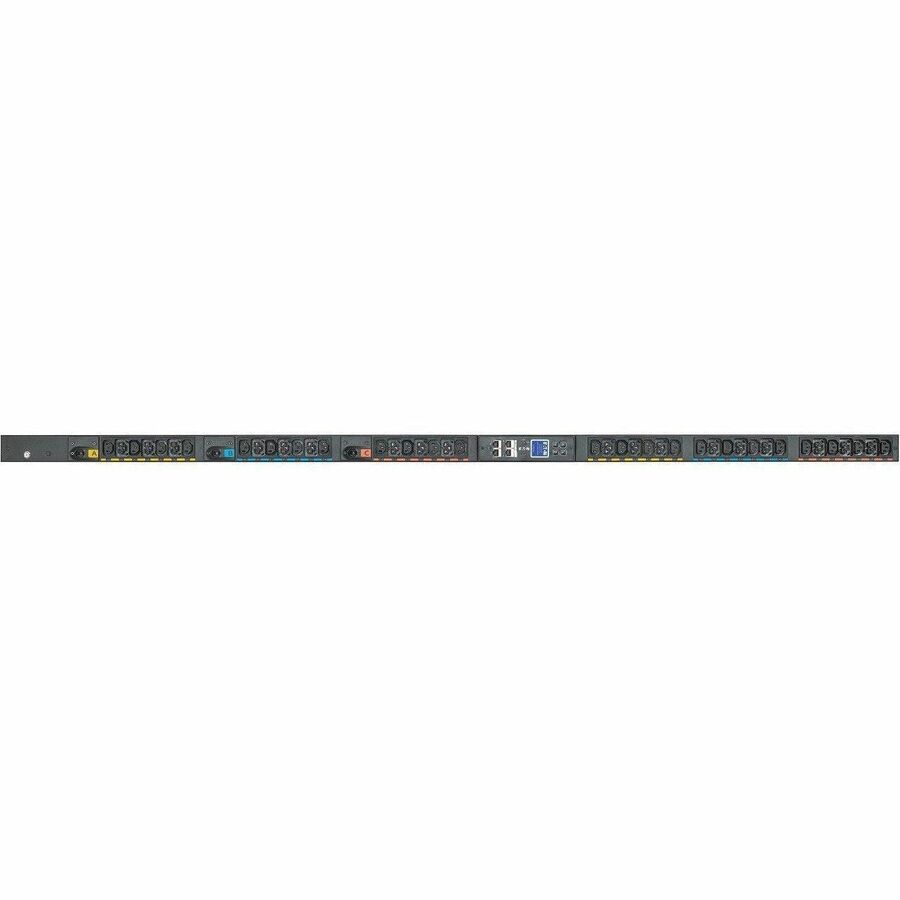

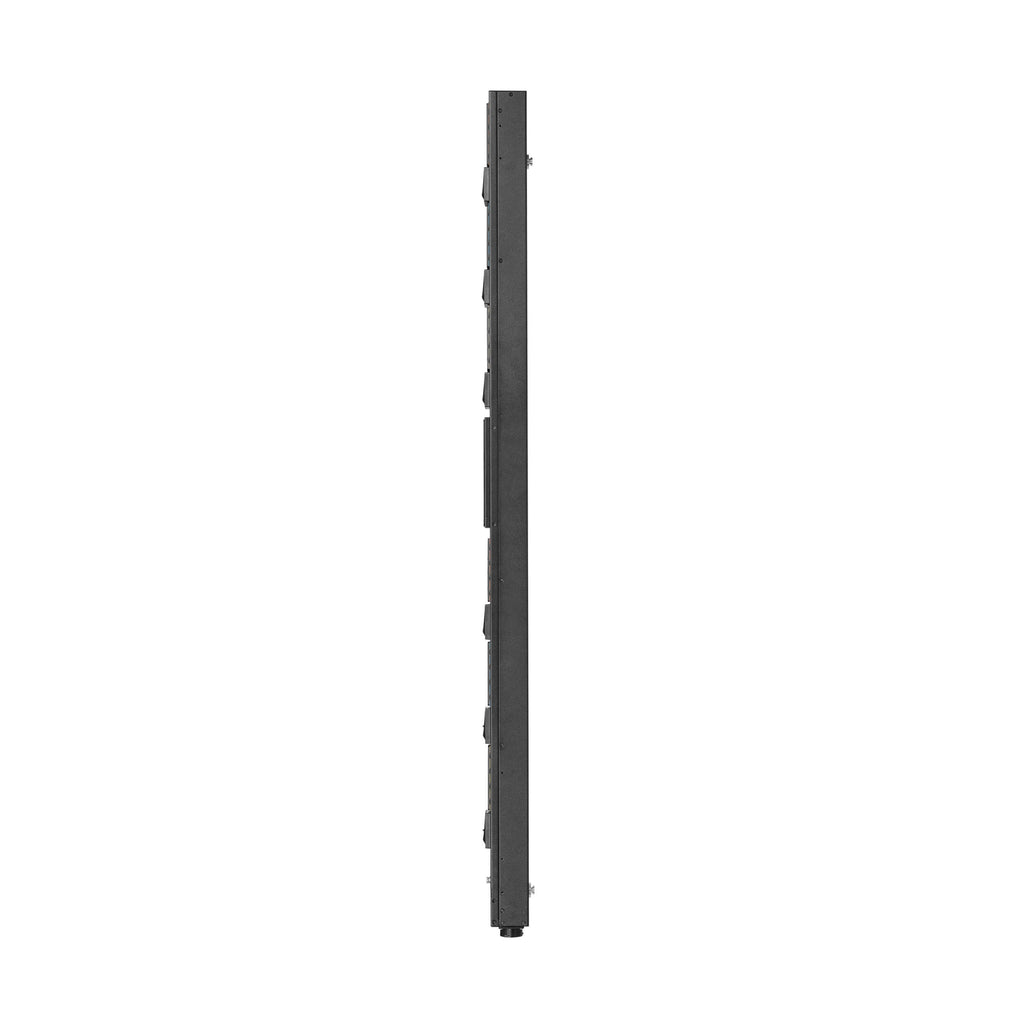

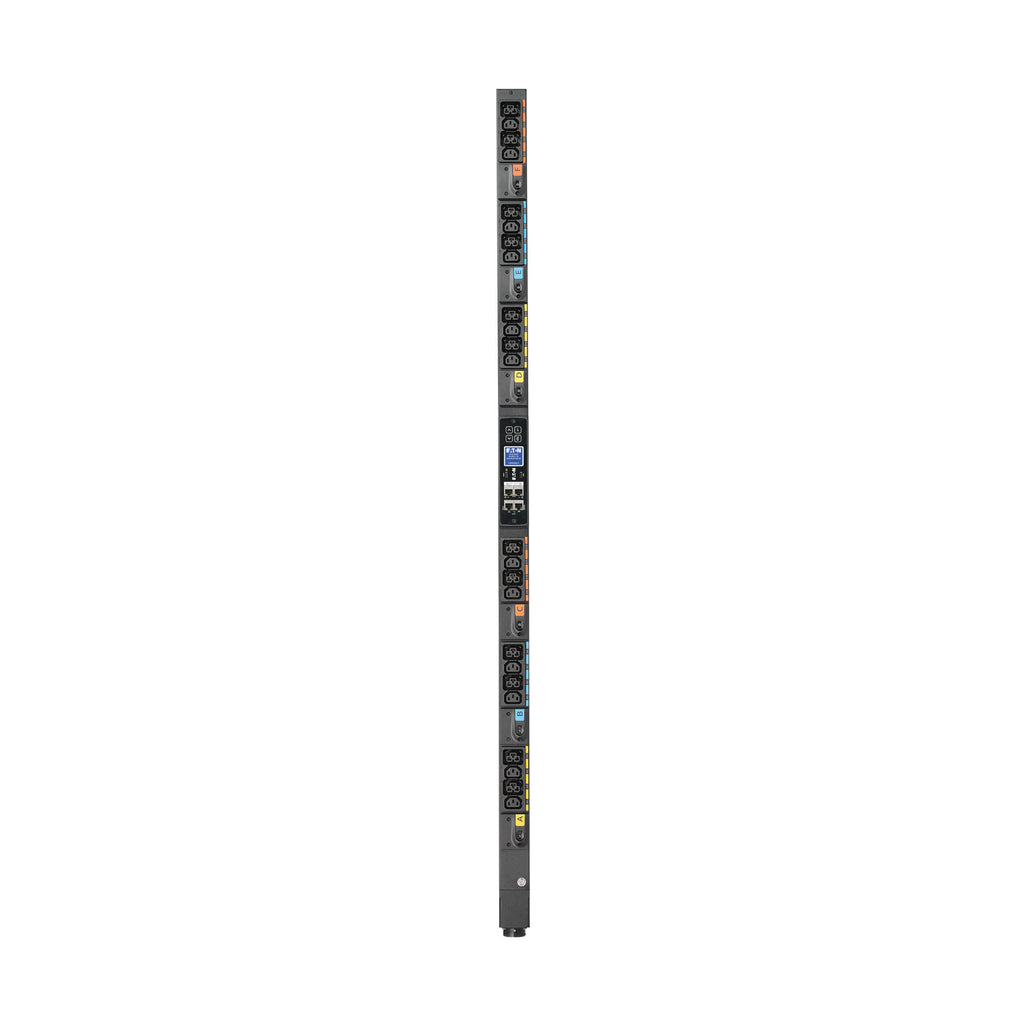

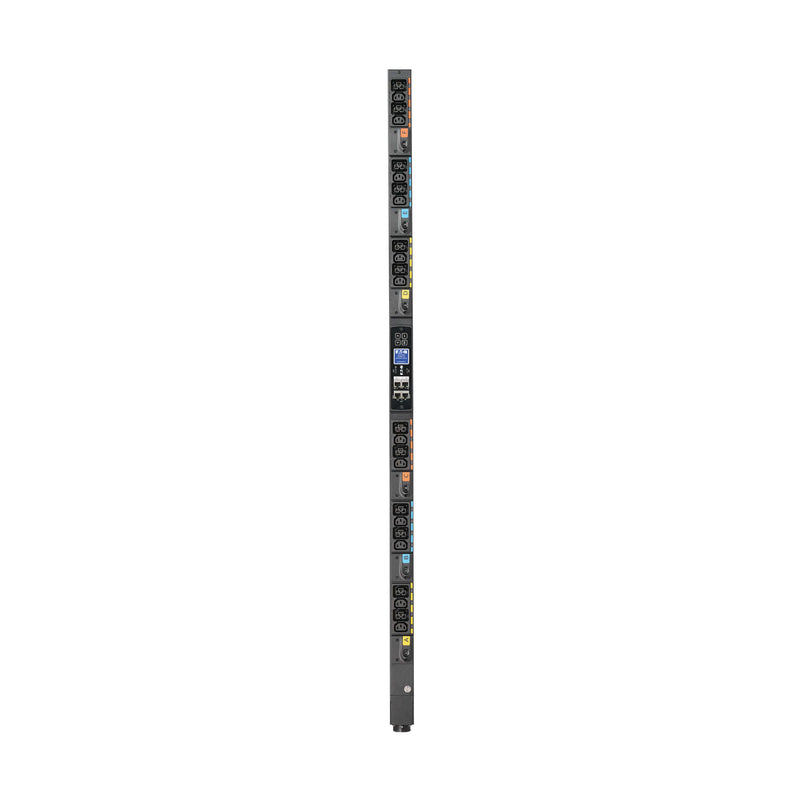

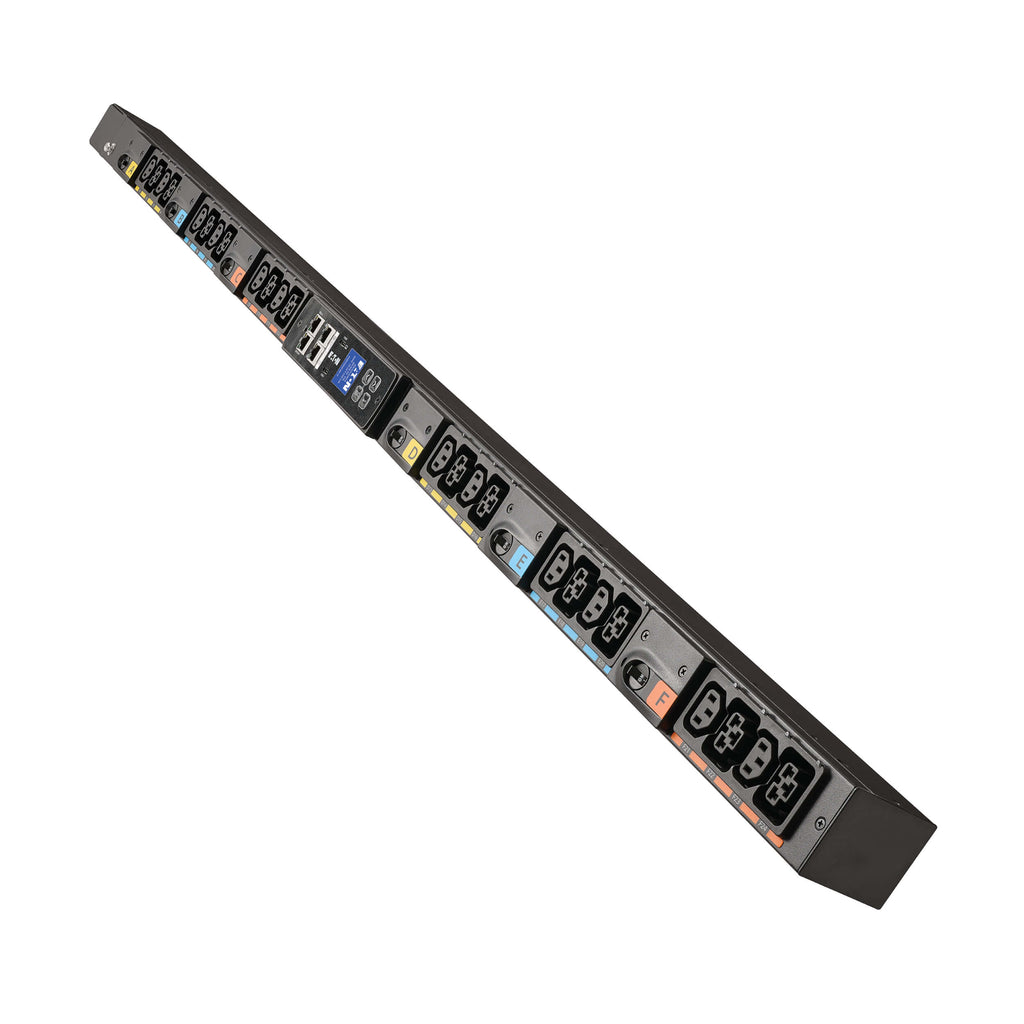

The Eaton EVMIGU23A-E is a universal-input, metered rack power distribution unit (PDU) designed to handle both single- and three-phase power environments from 5kVA to 23kVA. With 24 outlets (12 C13 and 12 high-retention C39 combo), it simplifies deployment by supporting multiple plug types through 17 removable cable options (sold separately). Its 0U vertical form factor allows easy, toolless mounting in standard 32U or taller racks.
Advanced cybersecurity is built-in via the embedded Gigabit Network Module (GNM), offering encryption, zero-touch provisioning, and compatibility with Eaton’s Brightlayer Data Centers suite for remote monitoring and automation. With flexible input voltage support (208V, 415/240V), daisy-chaining capability for up to 40 PDUs, and high-accuracy metering, the EVMIGU23A-E is ideal for dynamic IT environments requiring future-ready power distribution.
| Specification | Details |
|---|---|
| Model Number | EVMIGU23A-E |
| PDU Type | Metered |
| Input Voltage | 208V and 415/240V (Single or 3-Phase) |
| Max Input Amps | 63A |
| Input Connection | Universal input (cable sold separately) |
| Output Capacity | Up to 23kVA / 23kW (based on cord used) |
| Outlets | 12 x C13, 12 x C39 (C14/C20 compatible) |
| Output Circuit Breakers | 6 x Low-profile 2-pole 20A |
| Form Factor | 0U Vertical |
| Dimensions (H x W x D) | 55.9 x 2.05 x 2.56 in (141.98 x 5.08 x 6.50 cm) |
| Weight | 8 lbs (3.63 kg) |
| Mounting | Toolless buttons; 49” center-to-center |
| Monitoring | Eaton GNM G4 (LCD, SNMP, Ethernet, daisy-chain up to 40 units) |
| Cybersecurity | Zero-trust architecture, chain-of-trust, secure firmware boot |
| Material | Lightweight aluminum |
| Operating Temperature | 32°F to 140°F (0°C to 60°C) |
| Warranty | 3-Year Limited Warranty |
| Certifications | UL 62368-1, cTUVus, CE, FCC Part 15 Class A, ICES |
