Description

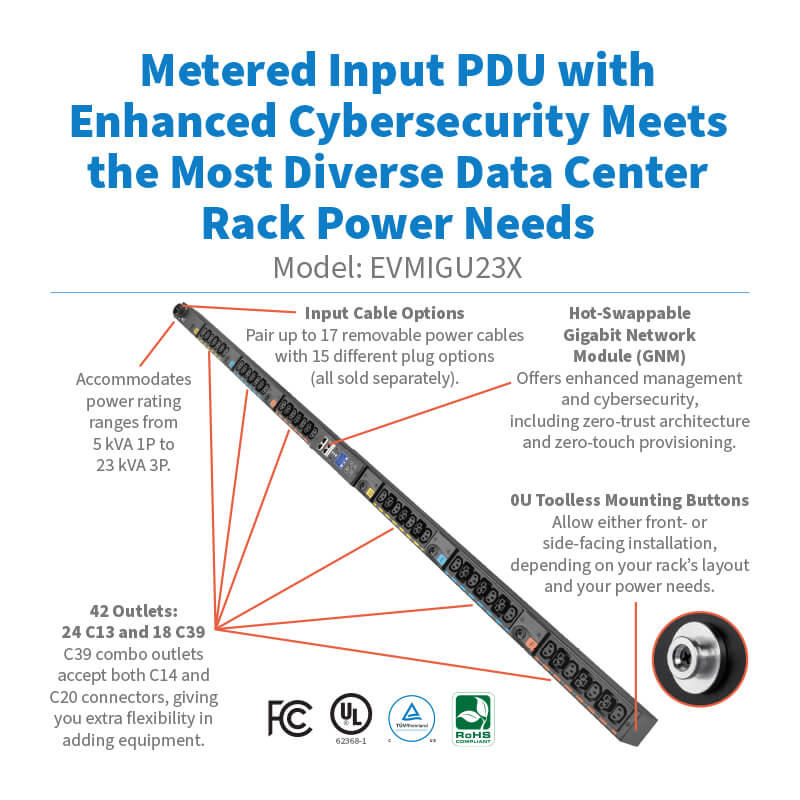

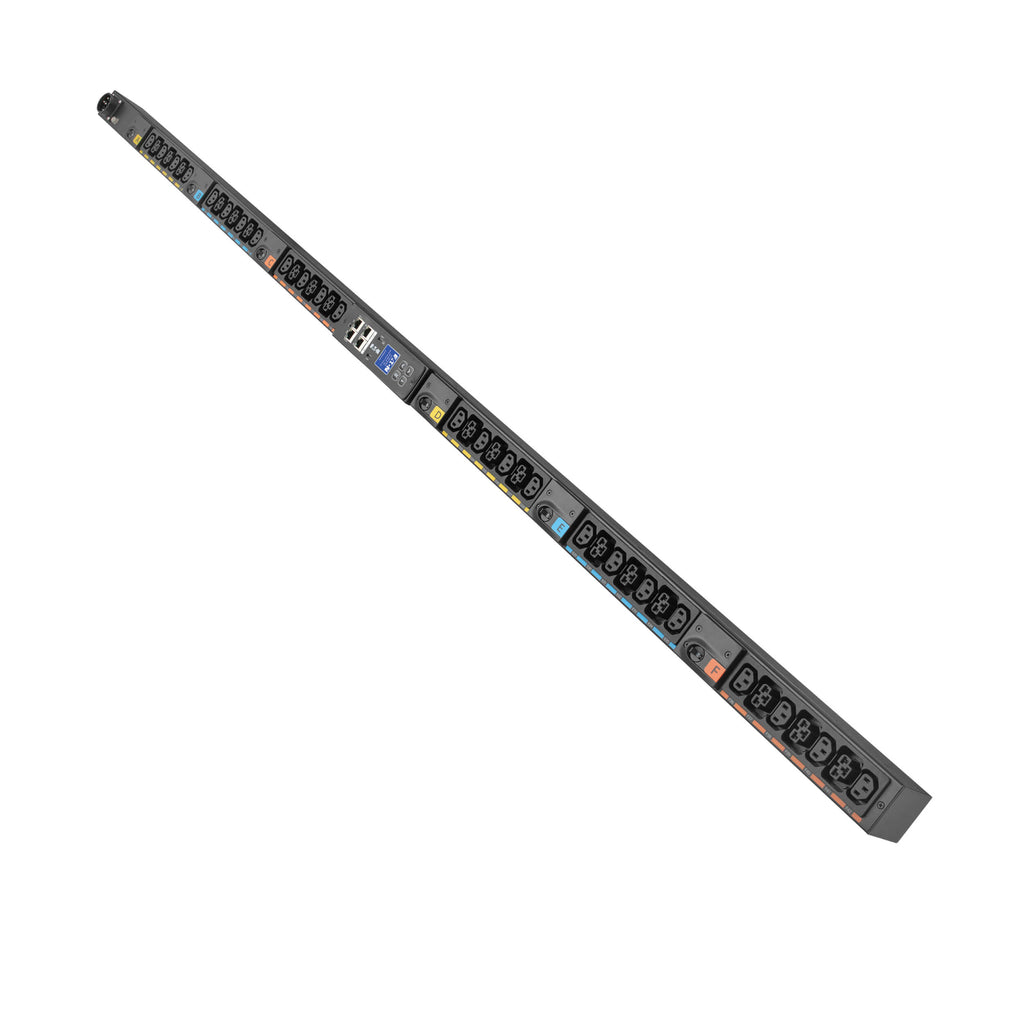

The Eaton EVMIGU23X is a universal-input metered rack PDU (Power Distribution Unit) from Eaton’s G4 line, engineered for high-density IT environments. Designed to accommodate both single- and three-phase power in 208V and 415/240V applications, this 0U vertical PDU supports up to 23kVA with 42 total outlets — including 24 C13 and 18 C39 combo outlets.
Compatible with 17 interchangeable power cables (sold separately), it provides flexibility for diverse rack configurations and scalable power delivery. Built with an embedded Gigabit Network Module (GNM), it delivers market-leading cybersecurity features like secure firmware, zero-trust architecture, and real-time metering of voltage, current, power, and energy.
Its compact 72-inch aluminum chassis, tool-less mounting, color-coded load banks, and outlet-level metering make it ideal for capacity planning and efficient rack integration. Whether you’re managing a single rack or cascading up to 40 PDUs, the EVMIGU23X delivers reliable, secure, and future-ready power management.
| Specification | Details |
|---|---|
| Model Number | EVMIGU23X |
| Form Factor | Vertical (0U) |
| Input Voltage | 208-240V, 415/240V, 208/120V |
| Input Phase | Single-Phase / Three-Phase |
| Input Connection | Universal Input (Input Cable Sold Separately) |
| Max Input Amps | 63A |
| Output Capacity | Up to 23kVA / 23kW |
| Outlet Quantity & Types | 42 total: (24) C13, (18) C39 combo |
| Circuit Breakers | (6) 2-pole 20A (US) / 16A (EU), one per load bank |
| Mounting | Toolless vertical mount (72 in.), 61.25" c-to-c spacing |
| Network Module | Embedded GNM (Gigabit), SNMP/Web/CLI/RestAPI ready |
| Measurement Accuracy | ±1% for current, voltage, and power |
| Chaining Capability | Cascade up to 40 units with individual IP addresses |
| Material / Finish | Black anodized aluminum |
| Dimensions (H x W x D) | 72.0 x 2.0 x 2.56 in. (182.88 x 5.08 x 6.50 cm) |
| Weight | 9.7 lbs (4.4 kg) |
| Certifications | UL 62368-1, CE, FCC Part 15 Class A, ICES, cTUVus |
| Warranty | 3-Year Limited Warranty |
