Description

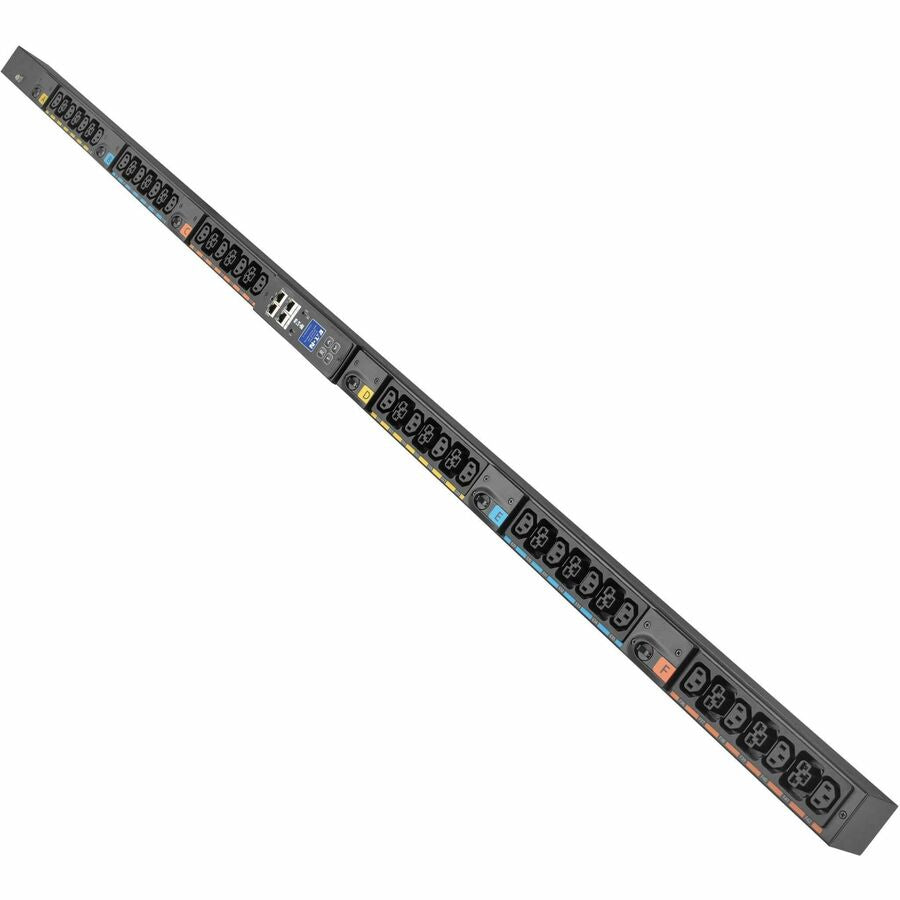

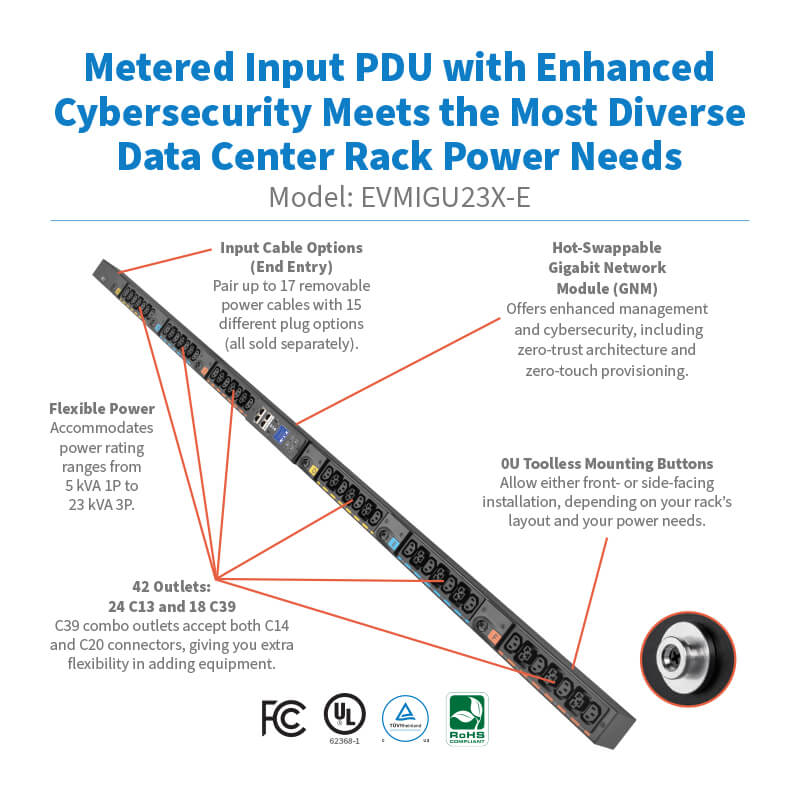

The Eaton EVMIGU23X-E is a universal-input Metered G4 rack PDU designed for dynamic data center environments. With support for single- or 3-phase power input ranging from 5kVA to 23kVA, this vertical 0U PDU adapts to global rack power requirements through 17 detachable input cables (sold separately). Featuring 42 outlets—including 24 C13 and 18 flexible C39 receptacles—this unit delivers advanced outlet-level metering, cybersecurity, and seamless installation with toolless mounting.
Engineered with an embedded Gigabit Network Module (GNM), the EVMIGU23X-E offers best-in-class cybersecurity with zero-trust architecture, secure firmware boot, and encrypted communications. Real-time power monitoring, energy consumption analytics, and alarm thresholds help you optimize uptime and load distribution. Its sleek 72-inch aluminum frame fits in 42U+ racks with minimal space footprint and maximum power flexibility.
| Specification | Details |
|---|---|
| Model Number | EVMIGU23X-E |
| Input Voltage | 208-240V, 415/240V, 208/120V (Universal Input) |
| Input Phase | 3-Phase |
| Input Amps | Up to 63A (Cord-dependent, sold separately) |
| Input Plug Type | Universal (detachable cords sold separately) |
| Output Capacity | 23kW / 23,000W |
| Output Receptacles | 24 x C13, 18 x C39 (accepts C14/C20) |
| Circuit Breakers | 6x low-profile 2-pole (20A US / 16A EU) |
| Form Factor | Vertical 0U |
| Mounting | Toolless, front/side, shoulder-style and flush-style included |
| Network Interface | Embedded Gigabit Network Module (1 Gbps), SNMP/Web/CLI/REST API |
| Cascade Capability | Yes, up to 40 units |
| Material | Lightweight aluminum |
| Unit Dimensions (HxWxD) | 72 x 2.56 x 2.05 in (182.88 x 6.5 x 5.08 cm) |
| Weight | 9.7 lbs (4.4 kg) |
| Operating Temp | 0°C to 60°C |
| Certifications | UL 62368-1, CE, FCC Part 15 Class A, ICES, cTUVus |
| Warranty | 3-Year Limited Warranty |
