Description

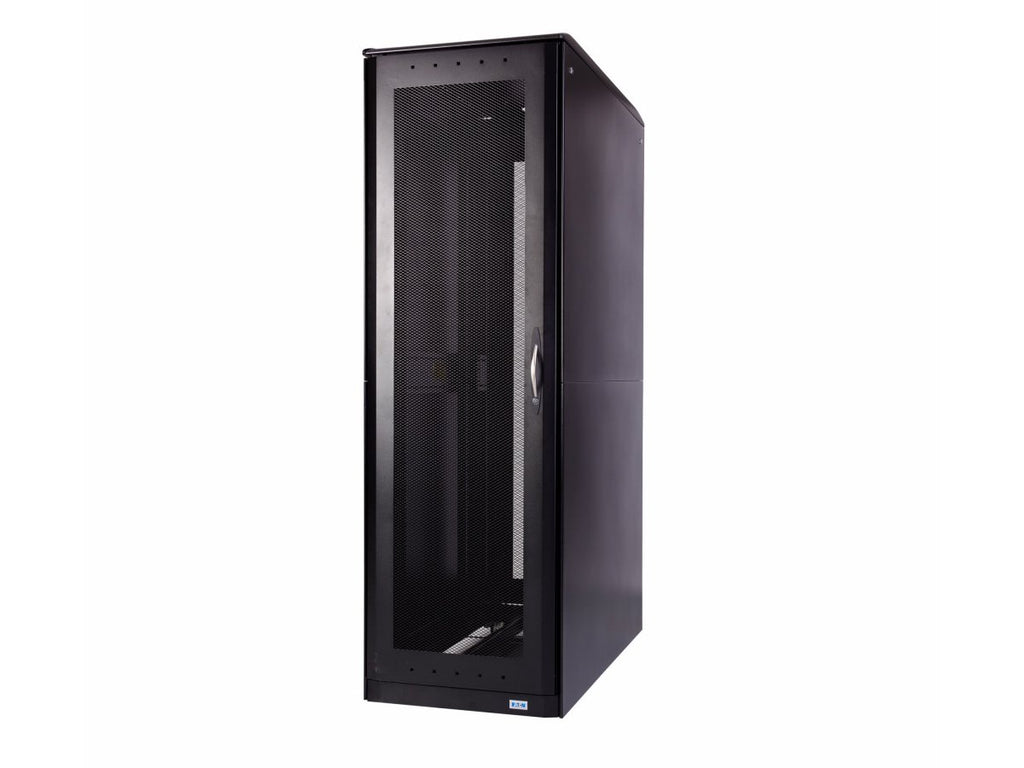

The Eaton VS2 Enclosure (SKU: ETN-VS2252440) provides a compact, enterprise-grade enclosure solution for high-density IT infrastructure, network gear, and server deployments. Designed with a 25U rack height, a standard 24-inch width, and a 40-inch depth, this cabinet offers an optimal balance between spatial efficiency and high-capacity equipment mounting.
Constructed from heavy-duty steel and finished in low-gloss black, the VS2 features fully perforated front and rear doors delivering up to 63% open ventilation to ensure consistent front-to-back airflow for sensitive thermal loads. The cabinet comes pre-configured with solid side panels, a top roof plate designed for cable egress and ingress, smooth-rolling heavy-duty casters, and tool-less mounting provisions for 0U power distribution units (ePDUs) and cable management accessories.
Key Features & Benefits
-
High Ventilation Efficiency: High-flow perforated front and rear steel doors optimize airflow management and maintain low equipment operating temperatures.
-
Tool-Less Accessories: Integrated mounting rails support fast, tool-free installation of vertical 0U ePDUs and structured cabling accessories.
-
Mobility & Stability: Pre-installed heavy-duty casters allow easy movement, positioning, and leveling within server rooms or data center environments.
-
Secure Enclosure: Solid locking side panels and steel doors safeguard critical IT equipment against unauthorized physical access.
| Attribute | Specification |
| Manufacturer | Eaton |
| Model / SKU | ETN-VS2252440 |
| Product Line | VS2 / S-Series SME |
| Rack Height | 25U |
| External Width | 24.0 in (609.6 mm) |
| External Depth | 40.0 in (1016 mm) |
| External Height | 48.0 in (1219.2 mm) |
| Product Weight | Approx. 215 lbs (97.5 kg) |
| Color / Finish | Black (Powder Coat) |
| Door Configuration | Perforated Front & Rear Doors (63% Open Perforation) |
| Side Panels | Solid, Removable |
| Roof Type | Top Roof Plate with Cable Egress/Ingress Ports |
| Mobility | Pre-installed Casters |
| Mounting Capability | Tool-less 0U ePDU & Cable Management Support |
| Certifications | UL Listed |
