Description
The Epson EB-PQ2216B is a compact, premium large-venue 4K laser projector engineered for extraordinary performance. Delivering 16,000 lumens of equal white and color brightness with Epson’s proprietary 3-chip 3LCD technology, this projector ensures vivid, true-to-life visuals with deep contrast and precise detail.
Featuring 4K Crystal Motion technology, a thermo-controlled panel, and a double micro-lens array, the EB-PQ2216B fully realizes stunning 4K UHD resolution (3840 × 2160). Designed for fixed installations and demanding live events, it offers a virtually maintenance-free 20,000-hour laser light source, an IP5X-rated sealed optical engine, and a filterless cabinet for reliable, long-term performance.
Advanced image features include HDR support, scene adaptive gamma correction, frame interpolation, and a 50% higher native contrast ratio than previous Epson PU-series projectors. Installation is simple and flexible with nine optional powered lenses (including ultra short throw options), motorized lens shift/zoom/focus, and built-in NFC functionality for faster setup.
With enhanced connectivity (HDMI®, 12G-SDI in/out, HDBaseT®), low latency 4K playback, and optional PixAlign™ camera for automated alignment and edge blending, the EB-PQ2216B is a powerful solution for professional projection in auditoriums, theaters, conference halls, and large event spaces.
| Category | Details |
|---|---|
| Model / SKU | EB-PQ2216B / V11HB04820 |
| Projection System | 3-chip 3LCD, Poly-Silicon TFT Active Matrix |
| Native Resolution | 1080p with 4K Crystal Motion (1920 × 1080 ×4) |
| On-Screen Resolution | 4K UHD (3840 × 2160) |
| Maximum Input Resolution | 4096 × 2160 |
| Brightness | 16,000 lumens (white & color) |
| Contrast Ratio | Up to 5,000,000:1 (Dynamic) |
| Color Reproduction | Up to 1.07 billion colors |
| Aspect Ratios | 4:3, 16:9, 16:10, 21:9 |
| Keystone Correction | Vertical ±45°; Horizontal ±30° |
| Light Source | Laser phosphor, 20,000 hrs (Normal), 30,000 hrs (Extended) |
| Lens | Optional powered lenses (9 available, sold separately) |
| Lens Shift | Vertical ±60%; Horizontal ±18% |
| Zoom / Focus | Powered; Optical Zoom 1.0–1.6x |
| Throw Ratio | 1.52 – 2.47 (standard lens ELPLM15) |

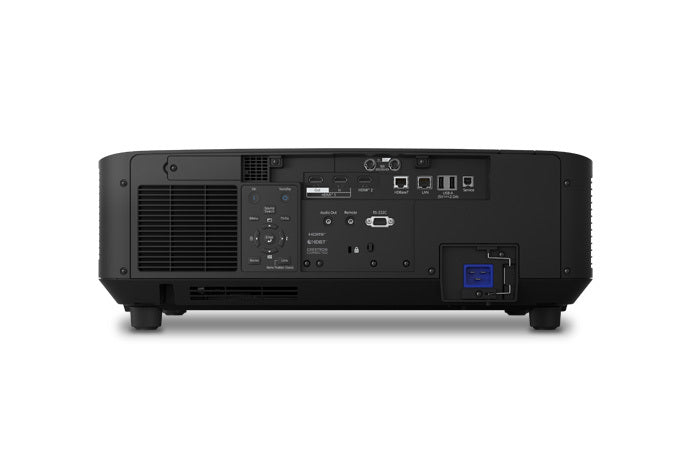

| Connectivity | 2× HDMI (HDCP 2.3), HDMI Out, 12G-SDI In/Out, HDBaseT, USB-A (2), USB-B, RS-232c, RJ-45 LAN, Audio Out |
| Power Requirements | 100–120 V AC ±10% / 200–240 V AC ±10%, 50/60 Hz |
| Power Consumption | 1,114 W (Normal), 784 W (Quiet/Extended) |
| Fan Noise | 44 dB (Normal), 36 dB (Eco) |
| Dimensions (W × D × H) | 23.1″ × 19.4″ × 7.3″ (586 × 492 × 185 mm) |
| Weight | 64.3 lb (29.2 kg) |
| Security | Kensington® lock, lens lock, cable hole, WLAN unit lock |
| Control / Software | Epson Projector Professional Tool (EPPT), Epson Projector Management – Connected (EPM-C) |
| Eco Features | RoHS compliant, end-of-life recycling options, SmartWay® Transport Partner |
| Warranty | 3-year limited warranty (extendable up to 5 years with Epson Preferred Plus) |
| In the Box | Projector, 2 power cables (220–240V & 100–120V), remote control w/ batteries, cable cover, quick reference guide, warranty sheet |
