Description

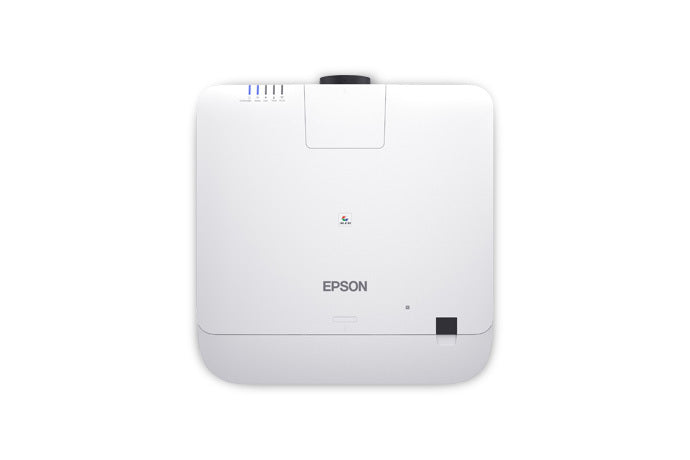

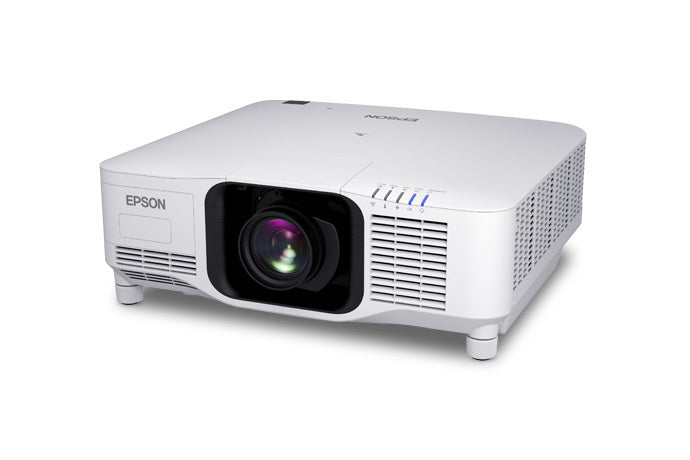

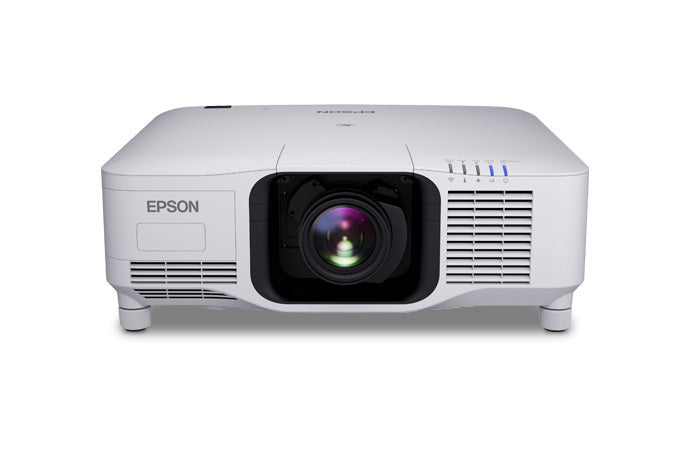

The Epson EB-PQ2216W is a compact, premium 16,000-lumen large venue projector designed to deliver stunning 4K visuals with exceptional reliability. Leveraging Epson’s advanced 4K Crystal Motion technology, thermo-controlled panel, and double micro-lens array, it produces breathtaking image clarity with vibrant colors and deep contrast.
Engineered for demanding live events and fixed installations, the EB-PQ2216W features a virtually maintenance-free 20,000-hour laser light source, hermetically sealed optical engine, and a filterless cabinet for outstanding durability and reduced upkeep. Enjoy lifelike image performance with HDR support, scene adaptive gamma correction, and frame interpolation for smooth motion in fast-action content.

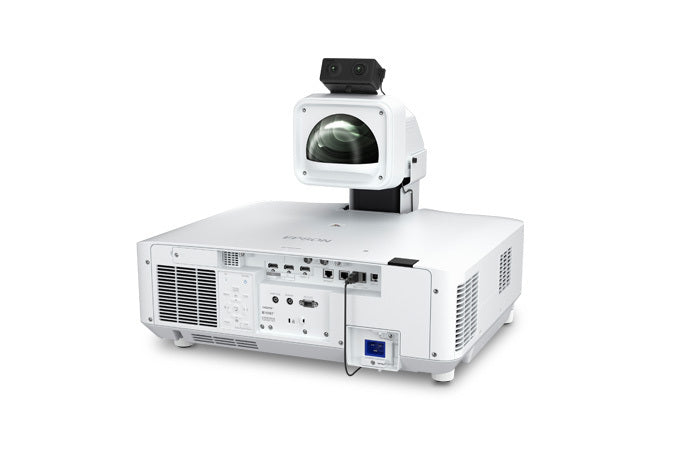

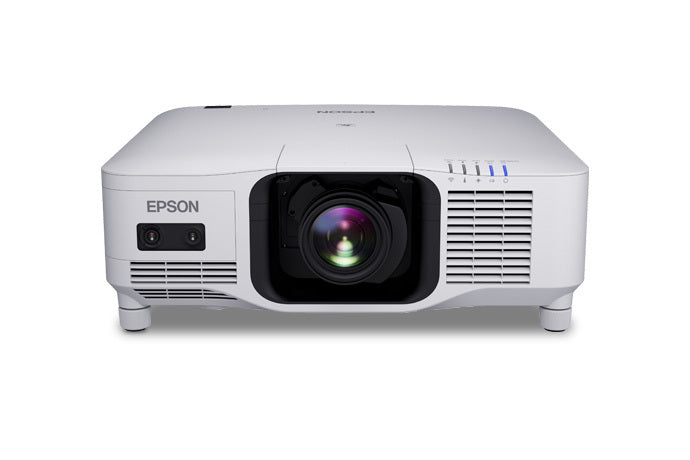

Installation is simple with compatibility across 9 optional powered lenses, including an ultra short throw option, plus built-in NFC functionality and support for the optional PixAlign™ camera for precise multi-projector setups. Enhanced connectivity includes HDMI (2 in/1 out) and 12G-SDI in/out for daisy-chaining and real-time monitoring. Designed for flexibility, the EB-PQ2216W can operate at 15,500 lumens on 120 V power or full brightness at 220 V.
Also available in Black (EB-PQ2216B), this projector is the ultimate solution for immersive projection in auditoriums, concert venues, conference halls, and more.
| Feature | Details |
|---|---|
| Brand / Manufacturer | Epson® |
| Model / SKU | EB-PQ2216W / V11HB04920 |
| Projection System | 3-chip 3LCD technology |
| Resolution | Native 1080p with 4K Crystal Motion (3840 x 2160 on-screen) |
| Brightness | 16,000 lumens (color & white) |
| Contrast Ratio | Up to 5,000,000:1 (Dynamic) |
| Light Source | Laser phosphor |
| Light Source Life | 20,000 hours (Normal), 30,000 hours (Extended) |
| Color Reproduction | Up to 1.07 billion colors |
| Aspect Ratios Supported | 4:3, 16:10, 16:9, 21:9 |
| Lens Options | 9 powered lenses available (sold separately) |
| Lens Shift | Vertical ±60%, Horizontal ±18% |
| Throw Ratio Range | 1.52 – 2.47 (with ELPLM15 lens) |

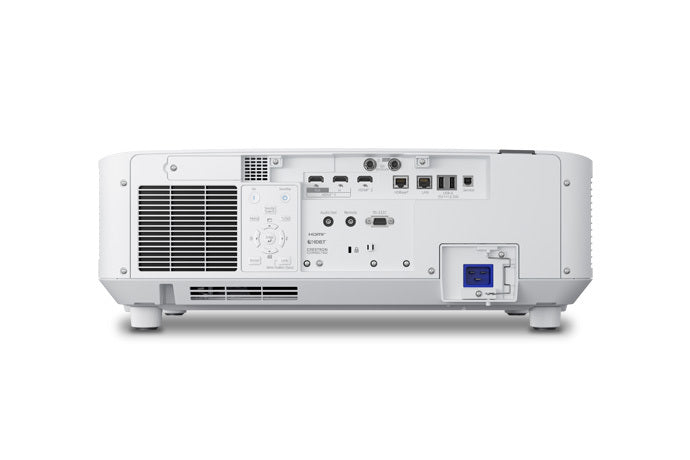

| Connectivity | HDMI (2 in/1 out), 12G-SDI in/out, HDBaseT, USB-A/B, RS-232c, RJ-45 LAN |
| Additional Features | HDR support, frame interpolation, scene adaptive gamma correction, NFC setup, optional PixAlign™ camera |
| Dimensions (W × D × H) | 23.1" × 19.4" × 7.3" (586 × 492 × 185 mm) |
| Weight | 64.3 lb (29.2 kg) |
| Noise Level | 44 dB (Normal), 36 dB (Eco) |
| Operating Temperature | 32 °F – 122 °F (0 °C – 50 °C) |
| Power Supply | 100–120 V AC or 200–240 V AC, 50/60 Hz |
| Power Consumption | 1,114 W (Normal), 784 W (Extended), 0.4 W (Standby Energy Saving) |
| Eco Features | RoHS compliant, SmartWay® Transport Partner, end-of-life recycling available |
| Warranty | 3-year limited warranty; Epson Preferred℠ Plus Extended Service Plans available |
