Description

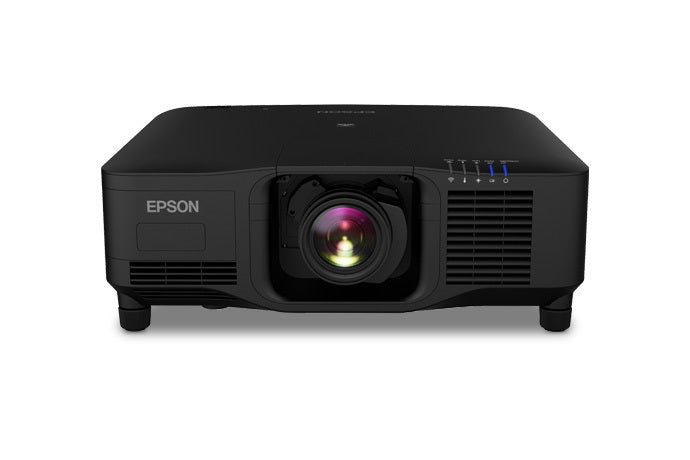

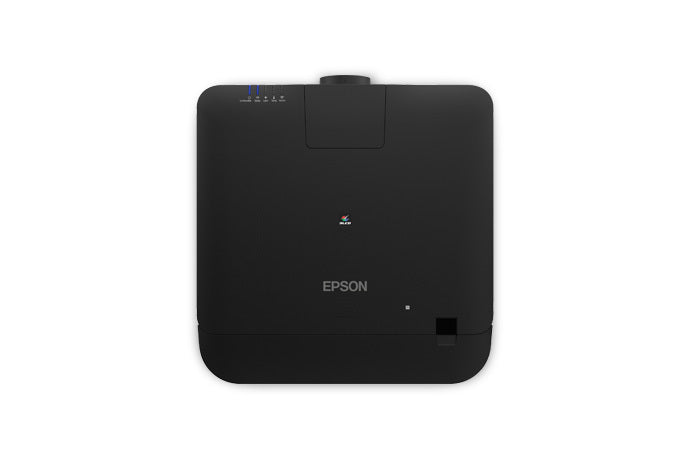

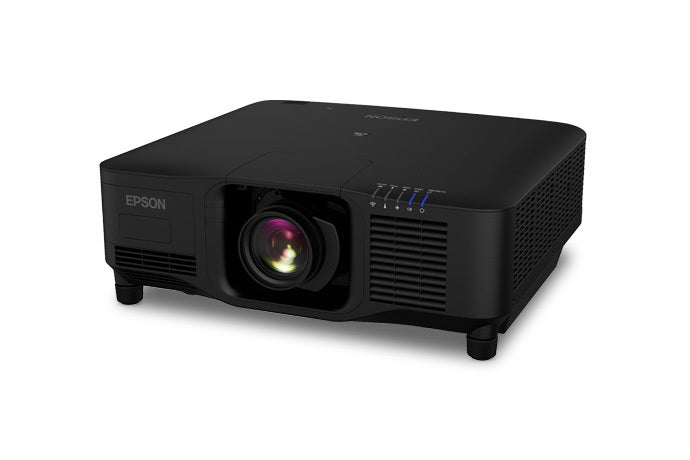

The Epson EB-PQ2220B is the world’s smallest and lightest 20,000-lumen 4K laser projector, delivering stunning brightness and incredible detail in a compact, energy-efficient design. Perfect for large venues and live events, it produces 20,000 lumens of equal color and white brightness with Epson’s advanced 3-chip 3LCD technology.
Leveraging 4K Crystal Motion technology, thermo-controlled panels, and a double micro-lens array, the EB-PQ2220B achieves crystal-clear 4K resolution (3840 × 2160) and a high native contrast ratio for vibrant colors and deep blacks.
Engineered for durability, it features a virtually maintenance-free 20,000-hour laser light source, IP5X-rated hermetically sealed optics, a filterless cabinet, and optimized liquid cooling. Installation is simplified with 9 optional powered lenses (including an ultra short throw .35 lens), compatibility with existing Epson lenses, and built-in NFC for faster setup.
Enhanced connectivity includes dual HDMI®, HDBaseT, and 12G-SDI in/out, supporting daisy-chaining and signal monitoring. With HDR support, frame interpolation, and low latency 4K playback, this projector ensures lifelike image quality and smooth performance.

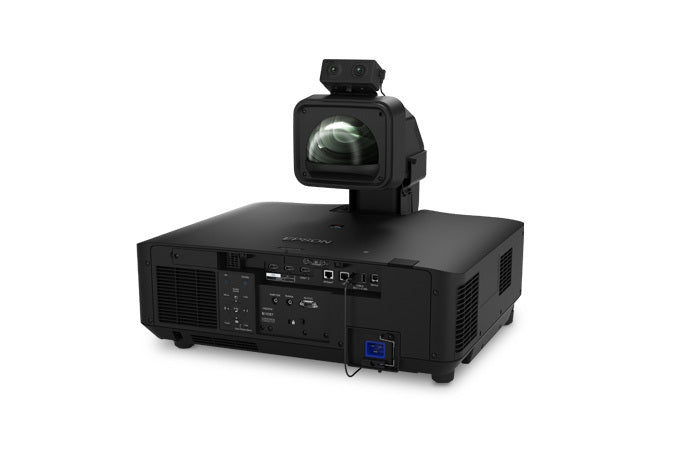

For maximum control, pair with the optional PixAlign™ camera for automated edge blending, color calibration, and stacking assist. Designed for large-scale environments, the EB-PQ2220B is ideal for auditoriums, staging, and immersive installations.
| Category | Details |
|---|---|
| Brand | Epson |
| Product Line | EB-PQ Series |
| Model | EB-PQ2220B |
| SKU / Part Number | V11HB05820 |
| Projection System | 3-chip 3LCD, Poly-Silicon TFT Active Matrix |
| Native Resolution | 1080p with 4K Crystal Motion (1920 × 1080 × 4) |
| On-Screen Resolution | 4K UHD (3840 × 2160) |
| Brightness | 20,000 lumens (color & white) |
| Contrast Ratio | Up to 5,000,000:1 (Dynamic) |
| Aspect Ratios | 4:3, 16:10, 16:9, 21:9 |
| Color Reproduction | Up to 1.07 billion colors |
| Light Source | Laser phosphor, 20,000 hours (Normal) / 30,000 hours (Extended) |
| Lens Options | 9 powered optional lenses (sold separately) |
| Lens Shift | Vertical: ±60%; Horizontal: ±18% |
| Throw Ratio | 1.52 – 2.47 (with standard lens) |

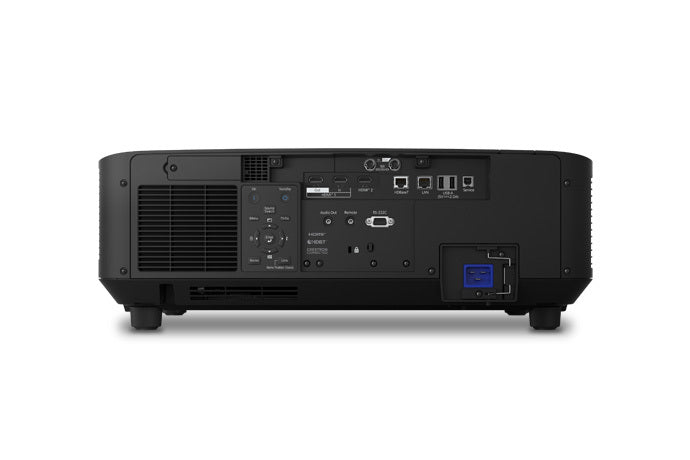

| Connectivity | HDMI (x2 In, x1 Out), 12G-SDI In/Out, HDBaseT, USB-A (x2), USB-B, RS-232c, RJ-45, Audio Out |
| Power Requirements | 100–120 V AC, 200–240 V AC |
| Power Consumption | 1,431 W (Normal), 975 W (Eco) |
| Noise Level | 48 dB (Normal), 39 dB (Eco) |
| IP Rating | IP5X (optical engine & light source) |
| Dimensions (W×D×H) | 23.1″ × 19.4″ × 7.3″ (586 × 492 × 185 mm) |
| Weight | 64.3 lb (29.2 kg) |
| What’s Included | Projector, 220 V & 120 V power cables, remote control + 2 batteries, cable cover, quick reference guide, warranty sheet |
| Warranty | 3-year limited or 20,000 hours (whichever comes first) |

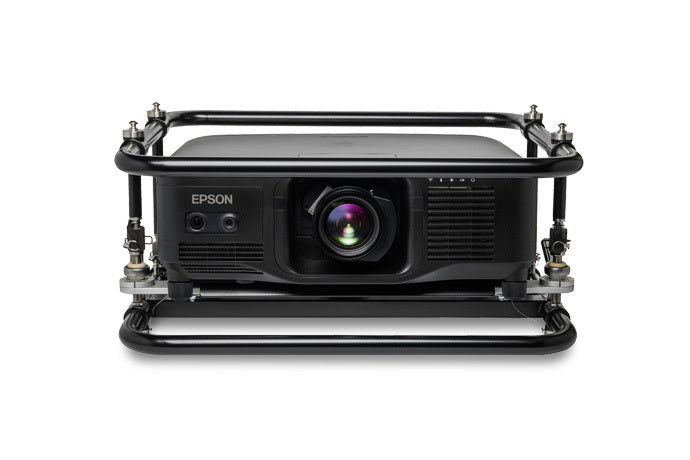

| Optional Accessories | PixAlign™ Camera, Rigging Frame, Ceiling Mount, Wireless LAN Module, Ultra Short Throw Lens, Zoom Lenses |
