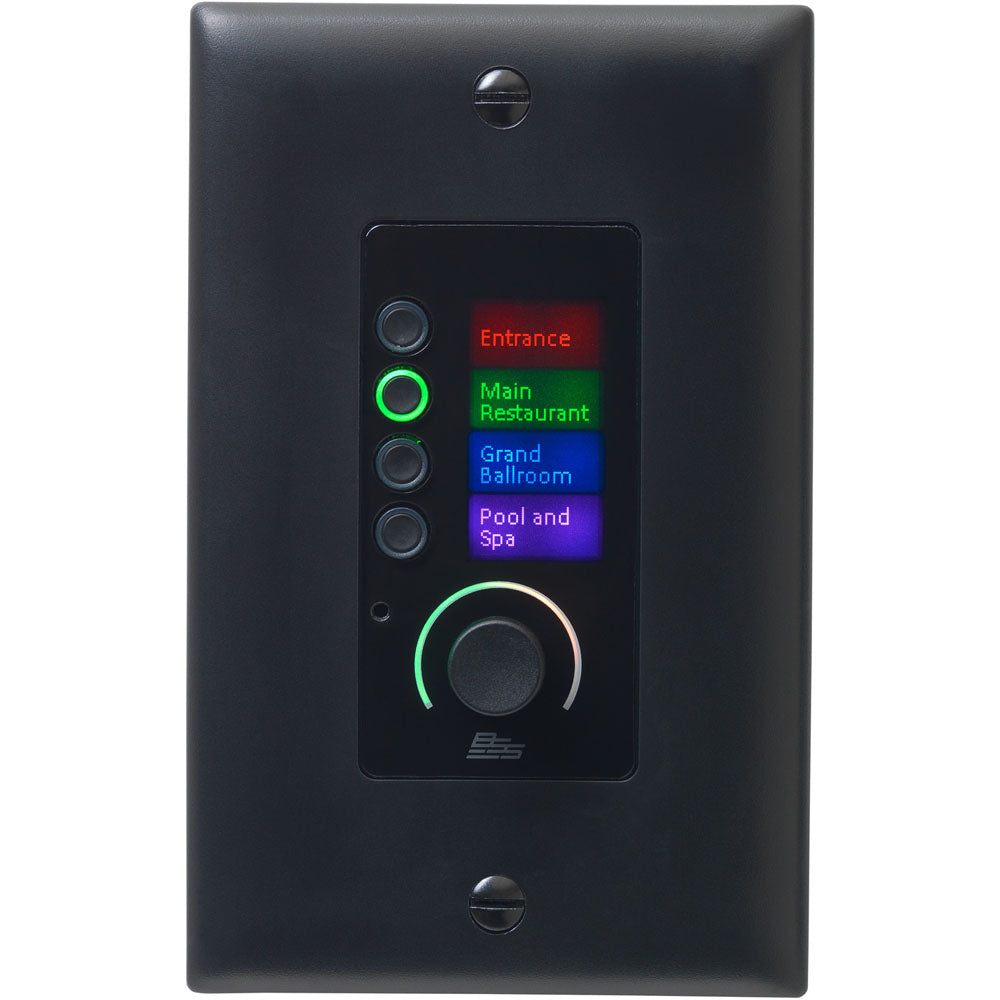

EC-4BV-BLK-US Ethernet Ctrlr w/ 4 Btns & Volume (Black)
The Soundweb Contrio EC-4BV is an Ethernet wall controller for use in Harman HiQnet systems. The EC-4BV can control and monitor parameters within BSS Audio Soundweb London and other HiQnet devices, including Crown DCi series amplifiers.

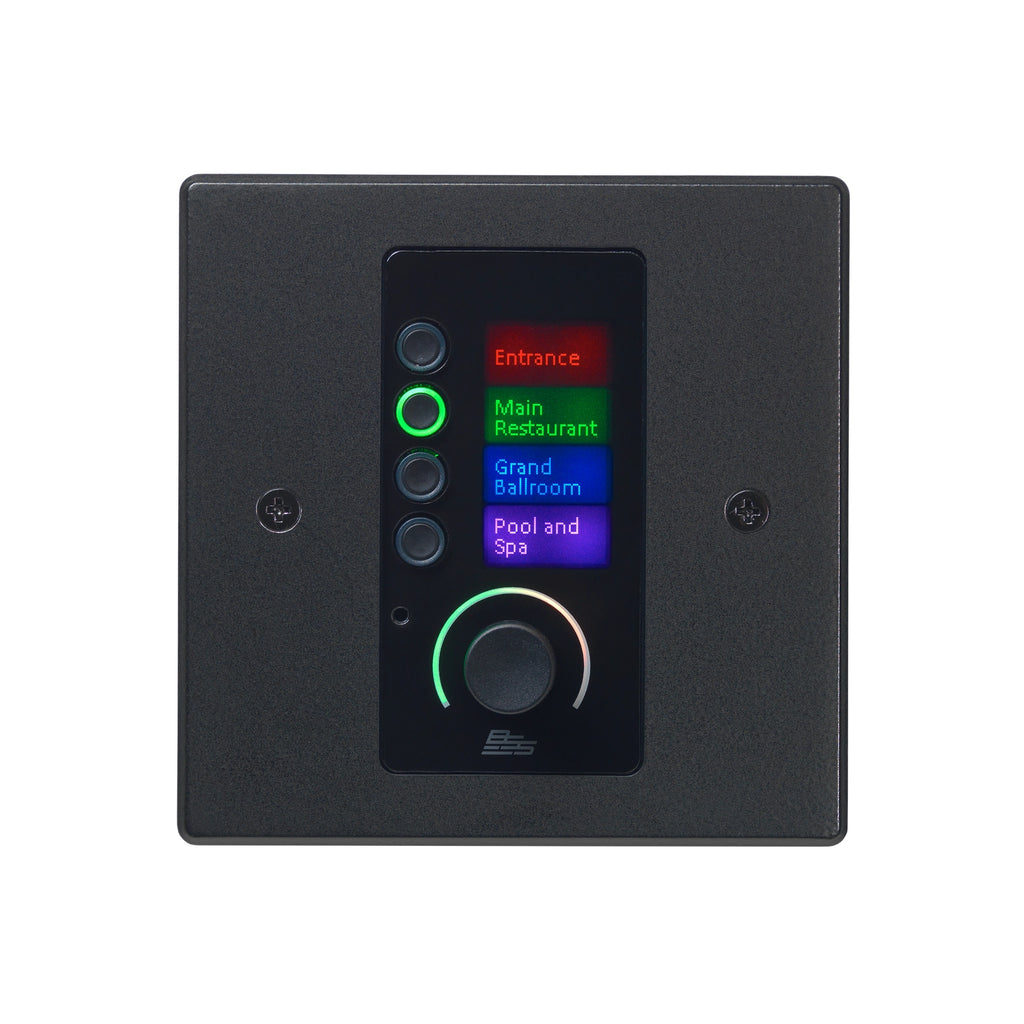

The EC-4BV is available in black or white, and in single-gang US Decora or single-gang EU form factor. The EC-4BV contains a single Ethernet port for configuration, control, monitoring, and power via PoE. The EC-4BV is configured via simple drag-and-drop operations within the software application HiQnet Audio Architect. The EC-4BV contains one push/rotary encoder, one encoder ring, four buttons, and one LCD screen. The buttons, encoder ring, and LCD screen are multi-color backlit, capable of eight different colors with adjustable intensity. The push/rotary encoder can be rotated for continuous parameter control (e.g. volume). The push/rotary encoder can also be pressed for binary parameter control (e.g. mute) or preset recall.
The encoder ring can display a bouncing audio meter. When the push/rotary encoder is rotated, the encoder ring can temporarily display a volume setting. When the push/rotary encoder is pressed, the encoder ring can temporarily display a binary parameter setting (e.g. red/green for muted/unmuted status). The four buttons can be pressed for binary parameter control (e.g. mute), preset recall, or source selection. The LCD screen has a screen resolution of 64x128 pixels, and can display custom text. The EC-4BV supports 'sleep' functionality. After a specified amount of time with no user input, the EC-4BV can turn off all LEDs. This is useful to avoid distraction in a dimly lit environment. Any user interaction will 'wake up' the controller. The EC-4BV can be remotely locked and unlocked via other control systems. The EC-4BV can be locally unlocked via a four-digit PIN entry on the buttons. The EC-4BV supports multiple modes of operation. This allows the push/rotary encoder and encoder ring to be reassigned dynamically to different parameters based on which buttons are selected.
