Description

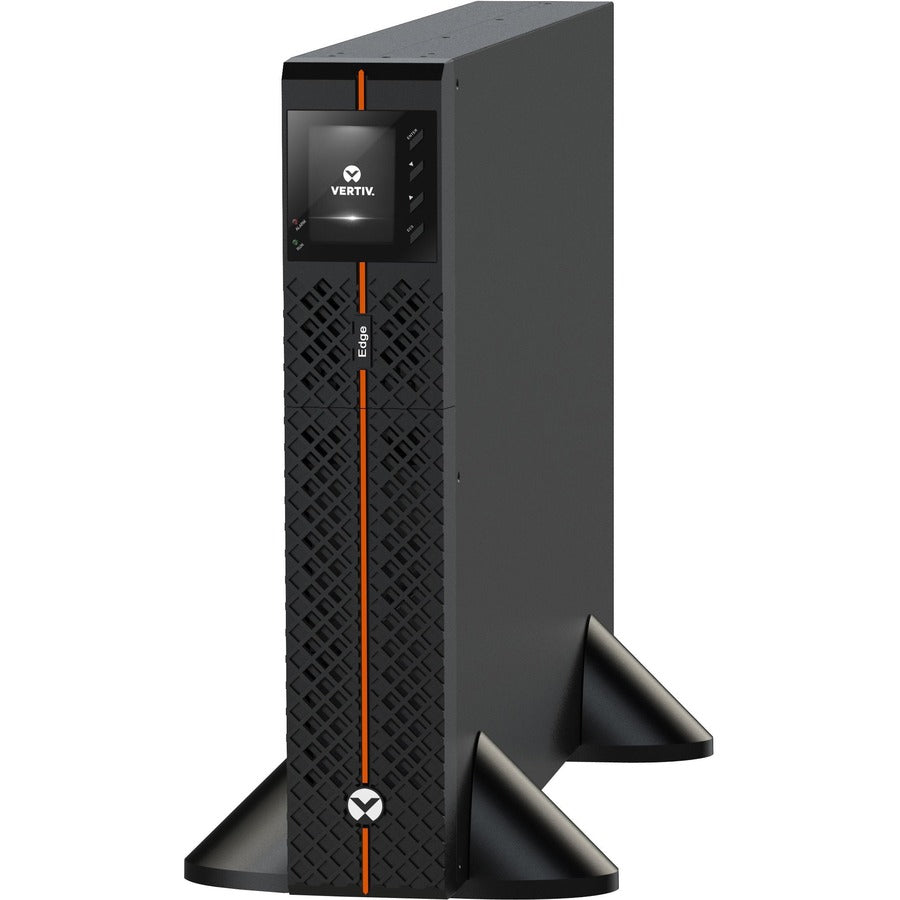

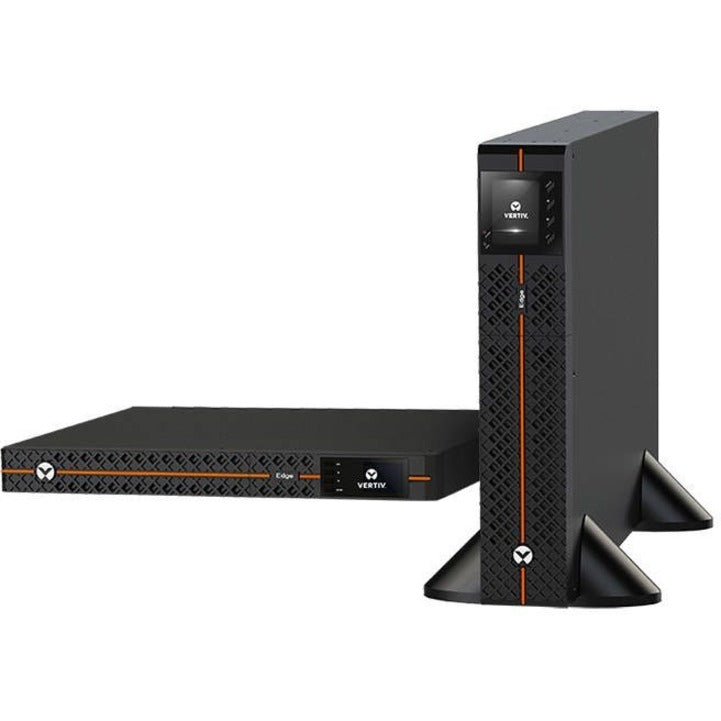

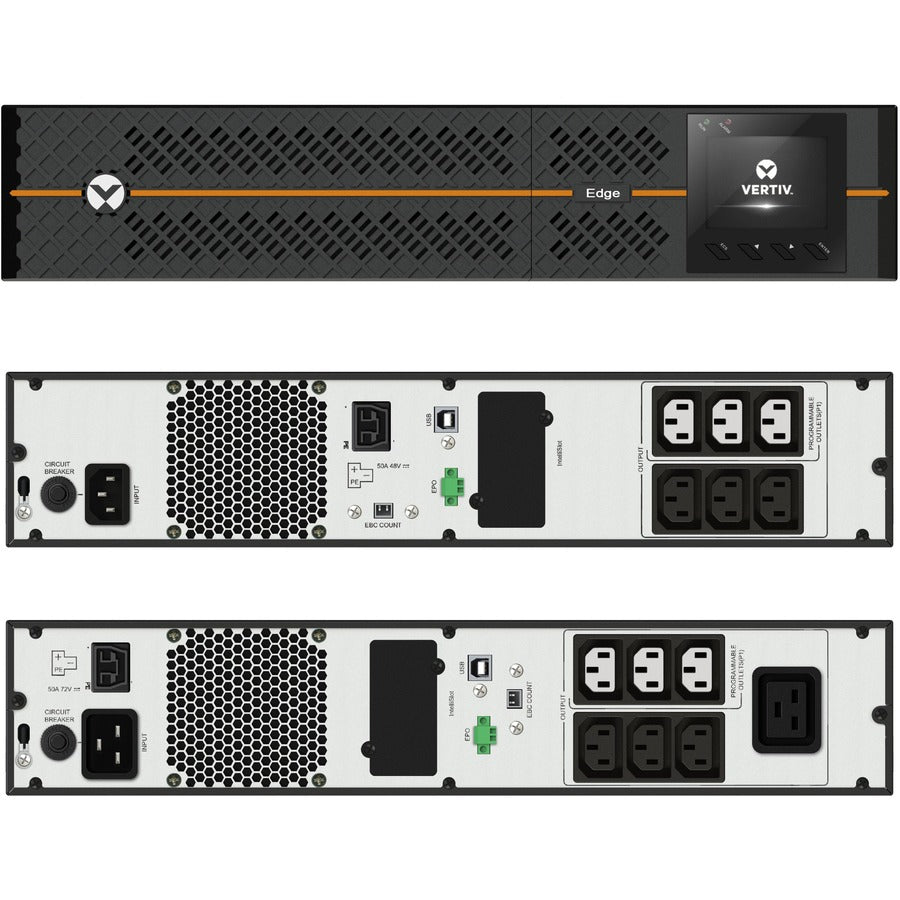

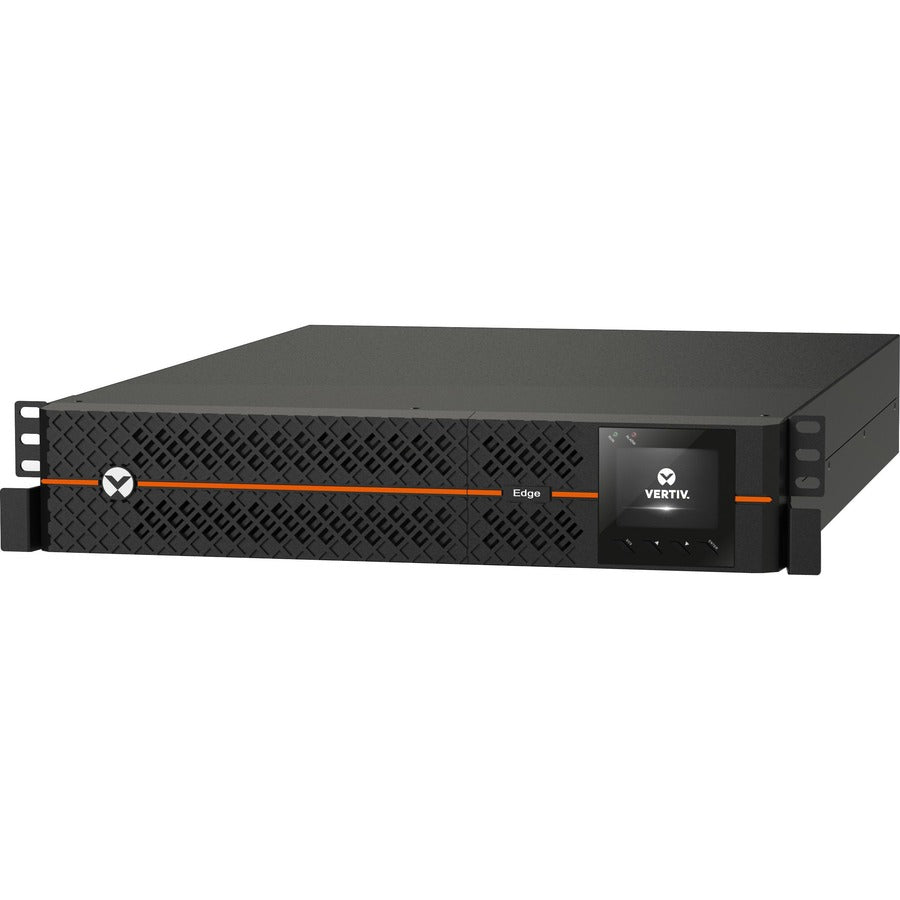

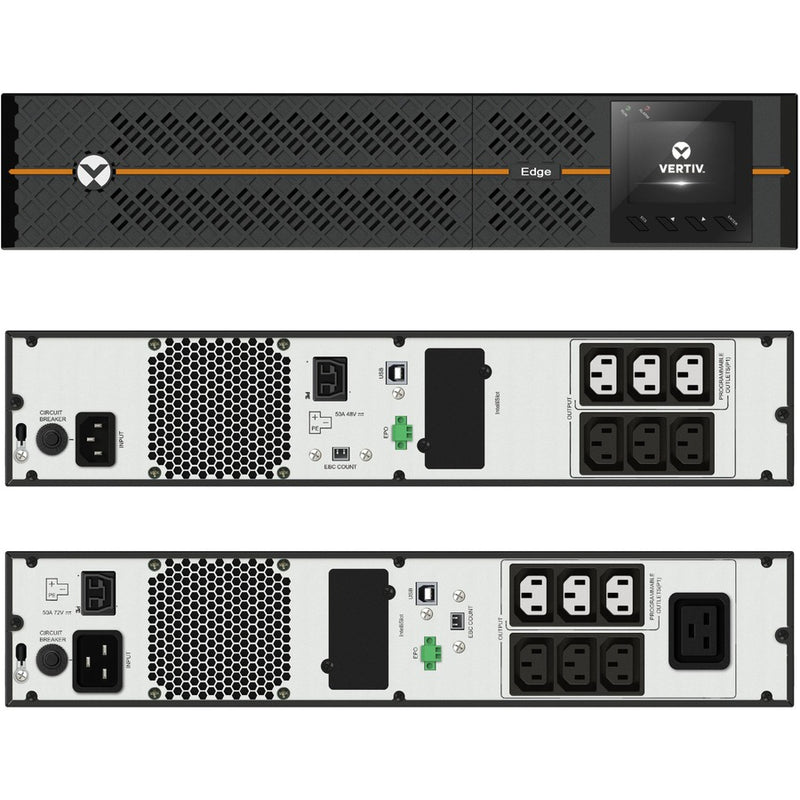

The Vertiv EDGE-2200IRT2UXL is a high-performance 2200VA / 1980W line-interactive UPS designed for edge and distributed IT environments. This versatile 2U unit can be used in rack or tower configurations, offering seamless power protection with Automatic Voltage Regulation (AVR) and pure sine wave output. Equipped with a rotatable LCD monitor, hot-swappable batteries, and optional SNMP/Webcard support, it ensures minimal downtime and maximum visibility. Backed by a 3-year warranty, it’s the ideal solution for network closets, server rooms, and remote sites.
| Specification | Details |
|---|---|
| Brand Name | Vertiv |
| Model | EDGE-2200IRT2UXL |
| Type | Line-Interactive UPS |
| VA / Watt Rating | 2200 VA / 1980 W |
| Form Factor | Rack/Tower Convertible (2U) |
| Input Voltage Range | 144 – 290V AC |
| Output Voltage Options | 200 / 208 / 220 / 230 / 240V AC |
| Waveform Type | Pure Sine Wave |
| Transfer Time | 6 ms |
| Outlets | 6 x IEC C13, 1 x IEC C19 |
| Display | Color and graphic rotatable LCD |
| SNMP/Webcard Support | Vertiv Intellislot SNMP/Webcards (Optional) |
| Backup Time (Half / Full Load) | 14 min / 4.4 min |
| Recharge Time | 3 Hours |
| Battery Type | Lead Acid, Valve-Regulated (6x 12V, 7000 mAh) |
| Hot Swappable Batteries | Yes |
| Alarm/Indicators | Audible alarm, LCD status display |
| USB Port | Yes (HID Compliant) |
| Circuit Breaker | Yes |
| Operating Temp Range | Up to 40°C |
| Storage Temp Range | -25°C to 55°C |
| Sound Level | 45 dB |
| Dimensions (H x W x D) | 3.5" x 17.2" x 24.8" |
| Weight | Approx. 59.52 lbs |
| Shipping Weight | 73 lbs |
| Product Condition | New and Factory Fresh |
| Warranty | 3-Year Warranty |
| Energy Star / TAA | No / No |
