Description

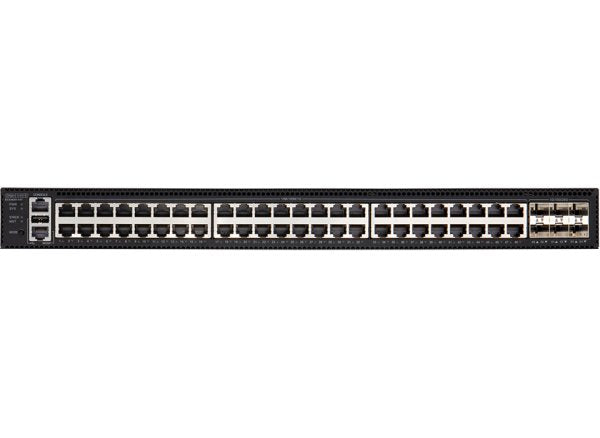

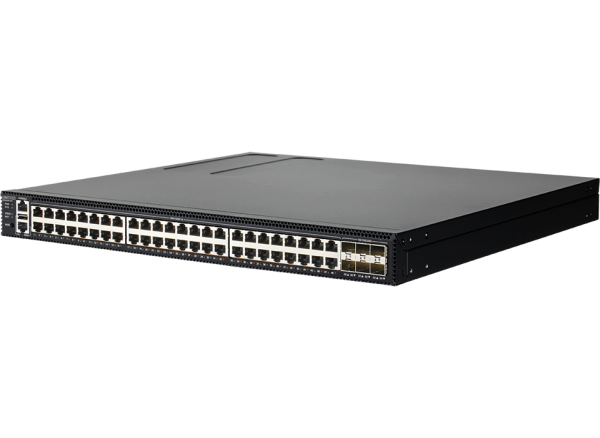

The Edgecore ECS4650-54P is a high-performance Layer 3 Gigabit Ethernet PoE switch designed for enterprise, campus, and service-provider networks requiring advanced switching, routing, and intelligent power delivery. Featuring 48 × 1 GbE PoE RJ-45 ports and 6 × 25 GbE SFP28 uplinks, the ECS4650-54P delivers robust connectivity, flexible scalability, and intelligent management through a secure web-based or CLI interface.
Built on a resilient architecture, it supports comprehensive Layer 2/Layer 3 switching, QoS, VLAN, ACL, multicast filtering, and redundancy protocols such as STP/RSTP/MSTP. With IEEE 802.3at/af PoE capability and a large PoE budget, the ECS4650-54P powers IP phones, cameras, and access points directly over Ethernet cables. Enhanced security through AAA, 802.1X authentication, RADIUS/TACACS+, DHCP Snooping, and IP Source Guard ensures network integrity, while features like sFlow, port mirroring, and LACP simplify network visibility and optimization.
The ECS4650-54P also supports IPv4/IPv6 routing, VRRP, and OSPF, making it ideal for aggregation and distribution layers in modern converged networks.
| Feature | Description |
|---|---|
| Model | Edgecore ECS4650-54P |
| Switch Type | Layer 3 Gigabit Ethernet PoE Switch |
| Ports | 48 × 1000BASE-T RJ-45 PoE ports + 6 × 25 G SFP28 uplink ports |
| Switching Capacity | 880 Gbps |
| Forwarding Rate | 654 Mpps |
| MAC Address Table | 32 K entries |
| VLANs | Up to 4094 IEEE 802.1Q, port-based, protocol-based, voice VLANs, QinQ tunneling |
| Layer 3 Routing | Static Routing, RIP, OSPF, VRRP |
| Multicast Support | IGMP Snooping v1/v2/v3, MLD Snooping, Multicast VLAN Registration |
| Quality of Service (QoS) | 8 queues per port, 802.1p CoS, DSCP, DiffServ, Rate Limiting, Traffic Shaping |
| Security | 802.1X port authentication, AAA, RADIUS/TACACS+, DHCP Snooping, IP Source Guard, ACLs (up to 3072 rules) |
| PoE | IEEE 802.3af/at compliant, configurable per-port power management |
| Management | Web GUI, CLI, SNMP v1/v2c/v3, RMON, SSH, HTTPS, sFlow |
| Redundancy | STP, RSTP, MSTP, Ethernet Ring Protection Switching (G.8032), MLAG support |
| Address Table | 32 K MAC addresses, 8 K ARP entries, 1 K static ARP entries |

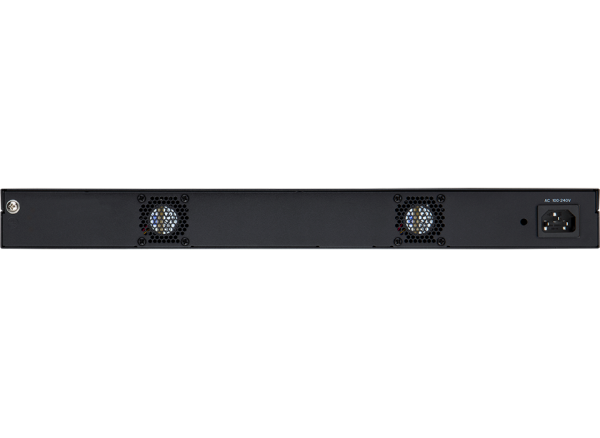

| Power Supply | Dual redundant hot-swappable AC PSUs (varies by configuration) |
| Operating Temperature | 0 °C – 50 °C (32 °F – 122 °F) |
| Dimensions (W × D × H) | Approx. 440 × 400 × 44 mm (1U rack mount) |
| Weight | Approx. 7 kg |
| Certifications | CE, FCC, RoHS compliant |
