Description
The Edgecore AIS800-64D-AF-UN is a high-performance, ultra-low-latency 800G data center switch designed for next-generation spine, AI/ML, and HPC environments. Powered by the Broadcom Tomahawk 5 switch silicon, it delivers 51.2 Tbps switching capacity and up to 320 logical ports, offering scalable, power-efficient networking for large-scale data centers.

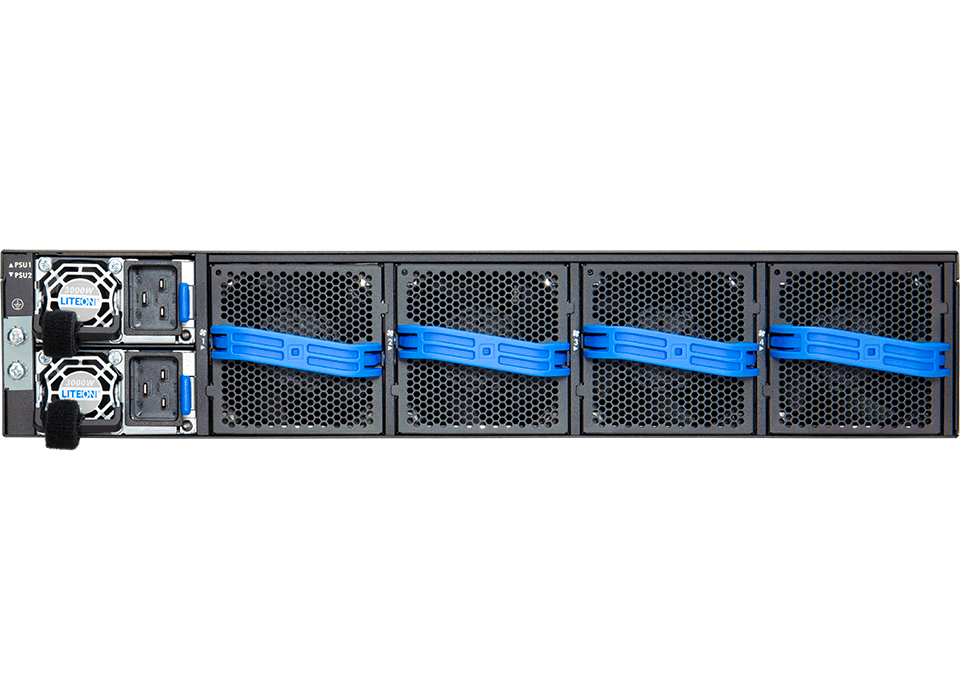

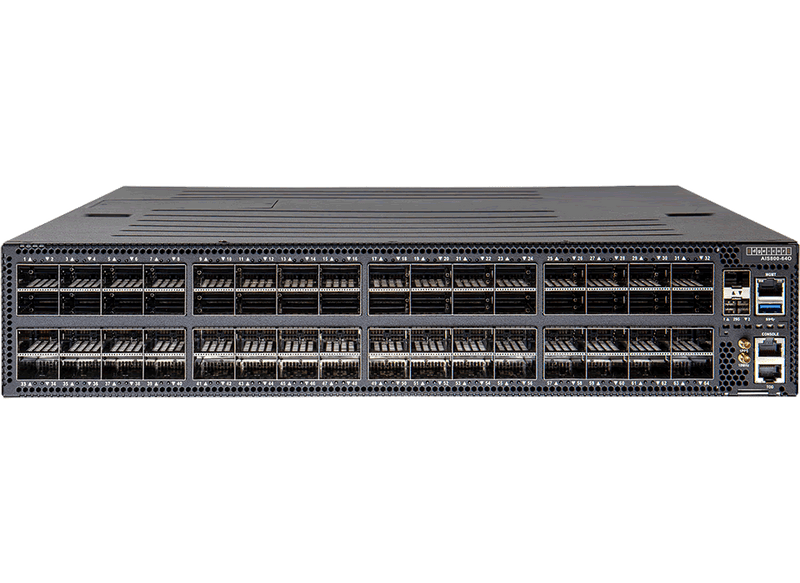

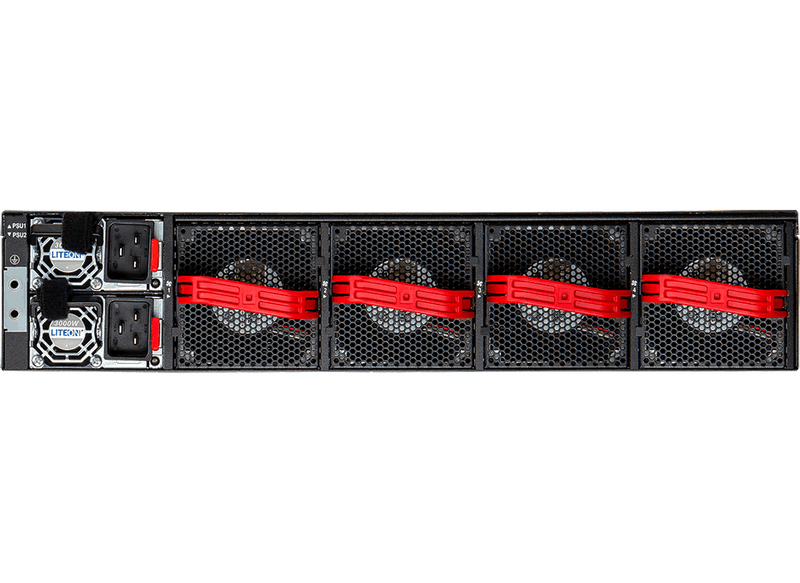

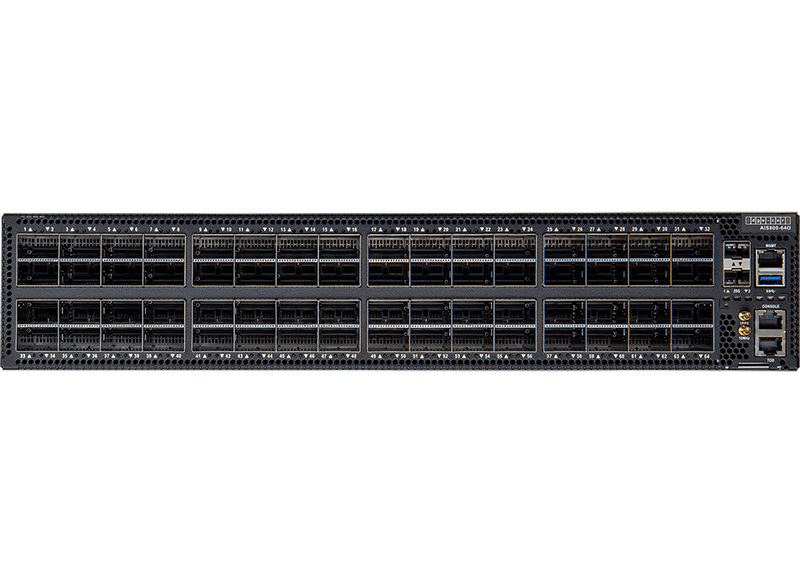

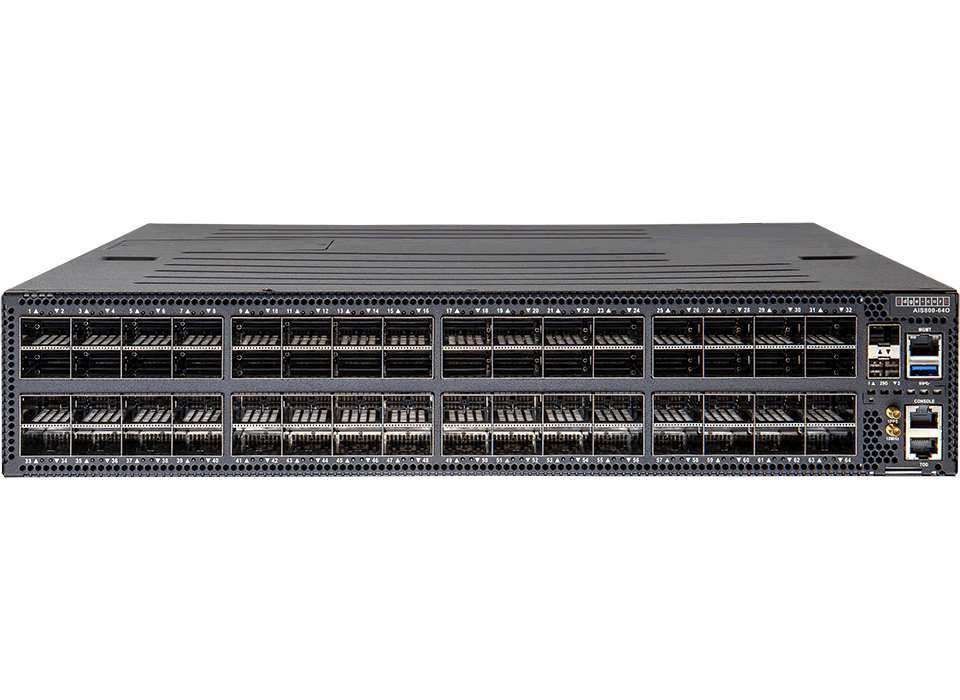

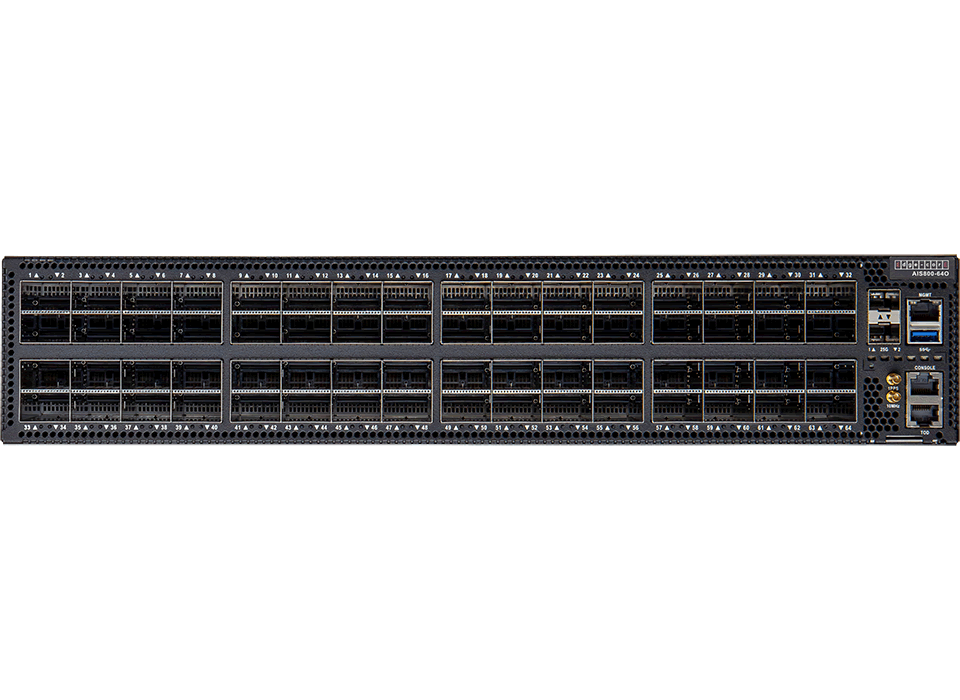

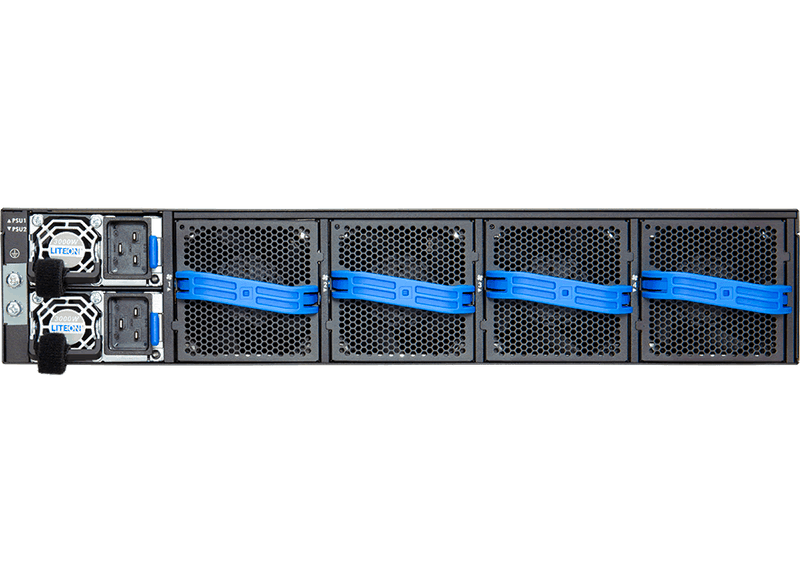

Featuring 64 x QSFP-DD800 ports, the switch supports breakout configurations from 800G to 50G speeds, enabling seamless migration to higher-bandwidth interconnects. It includes dual hot-swappable 3000 W AC PSUs, front-to-back airflow, and redundant fan modules for continuous uptime.
Ideal for AI/ML clusters, high-performance computing, and cloud DCI, the AIS800-64D-AF-UN integrates RoCEv2, SRv6, VxLAN RIOT, PTPv2, and SyncE, providing deterministic latency and advanced telemetry for network optimization. Pre-loaded with ONIE, it supports a wide range of open and commercial network operating systems (NOS).
| Category | Specification |
|---|---|
| Model | AIS800-64D-AF-UN |
| Brand | Edgecore |
| Switch Silicon | Broadcom Tomahawk 5 (BCM78900) |
| CPU | Intel Xeon D-1713NTE (4-core, 2.2 GHz, Ice Lake) |
| Memory / Storage | 32 GB DDR4 SO-DIMM ECC / 240 GB M.2 NVMe SSD |
| Switching Capacity | 51.2 Tbps (full duplex) |
| Ports | 64 × QSFP-DD800 800 GbE |
| Logical Ports | Up to 320 |
| Breakout Modes | 2 × 400G, 4 × 200G, 8 × 100G (PAM4) or 2 × 200G, 4 × 100G, 8 × 50G (PAM4); 1 × 100G (NRZ) |
| Management Ports | 1 × RJ-45 console, 1 × RJ-45 1G management, 2 × SFP28 25G, 1 × USB 3.0 |
| Timing & Sync | 1PPS, 10 MHz, ToD, SyncE, IEEE 1588v2 PTP |
| Airflow | Front-to-back (AFO) |
| Power Supply Units | 2 × hot-swappable 3000 W AC (dual redundant) |
| Power Efficiency | 90 – 94 % (without fan) |
| Max Power Draw | < 2775 W (@ 40 °C, full load with 64 × 18 W optics) |
| Fan Modules | 4 × hot-swappable (7 + 1 redundant) |
| Dimensions (W × D × H) | 44 × 64.92 × 8.7 cm (17.32 × 25.56 × 3.43 in) |
| Weight | 21.5 kg (47.4 lb) |
| Operating Temp. | 0 – 40 °C (front-to-back) |
| Operating Humidity | 5 – 95 % (non-condensing) |
| Regulatory Compliance | EN 55032 Class A, FCC Class A, UL 62368-1, RoHS-2.0, WEEE Directive |
| Software Environment | Pre-loaded ONIE installer; supports open and commercial NOS options |
| Advanced Features | Cognitive routing, Dynamic Load Balancing (DLB), VxLAN RIOT, SRv6, Telemetry support |
| Warranty | As per Edgecore regional terms |
