Description

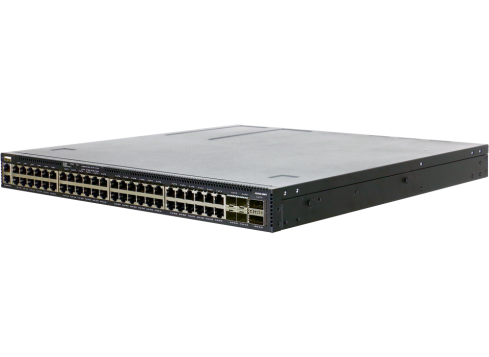

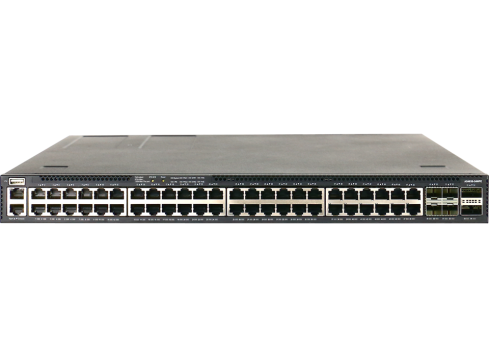

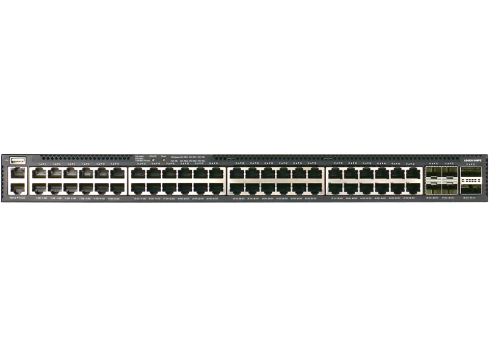

The Edgecore AS4630-54NPE-O-AC-F-US (EPS203) is a high-performance, open-network Layer 3 enterprise switch designed for modern data centers and campus environments. Featuring 36 × 10/100/1000/2.5G PoE++ ports, 12 × 10GBASE-T ports, 4 × 25G SFP28 uplinks, and 2 × 100G QSFP28 stacking ports, this switch delivers exceptional versatility and bandwidth aggregation.
Powered by the Broadcom Trident III BCM56370 silicon and an Intel Atom C3558 2.2 GHz CPU, it provides full line-rate Layer 2/Layer 3 switching with up to 1 Tbps switching capacity and 863.1 Mpps forwarding rate.
Ideal for enterprise, hospitality, and campus deployments, it supports up to 90 W PoE++ per port, enabling seamless connectivity for wireless access points, VoIP phones, and surveillance systems over existing Cat 6 cabling.

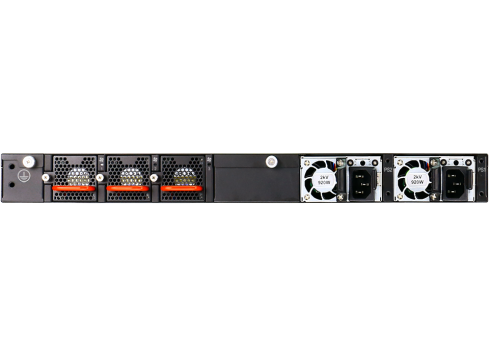

Dual redundant AC power supplies, hot-swappable fans, and port-to-power airflow ensure high availability and efficient cooling.
Pre-loaded with the Open Network Install Environment (ONIE), the AS4630-54NPE is ready for open-network NOS installation—supporting both commercial and open-source network operating systems.
| Specification | Details |
|---|---|
| Model | AS4630-54NPE-O-AC-F-US |
| Ports | 36 × 10/100/1000/2.5G PoE++ ports12 × 10GBASE-T ports4 × 25G SFP28 uplink ports2 × 100G QSFP28 stacking ports |
| Management Ports | 1 × RJ-45 console port1 × RJ-45 100/1000BASE-T management port1 × USB Type-A storage port |
| Switch Silicon | Broadcom BCM56370 (Trident III), 560 Gbps |
| CPU | Intel Atom C3558 (4 cores, 2.2 GHz, x86) |
| Memory / Storage | 8 GB × 2 DDR4 SO-DIMM RAM16 MB × 2 Flash32 GB M.2 SSD |
| Switching Capacity | 1 Tbps (full duplex) |
| Forwarding Rate | 863.1 Mpps |
| MAC Addresses | 16 K min / 112 K max |
| VLAN IDs | 4 K |
| Jumbo Frames | Up to 12,288 bytes |
| Packet Buffer Size | 8 MB integrated |
| PoE Power Budget | Up to 90 W per port (dependent on total budget) |
| Airflow Direction | Port-to-Power |
| Power Supplies | Dual redundant, load-sharing, hot-swappable AC PSUs |
| Power Input | 100–240 VAC (50/60 Hz) |
| Power Consumption | 2000 W max (100–120 VAC) / 2400 W max (200–240 VAC) |
| Fans | 2 + 1 hot-swappable redundant fans |
| Operating Temperature | 0 °C to 45 °C |
| Storage Temperature | –40 °C to 70 °C |
| Operating Humidity | 5 % to 90 %, non-condensing |
| Dimensions (W × D × H) | 43.8 × 47.4 × 4.4 cm (1 RU) |
| Weight | 8.5 kg (18.74 lb) |
| Certifications | CE, FCC Class A, VCCI Class A, CCC, BSMI, UL, CB, WEEE Directive 2002/96/EC |
| Software | Open Network Install Environment (ONIE) pre-loaded; supports open source and commercial NOS options |
| Warranty | Refer to Edgecore regional terms |
| Application Use Cases | Enterprise LANs, campus networks, hospitality, warehouses, data center top-of-rack |
