Description
The Edgecore AS7946-30XB-O-AC-F is a high-performance 100GbE aggregation router built for telecom networks and data center environments that demand scalability, reliability, and flexibility. Powered by the Broadcom StrataDNX™ Qumran2C chipset and an Intel® Xeon® D-1548 8-core CPU, this 2RU router delivers up to 2.4 Tbps full-duplex switching capacity and deep 4 GB buffering for efficient traffic management.

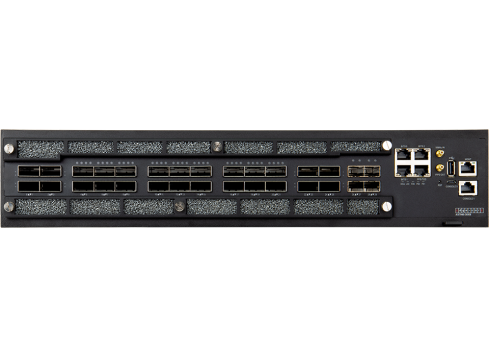

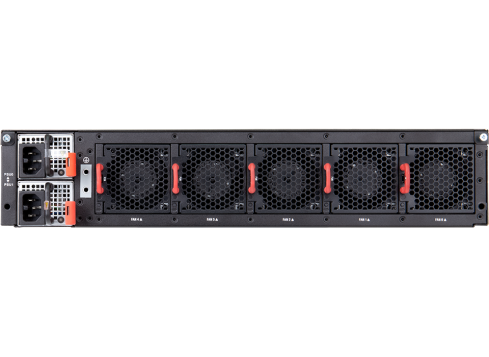

With 4 × 400G QSFP-DD, 4 × 100G QSFP-DD, 18 × 100G QSFP28, and 4 × 1/10/25G SFP28 ports, it supports versatile connectivity options across aggregation, provider edge (PE), and OpenBNG deployments. Hot-swappable dual AC power supplies, 4 + 1 redundant fans, and front-to-back airflow ensure service continuity and operational resilience.
Preloaded with ONIE (Open Network Install Environment), the AS7946-30XB-O-AC-F supports both open-source and commercial Network Operating Systems (NOS), including Open Network Linux (ONL). Designed for carrier-class reliability and open networking flexibility, it is an ideal choice for next-generation broadband aggregation and edge routing applications.
| Category | Details |
|---|---|
| Model | AS7946-30XB-O-AC-F |
| Product Type | 100GbE Aggregation Router |
| Switch Silicon | Broadcom BCM88823 Qumran-2C |
| CPU | Intel® Xeon® D-1548 8-Core |
| Memory | 32 GB DDR4 SO-DIMM (2 × 16 GB) |
| Storage | M.2 128 GB SSD; Dual 16 MB SPI Boot Flash |
| Management Controller | ASPEED AST2600 BMC |
| Switching Capacity | 2.4 Tbps (full duplex) |
| Buffer Memory | 4 GB integrated deep buffer |
| Network Ports | 4 × 1/10/25G SFP28, 18 × 100G QSFP28, 4 × 100G QSFP-DD, 4 × 400G QSFP-DD |
| Transceiver Support | 1000BASE-EX/ZX, 10GBASE-SR/LR/ER/ZR, 100GBASE-SR4/LR4/ER4/ZR4/PSM4-2, 400GBASE-ZR/ZR+ |
| Management Ports | 1 × RJ-45 console, 1 × RJ-45 10/100/1000BASE-T management, 1 × Micro USB console, 1 × USB Type A |
| Timing Interfaces | 3 × RJ-45 (BITS), 1 × RJ-45 (1PPS), 1 × SMB (1PPS out), 1 × SMB (10 MHz in) |
| Power Supplies | Dual hot-swappable AC-DC (1+1 redundant) |
| Power Input | 100–120 V AC (12 A per PSU); 200–240 V AC (7.5 A per PSU) |
| Power Consumption | Max 527 W; Typical 186 W |
| Cooling | 4 + 1 hot-swappable redundant fans |
| Airflow | Front-to-Back |
| Dimensions (W × D × H) | 440 × 480 × 87 mm (2RU) |
| Weight | 16 kg (with PSUs and fans) |
| Operating Temperature | 0 °C to 45 °C (32 °F – 113 °F) |
| Operating Humidity | 5% – 85% non-condensing |
| Compliance & Safety | UL 60950-1, IEC 62368-1, CE EN 55032 Class A, FCC Part 15 Class A, RoHS 2.0, WEEE |
| Software Environment | ONIE preloaded; supports Open Network Linux (ONL) and commercial NOS |
| Use Cases | Disaggregated aggregation router, PE router, OpenBNG, or data center TOR switch/router |
| Warranty | Refer to Edgecore regional warranty policy |
