Description
The Edgecore ECS5520-18T is a high-performance Layer 2+/Lite Layer 3 managed switch featuring sixteen 10GBASE-T ports and two 40G QSFP+ uplinks. Designed for carrier, enterprise aggregation, or small data-center top-of-rack deployments, it provides a total switching capacity of 480 Gbps and a forwarding rate of 357.12 Mpps.

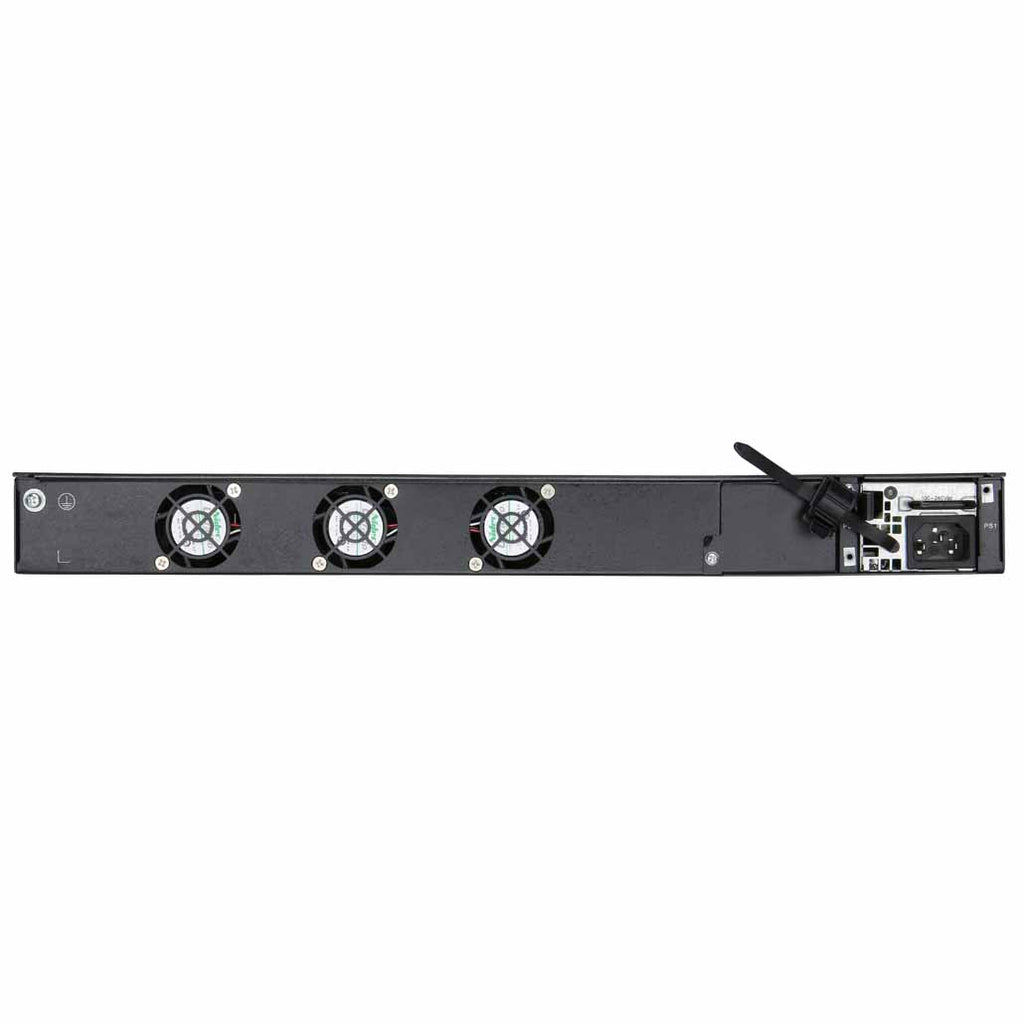

This model offers redundant, hot-swappable AC or DC power supply modules, front-to-back airflow, and intelligent fan-speed control for reliable operation. It supports advanced features including IPv6 management, ERPS (G.8032) ring protection, QoS with eight queues per port, multicast control with IGMP snooping and MVR, and strong L2+/L3 security mechanisms such as 802.1X authentication, DHCP snooping, IP Source Guard, and Dynamic ARP Inspection.
Ideal for high-speed aggregation or top-of-rack switching, the ECS5520-18T delivers the performance, scalability, and resiliency required for modern enterprise and service-provider networks.
| Category | Specification |
|---|---|
| Model | Edgecore ECS5520-18T |

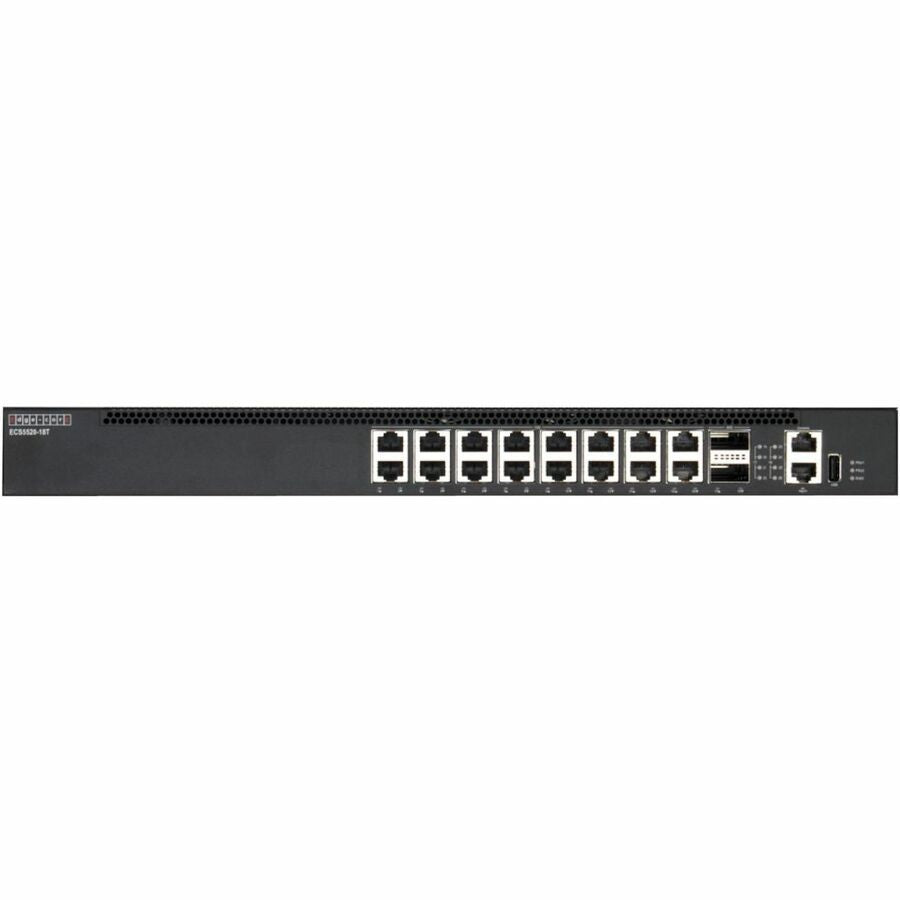

| Port Configuration | 16 × 10GBASE-T ports (10 GbE copper), 2 × 40G QSFP+ uplink ports |
| Management Ports | 1 × RJ-45 console port • 1 × GE OOB management port • 1 × USB port |
| Switching Capacity | 480 Gbps |
| Forwarding Rate | 357.12 Mpps |
| MAC Address Table | 64 K (shared with L2/L3 table) |
| Memory | 2 GB DRAM • 1 GB NAND Flash + 32 MB SPI NOR |
| Jumbo Frame Support | Up to 10 KB |
| Power Supply | 1 × hot-swappable AC power module (100–240 VAC, 50/60 Hz) • Optional 2nd AC module for redundancy • Optional DC module (-36 to -72 VDC) |
| Max. Power Consumption | 132 W |
| Airflow Direction | Front to Back |
| Dimensions (W × D × H) | 43.84 × 28 × 4.34 cm (1U, 19″ rack-mount) |
| Weight | 4.1 kg (9.04 lb) with 1 PSU |
| Operating Temperature | 0 °C to 50 °C |
| Storage Temperature | -40 °C to 70 °C |
| Humidity | 5 % to 95 % (non-condensing) |
| Certifications | FCC Class A, CE, UL, CB, RoHS, WEEE |
| QoS Features | 8 hardware queues per port, 802.1p/DSCP prioritization, WRR & Strict Priority scheduling |
| L2 Features | VLANs (4K), RSTP/MSTP, Link Aggregation (802.3ad), ERPS (G.8032), Q-in-Q, IGMP snooping, MVR, Port Mirroring |
| Security | 802.1X, RADIUS/TACACS+, DHCP snooping, IP Source Guard, DAI, ACLs (L2–L4), SSH/SSL management |
| IPv6 Support | IPv6 Management, Neighbor Discovery, DHCPv6 Snooping, MLD Snooping v1/v2, IPv6 Source Guard |
| Management | CLI (via console or Telnet/SSH), Web GUI, SNMP v1/v2c/v3, RMON, LLDP, sFlow, Syslog, Firmware upgrade via TFTP/FTP/HTTP |
| Warranty | 3-year hardware warranty (terms vary by region) |
| Optional Accessories | GW-T150WV12 (AC PSU), YM-1151E (DC PSU), ET5402 series SFP+ modules, ET6401 series QSFP+ modules |
