Description
The Edgecore AS5835-54X-O-AC-B-US is a high-performance, open-network data center switch designed for modern cloud and enterprise environments. Delivering 2.56 Tbps switching capacity with 48×10 GbE SFP+ ports and 6×100 GbE QSFP28 uplinks, it supports full line-rate Layer 2/3 switching and can operate as a Top-of-Rack or spine switch in a non-blocking folded-Clos fabric.
Built with the Broadcom Trident III BCM56771 ASIC and an Intel Atom C3558 quad-core processor, the switch provides carrier-class reliability with dual hot-swappable AC power supplies, 4 + 1 redundant fan modules, and power-to-port airflow for efficient cooling.
Pre-loaded with the Open Network Install Environment (ONIE), the AS5835-54X enables users to flexibly deploy open-source or commercial network operating systems (NOS), such as SONiC, OcNOS, or Open Switch. It also supports VXLAN and NVGRE tunneling in hardware, making it an ideal platform for large-scale, virtualized data center fabrics.
| Category | Details |
|---|---|
| Model | AS5835-54X |
| SKU / Part Number | 5835-54X-O-AC-B-US / FP1ZZ5654436A |
| Form Factor | 1U Rack-mountable |
| Switch Silicon | Broadcom BCM56771 Trident III (1.28 Tbps) |
| CPU | Intel Atom C3558 (2.2 GHz Quad-Core x86) |
| Memory / Storage | 16 GB DDR4 (2×8 GB SO-DIMM), 64 GB M.2 MLC SSD, 16 MB SPI Flash ×2 |
| Switching Capacity | 2.56 Tbps (full duplex) |
| Forwarding Rate | 1 Bpps |
| Packet Buffer | 32 MB integrated |

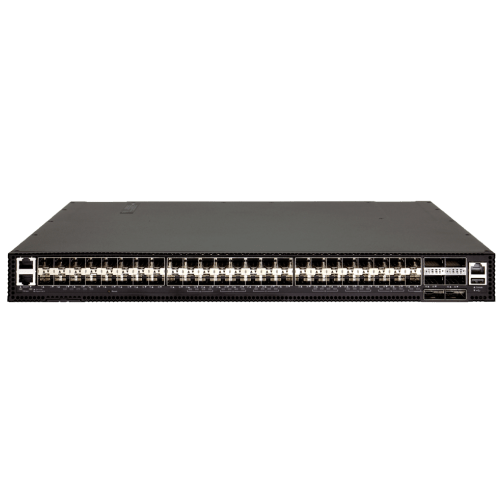

| Ports | 48×SFP+ (1/10 GbE) + 6×QSFP28 (100 GbE or 4×25 GbE breakout) |
| Management Ports | 1×RJ-45 Console, 1×RJ-45 Mgmt (1 GbE), 1×USB Type-A |
| Airflow | Power-to-Port (B-type) |

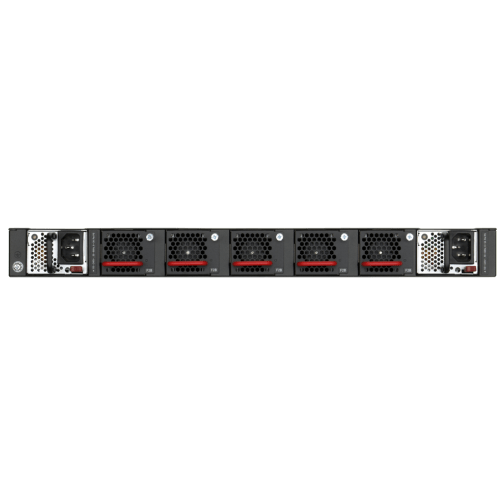

| Power Supply | Dual hot-swappable AC PSUs, 100–240 VAC 50–60 Hz |
| Max Power Consumption | 356 W |
| Fan Modules | 4 + 1 redundant, hot-swappable |
| Layer 2 / Layer 3 Features | Full L2/L3 switching, 4K VLAN IDs, 4K ECMP, IPv4 and IPv6 routing, VXLAN and NVGRE tunneling |
| Performance Metrics | MAC Address 32K–288K, IPv4 host 16K–168K, IPv6 host 8K–100K |
| Jumbo Frames | Up to 9 KB |
| Dimensions (W×D×H) | 44.25 × 47.33 × 4.395 cm (17.42 × 18.63 × 1.73 in) |
| Weight | 8.815 kg (19.43 lb, with 2 PSUs) |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature | −40 °C to 70 °C (−40 °F to 158 °F) |
| Operating Humidity | 5 % to 95 % non-condensing |
| Certifications | CE, FCC Class A, VCCI Class A, BSMI, CCC, EN55032, EN55024, EN62368, RoHS 2.0, NEBS GR63 (pre-test) |
| Software Environment | ONIE installer supporting open source and commercial NOS options |
| Warranty | 3-year hardware warranty |
