Description

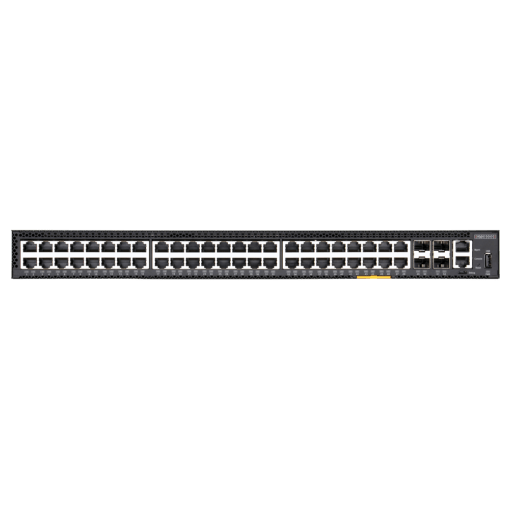

The Edgecore AS4224-52P (EPS101) is an enterprise-grade open networking PoE switch designed for high-performance, scalable networks in enterprise and chain store environments. Featuring 48 Gigabit Ethernet (10/100/1000BASE-T) ports with full IEEE 802.3af/at PoE support and 4 high-speed 10G SFP+ uplink ports, this model ensures seamless connectivity and reliable power delivery to network devices such as access points, cameras, and IP phones.

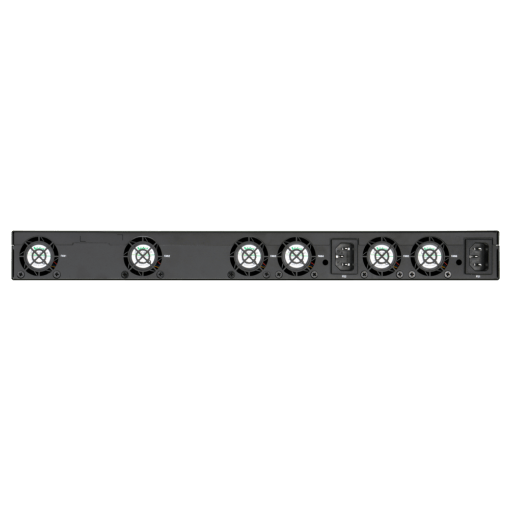

Built with redundant load-sharing AC power supplies, 5+1 fixed fans, and front-to-back airflow, the AS4224-52P provides excellent cooling and operational reliability in rack-mount environments. Powered by dual Marvell ARM processors and pre-loaded with the Open Network Install Environment (ONIE), it enables flexibility for various open networking operating systems.
With a switching capacity of 176 Gbps, forwarding rate of 130 Mpps, and robust PoE capabilities, the Edgecore AS4224-52P is a future-ready platform for building scalable, software-defined, and open-network infrastructures.
| Category | Specification |
|---|---|
| Model | Edgecore AS4224-52P-O-AC-F-EC |
| Product Type | Open Networking PoE Switch |
| Ports | 48 × 10/100/1000BASE-T PoE ports, 4 × 10G SFP+ uplink ports |
| PoE Standard | IEEE 802.3af / 802.3at |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 130 Mpps |
| MAC Address Table | 32K entries |
| CPU | Marvell 88F7040 (main), Marvell 88F6820 (secondary) |
| Memory | 8GB DDR4 (main), 2GB DDR4 (secondary) |
| Storage | 32GB M.2 SATA SSD, 16MB NOR Flash, 1GB NAND Flash |
| Switch Silicon | Marvell 98DX3265 ×2 |
| Management Interfaces | 1 × RJ-45 serial console, 1 × RJ-45 100/1000BASE-T management, 1 × USB Type-A storage port |
| Airflow | Front-to-Back |
| Cooling | 5+1 fixed redundant fans |
| Power Supplies | Dual load-sharing AC PSUs |
| Input Power Rating | 100–240 VAC, 50–60 Hz, 13.5 A max; 190–250 VDC, 6.5 A max |
| Maximum Power Consumption | 950 W |
| Dimensions (W×D×H) | 440 × 501 × 44 mm |
| Weight | 7.84 kg (17.28 lb) |
| Operating Temperature | 0 °C – 45 °C (32 °F – 113 °F) |
| Storage Temperature | −40 °C – 70 °C (−40 °F – 158 °F) |
| Humidity | 5% – 95% non-condensing |
| Certifications | FCC Class B, EN 55032 Class B, EN 55024, UL/CSA, CB, RoHS Compliant |
| Software Environment | Pre-loaded with ONIE (Open Network Install Environment) |
| Mounting | 19-inch rack-mountable |
| Warranty | Limited 3-year hardware warranty (region-dependent) |
