Description

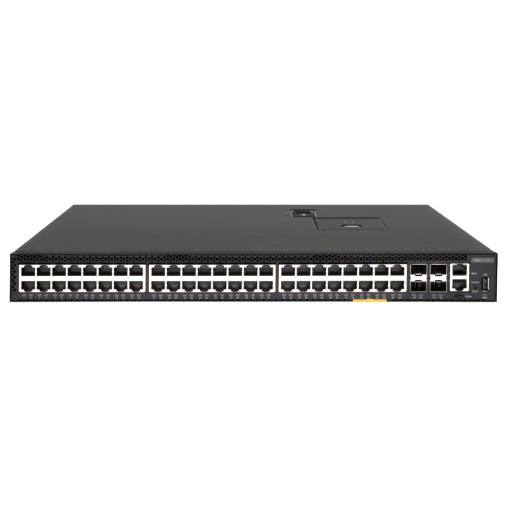

The Edgecore EPS100 AS4224-52T-O-AC-F-EC is a high-performance enterprise switch designed to meet the demands of modern data centers and cloud environments. Featuring 48 Gigabit Ethernet RJ45 ports and 4 SFP+ uplink ports, this open networking switch delivers flexibility, scalability, and reliability for enterprise-class deployments.
Preloaded with the Open Network Install Environment (ONIE), the AS4224-52T supports easy installation of compatible network operating systems, empowering organizations to build disaggregated networks. The switch is powered by dual Marvell 98DX3265 ASICs and an ARM-based CPU architecture for optimized packet forwarding and system management.

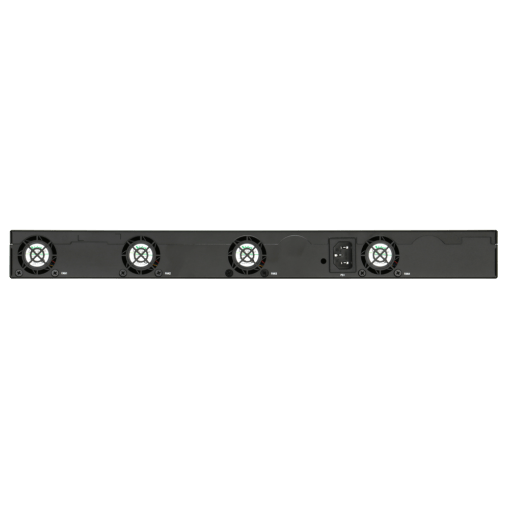

Built with front-to-back airflow, redundant fans, and an efficient AC power supply, the EPS100 ensures reliable operation in high-density rack environments. Ideal for data center access, aggregation, or enterprise edge applications, this switch combines powerful hardware, energy efficiency, and open network flexibility.
| Category | Specification |
|---|---|
| Model Number | AS4224-52T-O-AC-F-EC |
| Product Type | Enterprise Gigabit Ethernet Switch |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 130 Mpps |
| Switch Silicon | Marvell 98DX3265 ×2 |
| CPU Modules | Marvell 88F7040 (main) + Marvell 88F6820 (secondary) |
| Memory | 8GB DDR4 (main CPU), 2GB DDR4 (secondary CPU) |
| Storage | 32GB M.2 SATA SSD, 16MB NOR Flash, 1GB NAND Flash |
| Ports | 48 × 10/100/1000BASE-T RJ45 ports, 4 × 10G SFP+ uplink ports |
| Management Ports | 1 × RJ-45 serial console, 1 × RJ-45 100/1000BASE-T, 1 × USB Type A |
| LED Indicators | Power, Link/Activity, Speed (Green/Orange status LEDs) |
| Airflow | Front-to-Back |
| Cooling | 3+1 fixed redundant fans |
| Power Supply | Internal AC power supply (100–240 VAC, 50/60 Hz) |
| Power Consumption | 150 Watts (maximum) |
| Dimensions (W × D × H) | 440 × 501 × 44 mm |
| Weight | 6.41 kg (14.13 lb) |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity | 5% to 95% (non-condensing) |
| Regulatory Compliance | FCC Class B, EN 55032 Class B, VCCI Class B, UL/CSA, CB, RoHS |
| Software Environment | Preloaded with ONIE (Open Network Install Environment) |
| Mounting | Standard 19” rack-mountable |
| Region | EC (Global) |
| Warranty | Limited manufacturer warranty (varies by region) |
