Description

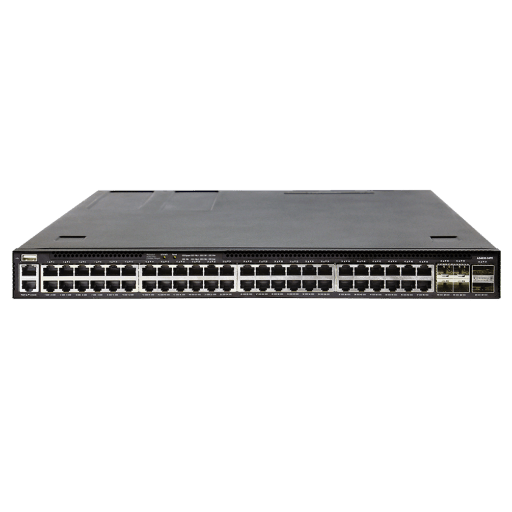

The Edgecore AS4630-54PE is a high-performance enterprise-class Gigabit Ethernet Layer 3 switch designed for data centers and campus networks requiring powerful connectivity and flexible deployment. Featuring 48 × 10/100/1000BASE-T PoE++ ports, 4 × 25G SFP28 uplink ports, and 2 × 100G QSFP28 stacking ports, this open network switch delivers full-line-rate Layer 2/Layer 3 forwarding and switching performance.

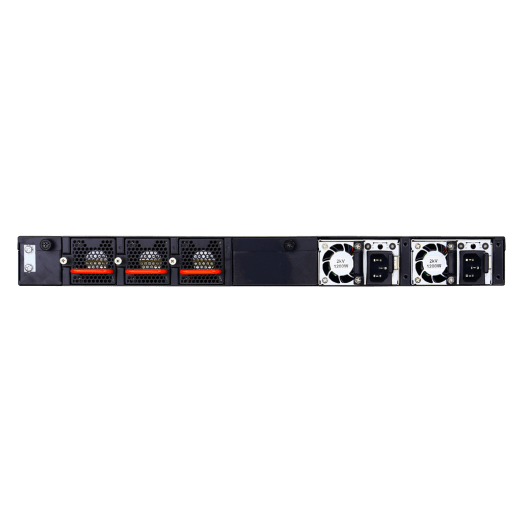

Powered by a Broadcom BCM56371 Trident III ASIC and an Intel Atom C3558 (4-core, 2.2 GHz) processor, the AS4630-54PE provides a 960 Gbps switching capacity and 744 Mpps forwarding rate. With dual hot-swappable AC power supplies and port-to-power airflow, it ensures reliability and continuous operation.
Each RJ-45 port supports IEEE 802.3at/bt PoE++, delivering up to 90 W of power per port for high-power devices such as Wi-Fi 6 access points, IP cameras, and VoIP phones—ideal for enterprise, hospitality, and warehouse environments. Pre-loaded with Open Network Install Environment (ONIE), the AS4630-54PE allows easy deployment of compatible open-source and commercial network operating systems.
| Category | Specification |
|---|---|
| Model | AS4630-54PE-O-AC-F-US |
| Product Type | Open Network Enterprise Switch |
| Switch Silicon | Broadcom BCM56371 Trident III (480 Gbps) |
| CPU | Intel Atom C3558, 4 cores, 2.2 GHz |
| Memory | 16 GB DDR4 (8 GB × 2 SO-DIMM) |
| Storage | 32 GB M.2 SSD (MLC); 16 MB × 2 SPI Flash |
| Ports | 48 × 10/100/1000BASE-T RJ-45 (PoE++) 4 × 25G SFP28 uplink ports 2 × 100G QSFP28 stacking ports |
| Management Ports | 1 × RJ-45 serial console 1 × RJ-45 100/1000BASE-T management 1 × USB Type-A storage |
| Switching Capacity | 960 Gbps (full duplex) |
| Forwarding Rate | 744 Mpps |
| MAC Addresses | 16K (min) / 112K (max) |
| VLAN IDs | Up to 4K |
| Jumbo Frame Support | Up to 12,288 bytes |
| Packet Buffer | 8 MB integrated |
| PoE Standards | IEEE 802.3at / 802.3bt PoE++ (up to 90 W per port) |
| Power Supply | Dual AC, hot-swappable, load-sharing (100 – 240 VAC, 50–60 Hz) |
| Power Consumption | Up to 1800 W (maximum) |
| Airflow | Port-to-Power |
| Dimensions (W × D × H) | 43.8 × 44.2 × 4.37 cm (17.24 × 17.40 × 1.72 in) |
| Weight | 7.67 kg (16.91 lb) with 2 PSUs |
| Operating Temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| Storage Temperature | –40 °C to 70 °C (–40 °F to 158 °F) |
| Operating Humidity | 5 % to 90 % (non-condensing) |
| Compliance & Certifications | EN55032 Class A, EN55024, EN55035, EN61000-3-2/-3-3, FCC Part 15 Class A, VCCI Class A, CCC, BSMI 13438, Safety CB, UL, CCC, BSMI 14336-1, RoHS 2.0 Compliant |
| Software Environment | Pre-loaded ONIE (compatible with open source and commercial NOS options) |
| Warranty | 3-Year Limited Hardware Warranty |
