Description

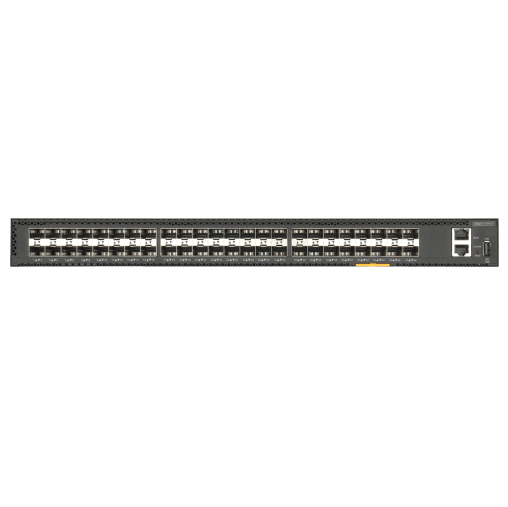

The Edgecore AS5114-48X-O-AC-F-EC is a high-performance Layer 2/Layer 3 enterprise switch designed for data center and cloud environments requiring exceptional throughput and reliability. Featuring 48 x 10GbE SFP+ ports, the switch supports both 10GBASE-SR/LR and 1GBASE-SX/LX connections, making it ideal for top-of-rack (ToR) deployment.

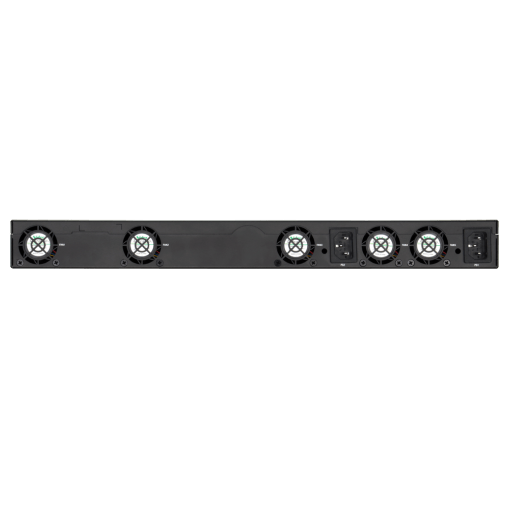

Built on Marvell Aldrin2 switch silicon with a powerful Marvell 88F7040 ARM CPU, the AS5114-48X provides 960 Gbps switching capacity and a 714 Mpps forwarding rate. The platform includes redundant dual AC power supplies, 4+1 fixed fan modules for front-to-back airflow, and is pre-loaded with the Open Network Install Environment (ONIE), allowing easy installation of various open-source or commercial network operating systems.
With robust build quality, efficient cooling, and compliance with multiple regulatory standards, this model delivers enterprise-grade reliability for scalable network infrastructures.
| Specification | Details |
|---|---|
| Model | AS5114-48X-O-AC-F-EC |
| Product Type | 10GbE Open Networking Enterprise Switch |
| Switching Capacity | 960 Gbps |
| Forwarding Rate | 714 Mpps |
| Port Configuration | 48 × SFP+ (supports 1G/10G) |
| Management Ports | 1 × RJ-45 100/1000BASE-T management port, 1 × RJ-45 console, 1 × USB Type-A |
| CPU | Marvell 88F7040 (Main CPU), Marvell 88F6820 (2nd CPU) |
| Memory | 8 GB DDR4 (main CPU), 2 GB DDR4 (2nd CPU) |
| Storage | 32 GB M.2 SATA SSD, 16 MB NOR Flash, 1 GB NAND Flash |
| Switch Silicon | Marvell Aldrin2 98DX8448 |
| Airflow | Front-to-Back |
| Power Supply | Dual redundant, load-sharing AC PSUs |
| Power Input | 100–240 VAC, 50–60 Hz, 4.5 A max; 190–250 VDC, 2.5 A max |
| Power Consumption | 258 W (maximum) |
| Cooling | 4 + 1 fixed redundant fan modules |
| Dimensions (W × D × H) | 440 × 501 × 44 mm |
| Weight | 7.175 kg |
| Operating Temperature | 0 °C – 45 °C (32 °F – 113 °F) |
| Storage Temperature | −40 °C – 70 °C (−40 °F – 158 °F) |
| Operating Humidity | 5 % – 95 %, non-condensing |
| LED Indicators | Management speed/link, power status, SFP+ port activity |
| Software | Pre-loaded with ONIE (Open Network Install Environment) |
| Mounting | 19-inch rack-mountable |
| Regulatory Compliance | EN 55032 Class B, FCC Class B, VCCI Class B, EN 55024, UL/CSA, CB, RoHS compliant |
| Warranty | Limited hardware warranty (region-specific) |
