Description

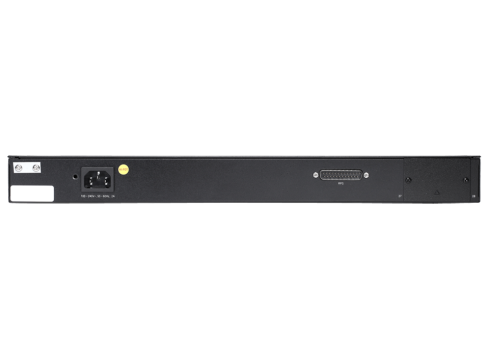

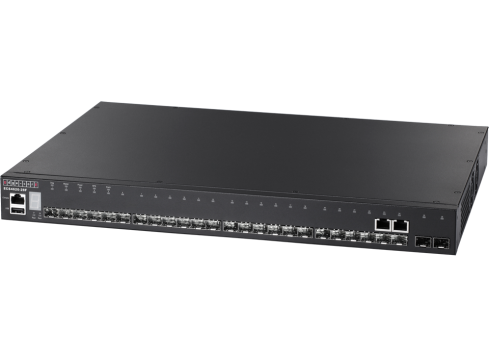

The Edgecore ECS4620-28F-2AC is a high-performance Layer 3 Gigabit Ethernet switch designed for enterprise aggregation, campus, or data-center access deployments requiring fiber connectivity and high availability.

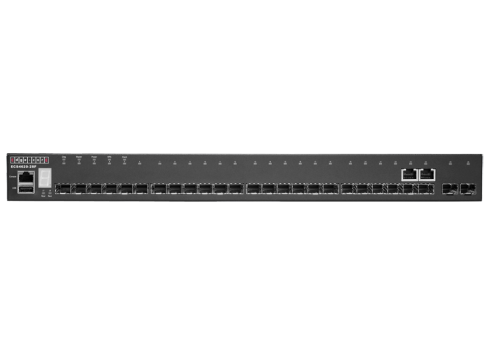

With 22 × 100/1000 SFP ports, 2 × combo 10/100/1000 Base-T/SFP ports, and 2 × 10 Gigabit SFP+ uplinks, this switch delivers 128 Gbps switching capacity and 95.23 Mpps forwarding rate in a compact 1U form factor.
Dual hot-swappable AC power supplies ensure redundant operation for mission-critical environments.
Advanced Layer 3 features include RIP, OSPF, BGP4+, VRRP, and IPv6 routing, while G.8032 Ethernet Ring Protection, LACP, and 802.1w RSTP guarantee network resilience.
Comprehensive QoS, ACLs, and security functions such as 802.1X, DHCP snooping, and Dynamic ARP Inspection safeguard traffic integrity.
Ideal for fiber-rich enterprise access or aggregation switching, the ECS4620-28F-2AC provides a robust, TAA-compliant platform with simplified management via CLI, Web UI, or SNMP v3.
| Category | Specification |
|---|---|
| Model | Edgecore ECS4620-28F-2AC |
| Device Type | Layer 3 Gigabit Ethernet Stackable Switch |
| Ports | 22 × 100/1000 SFP ports • 2 × 10/100/1000 combo ports • 2 × 10 Gigabit SFP+ uplinks |
| Expansion Slots | 1 × 10G SFP+ module slot |
| Console Port | RJ-45 console |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 95.23 Mpps |
| Memory | 128 MB Flash • 256 MB DRAM |
| MAC Address Table | 16 K entries |
| Jumbo Frames | Up to 10 KB |
| Stacking | Hardware stacking supported |
| QoS | 8 queues per port, 802.1p/DSCP, WRR & Strict Priority |
| Layer 2 Features | 802.1D/1w/1s STP, VLAN 4K, LACP, IGMP v1/v2/v3, Q-in-Q |
| Layer 3 Features (IPv4/IPv6) | RIP, OSPF, BGP4+, VRRP, PIM-DM/SM, Static Routing, ECMP |
| Security | 802.1X auth, Port Security, DHCP Snooping, IP Source Guard, ACLs (L2–L4), DAI |
| Management | Web, CLI, Telnet, SSH, SNMP v1/v2c/v3, RMON, Syslog, sFlow, LLDP/LLDP-MED |
| Power Supply | Dual 100–240 VAC (50/60 Hz) redundant |
| Max Power Consumption | 42 W |
| Dimensions (W × D × H) | 44 × 31.5 × 4.4 cm (1U rack-mount) |
| Weight | 3.8 kg |
| Operating Temperature | 0 °C to 45 °C |
| Storage Temperature | –40 °C to 70 °C |
| Humidity | 10 % to 90 % (non-condensing) |
| Certifications | FCC Class A, CE, UL, CB, RoHS, WEEE ( TAA Compliant ) |
| Warranty | Limited Lifetime (Region-Dependent) |
