Description
The ASUS EG500-E11-RS2-R is a powerful and compact 1U Intel single-socket edge server built for industrial and datacenter edge deployments. Designed for short-depth chassis and rear-access installation, it delivers exceptional performance and expandability with 4th and 5th Gen Intel® Xeon® Scalable processors, DDR5 memory, and PCIe 5.0 architecture. This server supports up to 8 DIMMs (2TB), three PCIe Gen 5.0 slots, dual 10G LAN ports, and redundant 650W or 1300W Platinum PSUs, offering flexibility for diverse workloads.
Optimized for Multi-access Edge Computing (MEC), Network Function Virtualization (NFV), AI inferencing, and virtual machine applications, the EG500-E11-RS2-R ensures stability, security, and scalability in compact environments. With integrated ASMB11-iKVM remote management, ASUS Control Center, and TPM 2.0 security, it’s engineered for both reliability and enterprise-grade control.
| Category | Specification |
|---|---|
| Processor | 1 x Socket E (LGA 4677), supports 4th / 5th Gen Intel® Xeon® Scalable Processors, up to 350W TDP |
| Memory | 8 x DDR5 5600 MHz DIMM slots, supports up to 2TB RDIMM/LRDIMM/LRDIMM 3DS |
| Expansion Slots | 1 x PCIe Gen5 x16 (FHHL), 2 x PCIe Gen5 x16 (FHFL) |
| Storage | 2 x E1.S (optional), 2 x internal SATA (optional), 2 x external SATA (650W PSU) / 2 x external SATA (1300W PSU), 2 x M.2 (22110/2280, PCIe Gen4 x4) |
| Networking | 2 x Intel® X710 10G Base-T LAN ports, 1 x dedicated management port (BMC, AST2600) |
| Security | Optional TPM 2.0 (SPI module), optional PFR FPGA (Platform Root of Trust) |

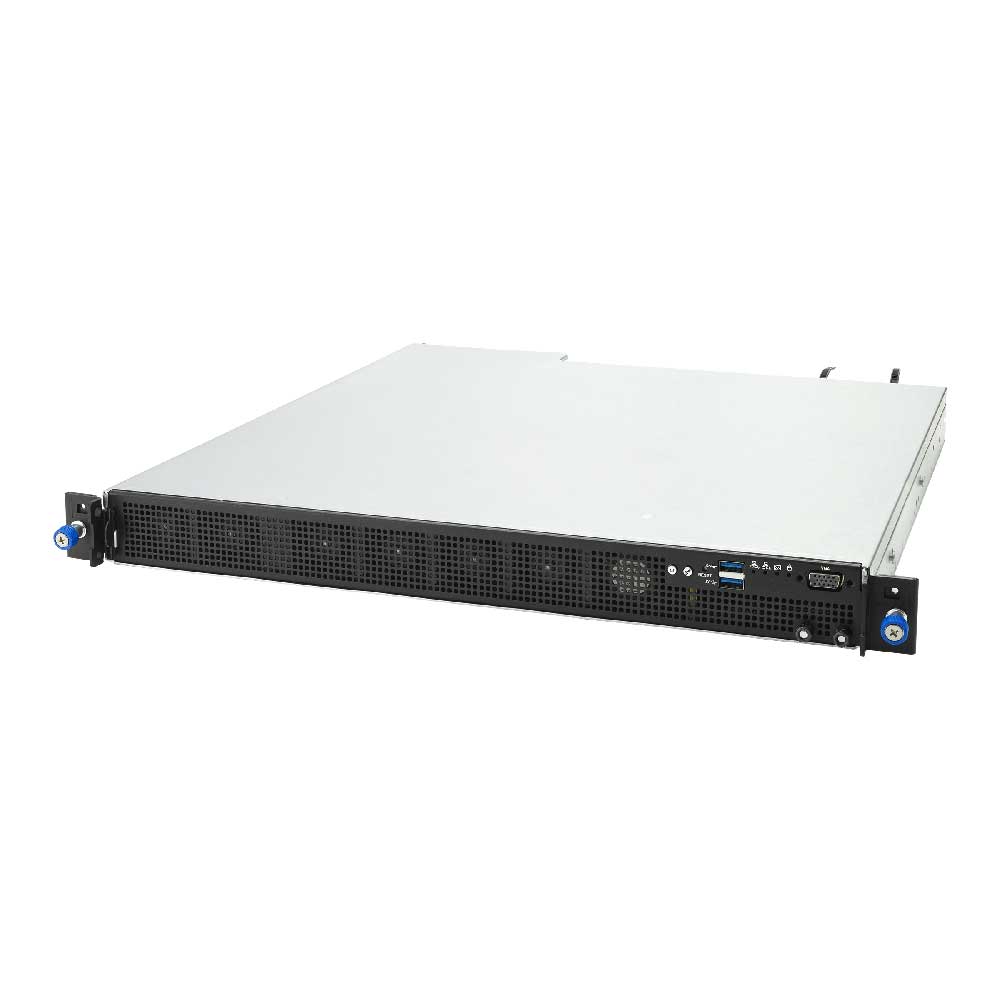

| Front I/O Ports | 2 x USB 3.2 Gen1, 1 x VGA port |

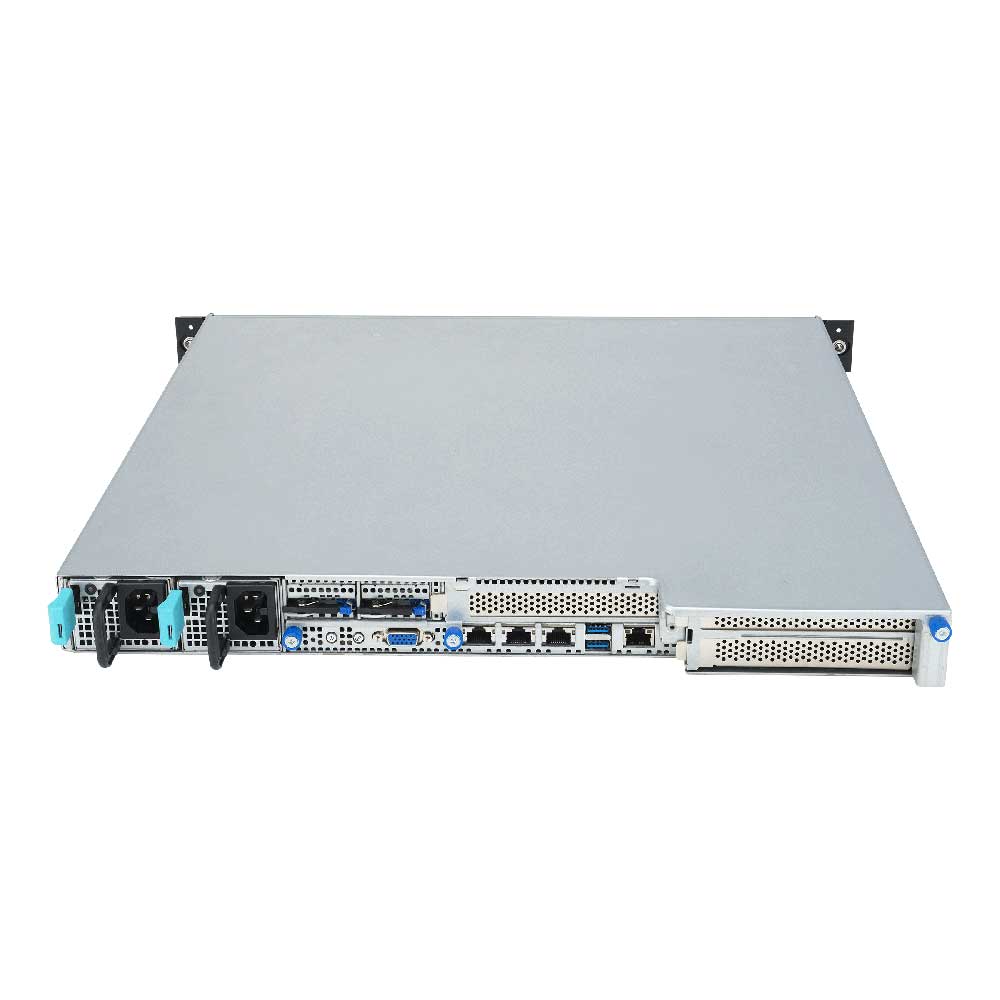

| Rear I/O Ports | 2 x USB 3.2 Gen1, 2 x RJ-45 10G LAN, 1 x RJ-45 Mgmt LAN, 1 x RJ-45 Console, 1 x VGA |
| Management | ASUS Control Center (in-band), ASMB11-iKVM (out-of-band, BMC AST2600) |
| Power Supply | 1+1 Redundant Platinum PSU: 650W or 1300W slim (region-dependent) |
| Operating Temperature | 10°C ~ 35°C (operational), -40°C ~ 60°C (non-operational) |
| Dimensions (W x D x H) | 438.5 x 430 x 43.7 mm (17.26" x 16.93" x 1.72"), short-depth: 399 mm (15.71") |
| Weight | Net: 15.5 kg / Gross: 17 kg (without CPU, DRAM, HDD) |
| Target Applications | MEC, NFV, Edge AI, Industrial IoT, Virtual Machines |
| Certification / Compliance | RoHS, Energy Efficient, Platinum PSU (Titanium PSU planned) |
