Description

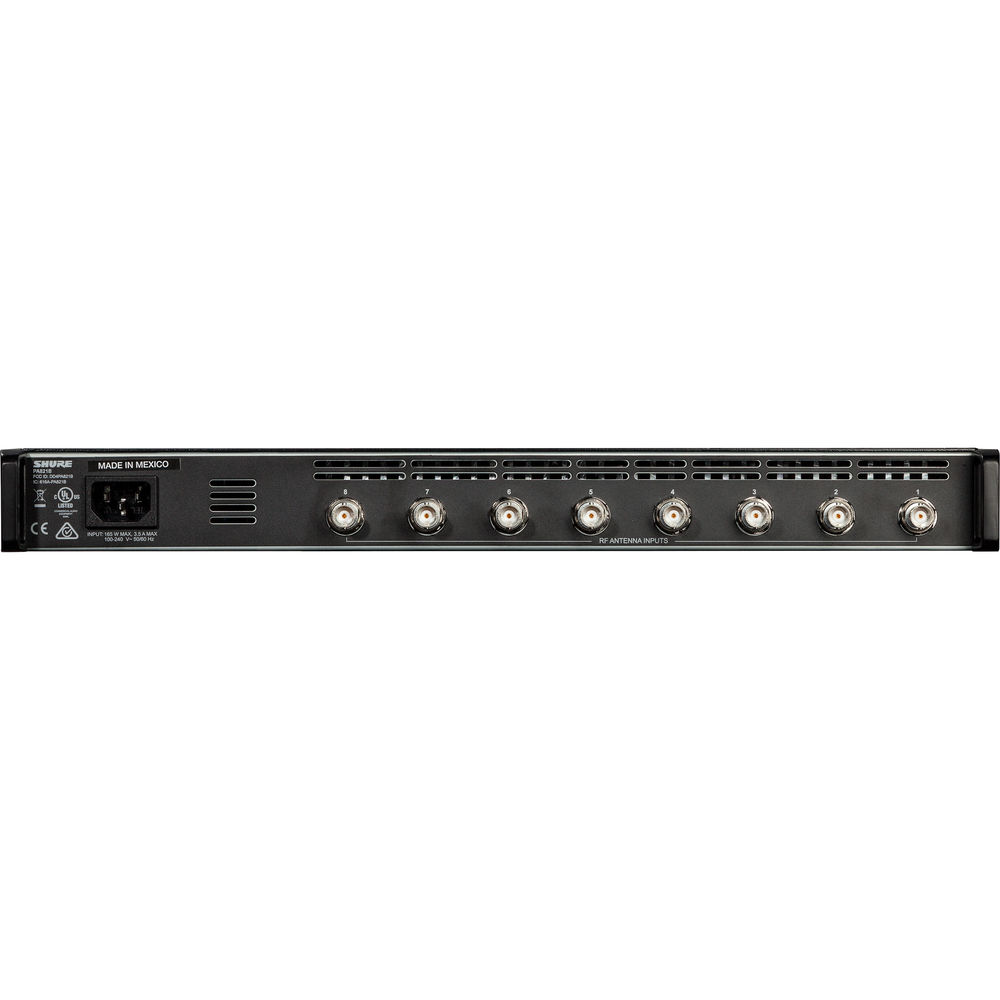

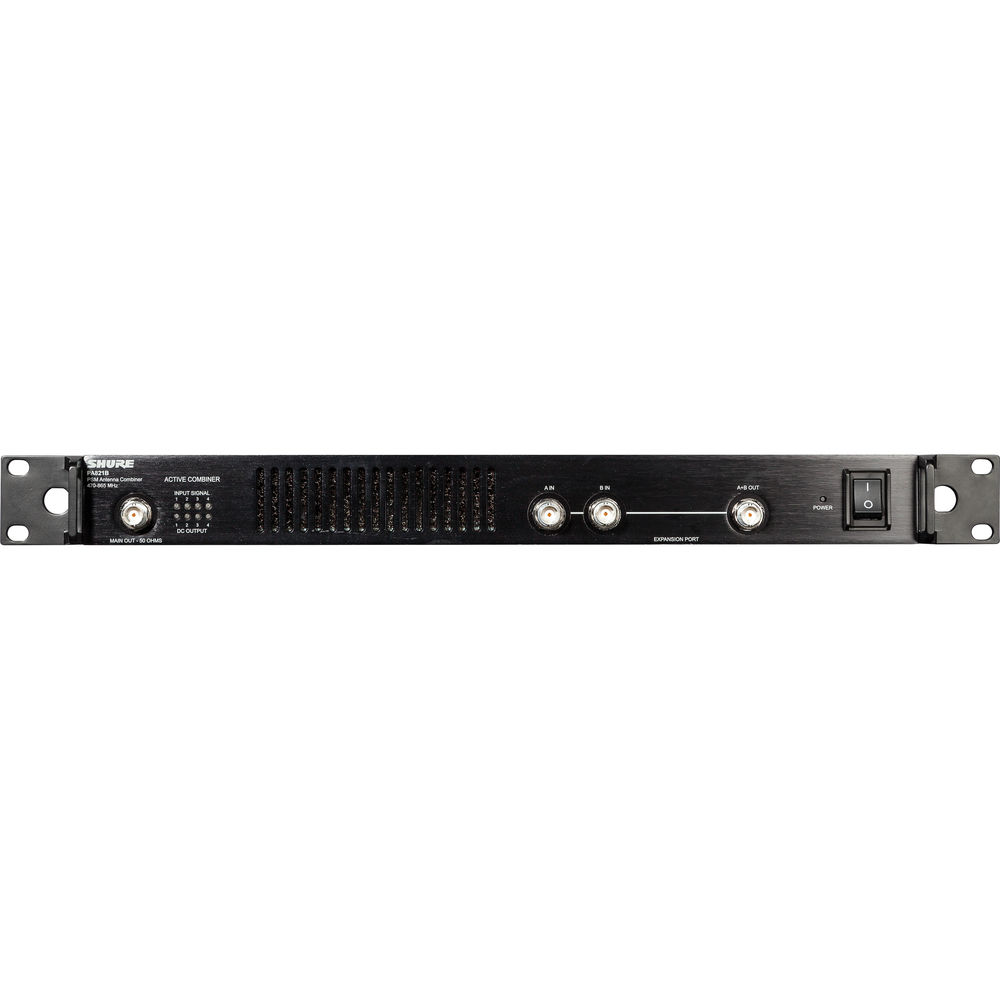

The Shure PA821BX Eight-Channel Antenna Combiner is designed to streamline RF management for professional in-ear monitoring systems operating in the 865–960 MHz frequency band. Built for demanding live sound, broadcast, and installed AV environments, this high-performance combiner consolidates up to eight wireless PSM transmitters into a single antenna system, reducing rack clutter while improving overall RF efficiency.
With wideband operation, low insertion loss, and optimized intermodulation performance, the PA821BX ensures a cleaner RF environment and more reliable wireless performance. Its intelligent design includes LED indicators for signal presence and overload monitoring, along with an improved thermal system for quieter operation and enhanced reliability. The expansion port enables daisy-chaining of additional combiners, making it ideal for scalable deployments.
Engineered for professional workflows, the PA821BX delivers consistent signal distribution, simplified setup, and dependable performance in complex wireless environments.
| Specification | Details |
|---|---|
| Brand | Shure |
| Product Type | Eight-Channel Antenna Combiner |
| Frequency Range | 865–960 MHz |
| Number of Channels | Supports up to 8 transmitters |
| RF Input Connectors | BNC |
| RF Output Connector | BNC |
| Expansion Port | BNC, passive configuration |
| RF Gain | 0 dB (±2 dB) |
| Input Impedance | 50 ohms |
| Output Impedance | 50 ohms |
| Expansion Port Impedance | 50 ohms |
| Insertion Loss (Expansion Port) | Less than 4 dB |
| RF Expansion Port Operating Range | Up to 33 dBm (2 W) |
| LED Indicators | Signal presence and overload detection |
| Minimum Detection Threshold | 2.5 dBm |
| Overload Threshold | Greater than 24 dBm |
| Power Requirements | 100 to 240 V AC, 50–60 Hz |
| Power Consumption | 143 W maximum |
| Current Draw | 1.59 A at 100 V AC |
| Operating Temperature Range | -18°C to 63°C (0°F to 145°F) |
| System Compatibility | Shure PSM Personal Monitor Systems |
| Daisy Chain Capability | Supports up to 2 combiners via expansion port |
| Cooling System | Enhanced low-noise fan design |
| Included Accessories | IEC power cord, DC power cables, BNC coaxial cables |
| Application | Live sound, broadcast, touring, installed AV systems |
