Description

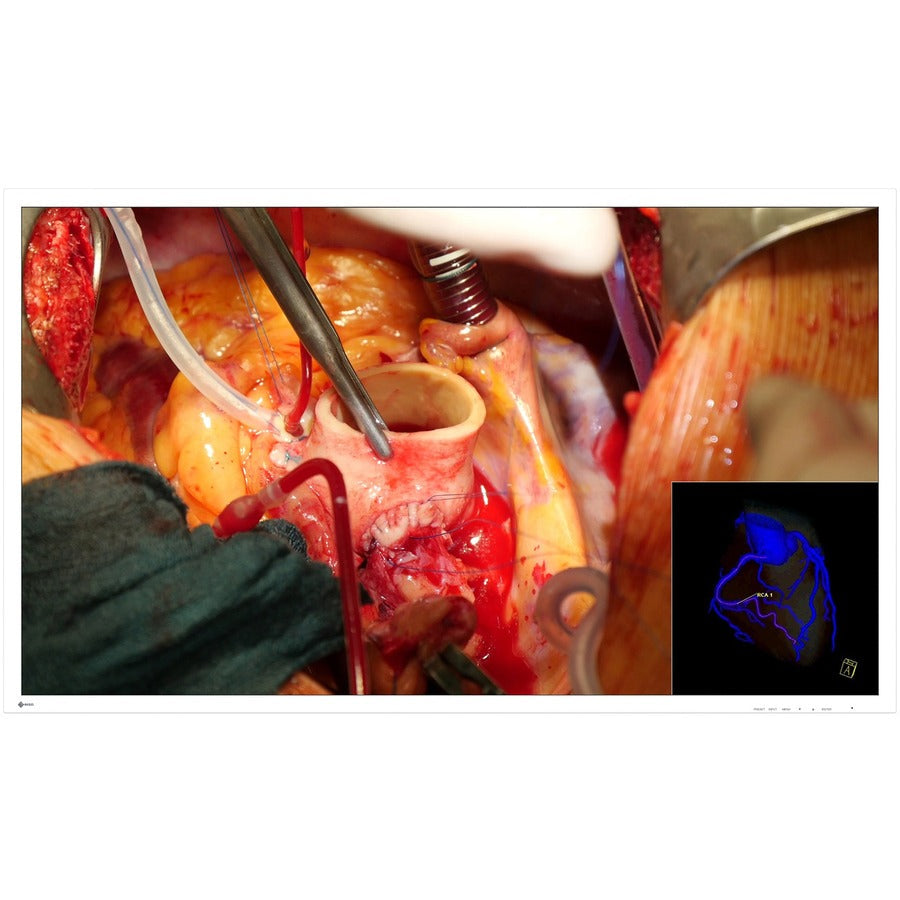

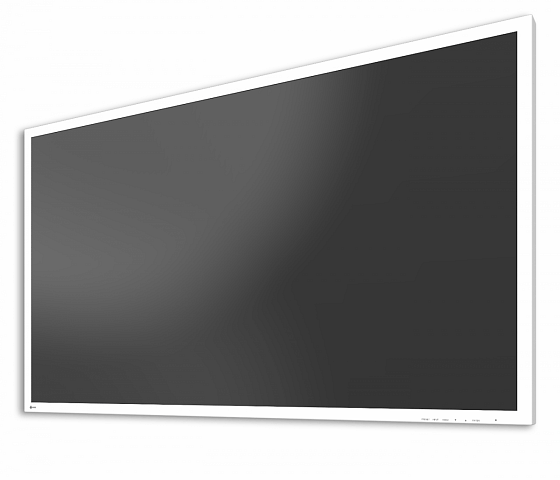

The EIZO CuratOR EX5841 is a high-performance 58-inch 4K UHD surgical monitor engineered to deliver superior image quality and workflow efficiency in modern operating rooms. Designed specifically for endoscopy, microsurgery, and other precision medical procedures, the EX5841 faithfully reproduces surgical images in 3840 x 2160 resolution with exceptional clarity and detail.
Its advanced TFT LCD panel with 10-bit color depth, wide gamut coverage, and 178° viewing angles ensures distortion-free, true-to-life visuals from virtually any position. Equipped with PiP, PaP, and triple-source display modes, the EX5841 allows simultaneous visualization of multiple modalities on a single screen, making it ideal for complex procedures requiring real-time comparison of various imaging sources.
The monitor supports a wide range of video inputs (DisplayPort, HDMI, DVI-D, 12G-SDI) and enables single-cable 4K UHD transmission at up to 60 fps for seamless connectivity. A protective laminated glass panel (IP45 front) safeguards against shocks, scratches, and contaminants, while user-configurable presets and independent image adjustments enhance operational flexibility. With robust build quality, medical-grade certifications, and advanced ergonomics, the EX5841 is an essential visualization solution for surgical suites demanding precision, reliability, and performance.
| Feature | Specification |
|---|---|
| Brand | EIZO |
| Product Line | CuratOR |
| Model | EX5841 |
| Panel Type | TFT LCD |
| Backlight | LED |
| Screen Size | 146.1 cm / 57.5" |
| Native Resolution | 3840 x 2160 (4K UHD) |
| Aspect Ratio | 16:9 |
| Viewable Image Area (H × V) | 1270 × 721 mm |
| Pixel Pitch | 0.331 × 0.334 mm |
| Display Colors | 10-bit: 1.07 billion colors; 8-bit: 16.77 million colors |
| Viewing Angles (H/V) | 178° / 178° |
| Brightness (calibrated) | 300 cd/m² |
| Contrast Ratio (calibrated) | 1000:1 |
| Response Time | 9.5 ms (Midtone) |
| Wide Gamut Coverage | NTSC 88%, BT.2020 emulation |
| Video Input Terminals | DisplayPort, HDMI, DVI-D (Single Link), BNC (12G-SDI) |
| Video Output Terminals | BNC (12G-SDI Loop Through) |
| Communication Interfaces | RS232, Ethernet, USB |
| USB Ports | Upstream: USB 2.0 Type-B Hub; Downstream: USB 2.0 Type-A ×2; Service: USB 2.0 Type-A |
| Power Requirements | AC 100 - 240 V, 50 / 60 Hz |
| Max Power Consumption | ~200 W |
| Typical Power Consumption | ~130 W (at 250 cd/m²) |
| Power Save Mode | < 20 W (external power off); < 35 W (external power on) |
| Features & Functions | PiP, PaP, Triple Source Mode, User Presets |
| Protection Rating | Front: IP45, Rear: IP32 |
| Protective Screen | 9H laminated glass |
| VESA Mounting | 400 × 400 mm / 400 × 200 mm (M8, depth 10–15 mm) |
| Net Weight (without stand) | ≤ 45 kg |
| Certifications | CE / UKCA (Medical Device), IEC/EN60601-1, ANSI/AAMI ES60601-1, FCC-B, RCM, RoHS, WEEE, FDA Class I |
| Included Accessories | VESA adapter screws ×4 (preassembled), Utility Disk (Manuals) |
