Description

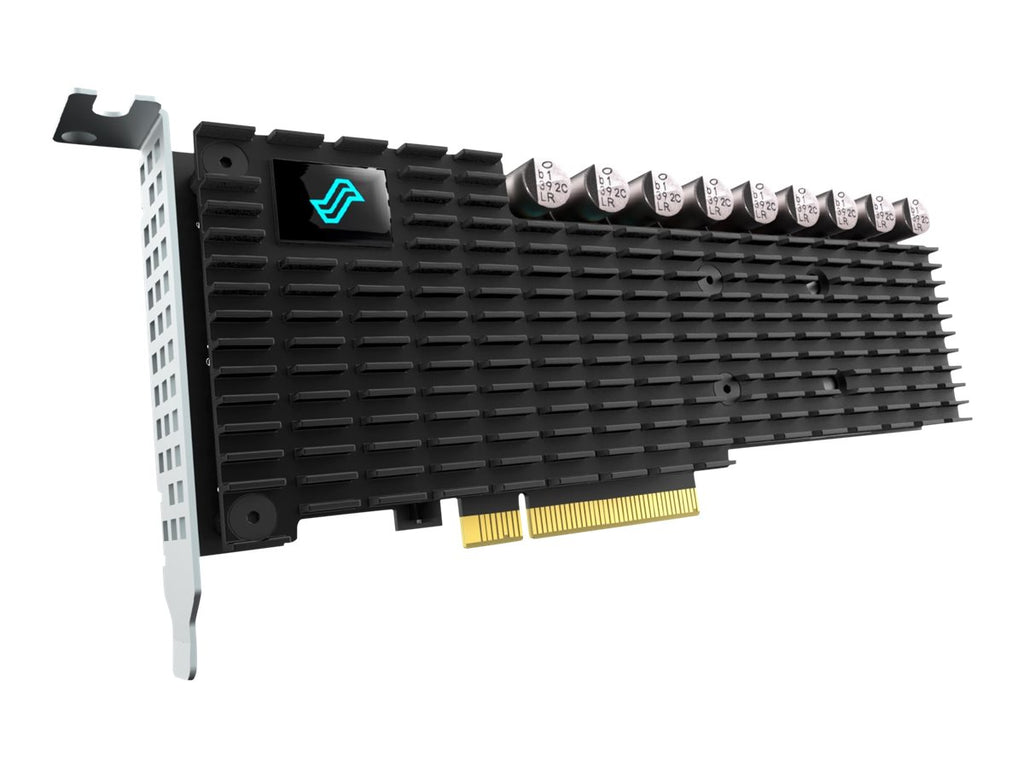

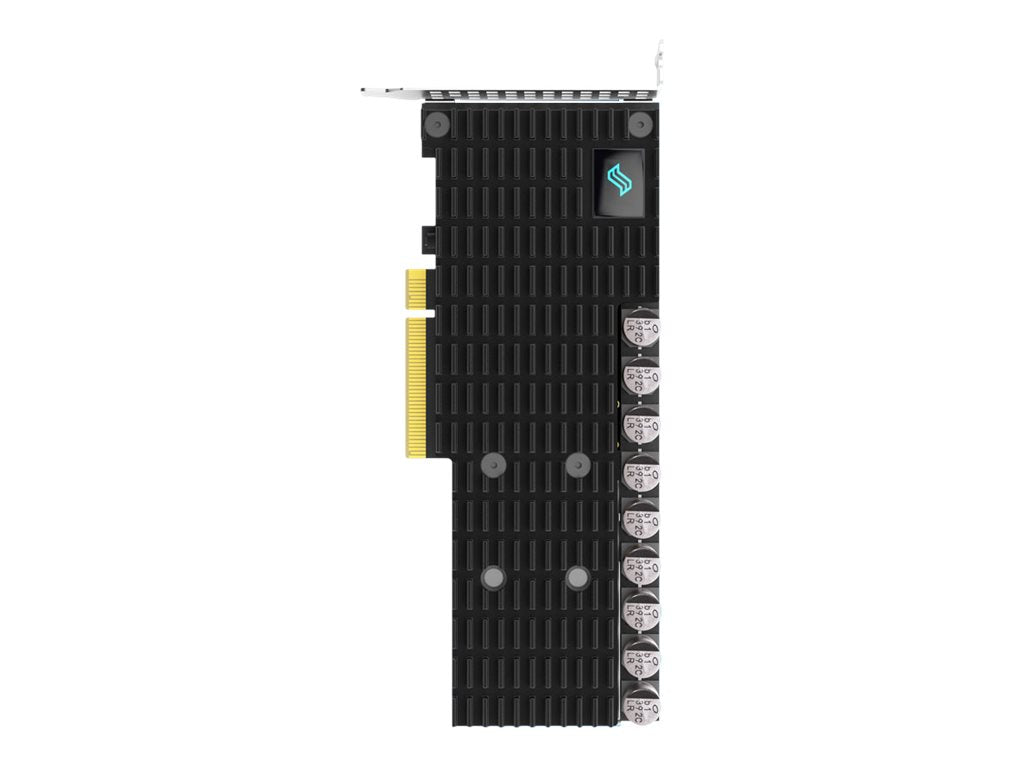

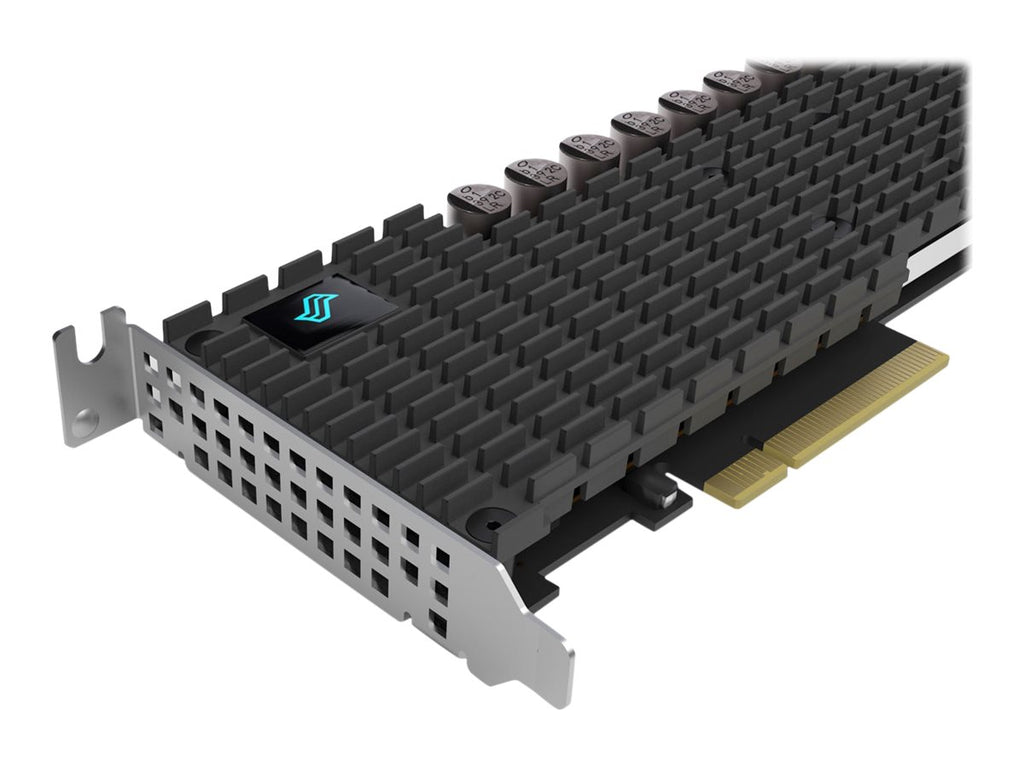

The Liqid Element LQD3000 3.20TB NVMe Add-In-Card SSD delivers exceptional performance, low latency, and enterprise-grade reliability for demanding data-center and high-performance computing environments. Built on a PCIe Gen 3.0 x8 interface and NVMe 1.2.1 protocol, this ultra-thin HHHL card provides blazing-fast throughput, high IOPS capability, and efficient power utilization.
Designed for mission-critical workloads, the LQD3000 architecture supports advanced error correction, power-loss data protection, thermal management, and a robust low-overhead design with no CPU or DRAM offload. Its 3.20TB TLC 3D NAND offers outstanding endurance and sustained bandwidth, making it ideal for enterprise applications requiring consistent performance, reliability, and scalability.
| Category | Specification |
|---|---|
| Model | Element LQD3000 |
| Capacity | 3.20TB |
| Form Factor | HHHL (Half-Height, Half-Length) AIC |
| Interface | PCIe 3.0 x8 |
| Protocol | NVMe 1.2.1 |
| NAND Type | TLC 3D NAND |
| Read Bandwidth | ~7.0 GB/s |
| Write Bandwidth | ~6.3 GB/s |
| Random Read IOPS (4K) | ~1,250,000 |
| Random Write IOPS (4K) | ~900,000 (with small-sector option ~275,000) |
| Read Latency | ~80 μs |
| Write Latency | ~20 μs |
| Endurance | Up to 30.76 PBW (varies by configuration) |
| Security | 256-bit AES Data Encryption |
| Operating Temperature | 0°C to 55°C |
| Non-Operating Temperature | -40°C to 75°C |
| Power Consumption | ~25W typical (12V input) |
| Airflow Requirement | Minimum 400 LFM |
| Operating Systems Supported | Windows, Windows Server, RHEL, SLES, CentOS, Solaris, SUSE, VMware |
| Certifications | UL, CB, CE, CCS, KCC, HF, BSMI, VCCI, FCC Class B, CISPR Class B, JEDEC |
| Warranty | 3 years or until max endurance reached |
| Weight | 6–10 oz |
