Description

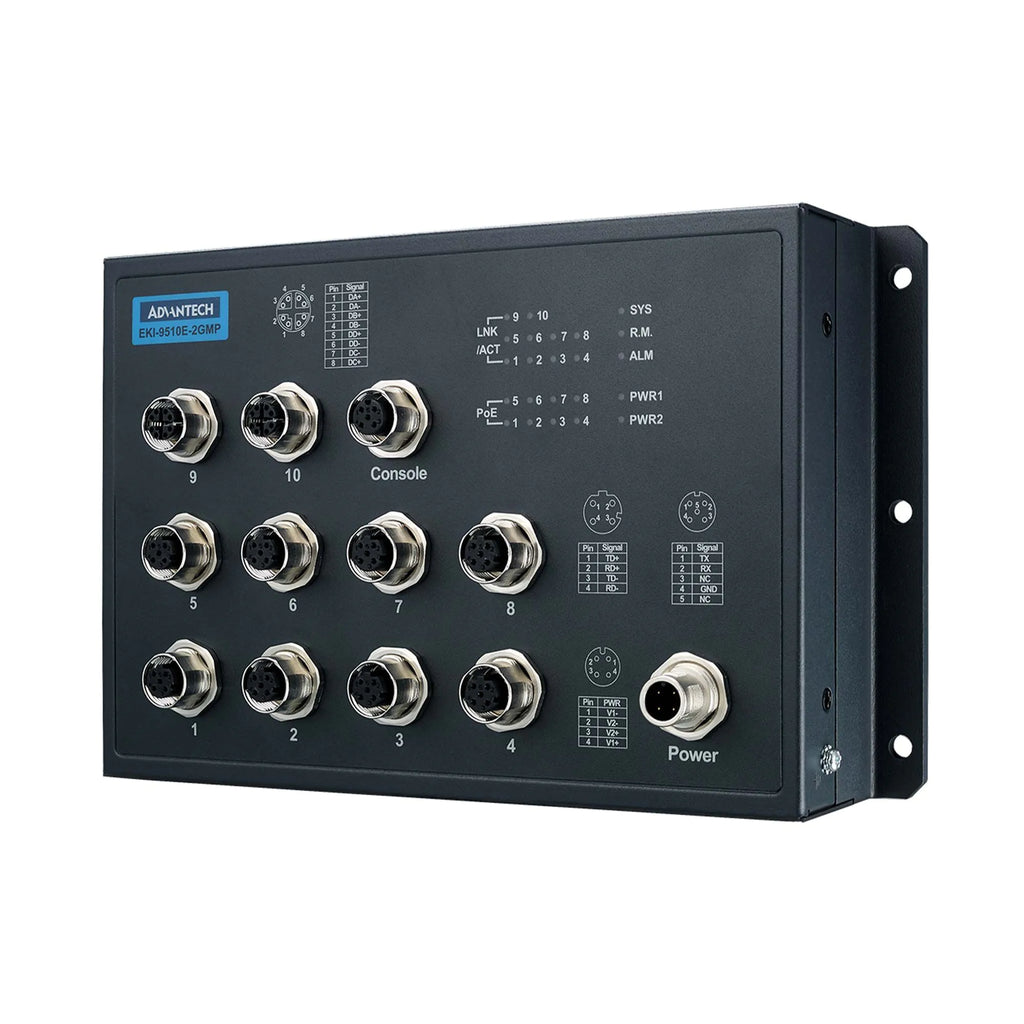

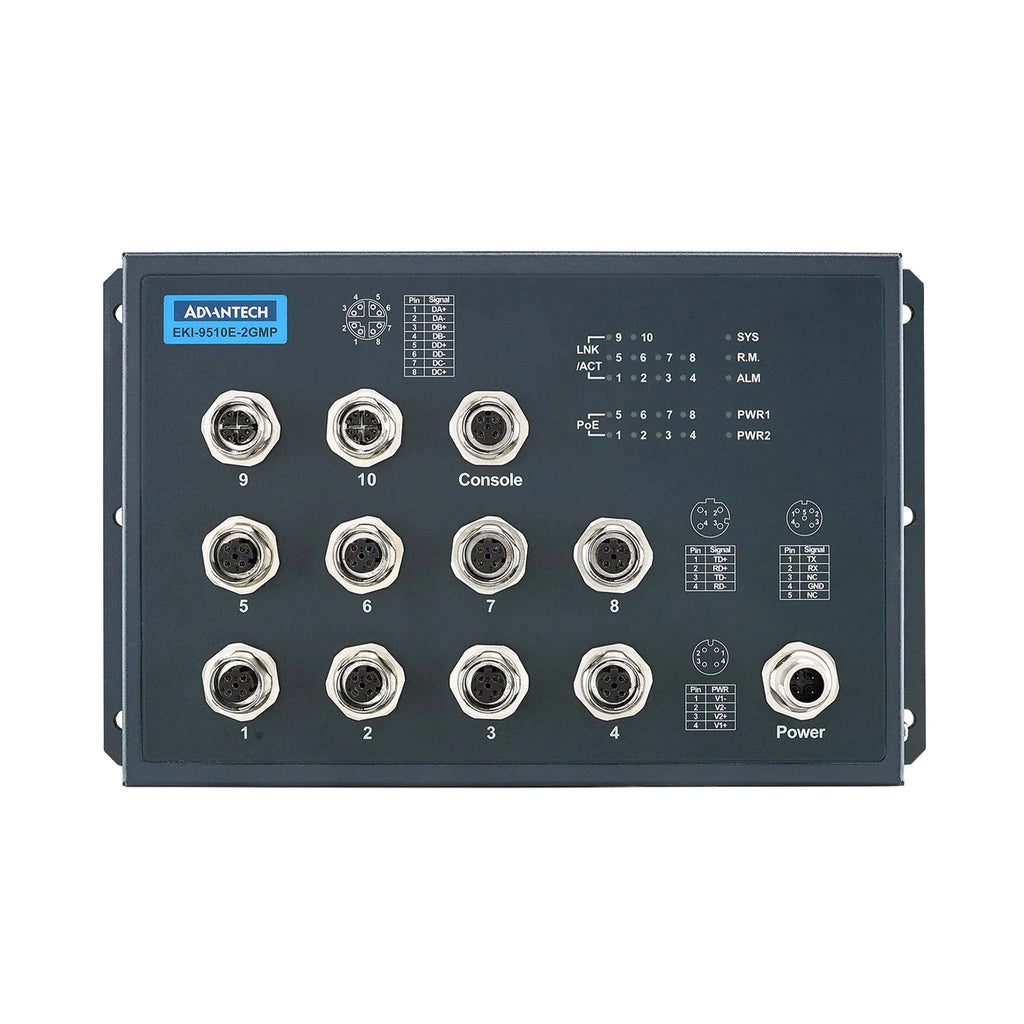

The Advantech EKI-9510E-2GMPL-AE is a rugged EN 50155 compliant managed Ethernet switch engineered for demanding railway and industrial environments. Featuring M12 connector ports for secure, vibration-resistant connectivity, this switch ensures reliable network performance even under shock, vibration, and harsh operating conditions.
It provides 8 Fast Ethernet PoE ports plus 2 Gigabit uplink ports, supporting IEEE 802.3af/at for powering connected devices such as IP cameras, sensors, and wireless access points.
With support for advanced Layer 2 features including VLAN, QoS, IGMP snooping, spanning tree, and rapid ring redundancy (X-Ring Pro), the EKI-9510E-2GMPL-AE delivers high network availability and optimized traffic control for mission-critical systems.
Its dual isolated 24/48 VDC redundant power inputs and wide operating temperature range of -40°C to 75°C make it ideal for railway rolling stock, trackside infrastructure, and industrial automation applications.
| Specification Category | Details |
|---|---|
| Brand | Advantech |
| SKU | EKI-9510E-2GMPL-AE |
| Product Type | Managed PoE Ethernet Switch |
| Total Ports | 10 Ports |
| Ethernet Ports | 8 × 10/100 Mbps M12 D-Coded PoE |
| Gigabit Uplink Ports | 2 × 10/100/1000 Mbps M12 X-Coded |
| PoE Standard Support | IEEE 802.3af / 802.3at |
| PoE Power Budget | 60W |
| MAC Address Table | 8K |
| Jumbo Frame Support | Up to 9 KB |
| VLAN Support | 802.1Q VLAN, GVRP (256 Groups) |
| Ring Redundancy | X-Ring Pro Rapid Convergence |
| Spanning Tree Protocols | STP, RSTP, MSTP |
| Multicast Support | IGMP Snooping v1/v2/v3, MLD Snooping |
| QoS Features | WRR, Strict Priority, DSCP/TOS Support |
| Security | 802.1X, RADIUS, TACACS+, Port Security |
| Management Interfaces | SNMP v1/v2c/v3, Web, Telnet, SSH, SSL |
| Power Input | Dual Isolated 24/48 VDC Redundant Input |
| Power Consumption | 10W |
| Operating Temperature | -40°C to 75°C |
| Protection Rating | IP40 |
| Enclosure Material | Aluminum Shell |
| Mounting Type | Wall Mount |
| Dimensions (W×D×H) | 216 × 132 × 59.3 mm |
| Certifications | EN 50155, EN 50121-3-2, FCC, CE |
