Description

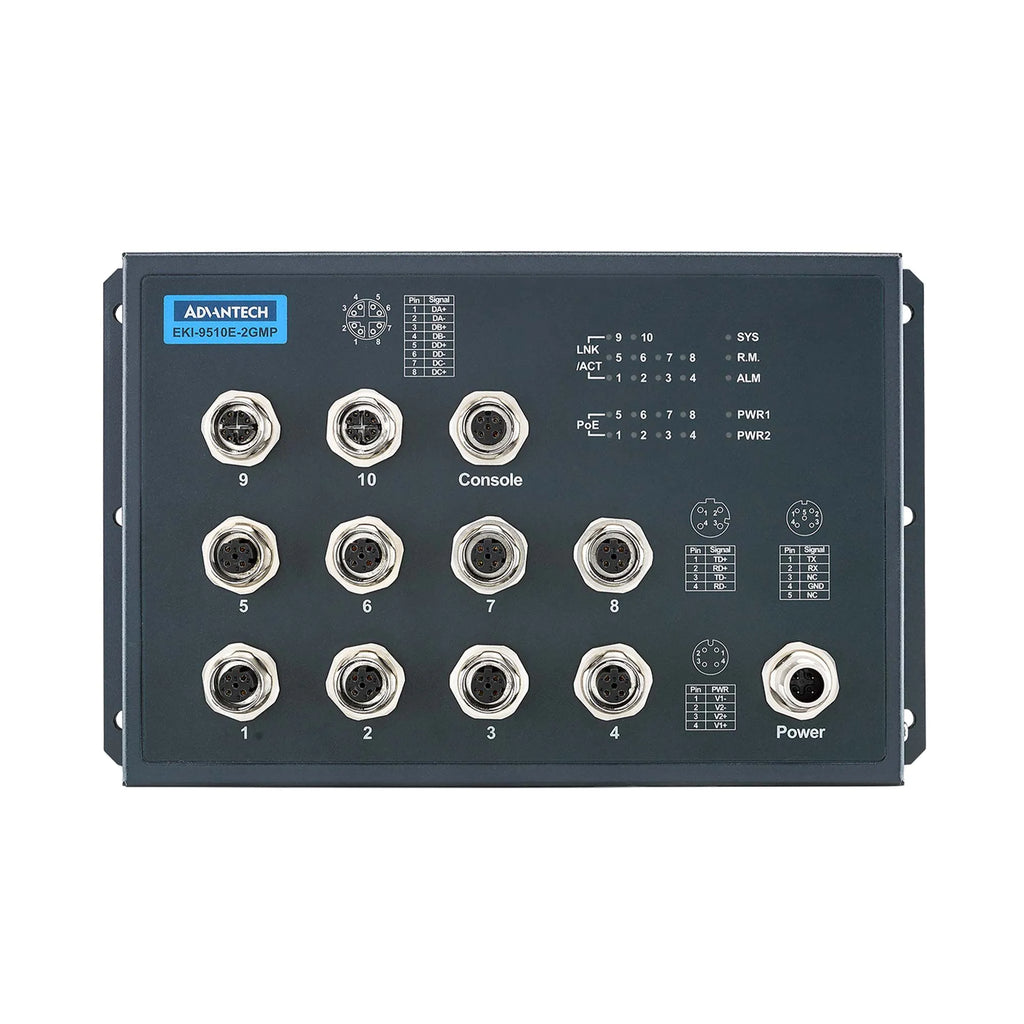

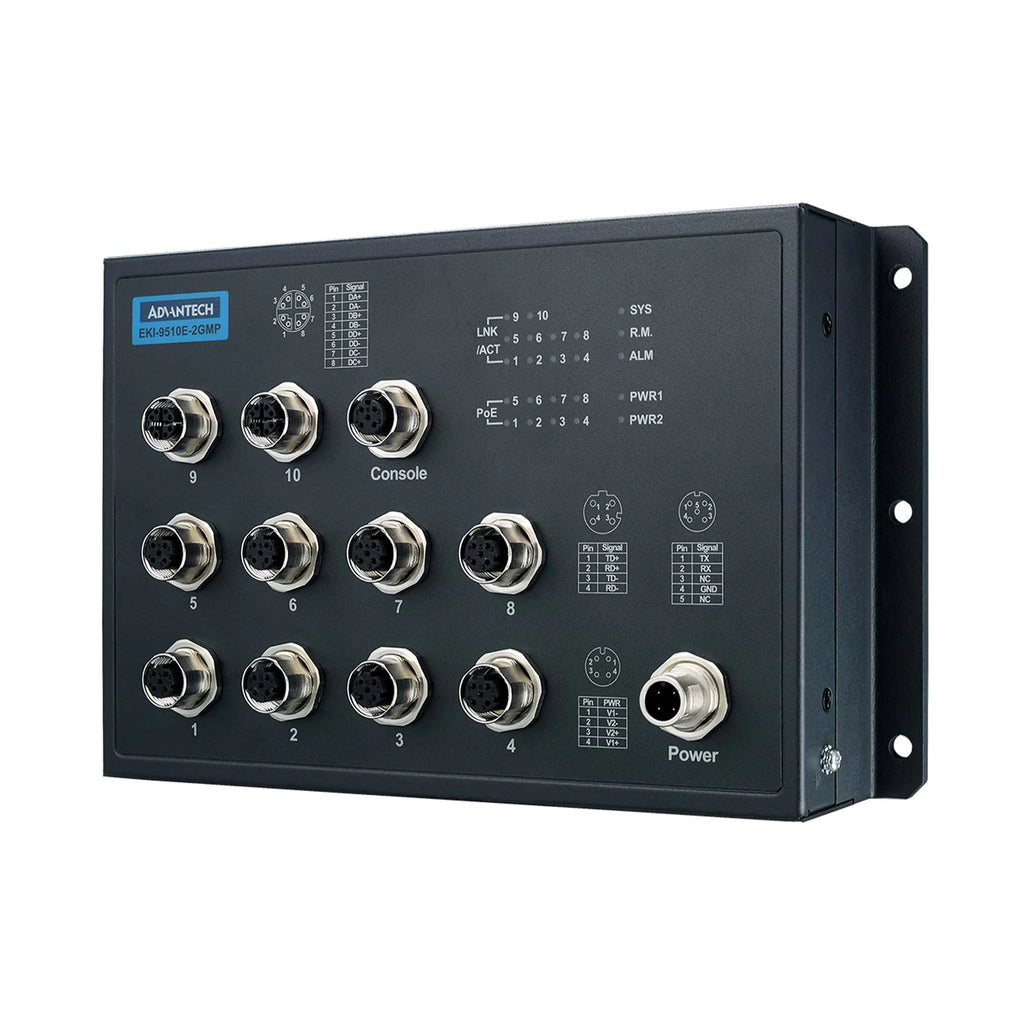

The Advantech EKI-9510E-2GMPH-AE is a rugged, railway-certified managed Ethernet switch designed for demanding industrial and rolling stock environments. Built with secure M12 connectors, this switch ensures reliable and vibration-resistant network connectivity in harsh conditions.
It features 8 Fast Ethernet PoE M12 D-coded ports and 2 Gigabit Ethernet M12 X-coded uplink ports, providing high-performance data transmission along with IEEE 802.3af/at PoE support for powered edge devices such as IP cameras, sensors, and access points.
With dual isolated high-voltage DC power inputs (72/96/110 VDC), an IP40 aluminum enclosure, and a wide operating temperature range of -40°C to 75°C, the EKI-9510E-2GMPH-AE is an ideal solution for transportation, railway, and industrial automation networks requiring maximum reliability and compliance.
| Specification | Details |
|---|---|
| Brand | Advantech |
| SKU | EKI-9510E-2GMPH-AE |
| Product Type | Managed Industrial PoE Ethernet Switch |
| Total Ports | 10 Ports |
| Fast Ethernet Ports | 8 × 10/100 Mbps M12 D-Coded (PoE) |
| Gigabit Uplink Ports | 2 × 10/100/1000 Mbps M12 X-Coded |
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| PoE Power Budget | 120W |
| Switching Features | VLAN, IGMP Snooping, QoS, Storm Control |
| Redundancy Protocol | X-Ring Pro, RSTP, MSTP |
| Management Methods | SNMP v1/v2c/v3, Web, Telnet, SSH, SSL |
| Power Input | Dual Isolated 72/96/110 VDC |
| Power Consumption | 10W (excluding PoE load) |
| Operating Temperature | -40°C to 75°C |
| Enclosure Material | Aluminum Shell |
| Protection Rating | IP40 |
| Mounting Type | Wall Mount |
| Dimensions (W×D×H) | 216 × 132 × 59.3 mm |
| Certifications | EN 50155, EN50121-3-2, CE, FCC |
