Description

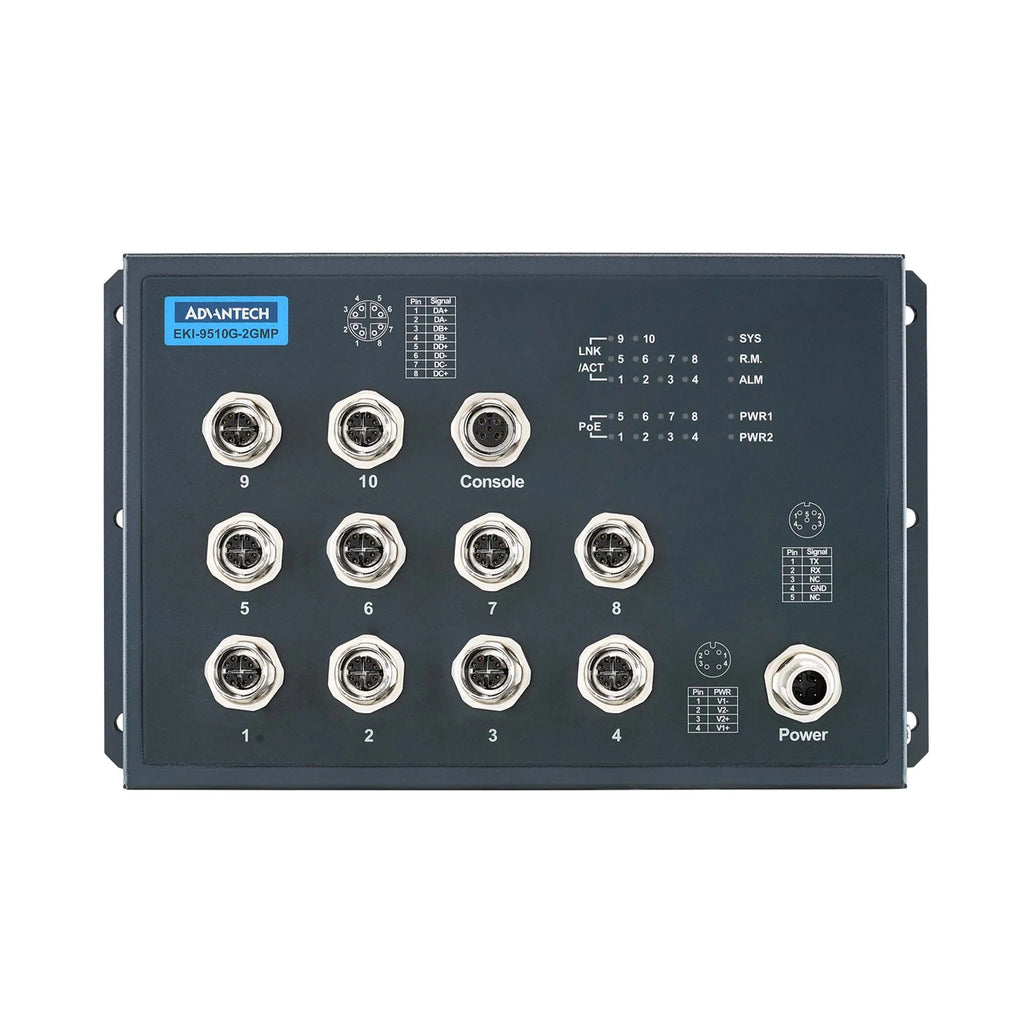

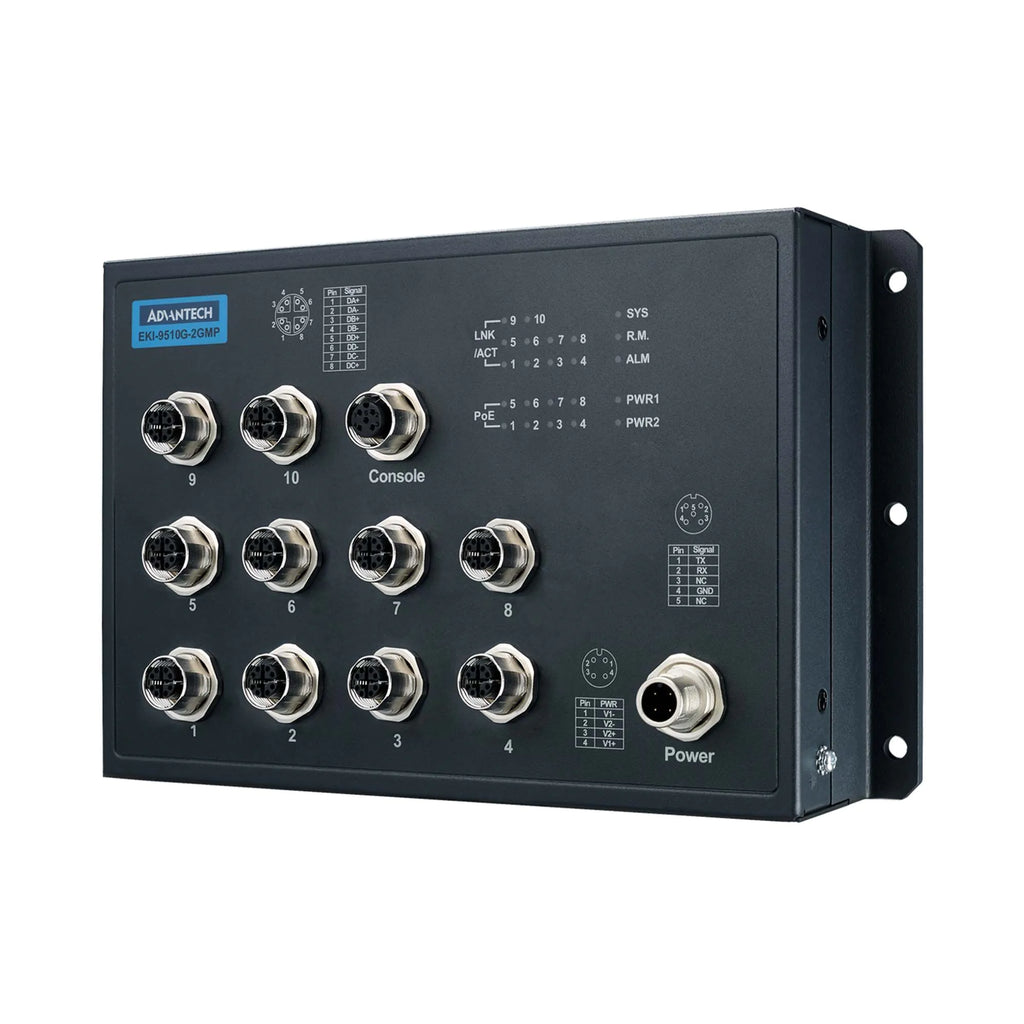

The Advantech EKI-9510G-2GMPL-AE is a rugged, railway-certified industrial Ethernet switch engineered for rolling stock and harsh transportation environments. Built with an IP67-rated sealed housing and durable M12 connectors, this switch ensures secure, vibration-resistant connectivity in demanding installations.
Designed to meet critical railway standards such as EN 50155, EN 50121-3-2, IEC 61373 shock/vibration compliance, the EKI-9510 series provides stable Ethernet networking for onboard and wayside applications. The compact enclosure allows flexible mounting in narrow spaces such as cabinets, partitions, or ceiling compartments.
With a wide operating temperature range and high EMC performance, the EKI-9510G-2GMPL-AE is an ideal solution for mission-critical industrial and transportation networking.
| Specification | Details |
|---|---|
| Brand | Advantech |
| SKU | EKI-9510G-2GMPL-AE |
| Product Type | Industrial Railway Ethernet Switch |
| Total Ports | 10 Ports |
| Ethernet Interfaces | M12 Rugged Industrial Connectors |
| Gigabit Ports | 2 × 10/100/1000 Mbps |
| Fast Ethernet Ports | 8 × 10/100 Mbps |
| Protection Rating | IP67 Waterproof & Dustproof |
| Enclosure | Die-cast zinc + aluminum chassis |
| Installation Method | Wall Mount |
| Operating Temperature | -40°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 5% to 95% (non-condensing) |
| Power Input Range | 24–110 VDC Nominal |
| Operating Voltage Range | 16.8–137.5 VDC |
| Power Consumption | Approx. 15W |
| Industrial Compliance | EN 50155, EN 50121-3-2, IEC 61373 |
| Safety Certification | EN62368-1 |
| EMC Certification | CE, FCC Class A |
| Dimensions | 160 × 100 × 70 mm |
| Weight | 1.8 kg |
