Description

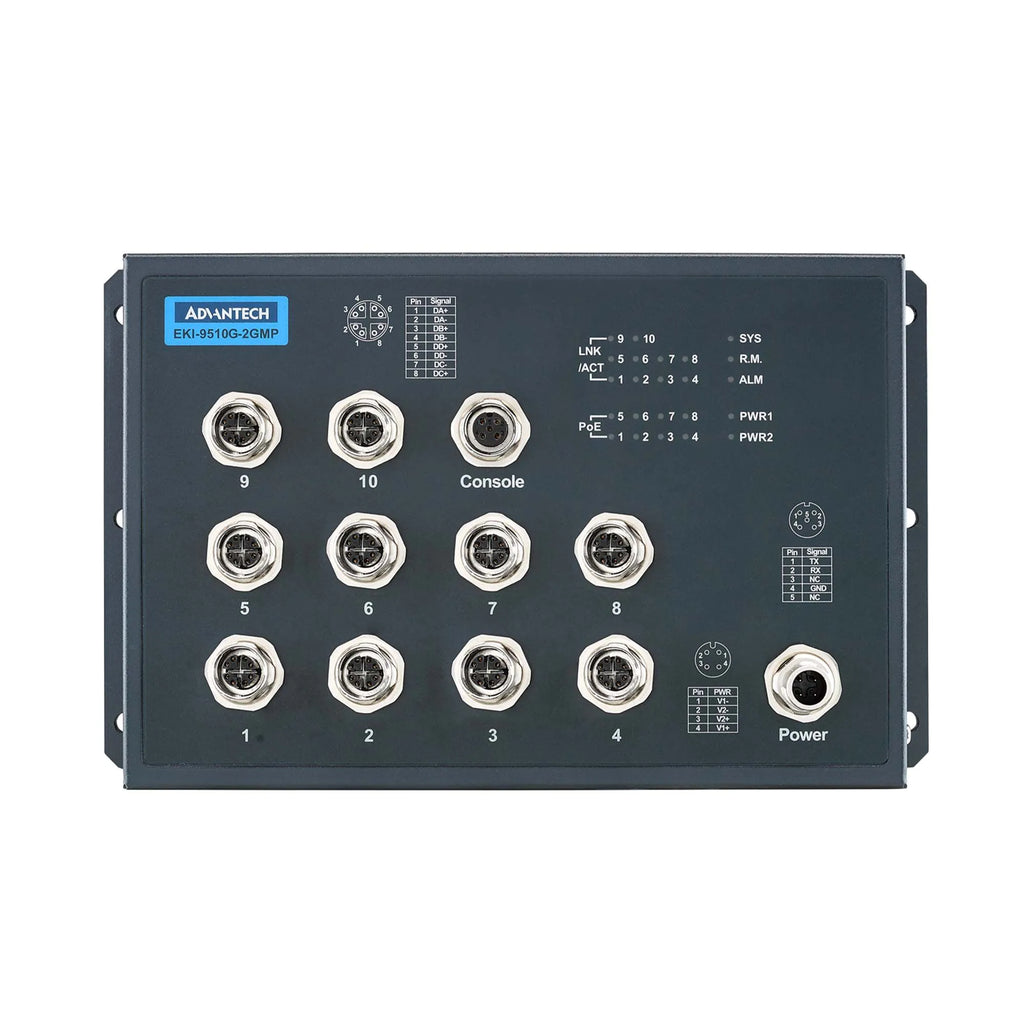

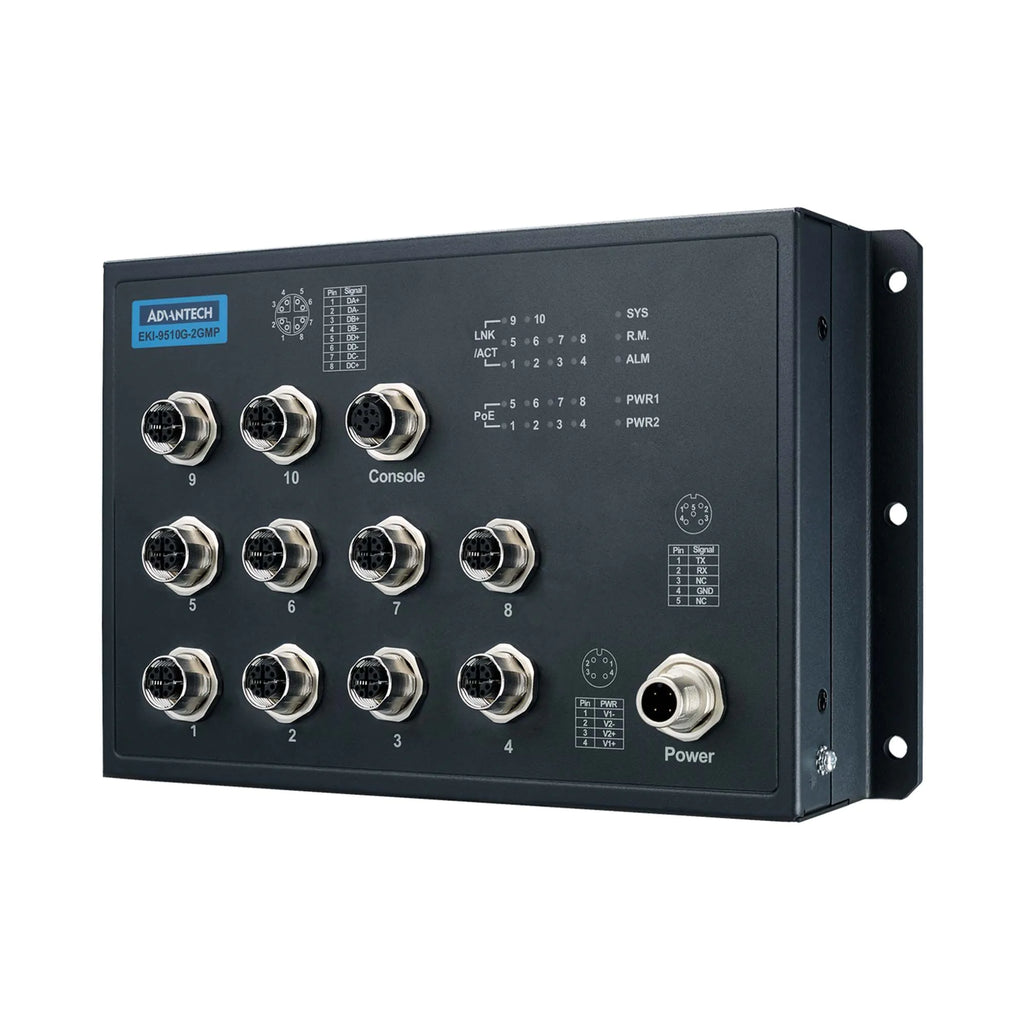

The Advantech EKI-9510G-2GMPH-AE is a rugged industrial Ethernet switch engineered specifically for railway, rolling stock, and harsh outdoor transportation environments. Built with a compact IP67-rated sealed enclosure, this switch ensures reliable networking even under extreme vibration, shock, dust, and moisture conditions.
Designed for high-performance industrial deployments, it supports Gigabit uplink connectivity, wide-range DC power input, and compliance with key railway standards including EN50155, EN50121-3-2, IEC61373, and EN45545 fire protection.
With its durable M12 connector interfaces, wide operating temperature range, and high EMC resistance, the EKI-9510G-2GMPH-AE is ideal for mission-critical railway networking applications such as onboard CCTV, passenger Wi-Fi, wayside communications, and industrial automation.
| Specification | Details |
|---|---|
| Brand | Advantech |
| SKU | EKI-9510G-2GMPH-AE |
| Product Type | Railway Industrial Ethernet Switch |
| Total Ports | 10 Ethernet Ports |
| Gigabit Ports | 2 × 10/100/1000 Mbps |
| Fast Ethernet Ports | 8 × 10/100 Mbps |
| Connector Type | Rugged M12 Industrial Connectors |
| Protection Rating | IP67 Waterproof & Dustproof |
| Enclosure Material | Die-cast Zinc + Extruded Aluminum Chassis |
| Mounting Type | Wall Mount |
| Operating Temperature | -40°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5–95% (Non-condensing) |
| Input Voltage Range | 24–110VDC Nominal |
| Operating Power Range | 16.8–137.5VDC |
| Power Consumption | Approx. 15W |
| Industrial Protections | Reverse Polarity + Overcurrent Protection |
| Railway Compliance | EN50155, EN50121-3-2 |
| Shock & Vibration Standards | IEC61373 |
| Fire Protection Standard | EN45545-2 |
| Use Case Applications | Rolling Stock, Wayside Networks, Railway CCTV, Industrial Transit Systems |
