Description

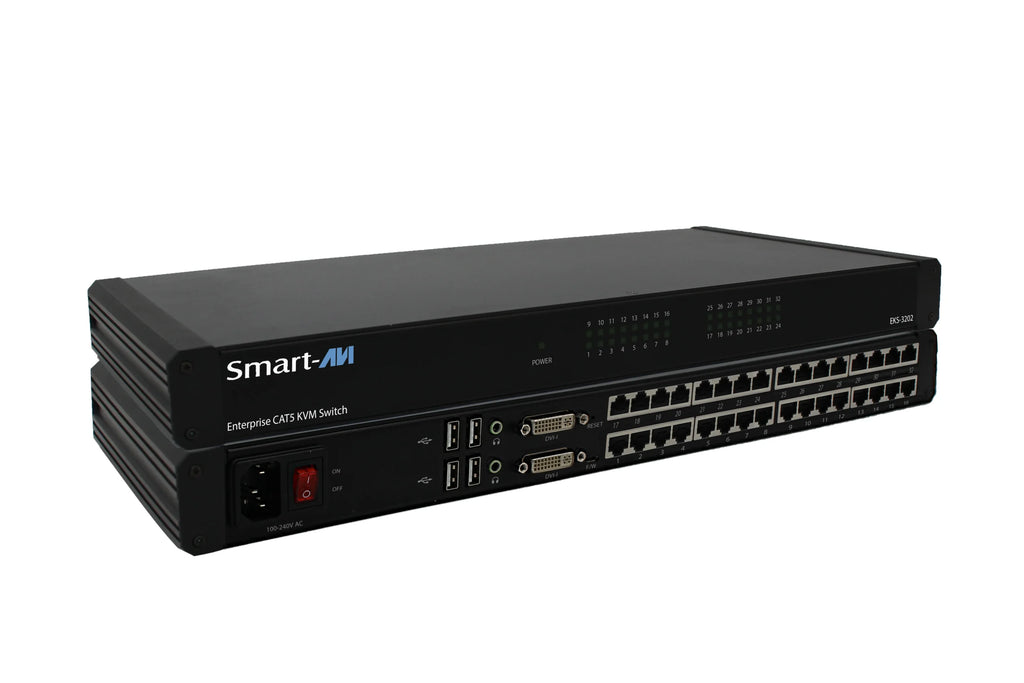

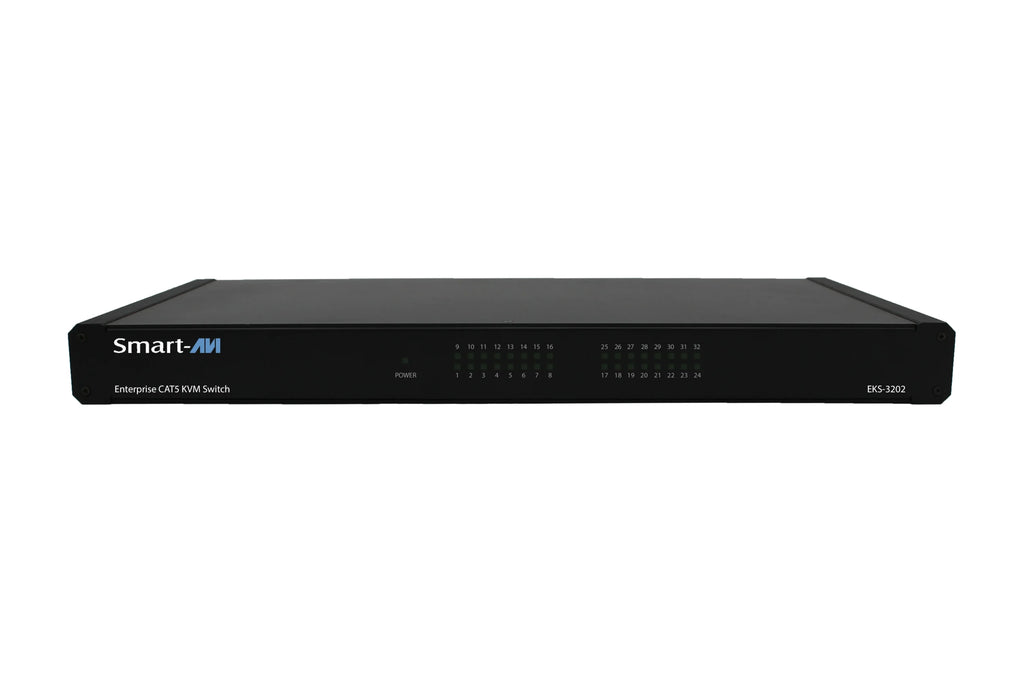

The SmartAVI EKS-3202 is a high-performance enterprise CAT5 KVM switch designed to centralize control of up to 32 servers or computers from a dual-user local console setup. Built for mission-critical IT environments, this solution enables seamless keyboard, video, and mouse management over CAT5 infrastructure, reducing cable complexity while extending control distances.
Engineered for reliability and scalability, the EKS-3202 supports high-resolution digital video, intuitive hotkey and OSD control, and remote access capabilities over IP. Its robust metal housing and rackmount-ready design make it ideal for data centers, control rooms, and enterprise IT deployments requiring secure, efficient, and flexible system management.
With advanced user management, channel switching, and customizable video settings, the EKS-3202 ensures smooth operation across multiple systems while maintaining optimal performance and uptime.
| Specification | Details |
|---|---|
| Product Type | Enterprise CAT5 KVM Switch |

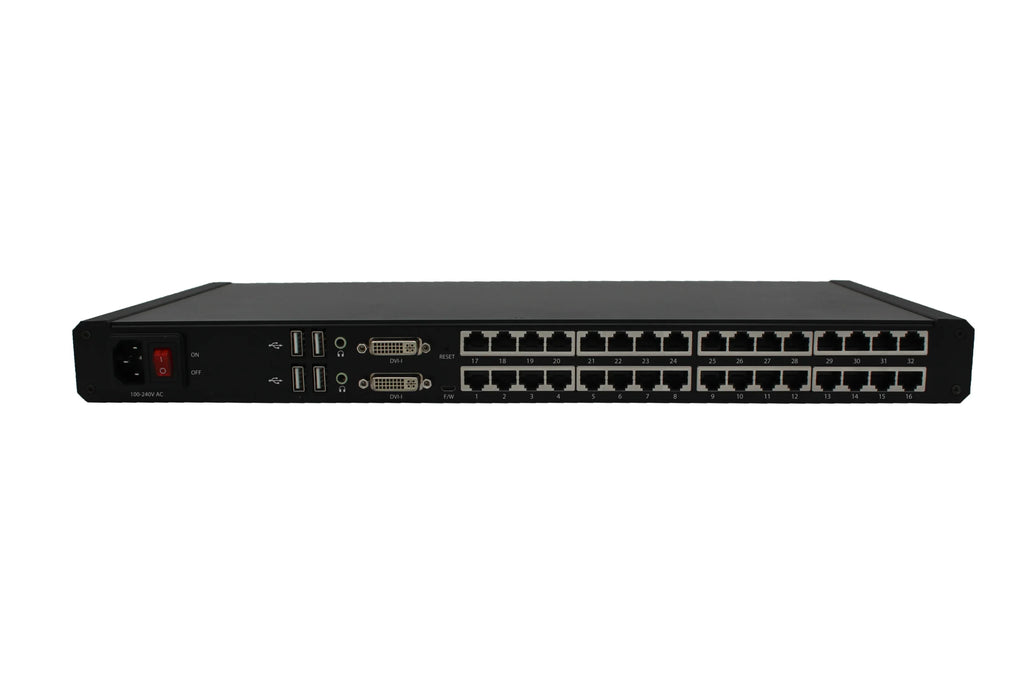

| Number of Ports | 32 RJ45 KVM ports |
| Local Users | 2 simultaneous local users |
| Remote Access | Supported via IP network connection |
| Video Interfaces | DVI-I (supports digital and analog) |
| Maximum Resolution | Up to 1920 x 1200 @75Hz (VGA) / 1920 x 1080 @60Hz (DVI) |
| USB Support | USB keyboard and mouse (Type-A) |
| Control Methods | Hotkeys and On-Screen Display (OSD) |
| Channel Switching | OSD menu and keyboard commands |

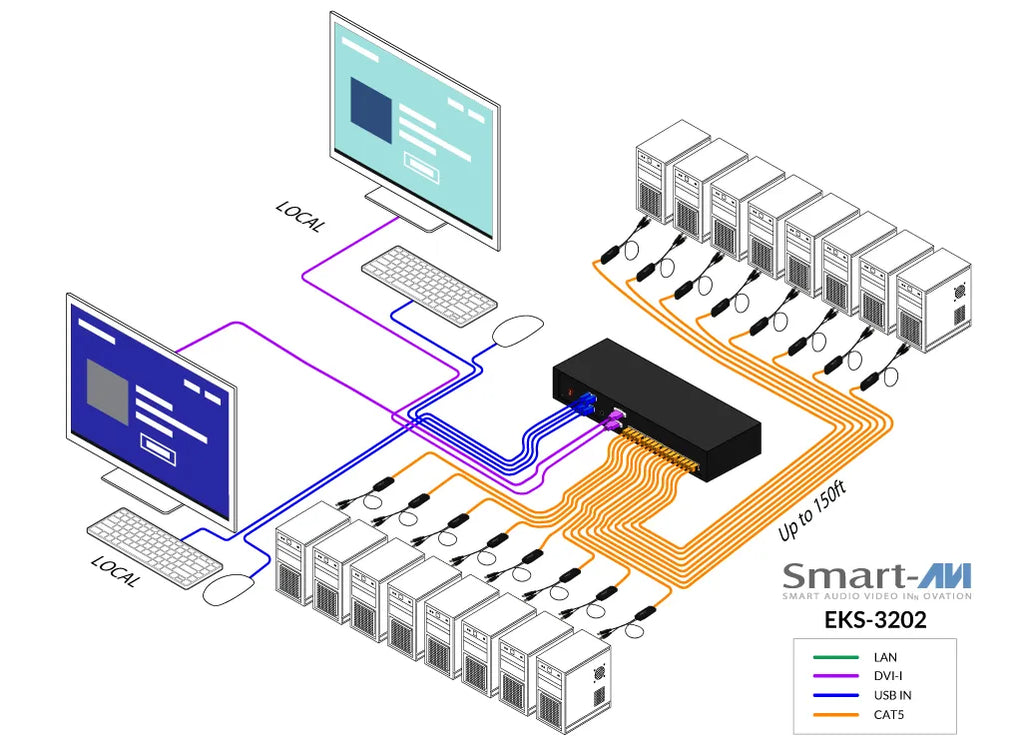

| Maximum Cable Distance | Up to 150 ft over CAT5 |
| Indicators | LED indicators for power and port status |
| Firmware Upgrade | Micro-USB port |
| Power Input | AC 100–240V, 50–60Hz |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Construction | Durable metal enclosure |
| Form Factor | Rackmount-ready |
| Dimensions (L x W x H) | 17.4 x 5.9 x 1.7 inches |
| Weight | Approximately 4.43 lbs |
| Compliance | CE, FCC |
