Description

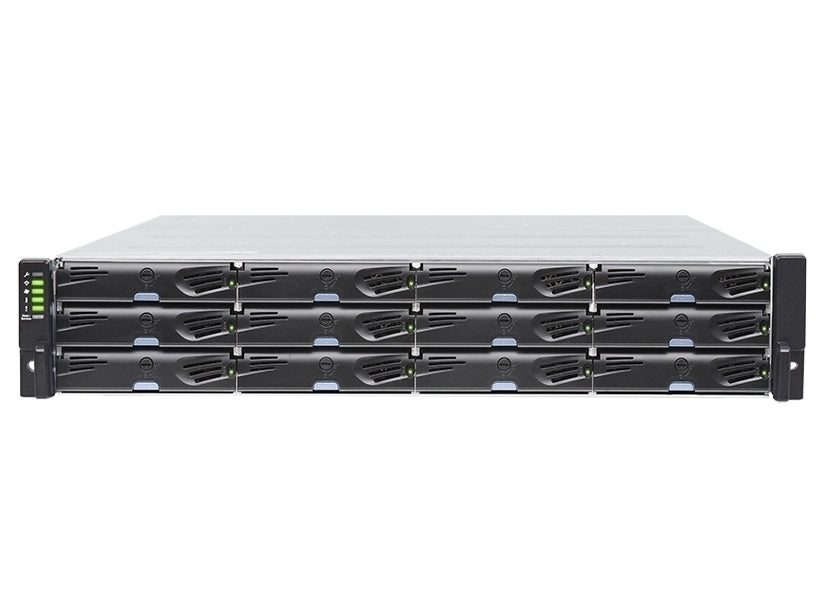

The Infortrend EonStor DS 2012 Gen2 is a high-availability enterprise storage array designed to deliver reliable performance, flexible deployment, and advanced data protection for business-critical workloads. Housed in a compact 2U chassis, it features 12 hot-swappable drive bays supporting both 2.5-inch and 3.5-inch SAS drives, enabling seamless scaling across mixed HDD and SSD environments.
Built with dual redundant RAID controllers and 32 GB of installed memory, the system ensures consistent performance and fault tolerance. Comprehensive RAID support—including RAID 0, 1, 3, 5, 6, 10, 30, 50, and 60—allows organizations to optimize storage efficiency while safeguarding data integrity.
Connectivity is optimized for enterprise SAN environments with eight 1GbE iSCSI ports and dual 12Gb/s SAS interfaces, complemented by a dedicated RS-232 management port for streamlined administration. Data security is further enhanced through S.M.A.R.T. monitoring, a flash backup module, and a super capacitor battery to protect cached data during unexpected power events.
With dual hot-plug 80 PLUS Bronze certified power supplies and broad operating system compatibility, the EonStor DS 2012 Gen2 delivers a dependable, scalable, and cost-effective storage foundation for growing IT infrastructures.
| Specification | Details |
|---|---|
| System Type | Hard drive array |
| Form Factor | Rack-mountable 2U |
| Drive Bays | 12 × hot-swap 2.5"/3.5" shared |
| Supported Drives | SAS-3 |
| Storage Controllers | Dual RAID controllers |
| RAID Levels | RAID 0, 1, 3, 5, 6, 10, 30, 50, 60 |
| Installed Memory | 32 GB |
| Maximum LUNs | 2048 |
| Host Interfaces | 8 × 1GbE iSCSI (RJ-45) |
| Expansion Interfaces | 2 × SAS 12Gb/s |
| Management Interface | 1 × RS-232 |
| Expansion Slots | 4 |
| Hard Drives Included | No |
| Power Supplies | 2 × internal hot-plug |
| Power Redundancy | Yes (1+1) |
| Power Rating | 460 W |
| Efficiency Certification | 80 PLUS Bronze |
| Input Voltage | AC 100–240 V, 50/60 Hz |
| Operating Temperature | 32°F to 104°F |
| Operating Humidity | 5–95% non-condensing |
| Dimensions (W × D × H) | 17.7 × 19.7 × 3.5 in |
| Weight | 29.98 lbs |
| Included Accessories | Rack mounting kit |
| Supported Operating Systems | Windows Server, VMware ESX, Citrix XenServer, Red Hat Enterprise Linux, SUSE Linux Enterprise, Apple macOS, SunSoft Solaris |
| Warranty | 3-year limited warranty |
