Description
Experience outstanding brightness and professional features with the Epson PowerLite® L690U. Delivering 6,500 lumens of color and white brightness, this compact yet powerful projector produces vibrant, true-to-life images with Full HD WUXGA resolution that accepts up to 4K input. Designed for classrooms, lecture halls, conference rooms, hybrid workspaces, and more, it supports large-scale projection up to 500'' diagonal in 16:10, as well as ultra-wide 16:6 and 21:9 aspect ratios.
With advanced features including wireless connectivity (Wi-Fi 6/6E), Apple® AirPlay® 2, Miracast®, and Epson iProjection™, the L690U simplifies screen sharing and collaboration. Installation is seamless with its wide lens shift, 1.6x optical zoom, and built-in geometric correction tools. Plus, enjoy peace of mind with its virtually maintenance-free laser light source and air filter, lasting up to 30,000 hours in Extended Mode.

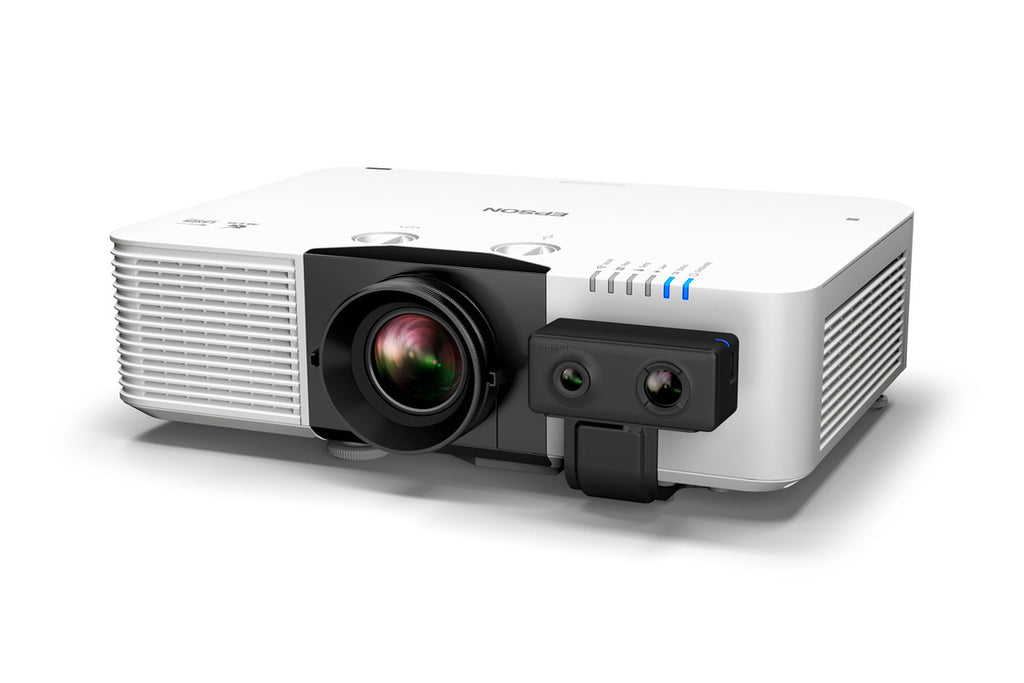

For large-scale, multi-projector applications, the optional PixAlign™ camera enables edge blending, screen matching, auto color calibration, and stacking support—all without requiring an external PC. With robust connectivity, including HDBaseT® and dual HDMI® inputs with daisy-chaining support, the Epson PowerLite L690U delivers unmatched versatility for professional AV environments.
| Category | Details |
|---|---|
| Model / SKU | PowerLite L690U / V11HB29020 |
| Projection System | 3LCD, 3-chip technology |
| Native Resolution | WUXGA (1920 x 1200), accepts up to 4K input |
| Brightness | 6,500 lumens color / white brightness |
| Contrast Ratio | Over 5,000,000:1 |
| Color Reproduction | Up to 1.07 billion colors |
| Maximum Display Size | Up to 500" diagonal (16:10), also supports 16:6 and 21:9 |
| Lens | Manual optical zoom (1.0–1.6x), manual focus |
| Lens Shift | Vertical ±50%, Horizontal ±20% |
| Keystone Correction | Vertical ±30°, Horizontal ±30° |
| Throw Ratio | 1.35 – 2.20 |
| Light Source | Laser diode, up to 30,000 hours (Extended Mode) |
| Wireless | Built-in Wi-Fi 6/6E, Miracast®, Apple AirPlay® 2, Epson iProjection™ |
| Audio | 10 W mono speaker |

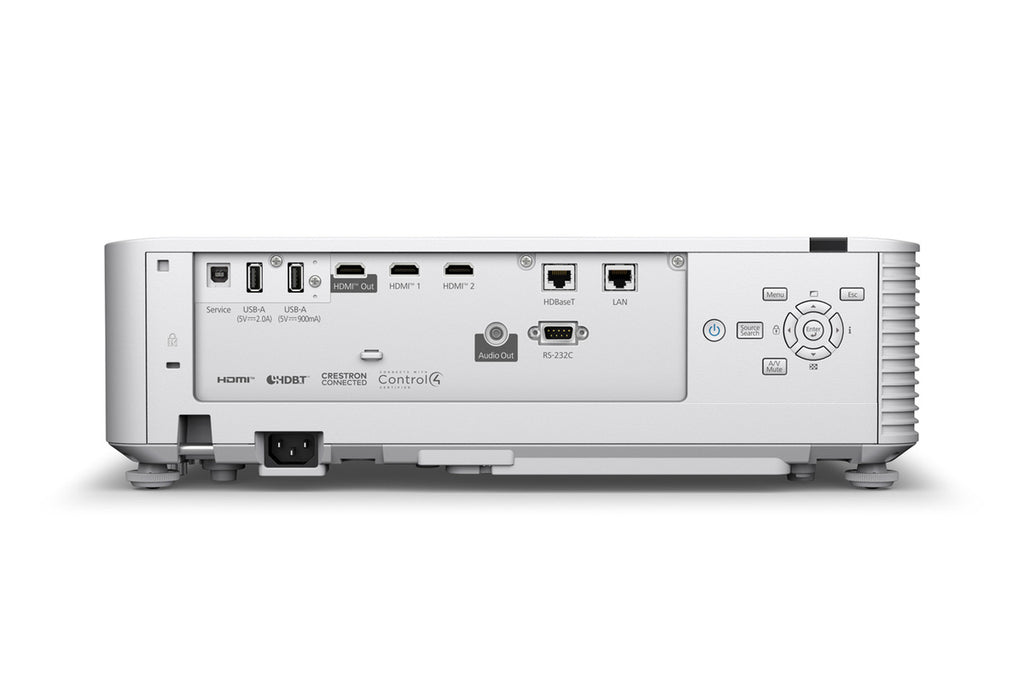

| Connectivity | 2x HDMI (HDCP 2.3), HDMI Out, HDBaseT, USB-A, USB-B, RS-232C, RJ45 LAN, Wireless LAN |
| Noise Level | 32 dB (Normal), 25 dB (ECO Mode) |
| Dimensions (W x D x H) | 17.32" x 13.39" x 5.43" (with feet) |
| Weight | 18.1 lbs |
| Power Consumption | 415 W (Normal), 305 W (Extended/Quiet) |
| Mounting | 360° installation, universal VESA mount |
| Features | Quick Corner, Arc Correction, Edge Blending, Split Screen (2 screens), Content Playback, NFC setup, OTA firmware updates |
| What’s Included | PowerLite L690U projector, power cable, remote control with batteries, Quick Setup sheet, cable cover |
| Optional Accessories | PixAlign™ Camera (ELPEC01), Replacement Air Filter (ELPAF65), Projector Mounts, Epson Pilot™ 3R, Document Cameras |
| Warranty | 3-year limited warranty; optional Extended Service Plans available |
