Description

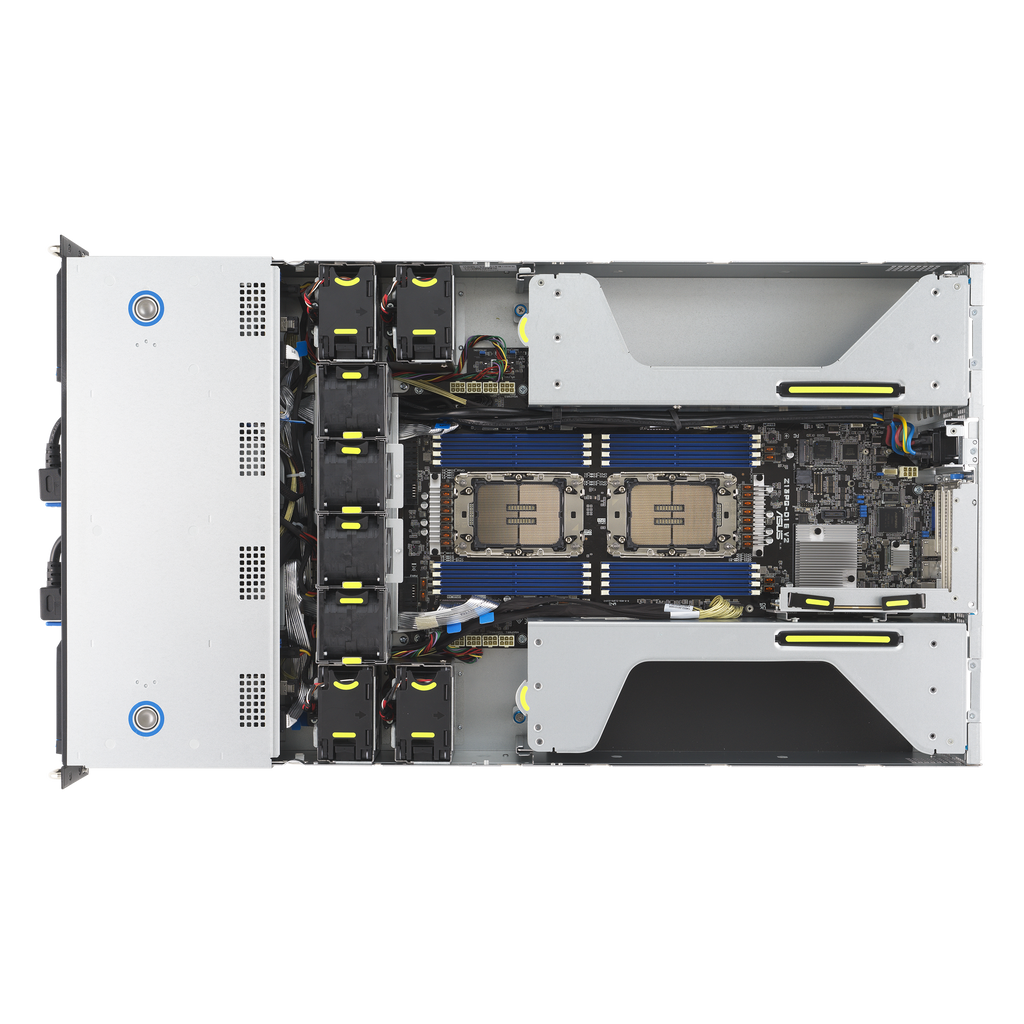

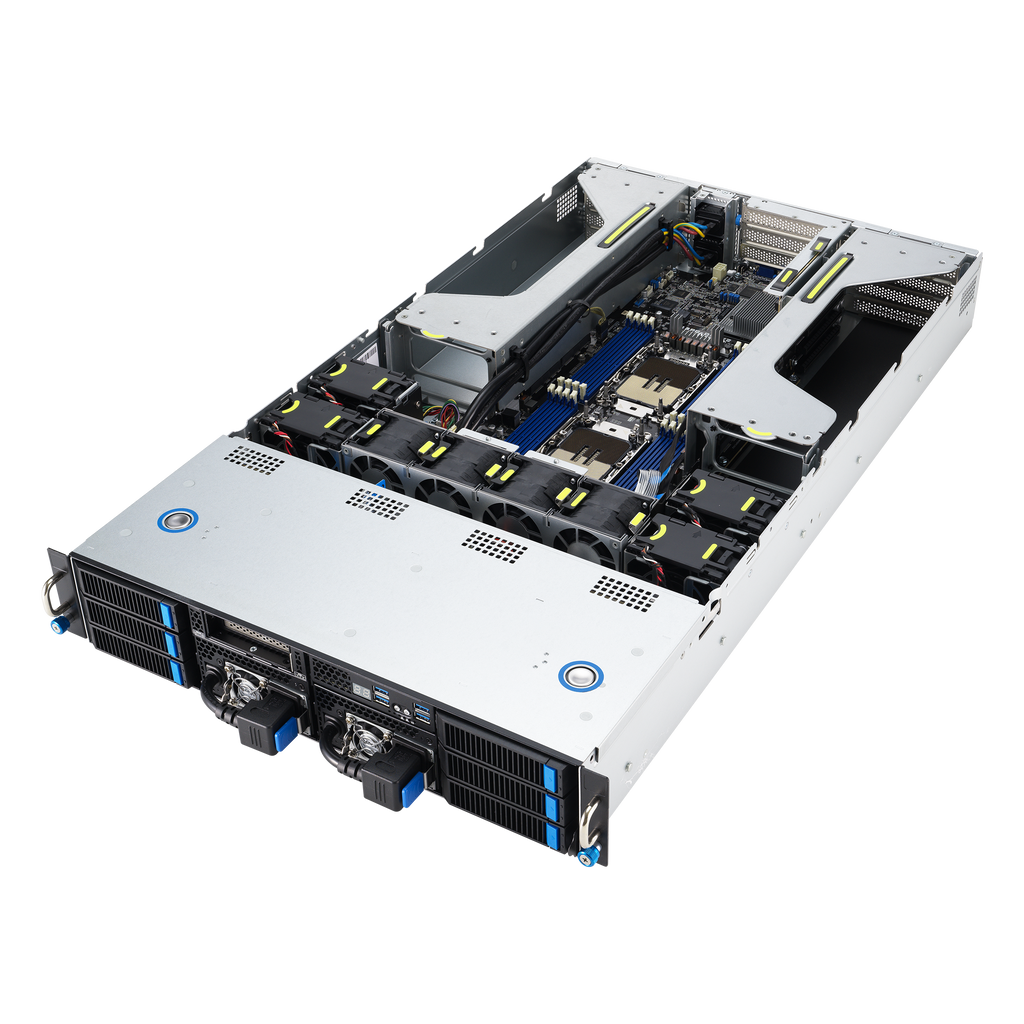

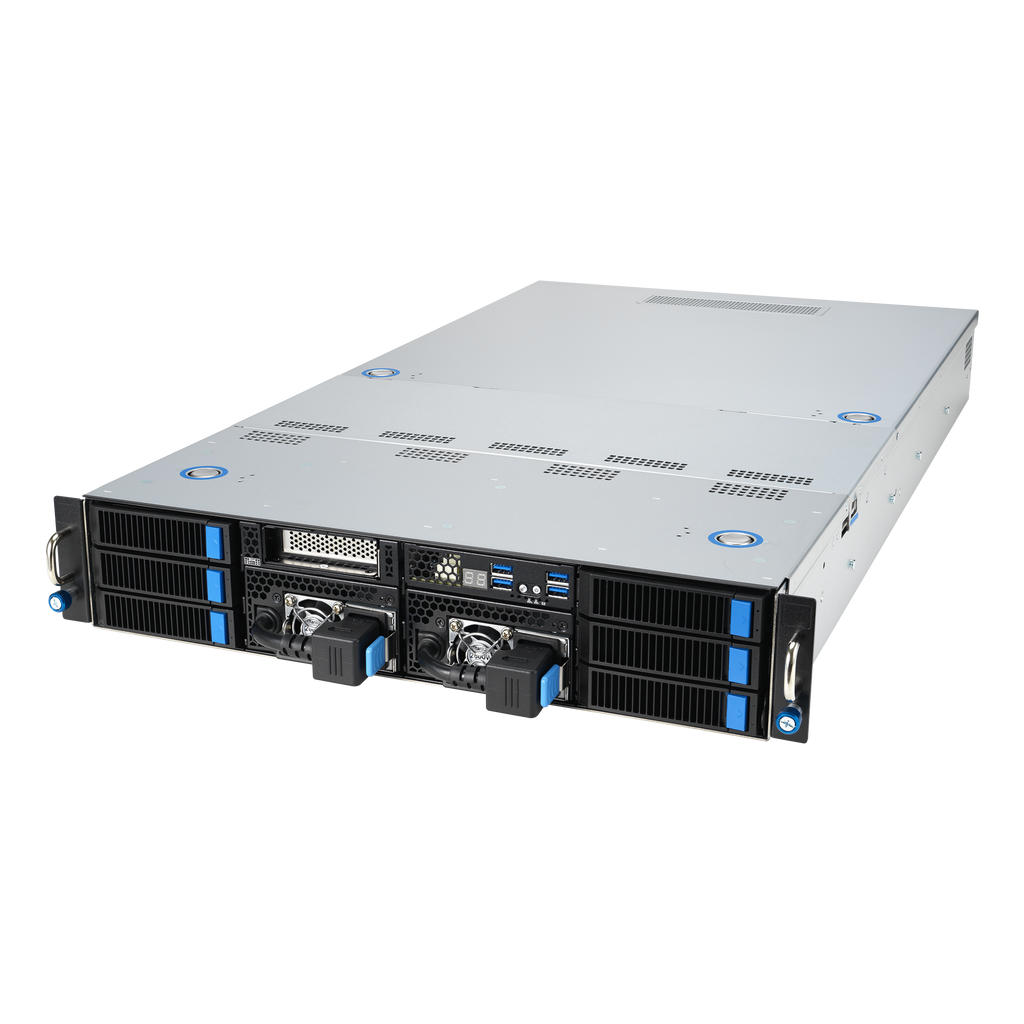

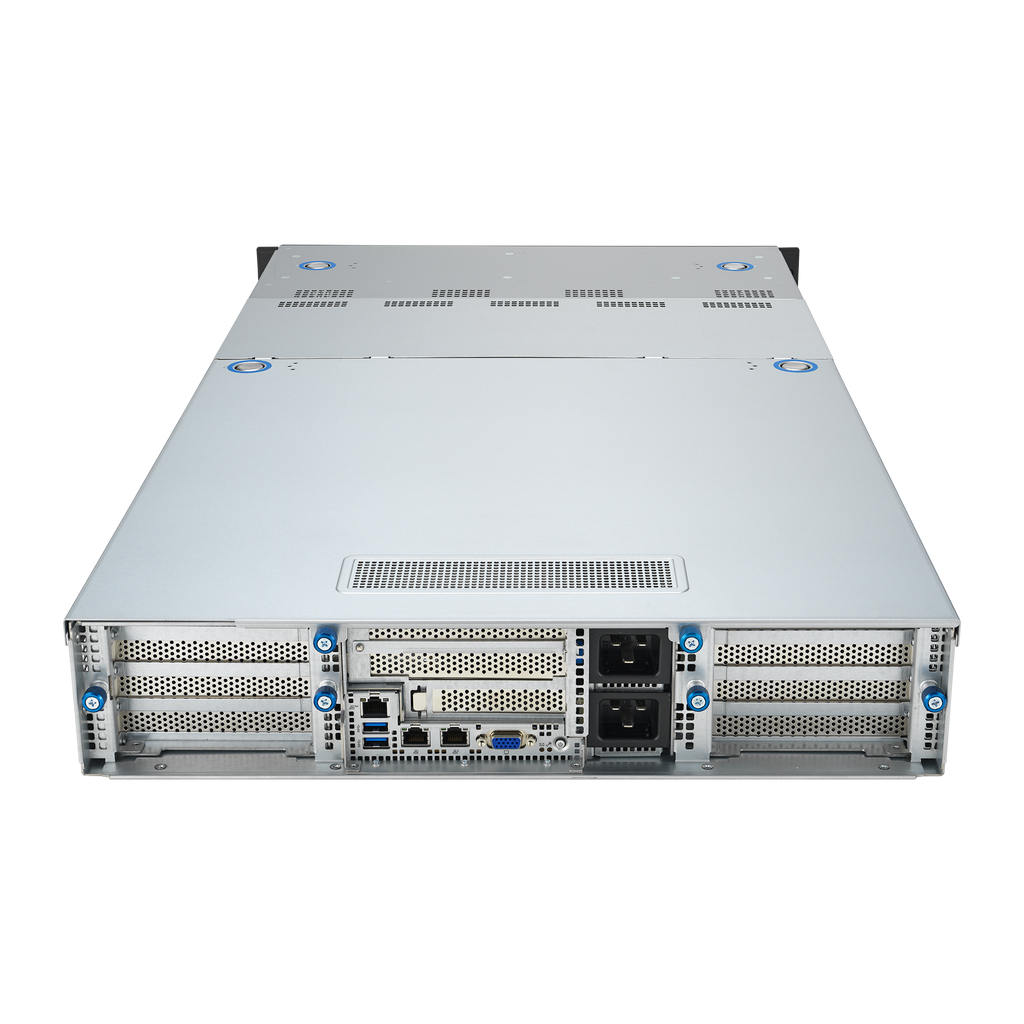

The ASUS ESC4000-E11-26WGP is a 2U dual-socket GPU server designed for AI training, HPC, and cloud computing workloads that demand both performance and scalability. Powered by 5th Gen Intel® Xeon® Scalable Processors, it supports up to four dual-slot PCIe 5.0 GPUs or eight single-slot GPUs, delivering exceptional parallel processing for deep learning and high-performance computing environments.
This server offers 16 DDR5 DIMM slots supporting up to 4TB of high-speed memory, 6 NVMe-ready hot-swap bays, and redundant 2600W 80 PLUS Titanium power supplies for maximum reliability. Built-in ASMB11-iKVM and ASUS Control Center (ACC) enable comprehensive out-of-band and in-band system management, while Thermal Radar 2.0 and Power Balancer technologies optimize cooling and energy efficiency.
Ideal for enterprises, research institutions, and data centers, the ESC4000-E11-26WGP delivers the balanced power, scalability, and control required for next-generation accelerated computing.
| Category | Specification |
|---|---|
| Model | ASUS ESC4000-E11-26WGP |
| Form Factor | 2U Rackmount Server |
| Processor Support | Dual Socket E (LGA4677); Supports 4th and 5th Gen Intel® Xeon® Scalable Processors (up to 350W TDP) |
| Chipset | Intel® C741 |
| Memory Slots | 16 DIMM slots (8-channel per CPU) |
| Memory Type | DDR5 5600/4800 RDIMM / 3DS RDIMM |
| Maximum Memory | Up to 4TB |
| GPU Support | Up to 4 x PCIe 5.0 x16 dual-slot GPUs or 8 x PCIe 5.0 x8 single-slot GPUs |
| Expansion Slots | 4 x PCIe 5.0 x16 (FH, FL), 2 x PCIe 5.0 x16 (FH, HL), 1 x PCIe 4.0 x8 (LP, HL) |
| Storage Bays | 6 x 2.5"/3.5" hot-swap bays (up to 6 x NVMe supported) |
| Networking | 2 x 1GbE LAN (Intel® I350-AM2), 1 x dedicated management port |
| Graphics | ASPEED AST2600 (64 MB) |
| Front I/O Ports | 4 x USB 3.2 Gen1 |
| Rear I/O Ports | 2 x USB 3.2 Gen1, 2 x RJ45 LAN, 1 x Management RJ45, 1 x VGA |
| Security | TPM-SPI module (optional), PFR module (optional) |
| Management | ASUS Control Center (ACC), ASMB11-iKVM (KVM-over-IP) |
| Power Supply | 1+1 Redundant 2600W 80 PLUS Titanium CRPS-R |
| Cooling Features | ASUS Thermal Radar 2.0, Power Balancer |
| Operating Systems | Windows Server 2019, RedHat, SuSE, Ubuntu, VMware |
| Dimensions (W x D x H) | 439.5 x 800 x 88.9 mm |
| Weight | Net: 34 kg / Gross: 44 kg |
| Operating Temperature | 10°C ~ 35°C |
| Non-Operating Temp. | -40°C ~ 70°C |
| Non-Operating Humidity | 20% ~ 90% (non-condensing) |
