Description

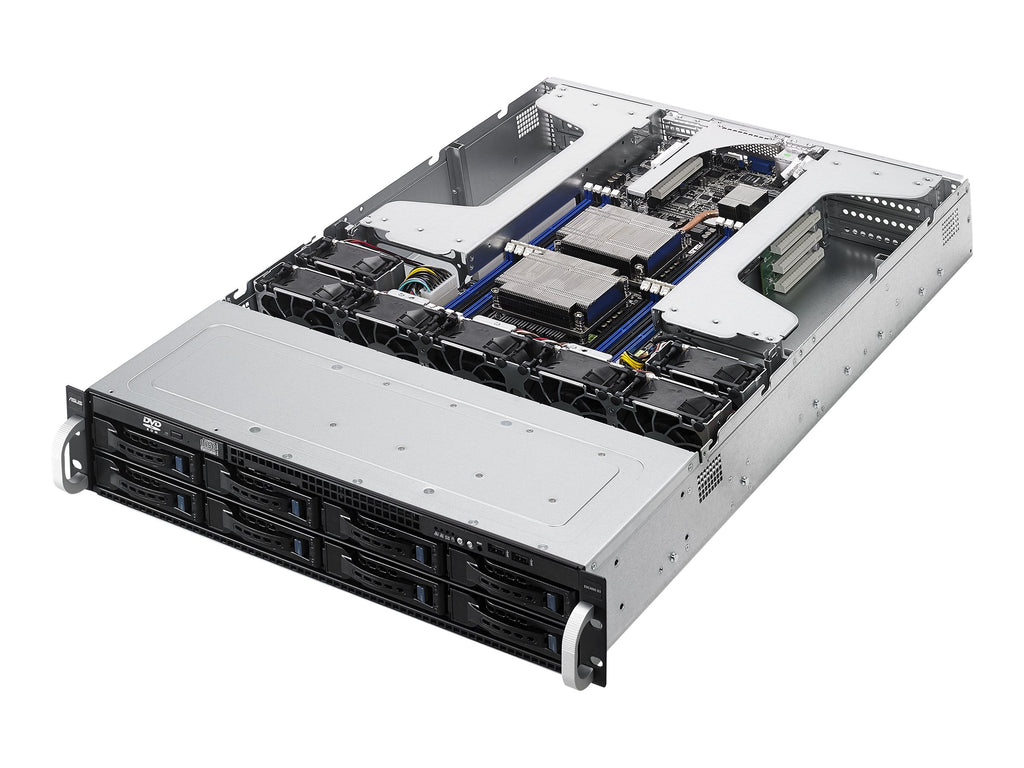

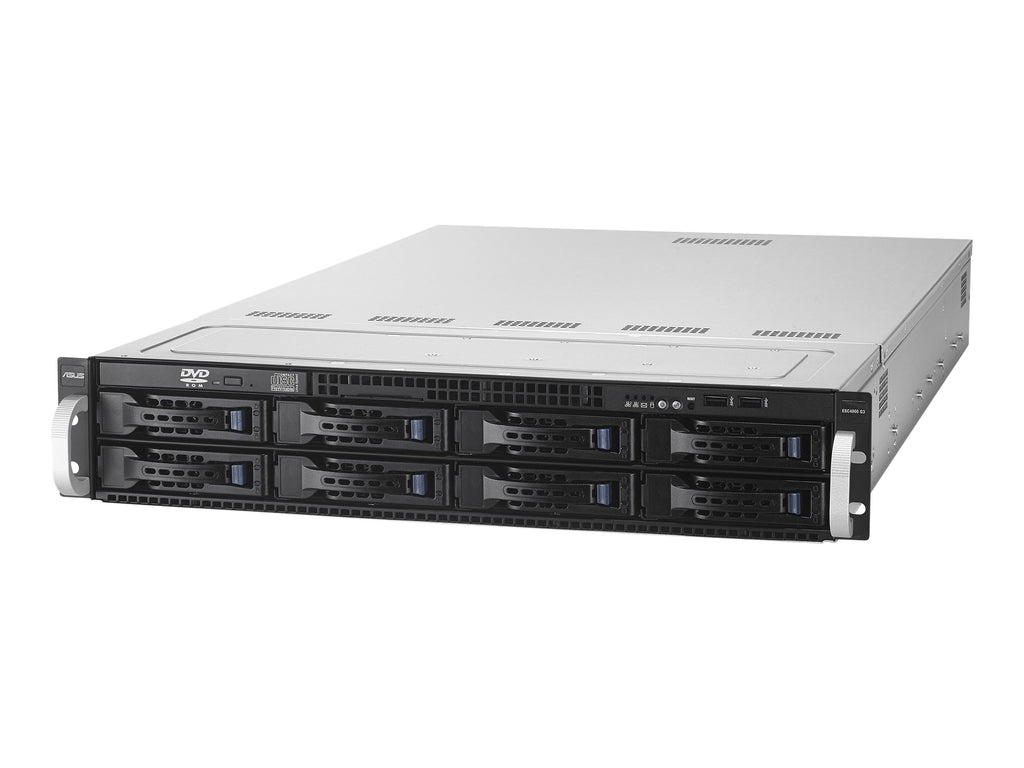

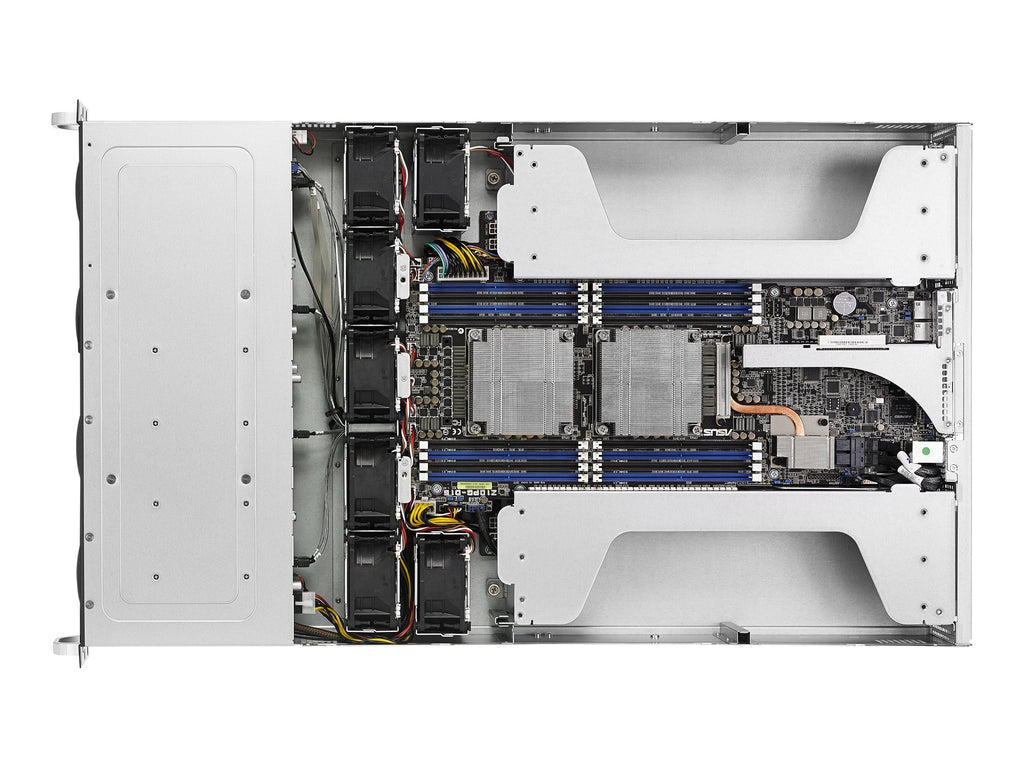

The ASUS ESC4000 G3 is a powerful and scalable 2U rack-mount server barebone designed for high-performance computing, virtualization, and data-intensive workloads. Supporting dual Intel® Xeon® E5-2600 v3/v4 processors (LGA2011-v3 socket) and up to 1TB DDR4 memory, it offers impressive compute density with exceptional expandability.

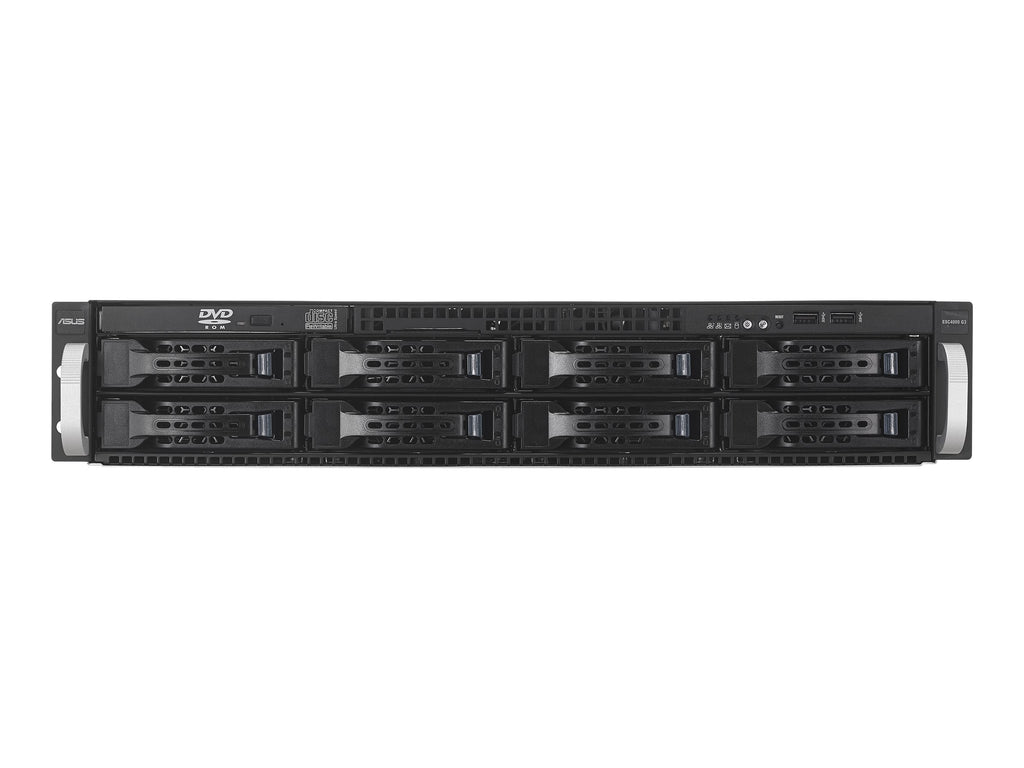

Equipped with eight hot-swap 3.5" SATA drive bays, the ESC4000 G3 allows flexible storage configurations with integrated RAID 0, 1, 5, 10 support for enhanced data protection. It features multiple PCIe 3.0 x16 slots, making it ideal for GPU computing or accelerator cards.
With integrated ASPEED AST2400 graphics, dual Intel® I210-AT Gigabit Ethernet ports, and KVM over IP management, this system delivers efficient control, remote monitoring, and consistent uptime—ideal for data centers, research clusters, or enterprise compute environments.
| Category | Specification |
|---|---|
| Form Factor | Rack-mountable - 2U |
| Processor Support | Up to 2 x Intel® Xeon® E5-2600 v3/v4 |
| CPU Socket | LGA2011-v3 |
| Chipset | Intel® C612 |
| Max CPU Quantity | 2 |
| Memory Type | DDR4 SDRAM |
| Memory Slots | 16 x DIMM 288-pin |
| Max Memory Capacity | Up to 1 TB (LRDIMM/NVDIMM support) |
| Memory Architecture | Quad Channel, Registered, Load-Reduced DIMM |
| Storage Bays | 8 x Hot-swap 3.5" SATA |
| Storage Interface | SATA 6 Gb/s |
| RAID Support | RAID 0, 1, 5, 10 (Integrated Controller) |
| Expansion Slots | 4 x PCIe 3.0 x16 (full-height/full-length), 4 x PCIe 3.0 x16 (x8 mode), 1 x PCIe 3.0 x24 (half-length, low-profile) |
| Networking | 2 x Gigabit Ethernet (Intel® I210-AT) |
| Network Features | KVM over IP support |
| Video Output | Integrated ASPEED AST2400 with 32 MB VRAM |
| Video Interface | VGA |
| I/O Ports | 2 x USB 3.0, 2 x USB 2.0, 1 x Serial, 1 x Management (NIC), 1 x VGA |
| Optical Drive | None |
| Power Supply | Redundant PSU (varies by configuration) |
| Cooling | Air duct with included heatsinks |
| Chassis Color | Black |
| Dimensions (W x H x D) | 44.4 cm x 8.7 cm x 75 cm |
| Compliant Standards | BSMI, FCC |
| Included Accessories | 2 x CPU Heatsinks, Air Duct |
| Product Type | Server Barebone |
| Category | Servers |
| UNSPSC | 43211501 |
