Description

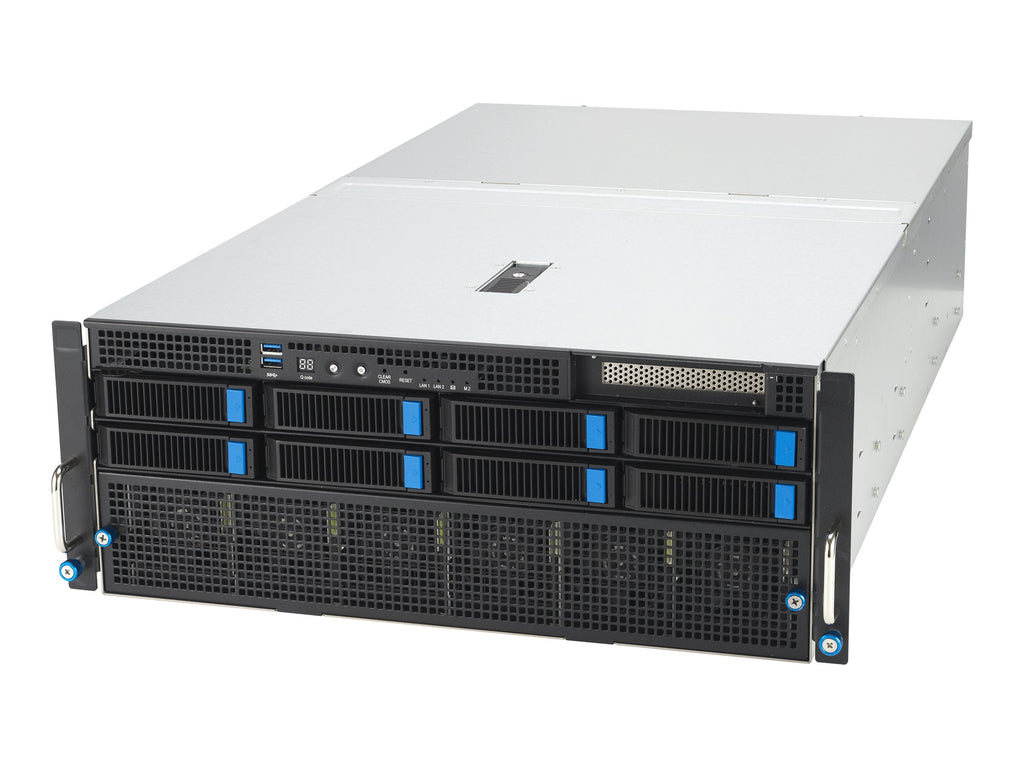

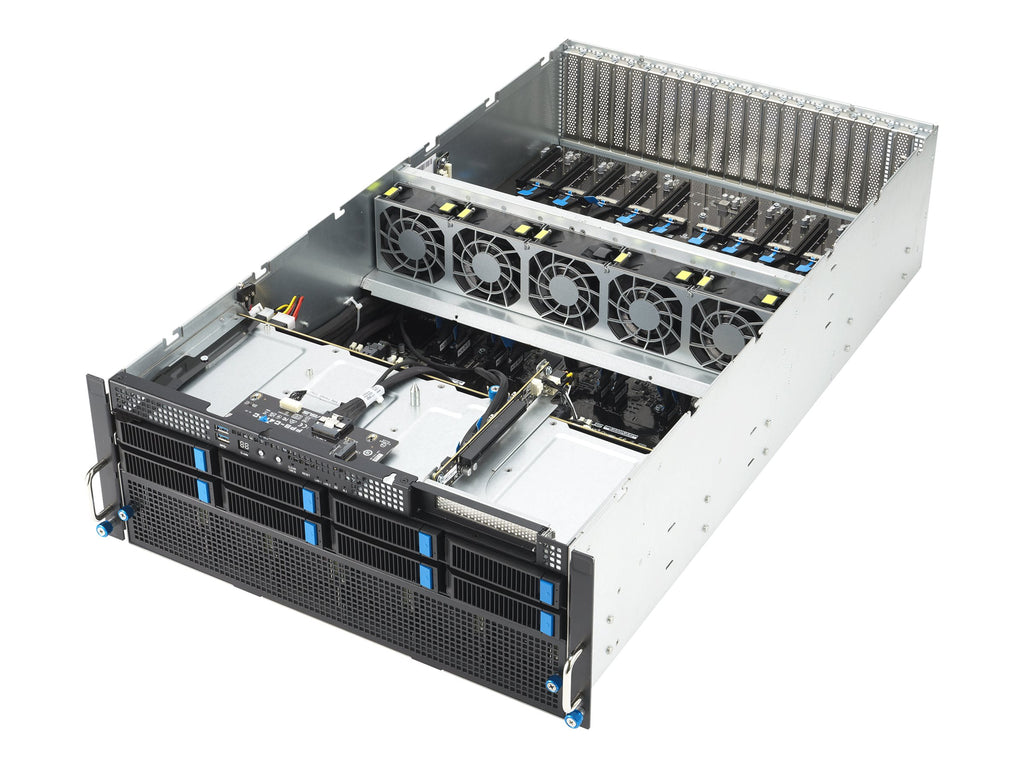

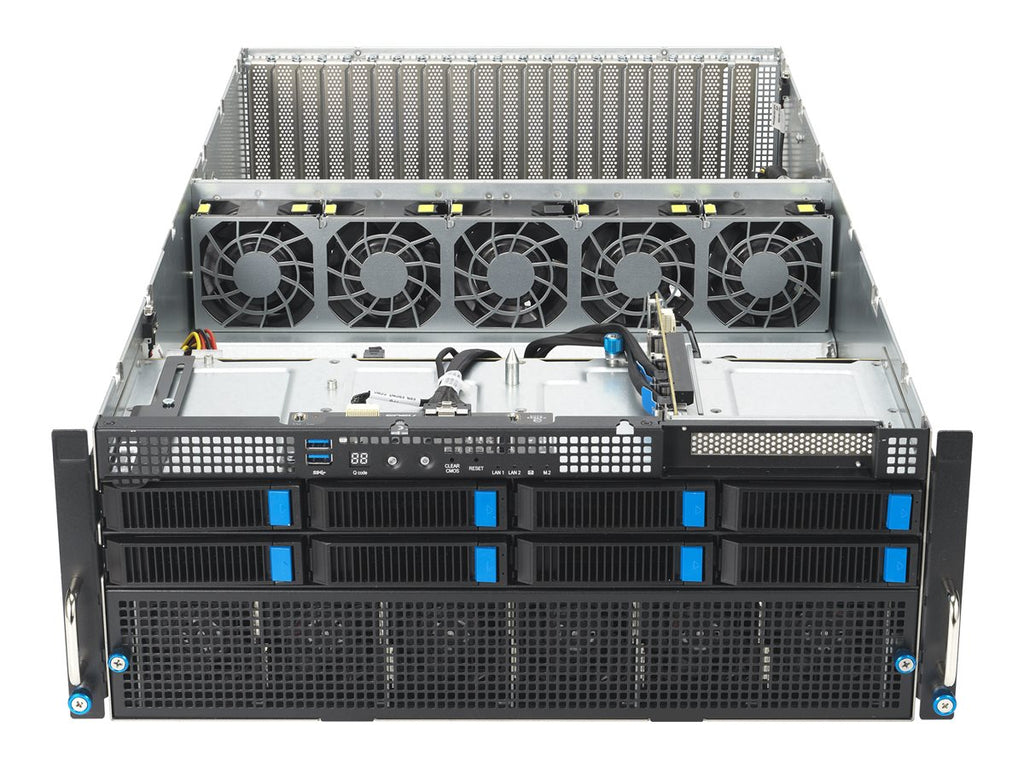

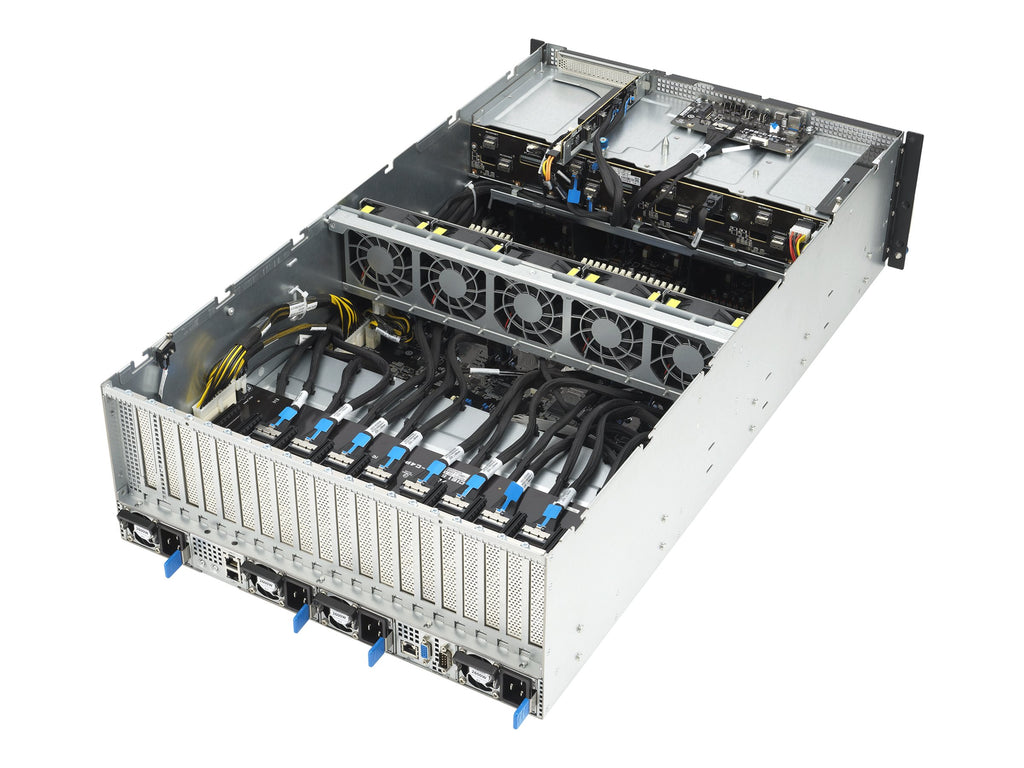

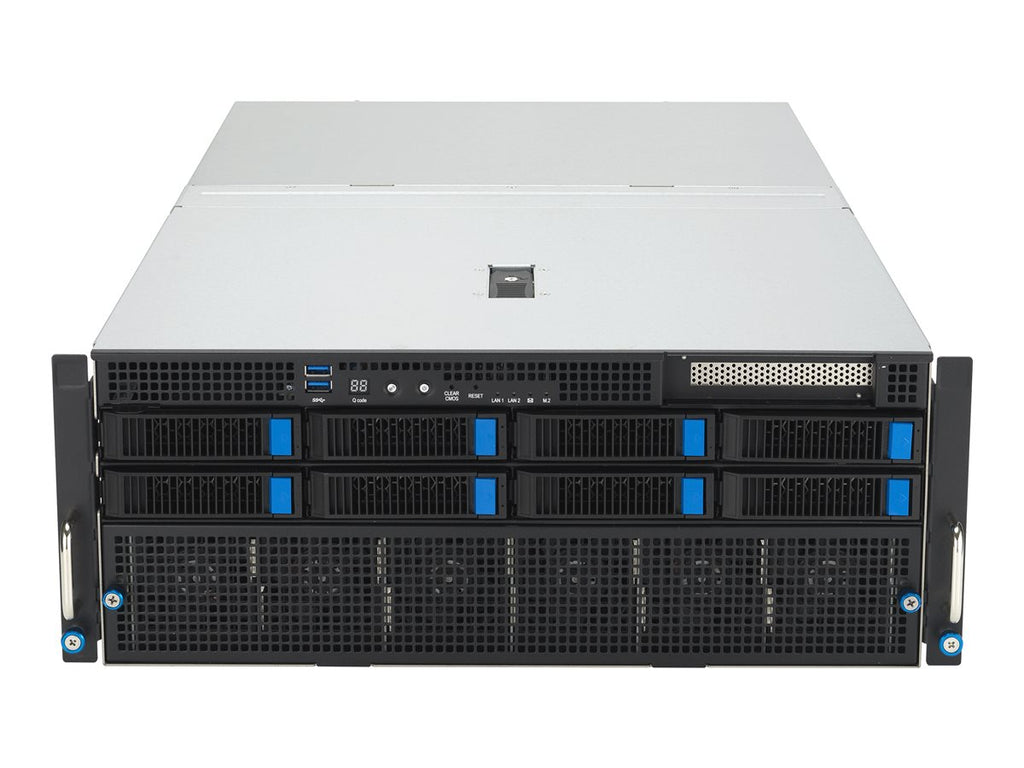

The ASUS ESC8000A-E12-26W10G is a high-performance 4U GPU server designed for demanding AI, HPC, and data-center workloads. Powered by 4th Gen AMD EPYC 9004 processors with AMD 3D V-Cache™ technology, it supports up to eight dual-slot GPUs with PCIe 5.0 connectivity for extreme compute density and bandwidth. Its comprehensive air or liquid-cooling options and redundant 80 PLUS Titanium 3000 W power supplies deliver reliable operation under intensive conditions.
With 24 DDR5 DIMM slots, dual 10 Gb Ethernet ports, and scalable GPU interconnects via NVIDIA NVLink® or AMD Infinity Fabric Link, the ESC8000A-E12-26W10G delivers enterprise-grade flexibility and efficiency. Integrated ASMB11-iKVM management and ASUS Control Center (ACC) provide simplified remote control and monitoring, while TPM 2.0 ensures enhanced platform security. Built for AI training, virtualization, and high-throughput computation, this system is a powerhouse ready for next-generation data-center acceleration.
| Category | Specification |
|---|---|
| Processor Support | 2 × Socket SP5 (LGA 6096), 4th Gen AMD EPYC™ 9004 Series Processors with AMD 3D V-Cache™ technology (up to 400 W TDP per socket) |
| Core Logic | AMD EPYC 9004 Series |
| Memory | 24 × DIMM slots (12 per CPU); DDR5 4800/4400 RDIMM / 3DS RDIMM; up to 3 TB per socket |
| Expansion Slots | 11 total PCIe 5.0 slots: 8 × PCIe x16 for GPUs (dual-slot), 1 × x16 for NIC, 1 × x8 for NIC or OCP 3.0, 1 × x8 for HBA/RAID |
| GPU / DPU Support | Up to 8 × dual-slot active or passive GPUs; supports NVIDIA NVLink® bridge and NVIDIA BlueField DPU |
| Storage Bays | 8 × 3.5″ front hot-swap bays (supports NVMe/SATA/SAS*) *SAS requires HBA/RAID card |
| Storage Controller | 4 × SATA 6 Gb/s ports + 1 × M.2 (PCIe Gen3 x4) Optional SAS controllers: Broadcom MegaRAID 9560-16i, 9540-8i, ASUS PIKE II 3108 |
| Networking | 2 × 10 GbE (RJ45, Intel X710-AT2) or 2 × 1 GbE (RJ45, Intel I350-AM2); 1 × management port (RJ45) |
| Graphics (BMC) | Aspeed AST2600 with 64 MB VRAM |
| Front I/O | 2 × USB 3.2 Gen1, 1 × VGA |
| Rear I/O | 1 × COM, 2 × LAN (10 GbE or 1 GbE), 1 × management port |
| Management | ASUS Control Center (Classic); ASMB11-iKVM for KVM-over-IP |
| Security | Trusted Platform Module 2.0 (TPM 2.0) |
| Cooling | Air and liquid-cooling solutions supported (including direct-to-chip and immersion cooling for NVIDIA A100 GPUs) |
| Power Supply | 2 + 2 redundant 2600 W / 3000 W 80 PLUS Titanium PSU (220–240 V AC, 15.5 A × 4, 50–60 Hz) |
| Chassis | 4U rack-mount (800 × 440 × 174.5 mm / 31.5″ × 17.32″ × 6.87″) |
| Weight | Net 27 kg / Gross 52 kg (with packaging, excluding CPU/DRAM/HDD) |
| Operating Environment | 10 °C – 35 °C operating, -40 °C – 70 °C non-operating; 20–90 % RH non-condensing |
| Regulatory Compliance | ENERGY STAR Computer Servers v4.0, BSMI, CB, CE, FCC (Class A), RCM |
| OS Support | Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, Ubuntu, VMware ESXi |
