Description

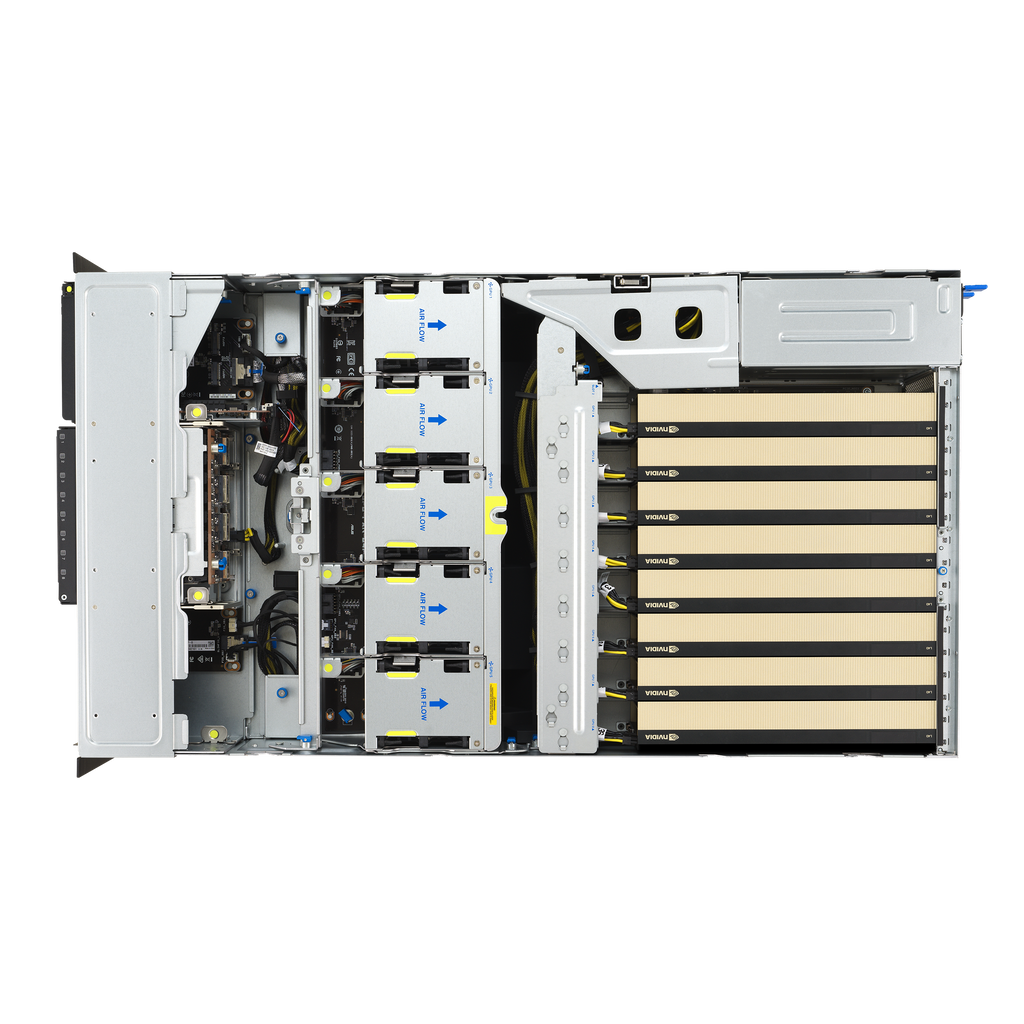

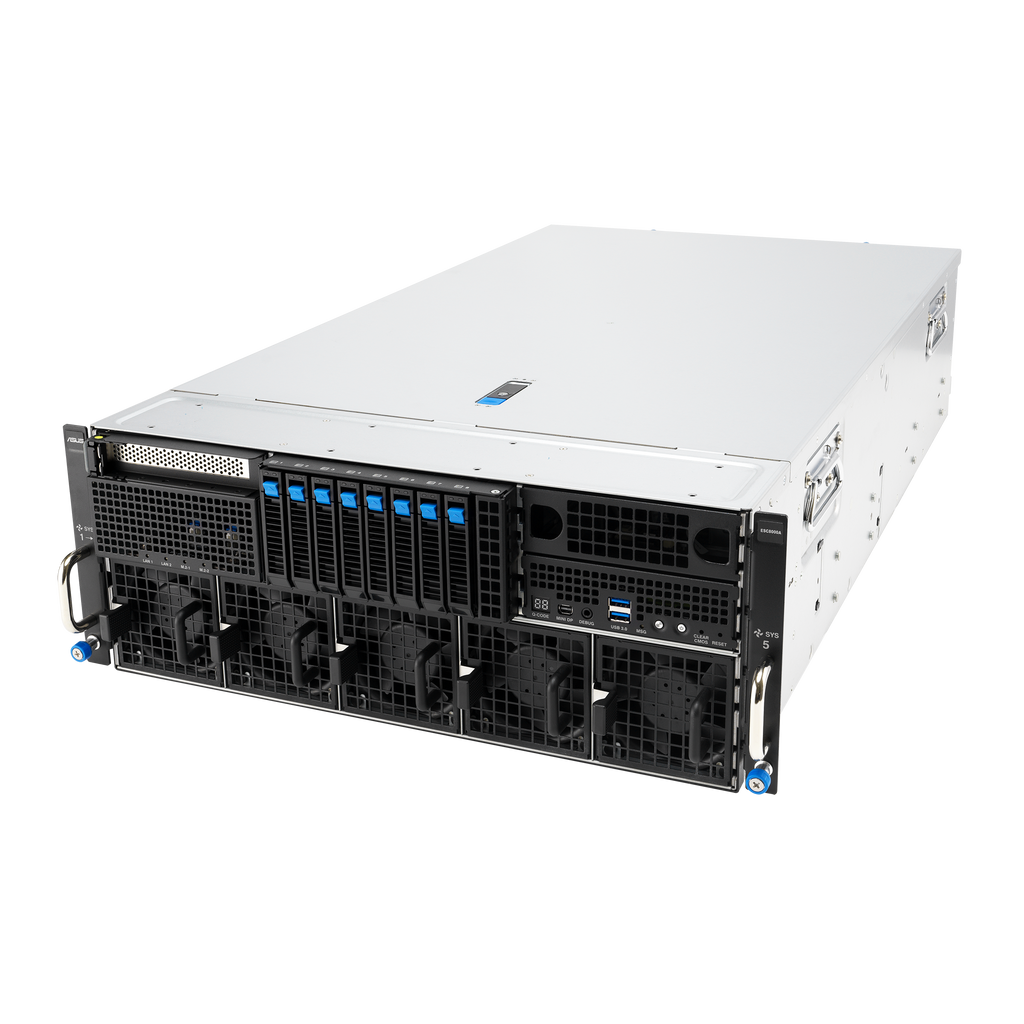

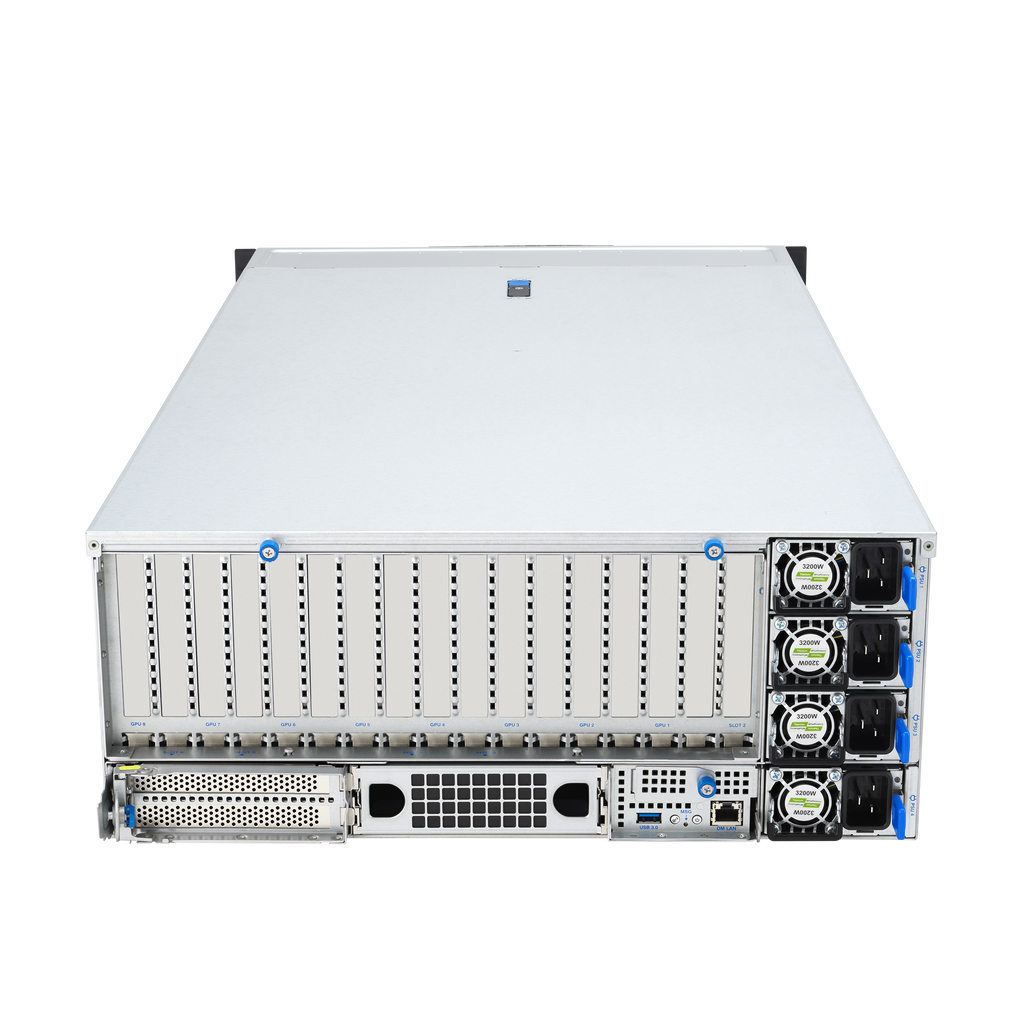

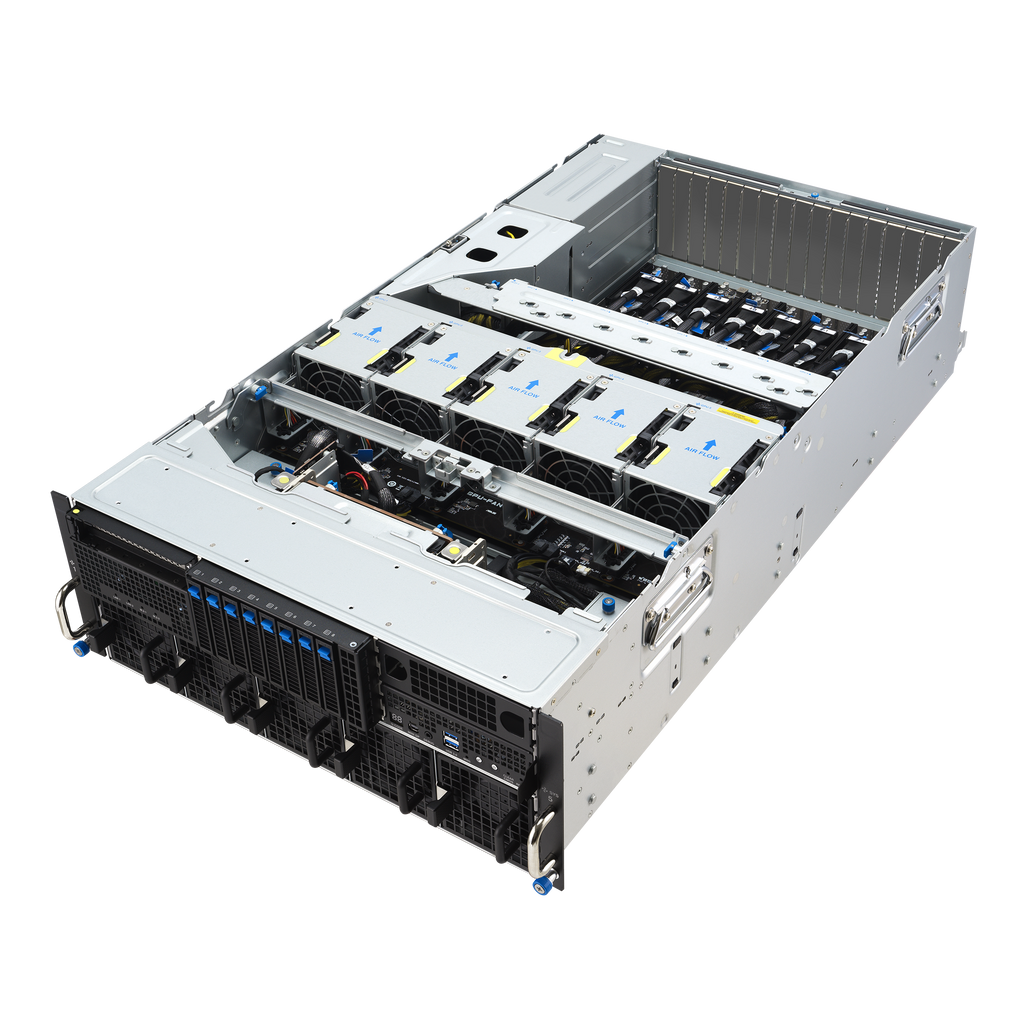

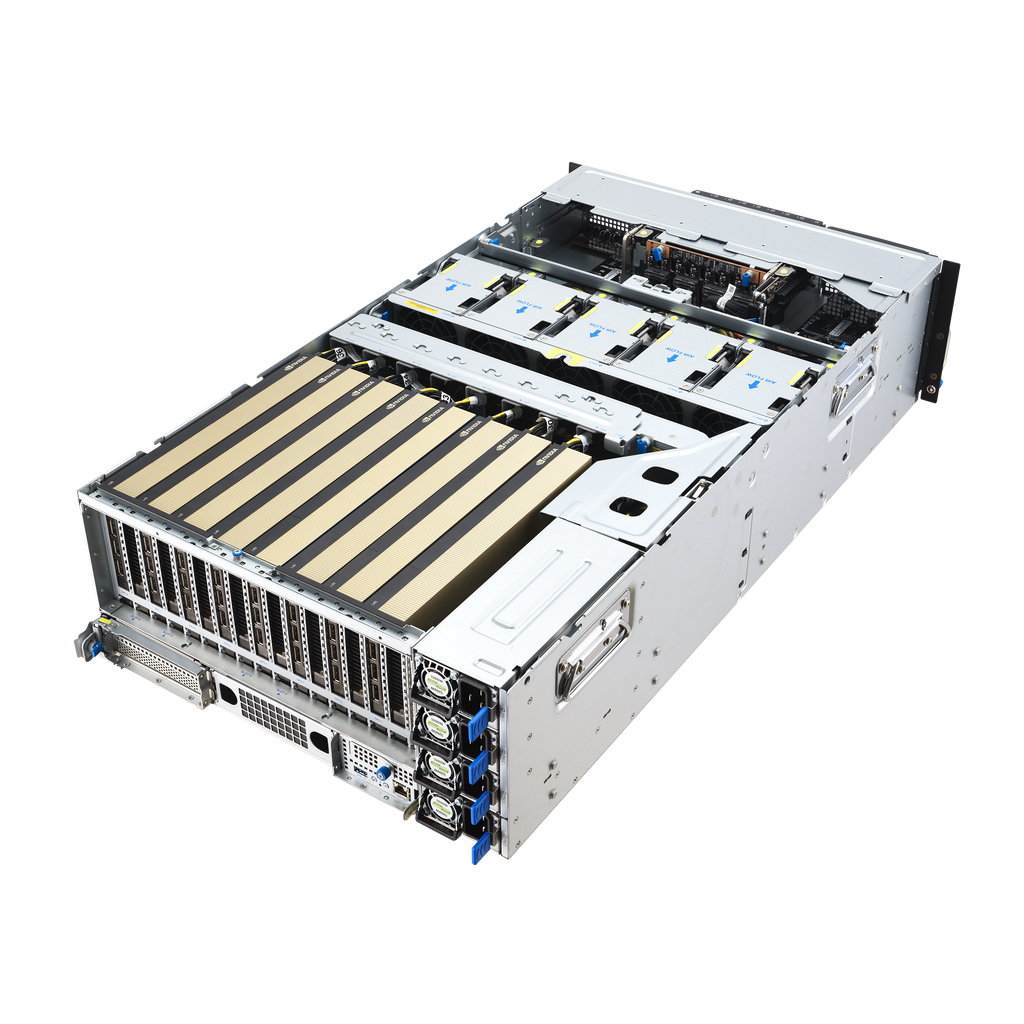

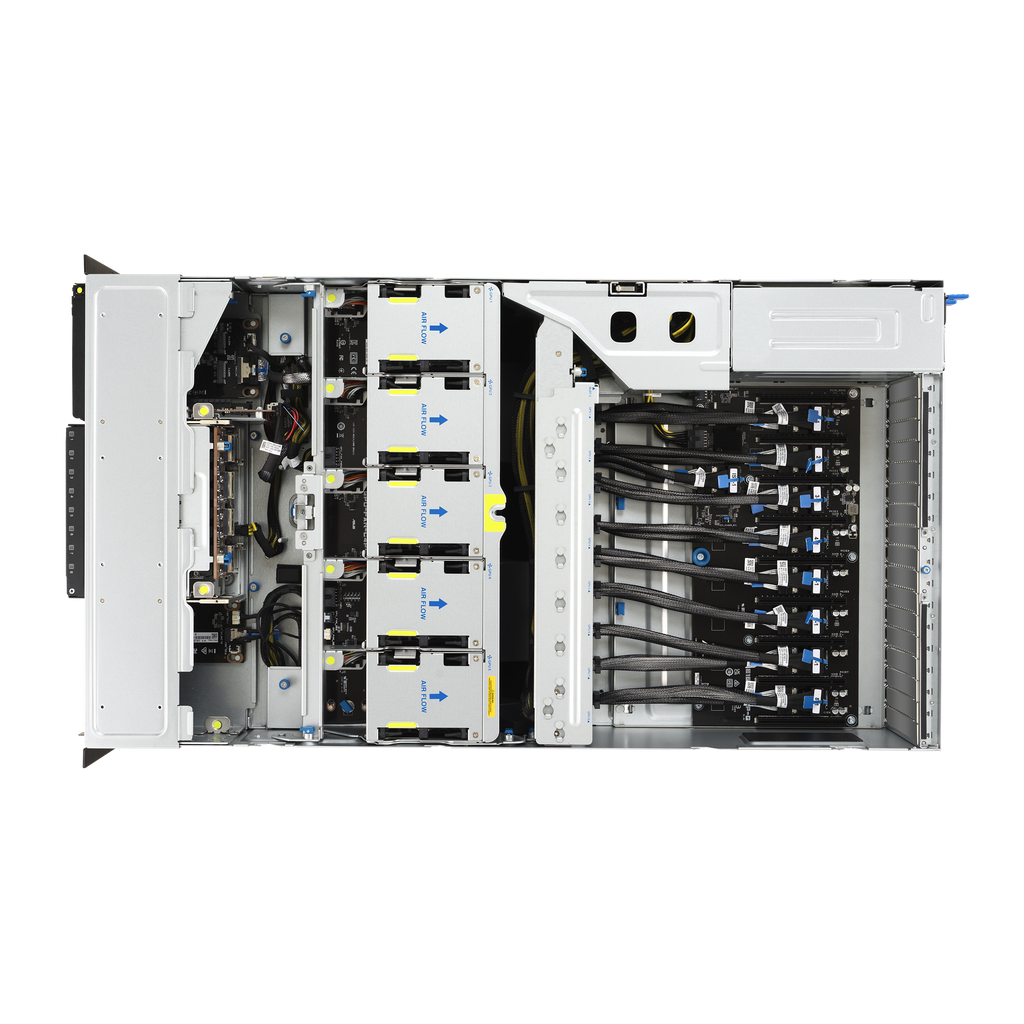

The ASUS ESC8000A-E13 is a next-generation 4U GPU server built to accelerate enterprise-class AI, HPC, and data center workloads. Powered by dual AMD EPYC™ 9005 processors with up to 192 Zen 5/5c cores and 24 DDR5 DIMM slots supporting up to 3TB of 6400MHz memory, it delivers massive parallel processing performance. Designed for AI training, LLM inference, and virtualization, the ESC8000A-E13 supports up to eight 600W dual-slot GPUs with direct PCIe Gen5 x16 connectivity for maximum bandwidth and minimal latency.
Featuring ASUS’s modular, toolless design, the server enables effortless maintenance and fast deployment, reducing service time by over 90%. It also integrates 3+1 redundant 3200W 80 PLUS Titanium PSUs, ensuring unmatched reliability and efficiency under intensive computing loads. With ASMB12-iKVM remote management, ASUS Control Center Enterprise, and flexible storage configurations supporting up to six U.2 NVMe drives, the ESC8000A-E13 delivers the power, flexibility, and stability demanded by the most advanced AI infrastructures.
| Category | Specification |
|---|---|
| Model | ASUS ESC8000A-E13 |
| Form Factor | 4U Rackmount |
| Processor Support | 2 × AMD EPYC™ 9005 Series (Socket SP5, up to 500W TDP) |
| Cores | Up to 192 Zen 5/5c cores |
| Chipset / Core Logic | System on Chip (SoC) |
| Memory Slots | 24 × DDR5 DIMM (12-channel per CPU) |
| Memory Capacity | Up to 3TB DDR5 6400/5600 RDIMM |
| Storage Bays | 8 × 2.5” front hot-swap bays (supports up to 4 or 6 NVMe U.2 drives) |
| Expansion Slots | 11 total: 8 × PCIe Gen5 x16 (FHFL) for GPUs, 3 × PCIe Gen5 x8/x16 (FHHL) for NIC/DPU/HBA |
| GPU Support | Up to 8 × dual-slot GPUs (600W each), configurable 2-Way / 4-Way NVLink bridges |
| Networking | 1 × RJ-45 management LAN port |
| Graphics | ASPEED AST2600 with 64MB |
| Front I/O | 1 × Mini DisplayPort, 2 × USB 5Gbps, 1 × Debug port |
| Rear I/O | 1 × USB 5Gbps, 1 × RJ-45 management LAN port |
| System Management | ASUS Control Center Enterprise, ASMB12-iKVM (BMC AST2600) |
| Power Supply | 3+1 Redundant 3200W 80 PLUS Titanium PSU (220–240V AC, 16A) |
| Cooling | 5 × GPU fans + 5 × system fans |
| Dimensions (W×D×H) | 439.5 × 800 × 175 mm (17.3” × 31.5” × 6.9”) |
| Weight | Net: 42 kg / Gross: 44.23 kg |
| Operating Temperature | 10°C – 35°C |
| Non-Operating Temperature | –40°C – 60°C |
| Humidity (Non-Condensing) | 20% – 95% |
| Certifications | 80 PLUS Titanium, RoHS compliant |
| Target Applications | AI Training, LLM Inference, HPC, Data Center, Virtualization |
