Description

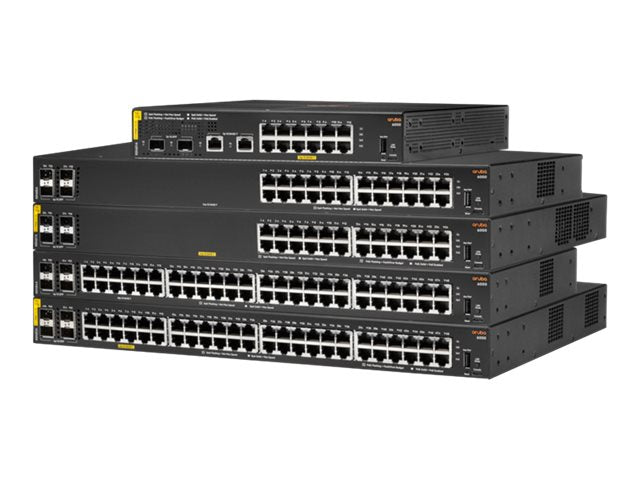

The HPE Aruba Networking CX 6000 24G Class4 PoE 4SFP 370W Switch is part of Aruba’s modern family of entry-level Layer 2 access switches. Purpose-built for branch offices, small enterprises, and midsize businesses, this switch delivers simple, secure, and cost-effective wired connectivity with enterprise-class performance.
Powered by the Aruba AOS-CX operating system and designed with a high-performance ASIC architecture, the CX 6000 ensures operational consistency across your network. It supports up to 370W of Class 4 PoE to power access points, surveillance cameras, and IoT devices, and includes four built-in 1G SFP uplinks for high-performance access connectivity. With support for simplified management via Aruba Central, intuitive GUI, CLI, and REST APIs, this rack-mountable switch is a reliable and flexible solution for your network’s edge.
Key Features
-
24x Gigabit PoE+ ports with 370W PoE budget
-
4x 1G SFP uplinks
-
Built-in Aruba AOS-CX OS for consistent network operations
-
Static routing, robust QoS, ACLs, sFlow, and IPv6 support
-
Easy management via Aruba Central, CLI, Web GUI, or REST APIs
-
Lifetime
| Category | Details |
|---|---|
| Product Code | R8N87A#ABB |
| Device Type | Managed Rack-Mountable Switch (1U) |
| Ports | 24 x 10/100/1000BASE-T PoE+ 4 x 1G SFP |
| PoE Budget | 370W Class 4 (PoE+) |
| Switching Capacity | 56 Gbps |
| Throughput | 41.6 Mpps |
| Latency (1 Gbps) | 1.5 µs |
| MAC Address Table Size | 8,192 entries |
| Packet Buffer | 12.38 MB |
| Routing | Static Routing |
| Layer 2 Protocols | VLAN, MSTP, RSTP, LACP, IGMP v2/v3, ACLs, LLDP, QoS, sFlow |
| Management Interfaces | Web GUI, CLI, Aruba Central, REST API |
| Authentication/Encryption | SSH, SSL, RADIUS, TACACS+, SNMPv1/v2c/v3 |
| Console Ports | 1 x USB-C, 1 x USB Type-A |
| Power Supply | Internal AC 100–240V |
| Power Consumption | Max (w/o PoE): 32.7W Max (w/ PoE): 455W |
| Operating Temp. | 32°F to 113°F (0°C to 45°C) |
| Humidity (Operating) | 15% – 95% non-condensing |
| Dimensions (W x D x H) | 17.4 x 10.6 x 1.7 in (44.2 x 26.9 x 4.4 cm) |
| Weight | 9.24 lbs (4.19 kg) |
| Warranty | Limited Lifetime Warranty |
