Description

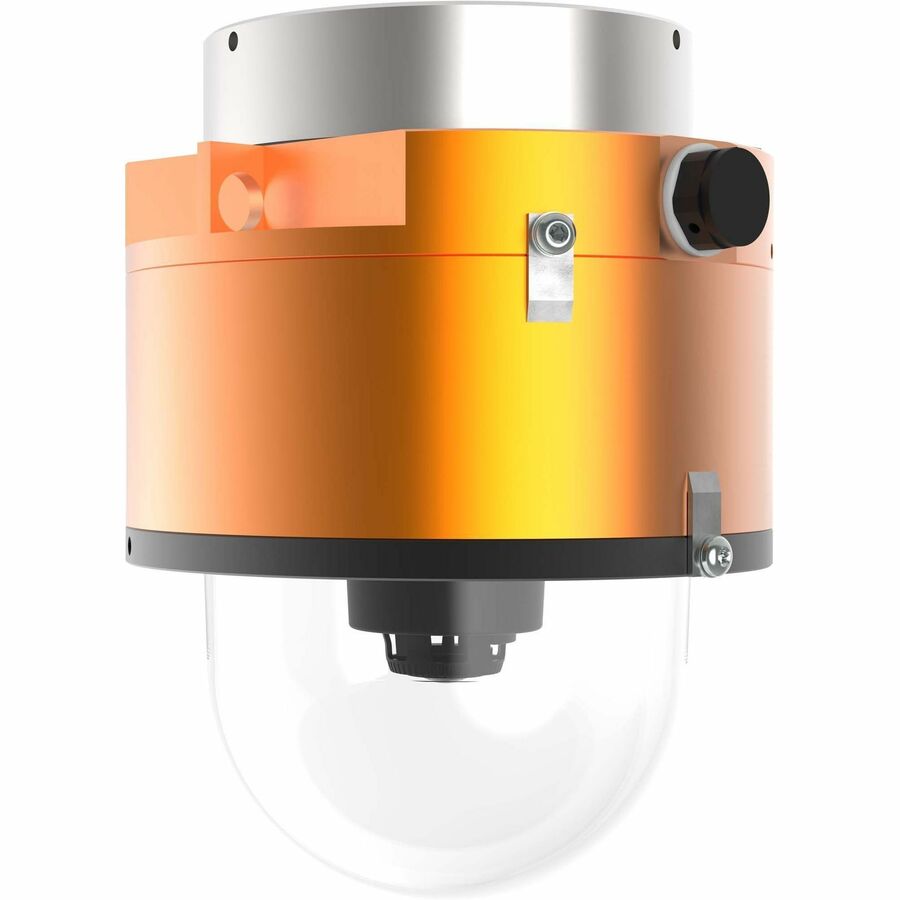

The Hanwha Vision TNM-XNF9013EPT3-Z is a U.S.-built explosion-proof 12MP fisheye camera engineered for hazardous industrial environments requiring full-area situational awareness with zero blind spots. Its patented multi-chambered explosion-proof enclosure, marine-grade aluminum construction, and IP66/NEMA 4X/IK10 durability make it ideal for chemical plants, oil & gas facilities, manufacturing sites, and extreme outdoor locations.
Equipped with advanced AI analytics, the camera provides object classification for persons, faces, vehicles, and license plates while supporting intrusion, loitering, directional detection, and virtual line/area analytics. Its stereographic fisheye lens delivers improved edge clarity, supporting full 360° monitoring with multiple dewarping modes including original fisheye, panorama, quad view, and virtual channels.
The TNM-XNF9013EPT3-Z also features Extreme WDR (120 dB), WiseNR- AI-based noise reduction, WiseStream AI smart compression, microSD edge storage up to 1TB (512GB × 2), and built-in cybersecurity with TPM 2.0 and Root CA certificates. Power is supplied via PoE+ or 12VDC, providing flexible installation even in remote or high-risk zones.
| Category | Details |
|---|---|
| SKU | TNM-XNF9013EPT3-Z |
| Camera Type | Explosion-proof 12MP fisheye network camera |
| Imaging Device | 1/2.3" 12MP CMOS |
| Maximum Resolution / Modes | 3008×3008 (Original View), Double Panorama 3584×1792, Single Panorama 3584×896, Quad View 3584×2688 |
| Frame Rate | Up to 30fps (H.265/H.264) across all major modes |
| Lens | 1.08mm fixed, F2.2 |
| Field of View | H: 209°/180°, V: 83° |
| Min. Illumination | Color: 0.39 Lux (1/30s, F2.2) |
| Day/Night | Auto ICR |
| WDR | Extreme WDR 120 dB |
| Noise Reduction | WiseNR- (AI-based) |
| Analytics (AI-Based) | Person/Face/Vehicle/Plate, virtual line, area, enter/exit, loitering, direction, appear/disappear, intrusion |
| Business Intelligence | People counting, queue management, heatmap |
| Other Analytics | Motion, tampering, defocus, fog, audio detection, sound classification |
| Audio I/O | Mic/Line/Built-in mic (in), Line out |
| Edge Storage | Dual microSD/SDHC/SDXC (up to 1TB total) |
| Network Interface | Metal shielded RJ-45 (10/100BASE-T) |
| Video Compression | H.265/H.264 (Main/Baseline/High), MJPEG |
| Smart Codec | WiseStream- (AI-based) |
| Protocols | IPv4/IPv6, TCP/IP, UDP, RTP/RTSP, HTTPS, SSL/TLS, SNMP v1/v2c/v3, ONVIF S/G/T/M |
| Cybersecurity | TPM 2.0, Secure OS/boot/storage, device certificates |
| Power Input | PoE+ (IEEE 802.3at), 12VDC |
| Power Consumption | Max 23W (PoE+), Typ 9.4W |
| Operating Temperature | −40°C to +60°C (−40°F to +140°F) |
| Protection Ratings | IP66, NEMA 4X, IK10 |
| Material / Color | Marine-grade anodized aluminum, Orange |
| Weight | 8.61 kg (19 lb) |
| Certifications | cFMus Class I/II/III Div 1; IECEx & ATEX Zone 1/21; FCC, CE, UL, EN, NEMA Type 4X |
