Description

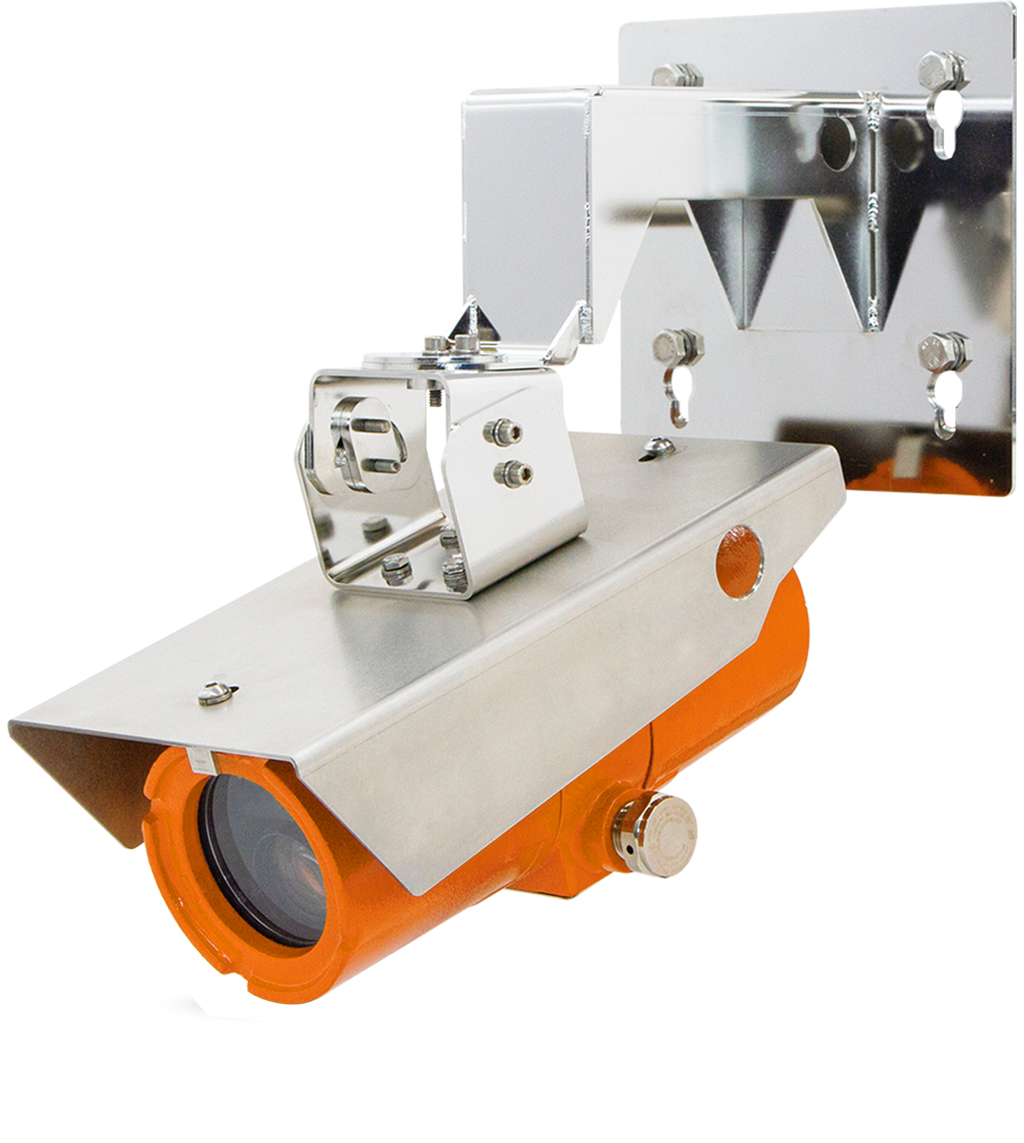

The Hanwha Vision TNO-X6072EPT1-Z is a rugged 2MP explosion-proof network camera engineered for hazardous and extreme industrial environments. Built with a durable powder-coated aluminum housing and certified for Class I, II, III Division 1 and ATEX/IECEx applications, it delivers reliable monitoring where safety-rated devices are mandatory.
This camera features a 2.8–9mm P-Iris motorized lens, superior low-light visibility down to 0.01 Lux, and advanced 150dB WDR for balanced imaging in difficult lighting. With support for H.265/H.264/MJPEG, WiseStream II compression, and up to 10 simultaneous streams, the TNO-X6072EPT1-Z optimizes bandwidth while preserving clarity.
Equipped with a built-in gyro sensor for digital stabilization, robust video and audio analytics, dual SD card slots (up to 512GB total), and a wide operating temperature range as low as –40°C, this camera is ready for demanding deployments in oil & gas sites, chemical facilities, industrial plants, and other hazardous-rated zones.
| Category | Specification |
|---|---|
| Resolution | 2MP (1920 × 1080) |
| Image Sensor | 1/2.8" 2MP CMOS |
| Lens | 2.8–9mm Auto-Iris, P-Iris (C/CS mount) |
| Field of View | 98° (Wide) ~ 39° (Tele) |
| Minimum Illumination | Color: 0.01 Lux (F1.2, 1/30s) / B&W: 0.001 Lux (F1.2, 1/30s) |
| WDR | 150 dB |
| Compression | H.265 / H.264 / MJPEG |
| Max Frame Rate | 60 fps (H.264/H.265), 30 fps (MJPEG) |
| Streaming | Up to 10 profiles, WiseStream II support |
| Audio | 2-way audio, G.711 / G.726 / AAC-LC |
| Analytics | Tampering, loitering, virtual line, enter/exit, fog & face detection, sound classification, motion detection, digital auto-tracking |
| Edge Storage | Dual SD/SDHC/SDXC slots (2 × 256GB) |
| Network Interface | RJ-45 (10/100 BASE-T) |
| Protocols | TCP/IP, UDP/IP, RTP/RTSP, HTTP/HTTPS, DHCP, FTP, SNMP, ONVIF S/G, SUNAPI |
| Security | HTTPS, digest authentication, IP filtering, 802.1X |
| Operating Temperature | –40°C to +60°C (PoE only; USA), –50°C to +60°C (Canada) |
| Housing | Powder-coated aluminum, RAL2000 Yellow-Orange |
| Ingress Protection | Type 4X / IP66 |
| Certifications | Class I/II/III Div 1 Groups B-G, cFMus approved, II 2 G Ex db IIB+H2, II 2 D Ex tb IIIC (ATEX/IECEx) |
| Power Input | PoE (IEEE 802.3af) for camera; 12–24V DC for heater |
| Power Consumption | Camera: Max 7.5W / Heater: 25W |
| Dimensions (W × H × D) | 7.2" × 5.97" × 13.85" |
| Weight | 14 lb (6.35 kg) |
