Description

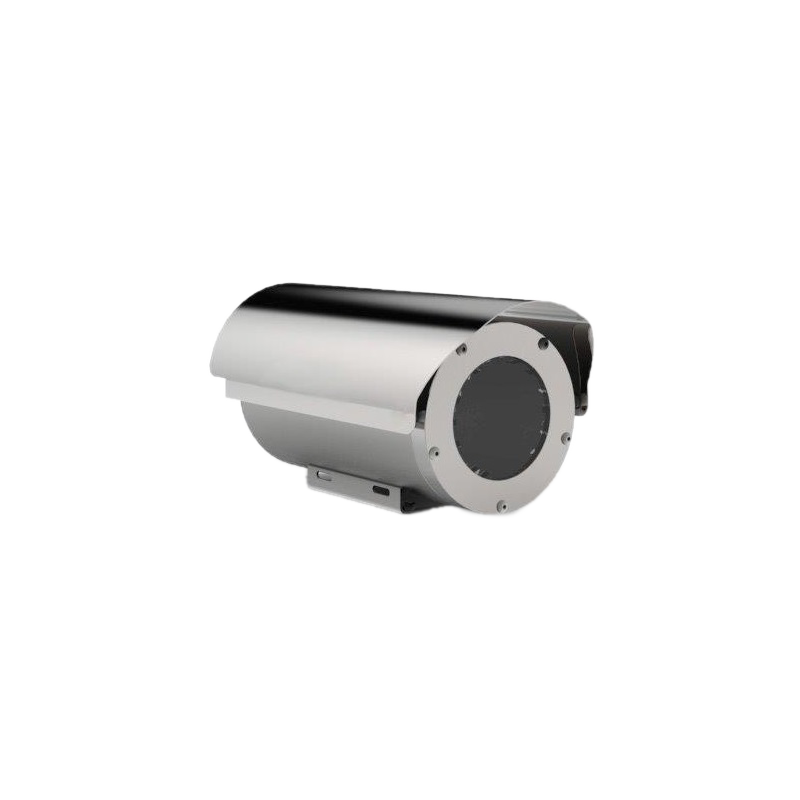

The Hanwha Vision TNO-X6320EPT0-Z is a 2MP explosion-proof stainless steel bullet camera built for hazardous and extreme industrial environments. Constructed with electro-polished 316L stainless steel and a toughened glass window, it offers exceptional durability against corrosion, impact, and harsh weather conditions.
With 32x optical zoom, 16x digital zoom, 150dB WDR, Day & Night (ICR), gyro-based stabilization, and advanced low-light performance, the camera delivers clear full-HD video in challenging scenarios. Intelligent video and audio analytics—including tampering, loitering detection, virtual line, shock detection, and sound classification—enhance situational awareness for critical infrastructure.
Powered by IEEE802.3af PoE, certified for hazardous locations (cLCus C1/D1, INMETRO, cLC CSA), and equipped with dual microSD slots, the TNO-X6320EPT0-Z is ideal for oil & gas, chemical plants, marine facilities, and other high-risk industrial deployments.
| Category | Specification |
|---|---|
| Model | TNO-X6320EPT0-Z |
| Camera Type | Explosion-proof stainless steel bullet camera |
| Image Sensor | 1/2.8" 2.4 MP CMOS |
| Effective Pixels | 1944(H) × 1212(V), 2.35 MP |
| Resolution Options | 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Minimum Illumination | Color: 0.05 Lux; B/W: 0.005 Lux (1/30s, F1.6) |
| Dynamic Range | 150 dB WDR |
| Day/Night | Auto (ICR) / Color / B/W |
| Noise Reduction | SSNR5 (2D+3D) |
| Image Stabilization | Gyro-based DIS |
| Defog | Auto / Manual |
| Lens Type | 32x optical zoom, 16x digital zoom |
| Focal Length | 4.44–142.6 mm |
| Aperture | F1.6 (Wide) / F4.4 (Tele) |
| Horizontal FOV | 61.8° (Wide) ~ 2.19° (Tele) |
| Minimum Object Distance | Wide: 1.5m / Tele: 2m |
| Video Compression | H.264, H.265, MJPEG, WiseStream II |
| Max Frame Rate | 60 fps (H.264/H.265), 30 fps (MJPEG) |
| Streaming | Up to 10 profiles |
| Video Features | AGC, BLC, HLC, SSDR, autofocus, auto-iris |
| Audio Input | Mic/Line selectable |
| Audio Output | Line out (1 Vrms) |
| Audio Codecs | G.711, G.726, AAC-LC |
| Audio Features | Bi-directional audio |
| Analytics (Video) | Tampering, loitering, directional/virtual line, fog detection, enter/exit, appear/disappear, face detection, motion detection |
| Analytics (Audio) | Sound classification, audio detection |
| Additional Analytics | Shock detection |
| Network Interface | RJ-45 (10/100BASE-T) |
| Protocols Supported | TCP/IP, UDP, RTP/RTSP, HTTPS, SNMP, FTP, DDNS, UPnP, QoS, ONVIF S/G/T, SUNAPI |
| Security Features | HTTPS login, digest auth, IP filtering, 802.1X |
| Max Users | Up to 20 (unicast) |
| Storage | Dual microSD/SDHC/SDXC (up to 512GB total), NAS, local PC recording |
| Material | Electro-polished 316L stainless steel |
| Window Material | Toughened glass |
| Weight | Up to 8.54 kg (18.9 lb) |
| Ingress Protection | IP66 / IP67 / IP68 (1.5m for 24 hours) |
| Operating Temperature | –10°C to +55°C (T0 rating) |
| Certifications | cLCus C1/D1, INMETRO, cLC CSA |
| Cable Entry | ½” NPT side entry |
| Power Input | IEEE802.3af PoE |
| Power Consumption | Max 12W (Class 3 PoE) |
