EXR SERIES: TRUE SINE WAVE, EXTENDED RUNTIME, LINE-INTERACTIVE UPS, RACK/TOWER/O

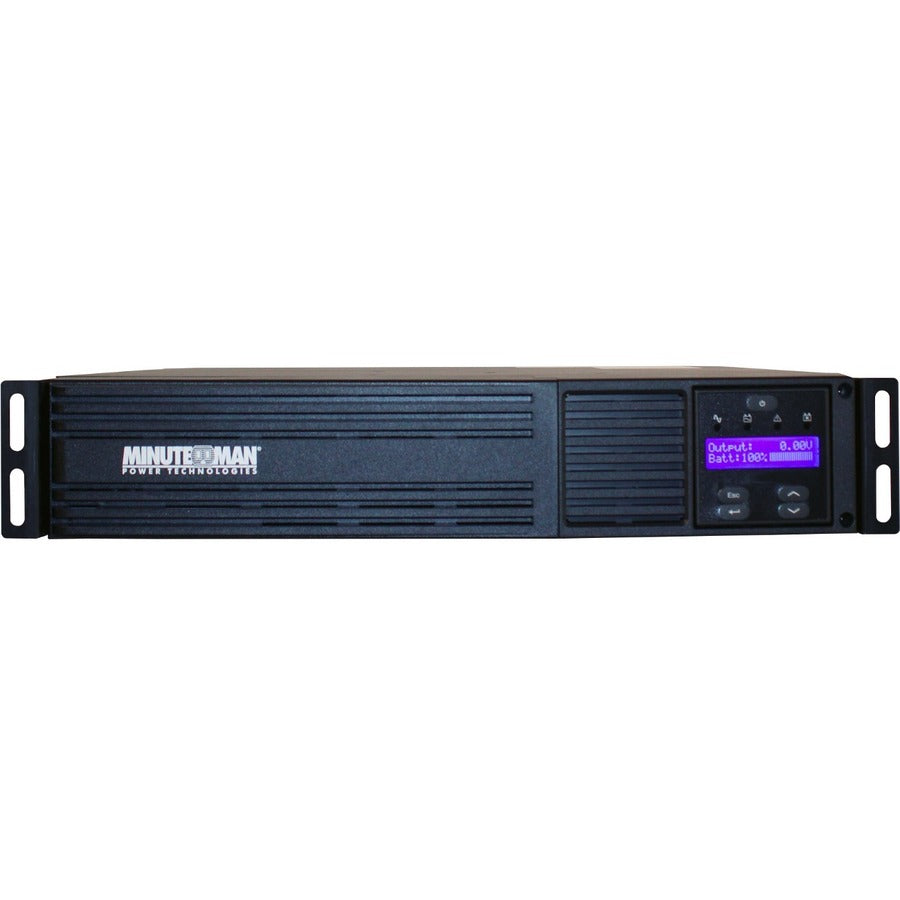

Minuteman EXR Series Line Interactive Uninterruptible Power Supply

Backup Versatility Redefined: Line Interactive Technology with True-sinewave output

The EXR Series offers users a robust and advanced line interactive UPS offering. New features include a higher power factor for improved UPS efficiency, auto-recognition of external battery packs for a smarter extended run-time solution, tool-less battery connection and replacement and so much more!

The EXR Series UPSs offer complete protection from all electrical problems, including spikes, surges, sags, brownouts, and blackouts, in a versatile rack/tower convertible format. True sine wave electrical output ensures the best power for sensitive electronic equipment.

EXR® Key Features

Key Features Include:

•
  0.9 power factor - increased capacity without migrating to larger models
•
  NEW Alphanumeric LCD Dot Matrix display - easy access to key UPS statuses
•
  UPS configuration options via front panel - make key adjustments utilizing the front panel LCD
•
  Load shedding - two power banks allow equipment prioritizing for increased runtime
•
  Independent Battery Bypass™ - provides voltage regulation with surge and spike protection even when batteries are weak or dead.
•
  Auto-recognition of external battery packs - automatically recalculate runtimes
•
  Unlimited runtime capability with external battery packs - extended runtime solution to meet any backup power demand
•
  Flexible installation - rack or tower configurable; wall mount kits available
• Simultaneous USB, RS232, and SNMP communications
•
  Minuteman® SentryHD™ - UPS monitoring and control software included
•
  Industry-leading product warranty - featuring a 3-year non-prorated warranty (including batteries)
• Dedicated remote Emergency Power Off (EPO) port
•
  120V & 208V - 208V models available (1500 & 3000VA models)
•
  cULus certification - NOM certification (Mexico)
• RoHS 2 compliant
• Energy Star 2.0 certification

Front LCD Panel

The NEW Alphanumeric LCD Dot-Matrix EXR Series Display

Provides more detailed information about the UPS status than the previous LCD display, including:

• Input and Output Voltage
• Estimated runtime
• UPS Operating Mode
• UPS Self-test results
• Battery Condition
• Display model and serial number
• View load bank status and capacities
• Display battery module part number
• Replace Error Codes with descriptions

The LCD panel is designed so that it can be oriented vertically or horizontally depending on the installation orientation of the UPS.

• Experience higher efficiency with lower energy cost


• Prevent critical data loss by staying powered during a blackout with up to 2700 W load capacity


• Keep your sensitive devices powered with a backup of up to 2.50 minute at full load


• 3000 VA load capacity provides sufficient backup during power failures


• NEMA L5-30P plug/connector type for convenient usage with added dependability


• NEMA 5-20R receptacle type provides secure, reliable connection with added productivity


• Single Phase phase for your convenience and optimal usage


• Line-interactive UPS with network application/usage to ensure maximum productivity with added feasibility


• 120 V AC input voltage for optimal performance with maximum usability


• 120 V AC output voltage for better reliance and maximum usability
