Description

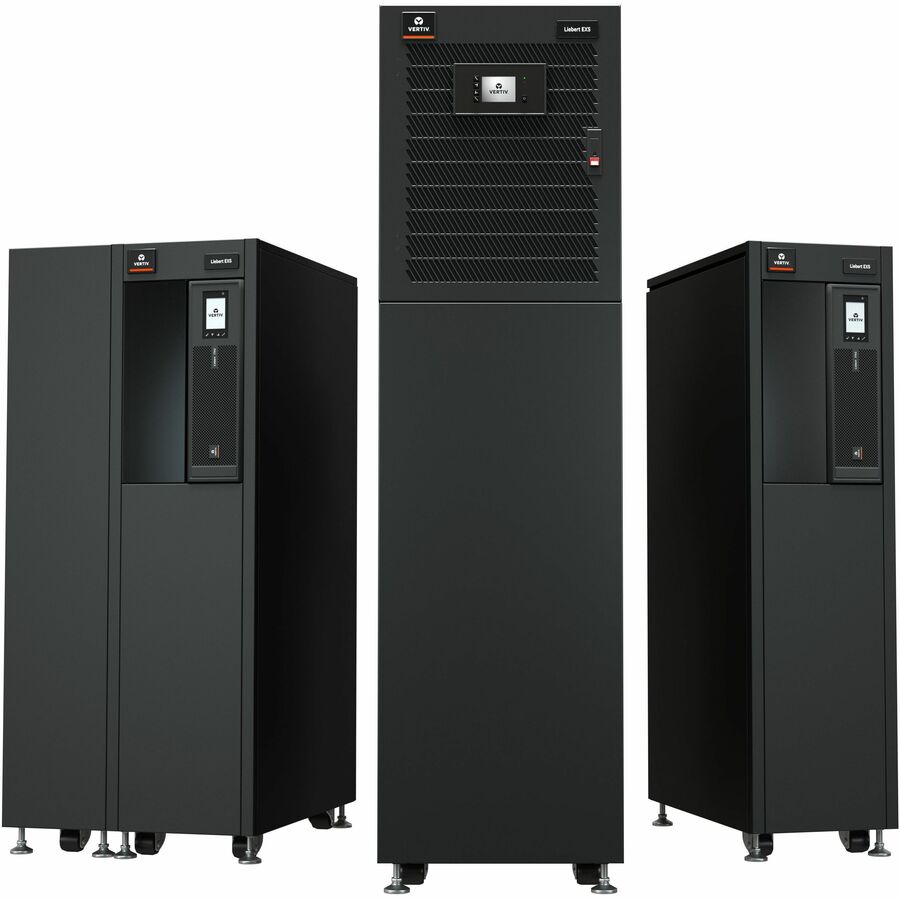

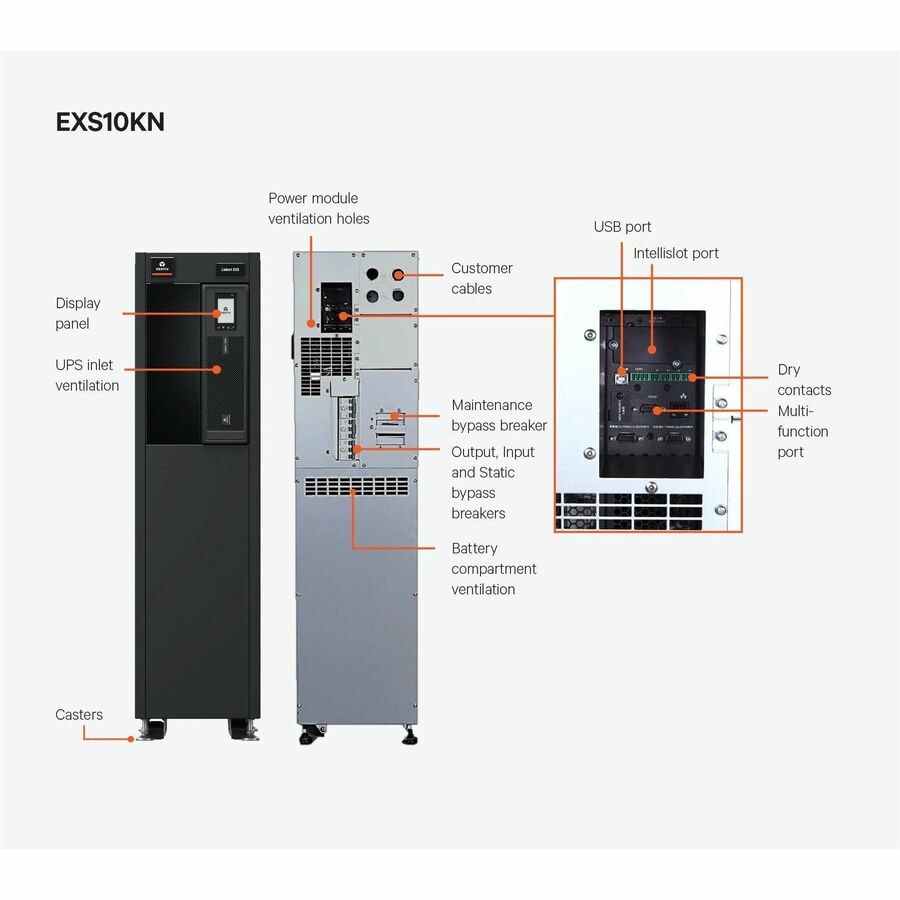

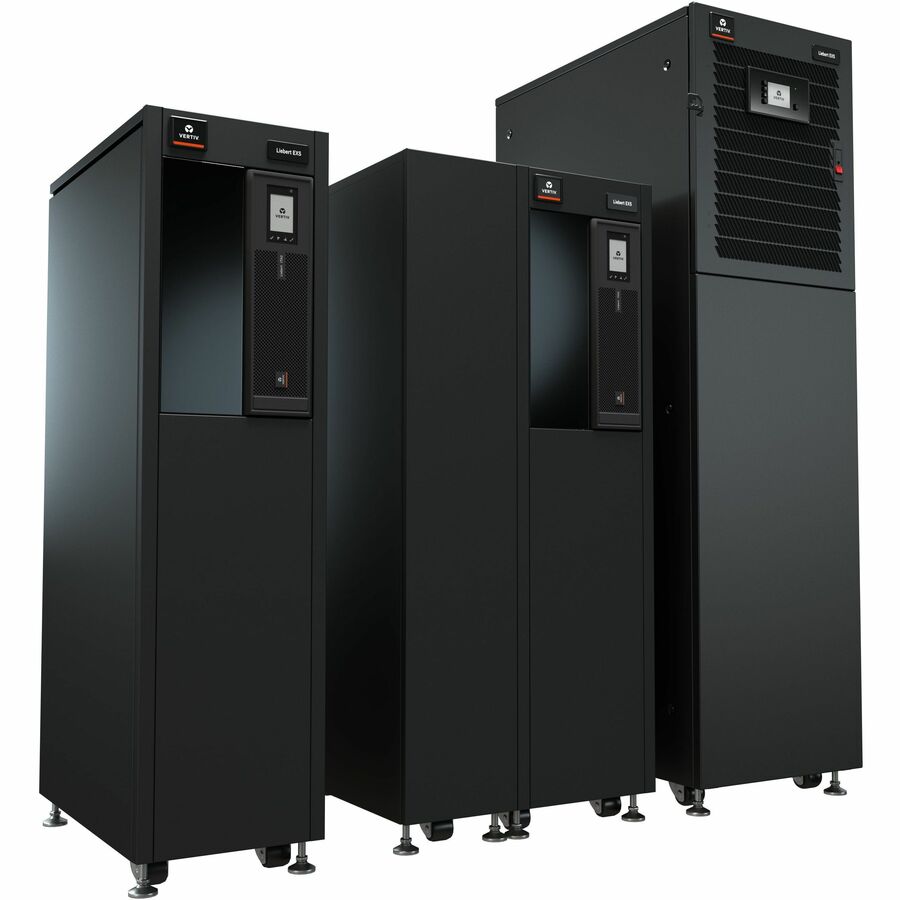

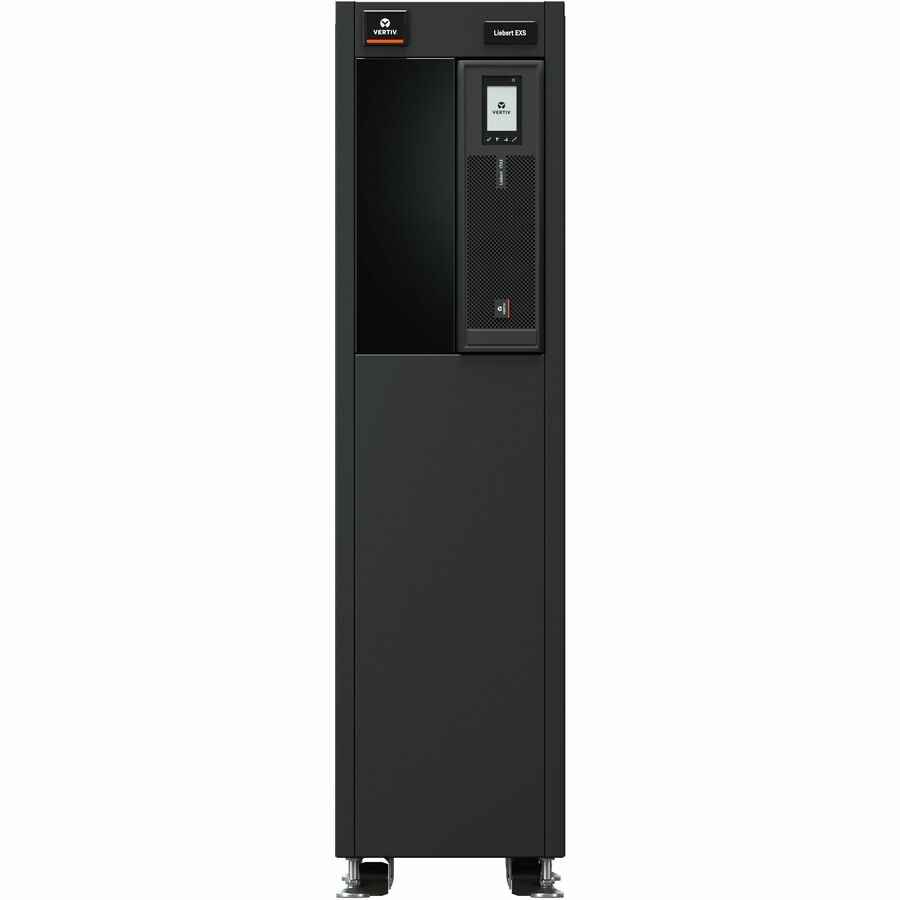

The Vertiv Liebert EXS10KN is a high-performance 10kVA/10kW monolithic UPS delivering reliable and efficient power protection for mission-critical IT systems. Featuring true online double-conversion technology, the EXS UPS conditions and regulates voltage output to protect sensitive electronics from disruptions. Designed for quick deployment and high availability, it includes an integrated maintenance bypass, Intellislot IS-UNITY-DP communication card, and up to 6 minutes runtime at full load. Its compact footprint, flexible power distribution, and easy serviceability make it ideal for IT rooms, VoIP setups, storage, and security environments.
| Specification | Details |
|---|---|
| Manufacturer | Vertiv |
| Model Number | EXS10KN |
| Form Factor | Monolithic, Tower |
| Capacity | 10kVA / 10kW |
| Input Voltage | 208/120VAC or 220/127VAC, 3-Phase, 4 Wire Wye |
| Output Voltage | 120V / 127V / 208V / 220V AC |
| Input Frequency | 40–70 Hz |
| Power Factor | 1.0 (Unity) |
| Battery Type | Valve-regulated Lead Acid |
| Runtime (Full Load / Half Load) | 6 Minutes / 18 Minutes |
| Bypass | Integrated Maintenance Bypass |
| Waveform Output | Pure Sine Wave |
| Protection Features | Overload, Surge, Short Circuit, Brownout, EMI/RFI, Lightning, etc. |
| Interface Ports | USB, Serial, RJ-45, EPO, Parallel, Intellislot |
| Included Accessories | Intellislot IS-UNITY-DP Card, Safety Booklet, Quick Start Guide |
| Dimensions (HxWxD) | 51.2” x 13.2” x 25.6” |
| Weight | Approx. 437 lbs (Shipping: 487 lbs) |
| Certifications | UL 1778, CSA 22.2, FCC Class A, ENERGY STAR 2.0, RoHS, REACH, WEEE |
| Warranty | 1 Year Limited |
| Operating Temp | Up to 32°F (0°C) |
| Sound Level | 58 dB(A) |
| Network Management | SNMP, Modbus, TCP, BacNet IP, External Sensors Supported |
