Description
The Vertiv Liebert EXS V-Model EXSV-15KN is a high-performance 15kVA/15kW online double-conversion UPS designed to safeguard critical IT infrastructure in data centers, healthcare, and industrial environments. With true on-line operation, integrated maintenance bypass, and intelligent power management via SNMP and Modbus, it delivers efficient and reliable power protection in a compact tower form. Runtime of up to 15 minutes at full load ensures smooth operation during outages, while ENERGY STAR 2.0 certification maximizes energy savings.
Product Highlights
-

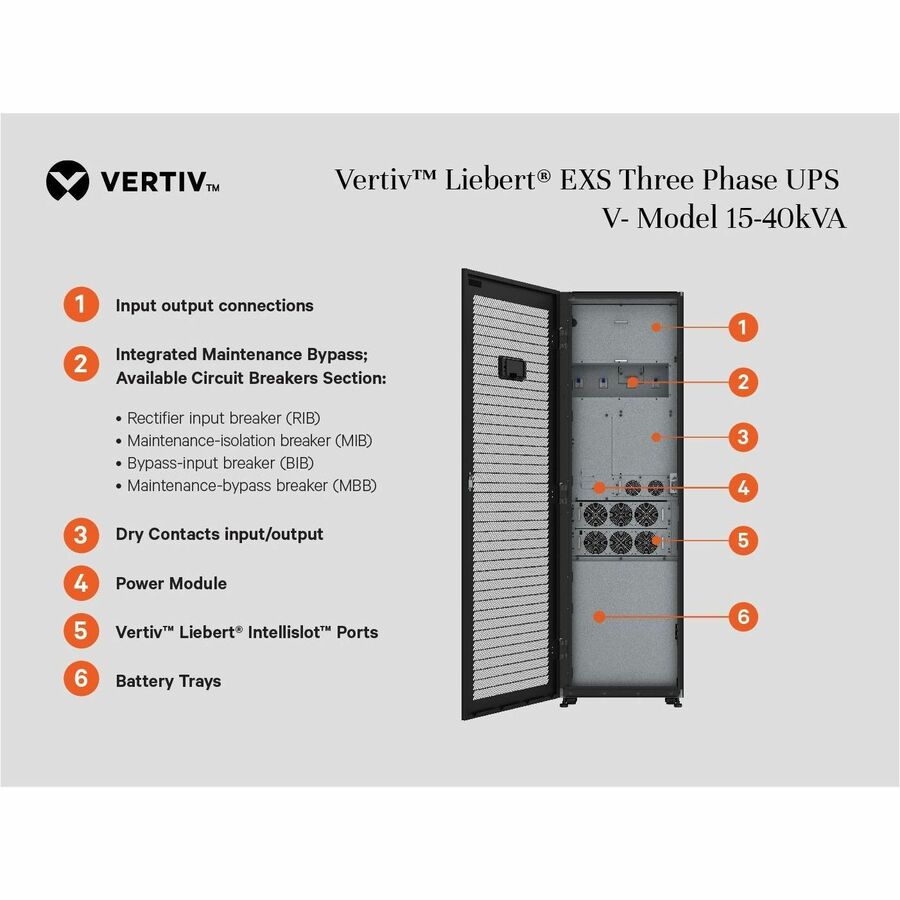

Integrated maintenance bypass for seamless service
-
Compact, high power density tower design
-
Flexible battery and PDU arrangements
-
Efficient ECO mode operation
-
High power factor (1.0)
-
ENERGY STAR certified for eco-conscious operations
-
SNMP/Modbus/BacNet integration for remote monitoring
| Specification | Details |
|---|---|
| Brand Name | Vertiv Liebert |
| Product Model | EXSV-15KN |
| Series | EXS |
| UPS Type | Double Conversion Online |
| Form Factor | Tower |
| Load Capacity | 15 kVA / 15 kW |
| Power Factor | 1.0 (Unity) |
| Input Voltage | 120V AC / 230V AC |
| Output Voltage | 208V / 120V / 220V / 127V AC |
| Input Frequency | 40–70 Hz |
| Output Frequency | 60 Hz |
| Plug Type | Hard Wire (3PH + G) |
| Receptacle Type | 2 x Hard Wire (3PH + G) |
| Battery Type | Valve-regulated Lead Acid |
| Runtime @ Full Load | 15 minutes |
| Runtime @ Half Load | 32 minutes |
| Battery Weight | 527 lbs |
| UPS Weight | 1212 lbs |
| Dimensions (H x W x D) | 78.7" x 23.6" x 39.3" |
| Monitoring Interfaces | SNMP, Modbus RS-485, Relay, BacNet IP |
| Environmental Sensors | Temperature, Humidity |
| Certifications | ENERGY STAR 2.0, RoHS, cULus, CSA, WEEE |
| Warranty | 1 Year |
| Included Accessories | SNMP Card, Power Insight Software, Installation Guide |
