Description

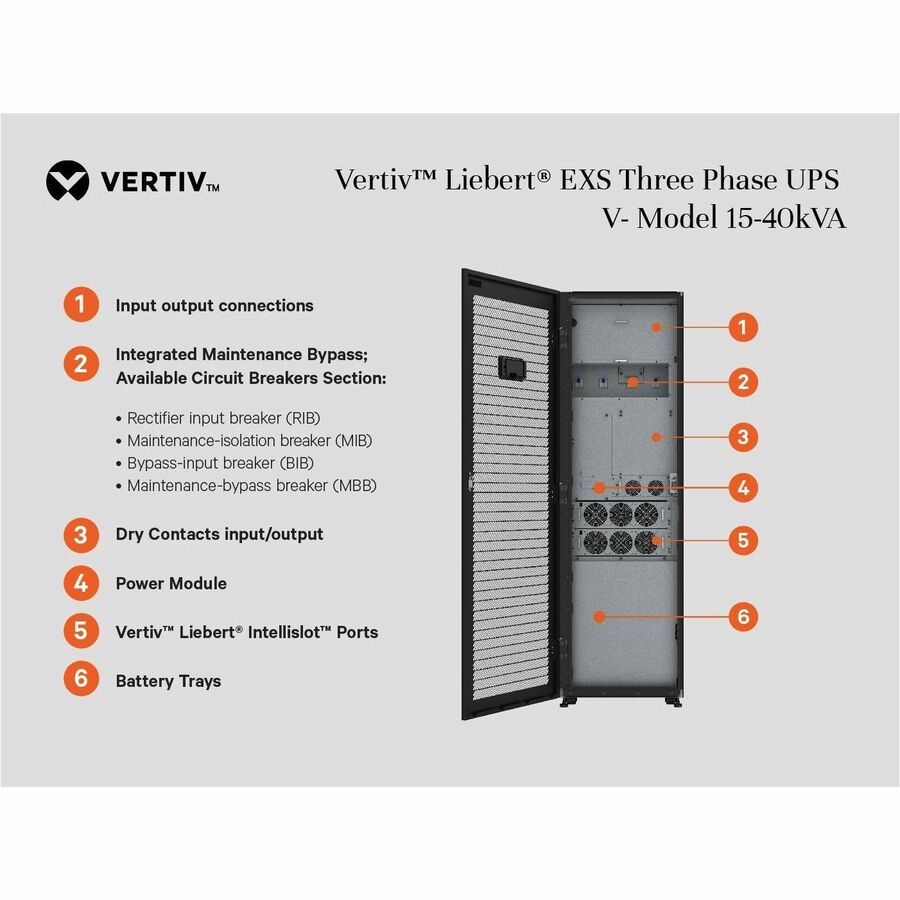

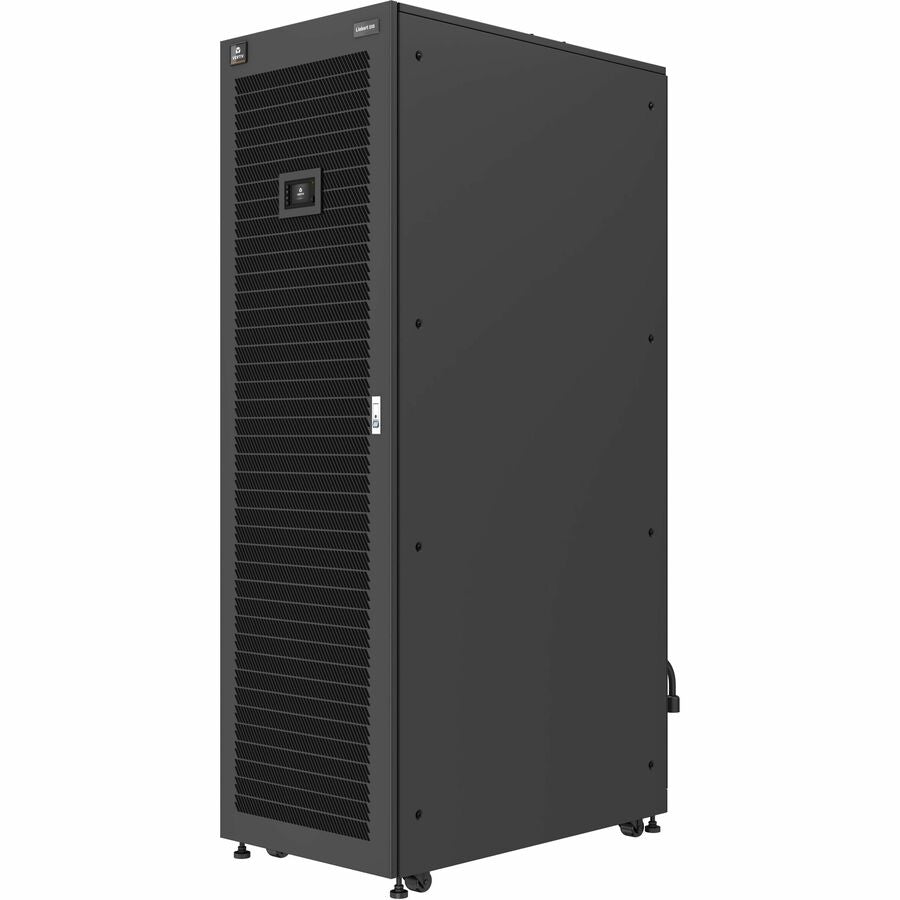

The Vertiv Liebert EXS V-Model EXSV-15KXRN is a compact, high-performance online double-conversion UPS offering 15kVA/15kW power with a true sine wave output. Designed for IT, healthcare, industrial, and security applications, it delivers reliable three-phase power with unity power factor and up to 18 minutes of runtime at full load. With flexible battery and PDU arrangements, integrated maintenance bypass, and intelligent network monitoring (SNMP/Modbus/Bacnet IP), it ensures seamless operation and protection for mission-critical infrastructure.
| Specification | Details |
|---|---|
| Manufacturer | Vertiv |
| Brand | Vertiv Liebert |
| Model | EXSV-15KXRN |
| Series | EXS |
| Form Factor | Tower |
| UPS Type | Online Double Conversion |
| Power Capacity | 15 kVA / 15 kW |
| Input Voltage | 120V / 230V AC |
| Output Voltage | 208V / 120V / 220V / 127V AC |
| Input/Output Connection | Hard Wire 4-wire (3PH + G) |
| Power Factor | 1 (Unity) |
| Phase | Three Phase |
| Frequency | Input: 40–70 Hz |
| Run Time (Full Load) | 18 minutes |
| Run Time (Half Load) | 49 minutes |
| Battery Type | Valve-regulated, Lead Acid |
| Battery Weight | 762.6 lbs |
| Dimensions (HxWxD) | 78.7" x 23.6" x 39.3" |
| Unit Weight | 1455 lbs |
| Environmental Monitoring | Temp & Humidity Sensors |
| Network Management | IS-Unity DP Card (SNMP, Modbus, BacNet, Relay) |
| Certifications | ENERGY STAR 2.0, UL 1778, CSA, RoHS, WEEE |
| Software | Vertiv Power Insight (Free Download) |
| Included Accessories | Quick Install Guide, Safety Info, Unity Card |
| Warranty | 1 Year Limited |
| Shipping Weight | 212 lbs |
